Product Description
Product Lines: Hydraulic Accessories
- 45° angled gauge improves reading
- Slim design
- Easy to fit in a broad range of systems
- Maximize controlled load movement
- Glycerine-dampened gauge with dual scale
- High-Flow female coupler CR400.

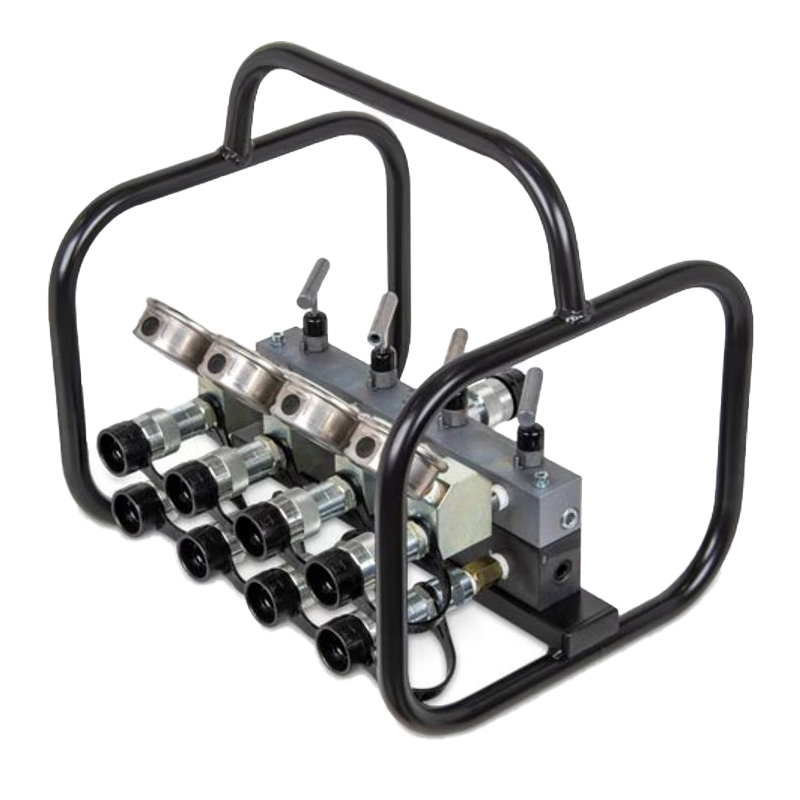

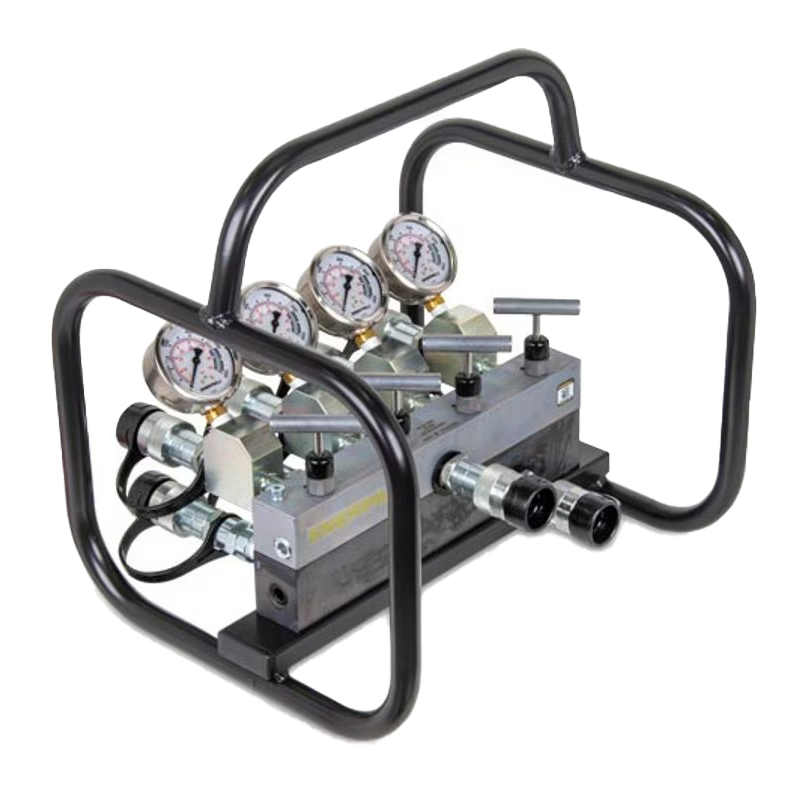

AMGC-Series, 4-Way Manifolds - Four glycerine-dampened 700 bar gauges improve safety
- All protected by the robust protection frame
- CR400 female couplers on all ports allow the
manifold to be quickly connected to up to 4 cylinders.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Dimension
Series Comparison
| Model Number | Manifold Type * (cylinders used) | Advance | Retract | Gauge ** | Weight(Kg) | ||
| Inlet | Outlet | Inlet | Outlet | ||||
| AMGC41 | 4x S/A | 1 | 4 | / | / | 4x G2535L | 10.8 |
| AMGC42 | 4x D/A | 1 | 4 | 4 | 1 | 4x G2535L | 17.4 |
S/A: single-acting; D/A: double-acting.
** Gauge Range: 0-700 bar, 0 – 10,000 psi.
