Product Description
Product Lines: Flange Aligning Tool
- The flange alignment tool is a simple and effective way to align any flange for any alignment job.
- All the operator has to do is to slide the thin end of the pin through the holes in the two flanges that most closely line up and turn the pin with a wrench. As the pin spins the holes will begin to line up.

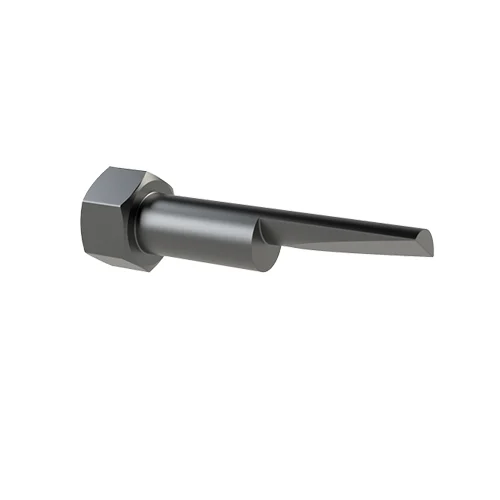

- The tool’s tapered shaft has a patented end. This detail eliminates the need for hammering, prying and pushing when attempting to line up flange bolt holes.
- If necessary you can use a second pin on the opposite side of the flange to get the flange to completely line up. At this point the operator can slide the bolts through the aligned bolt holes and tighten them up to the correct torque rating.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Bolt Hole Size | 3/8″ – 3-5/8″ |
| LENGTH | 2-1/8″ – 20″ |
| Weight:(KG) | 0.02-25 |
Image Gallery
Series Comparison
| Flange Aligning Tool | |||
| PART NO. | BOLT HOLE SIZE | LENGTH | WEIGHT(KG) |
| FT00 | 3/8″ | 2-1/8″ | 0.02 |
| FT0 | 1/2″ | 2-3/8″ | 0.07 |
| FT01 | 5/8″ | 2-3/4″ | 0.1 |
| FT02 | 3/4″ | 3-1/4″ | 0.2 |
| FT03 | 7/8″ | 3-1/2″ | 0.28 |
| FT04 | 1″ | 4″ | 0.42 |
| FT06 | 1-1/8″ | 5″ | 0.7 |
| FT08 | 1-1/4″ | 5-1/2″ | 0.9 |
| FT1012 | 1-3/8″ | 6-1/4″ | 1.3 |
| FT14 | 1-1/2″ | 6-1/2″ | 1.5 |
| FT16 | 1-5/8″ | 7-1/4″ | 1.9 |
| FT1820 | 1-3/4″ | 7-7/8″ | 2.1 |
| FT22 | 1-7/8″ | 8-3/8″ | 2.6 |
| FT2426 | 2″ | 9″ | 3 |
| FT30 | 2-1/8″ | 12″ | 4.8 |
| FT34 | 2-3/8″ | 13-1/4″ | 6.1 |
| FT3642 | 2-5/8″ | 14″ | 7.7 |
| FT48 | 2-7/8″ | 13-5/8″ | 11 |
| FT5054 | 3-1/8″ | 18″ | 16.1 |
| FT60 | 3-5/8″ | 20″ | 24.9 |
| EXTRA LONG | |||
| FT0L | 1/2″ | 5-3/8″ | 0.14 |
| FT01L | 5/8″ | 5-3/4″ | 0.22 |
| FT02L | 3/4″ | 6-1/4″ | 0.39 |
| FT03L | 7/8″ | 6-1/2″ | 0.5 |
| FT04L | 1″ | 7″ | 0.7 |
| FT06L | 1-1/8″ | 8″ | 1 |
| FT08L | 1-1/4″ | 8-1/2″ | 1.4 |
| FT1012L | 1-3/8″ | 9-1/4″ | 1.8 |
| FT14L | 1-1/2″ | 9-1/2″ | 2.1 |
| FT16L | 1-5/8″ | 10-1/4″ | 2.6 |
| FT1820L | 1-3/4″ | 10-7/8″ | 3 |
| FT22L | 1-7/8″ | 11-3/8″ | 3.7 |
| FT2426L | 2″ | 12″ | 4.2 |
| FT30L | 2-1/8″ | 15″ | 6.1 |
| FT34L | 2-3/8″ | 16-1/4″ | 7.8 |
| FT3642L | 2-5/8″ | 17″ | 9.5 |

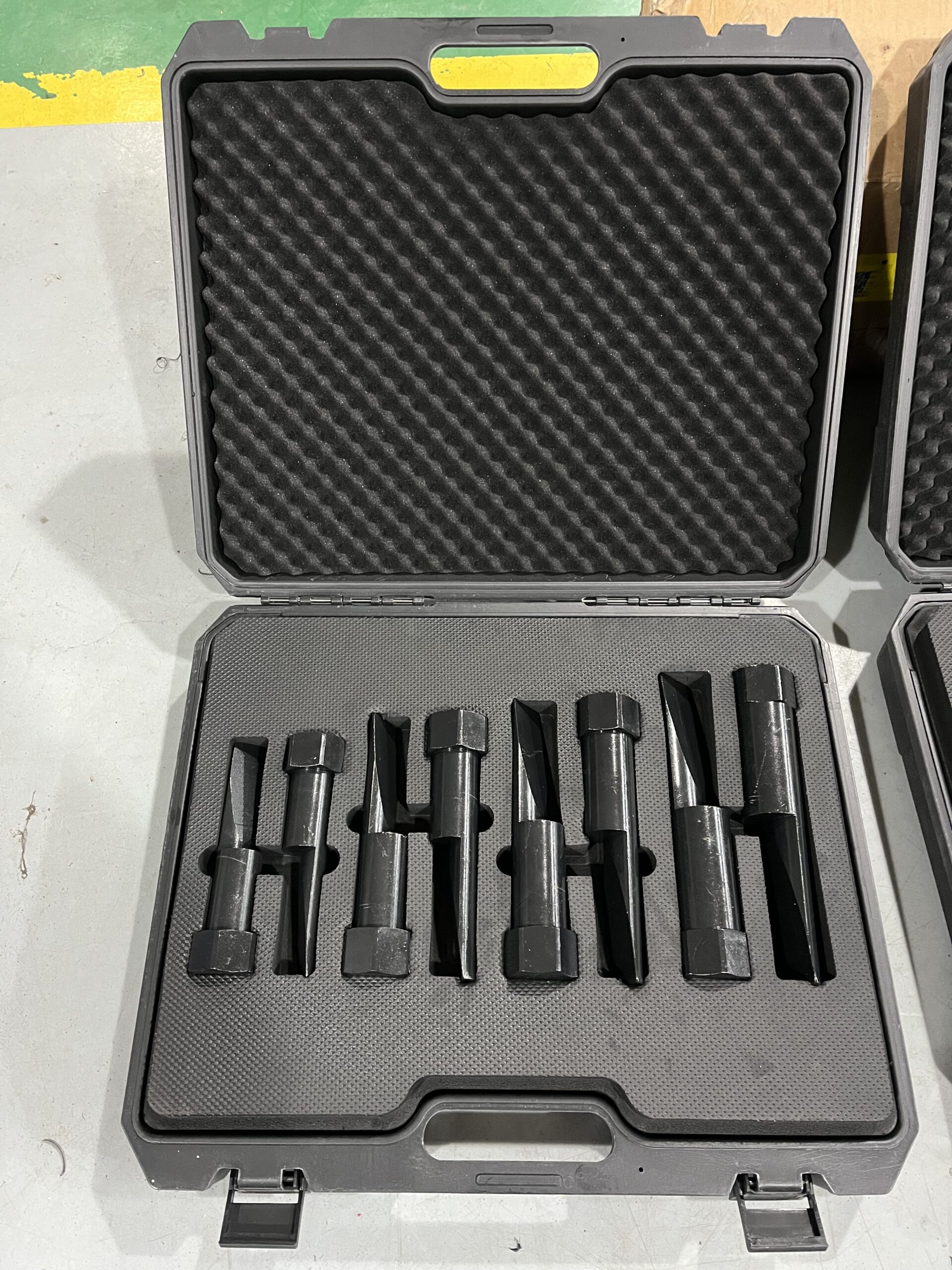

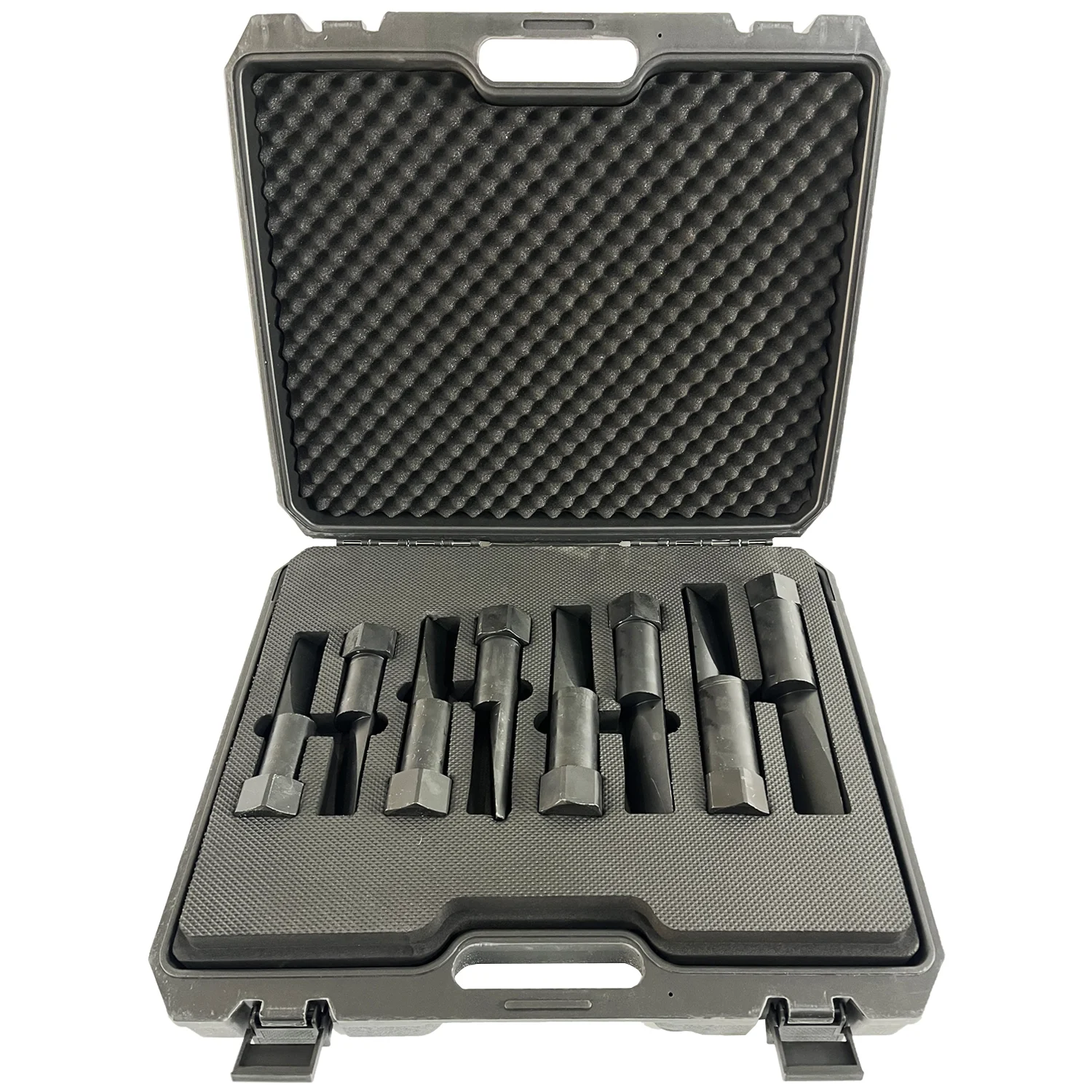

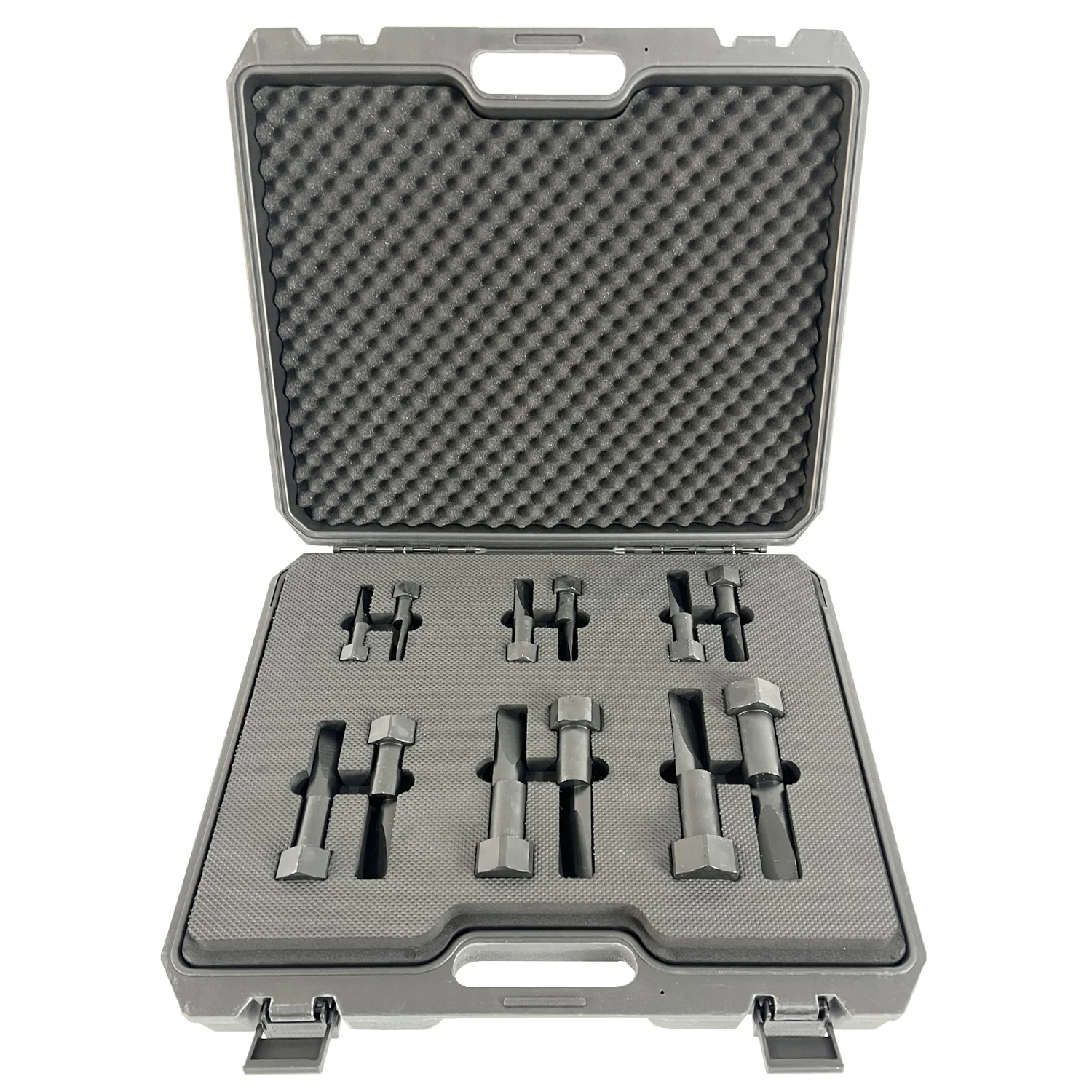

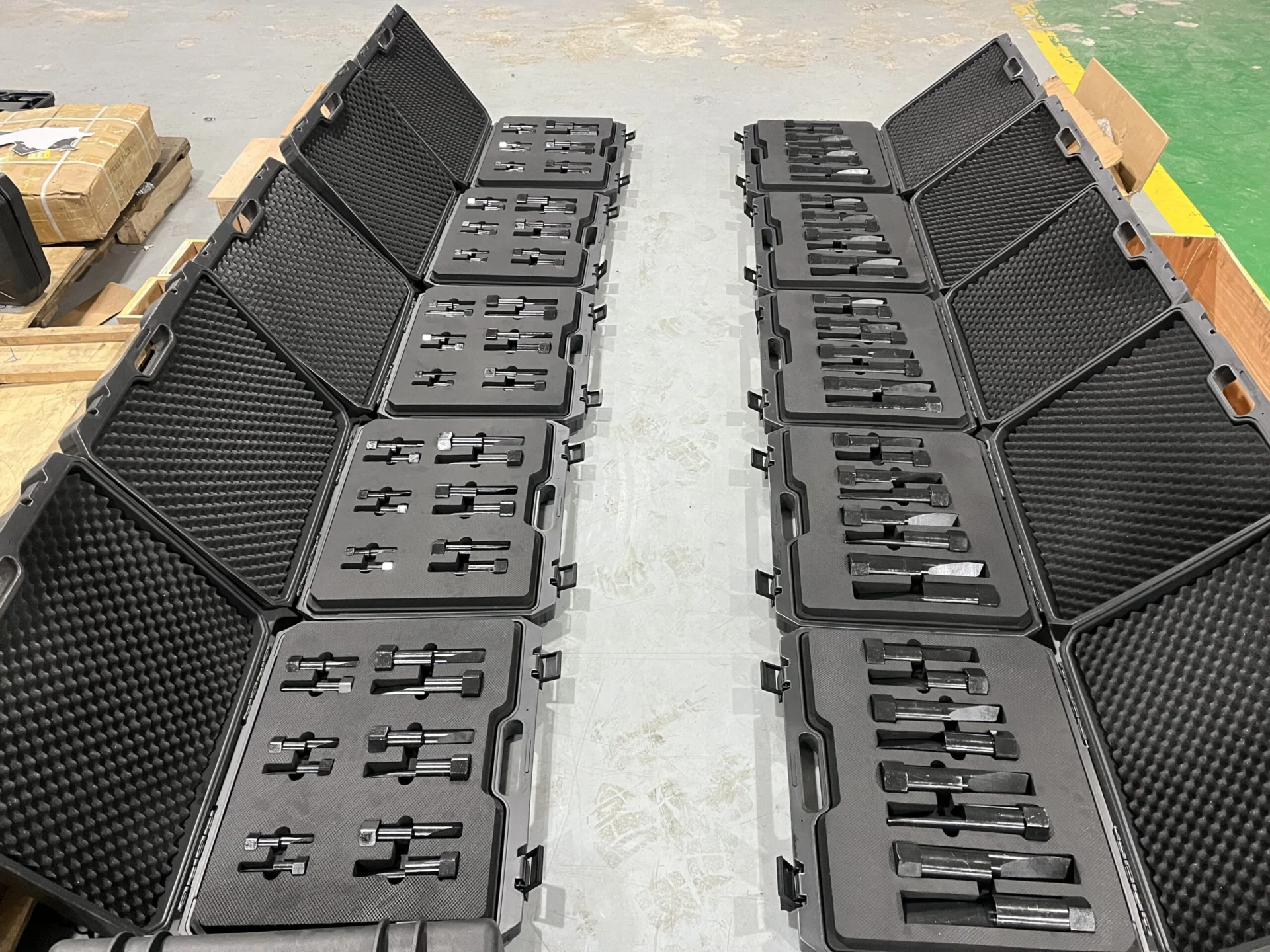

| Flange Aligning Tool Sets | |||
| PART NO. | SET INCLUDES 2 EACH: | WEIGHT(KG) | |
| FTS24 | FT02, FT03, FT04 | 5 | |
| FTS26 | FT02, FT03, FT04, FT06 | 6.4 | |
| FTS28 | FT02, FT03, FT04, FT06, FT08 | 8 | |
| FTS212 | FT02, FT03, FT04, FT06, FT08, FT1012 | 10.6 | |
| FTS1426 | FT14, FT16, FT1820, FT2426 | 21.2 | |
| EXTRA LONG | |||
| FTS24L | FT02L, FT03L, FT04L | 6.3 | |
| FTS26L | FT02L, FT03L, FT04L, FT06L | 8.3 | |
| FTS28L | FT02L, FT03L, FT04L, FT06L, FT08L | 10.9 | |
| FTS212L | FT02L, FT03L, FT04L, FT06L, FT08L, FT1012L | 14.6 | |
