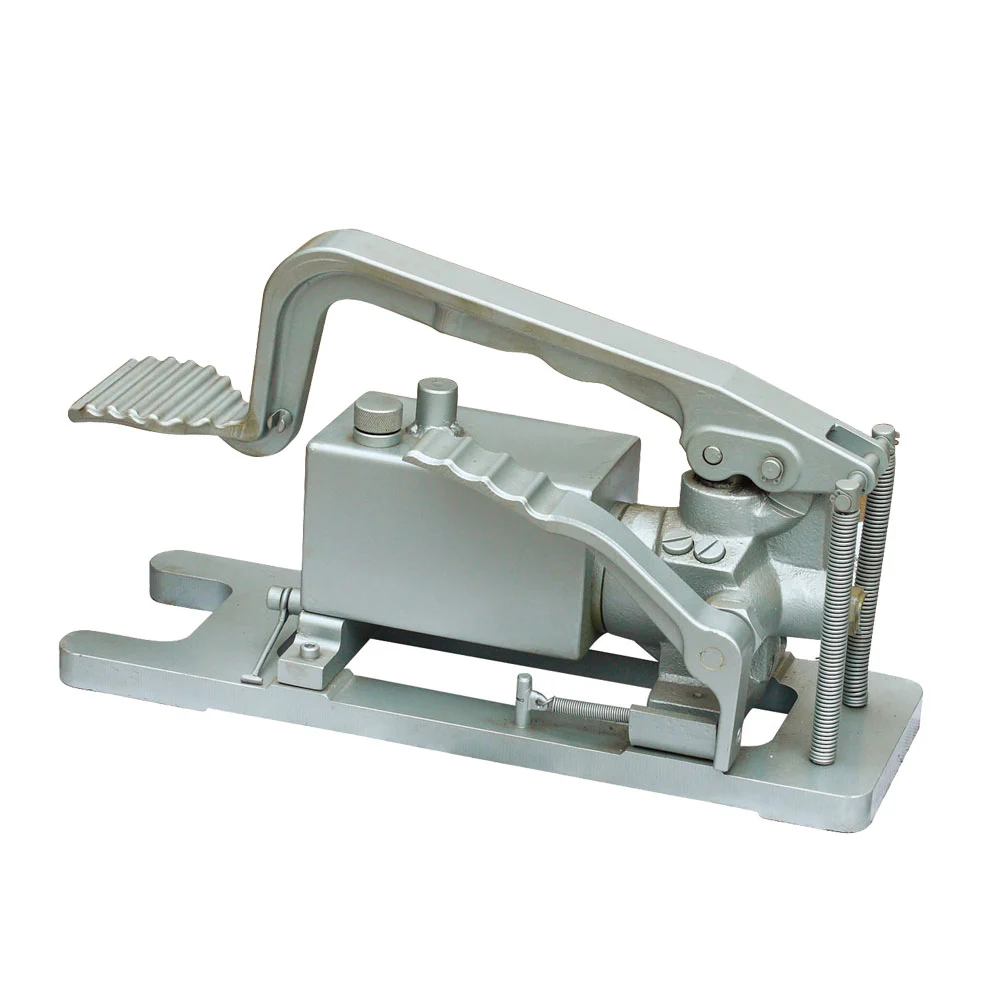

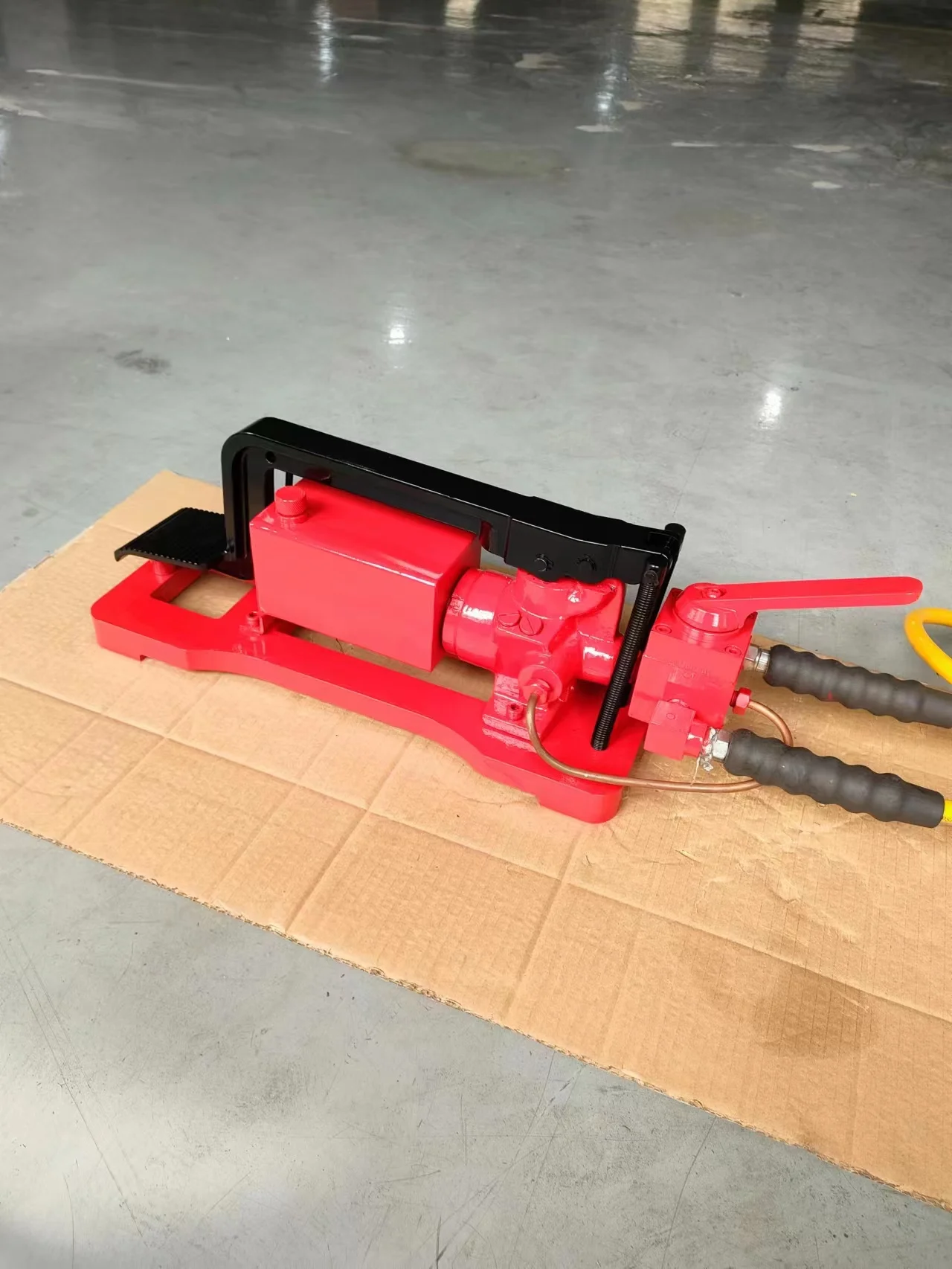

FP-50, Hydraulic Foot Pump

Pullertop FP50 hydraulic foot pump comes with a oil capacity of 492cm3 and a pedal design large unloading valve,it is an ideal solution to control slow lowering operation of the load.

Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Foot Pump

  • The use of high-strength alloy steel materials and frame design improves the service life and durability of the product.
  • Pedal operation
  • Pedal-type large unloading valve, easy to control the load to drop slowly.
  • There is a vent hole in the oil tank, and the pump can absorb oil more smoothly.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Oil Capacity: 492cm3
Pump Type: Single Speed
Maximum Operating Pressure : 70Mpa
Weight: 15Kg

Series Comparison

Model Usable Oil Capacity/cm3 Pump Type First Stage Pressure/bar Second Stage Pressure/bar Oil Displacement Per Stroke 1st Stage (cm3) Oil Displacement Per Stroke 2nd Stage (cm3) Piston Stroke Weight/Kg
FP-50 492 Single speed 15 700 11 2.47 25.4 15
