FSH15, 14 Ton Integral Hydraulic Flange Spreader

The FSH1-14 is a 14-ton integral hydraulic spreader manufactured by Pullertop. It is designed to hydraulically spread flange joints with a minimum access gap of 6.0mm,flange plates can be opened up to 81mm range.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Integral Hydraulic Flange Spreader

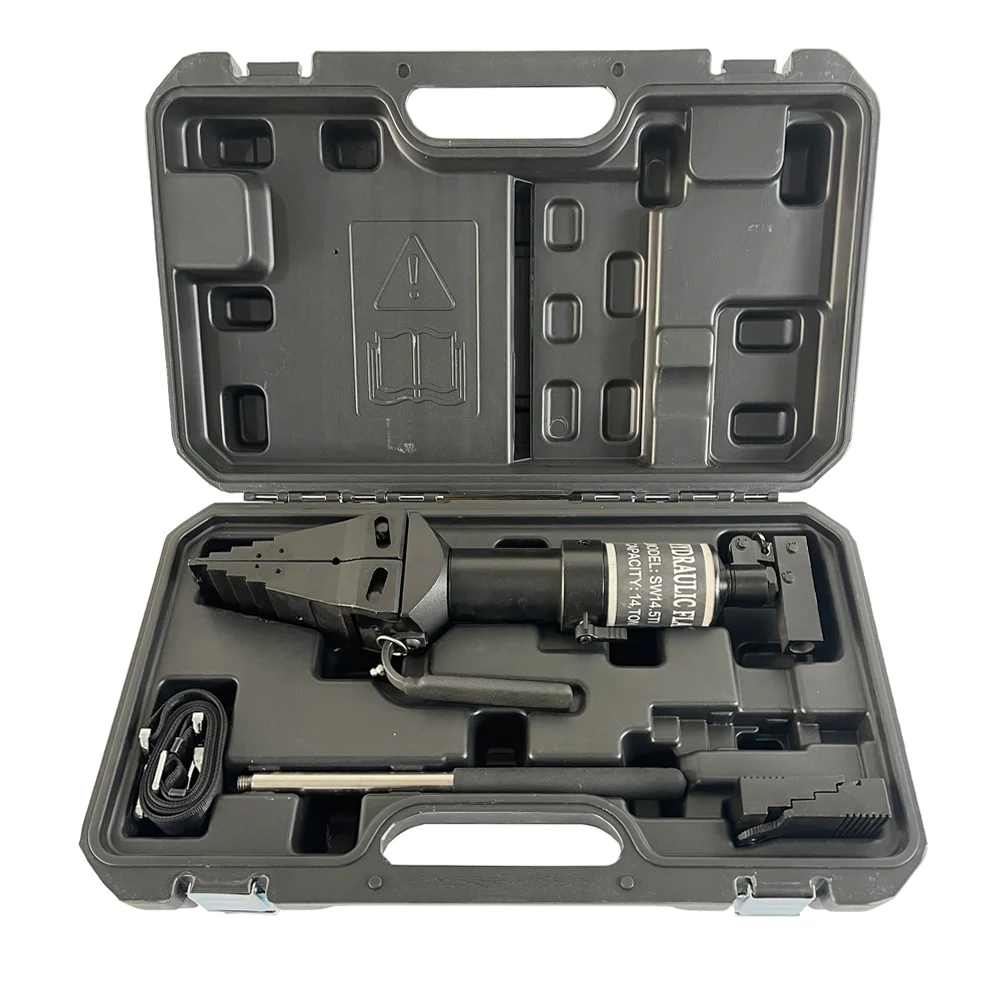

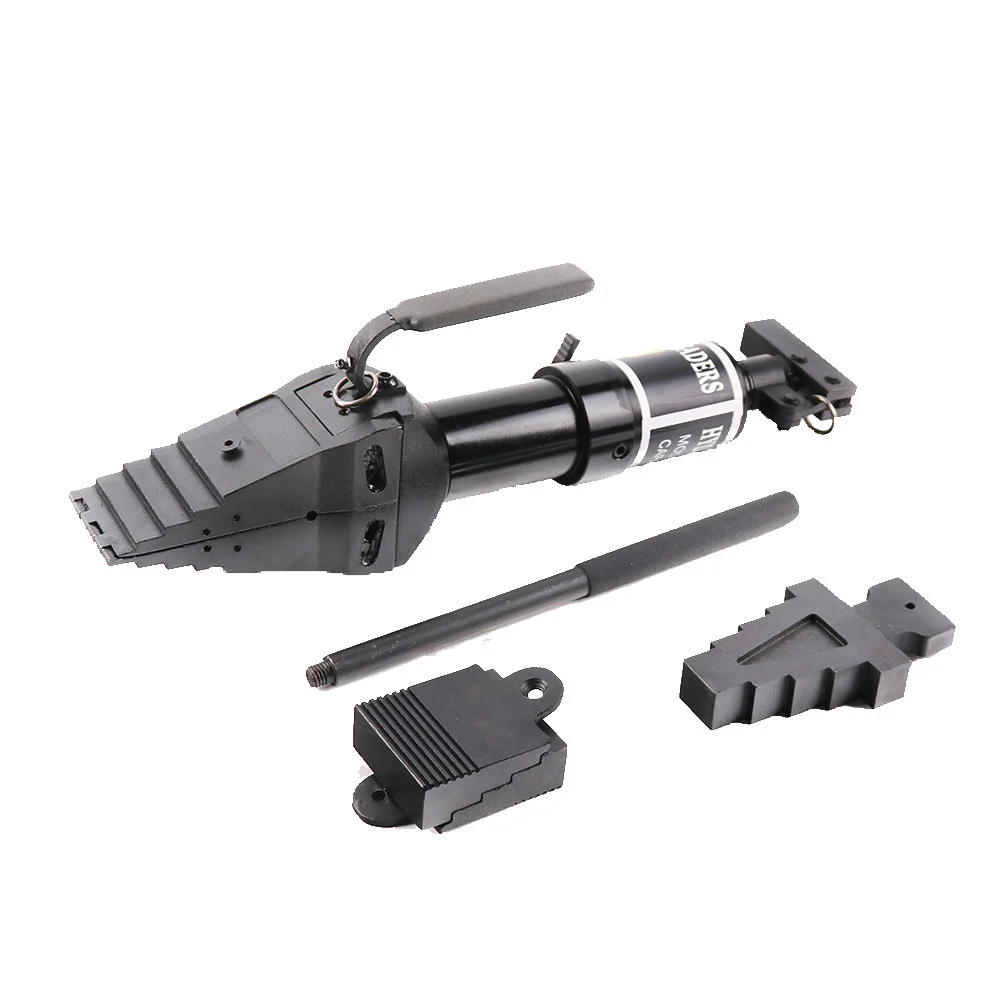

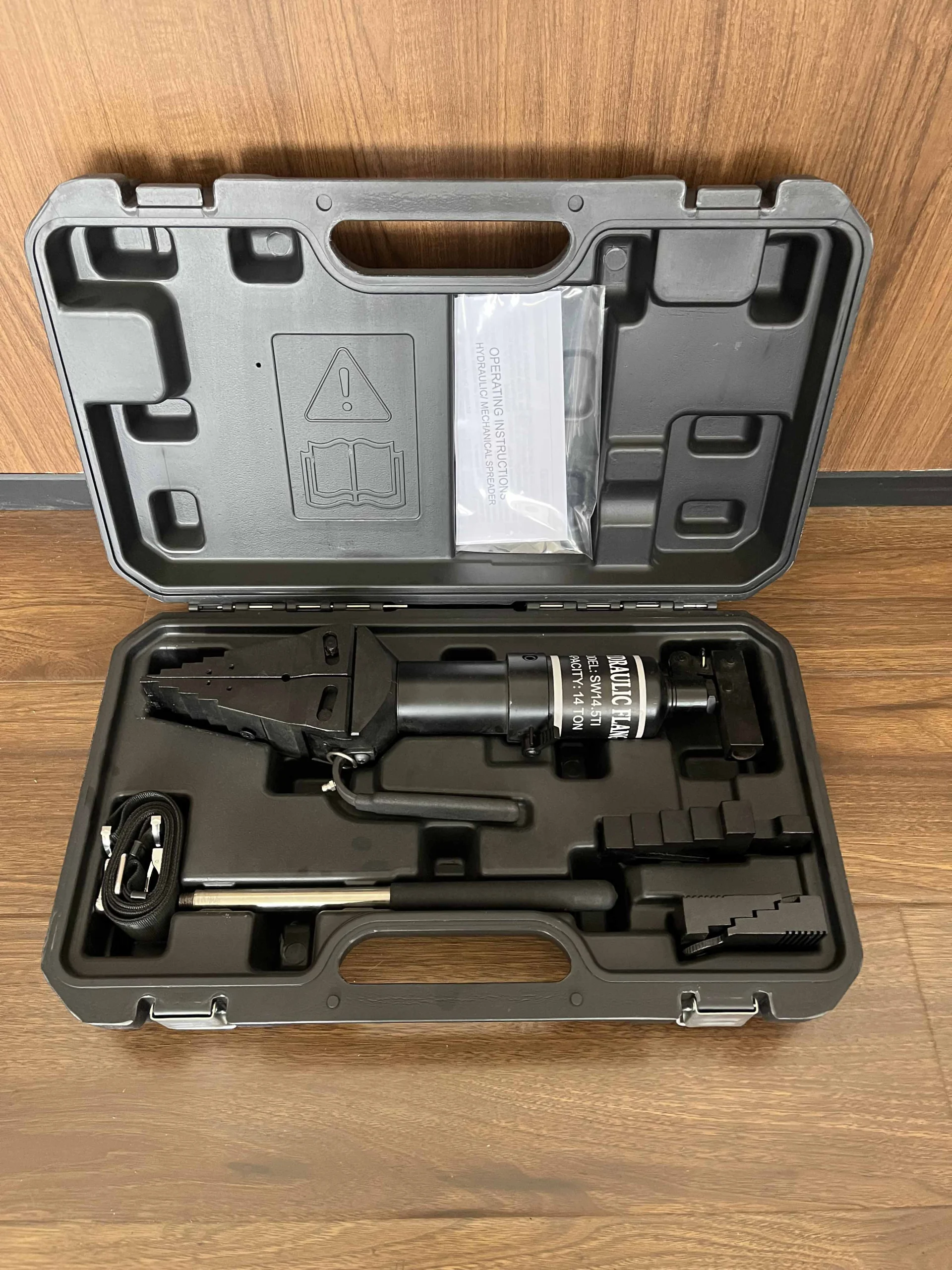

  • Tool Kit Inclusions:
  • 1 X FSH15 Wedgehead
  • 1 X 700bar Integral Hydraulic Pump/Jack
  • 1 X Safety Block;1 X Pair of Stepped Blocks
  • 1 X Carry Strap; 1 X Carry Case.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 15
Maximum Spread (mm) 81
Tip Clearance (mm) 6
Power Source Integral Hydraulic Type
Weight: 10

Series Specifications

Series Comparison

Model Capacity/Ton Maximum Spread/mm Tip Clearance/mm Jaw Width/mm Oil Capacity/cm3 Power Weight/Kg
FSH-15 15 81 6 * * Integral Hydraulic Type 10
FSW25TE, 24 103,5 6 60 250 Split Hydraulic Power 15
FSW25TI 24 103.5 6 60 * Integral Hydraulic Type 18.1
FSW14TM 14 103.5 6 60 * Mechanical Type 13
