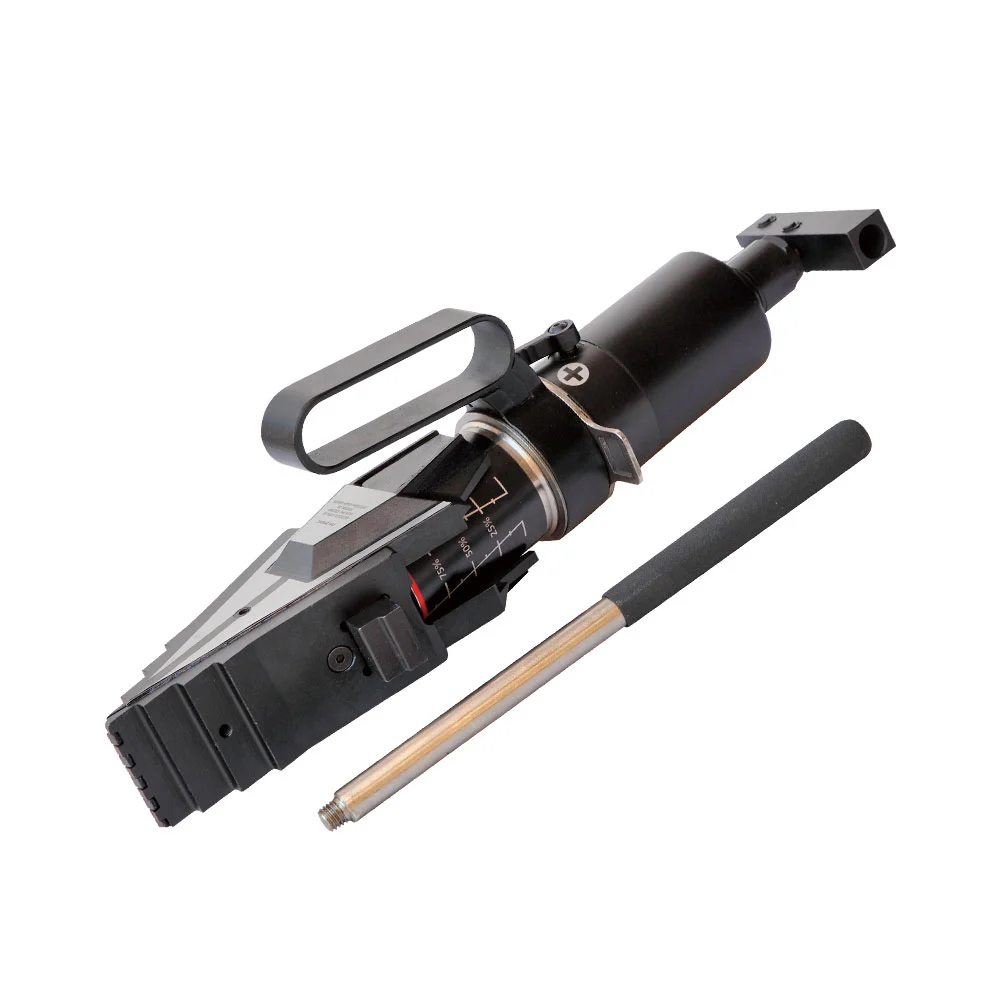

SWi2025TI, 24 Ton Integral Hydraulic Flange Spreader

Pullertop supplies full ranges of hydraulic flange spreaders, our flange spreader tools are normally used for separating flanges, widely being used in industrial applications such as pipeline maintenance, pipeline construction, testing and flange replacement, maintenance gaskets, pressure vessels, cylinder head opening, power plants, bearing disassembly, oil and electricity drilling, motor rotor disassembly, offshore platforms, jacking work, Shipbuilding, industrial equipment, horizontal movement of workpieces and so on. Tool selection is made on the basis of the access gap between the flange faces, the flange size, and the required scope of work.

Upload File

Product Description

Product Lines: Integral Hydraulic Flange Spreader

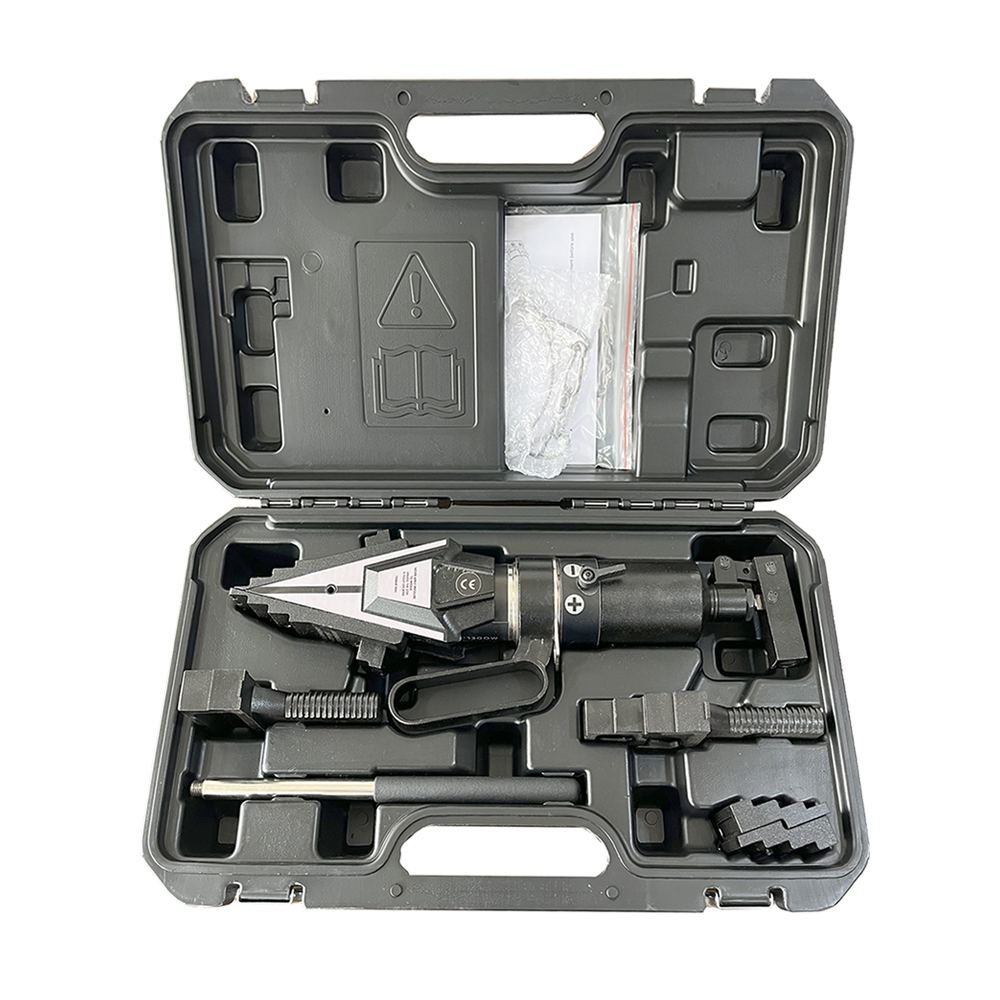

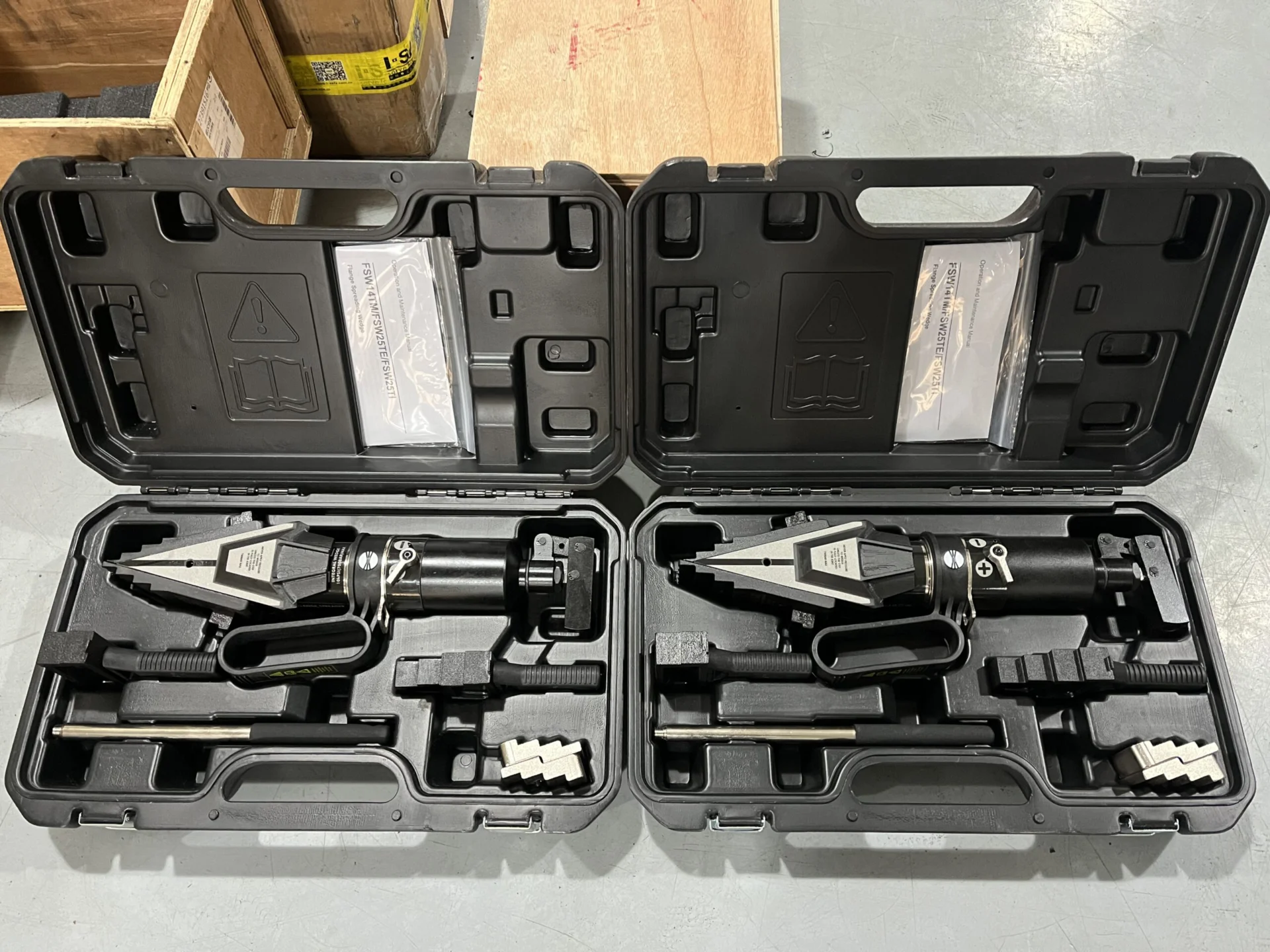

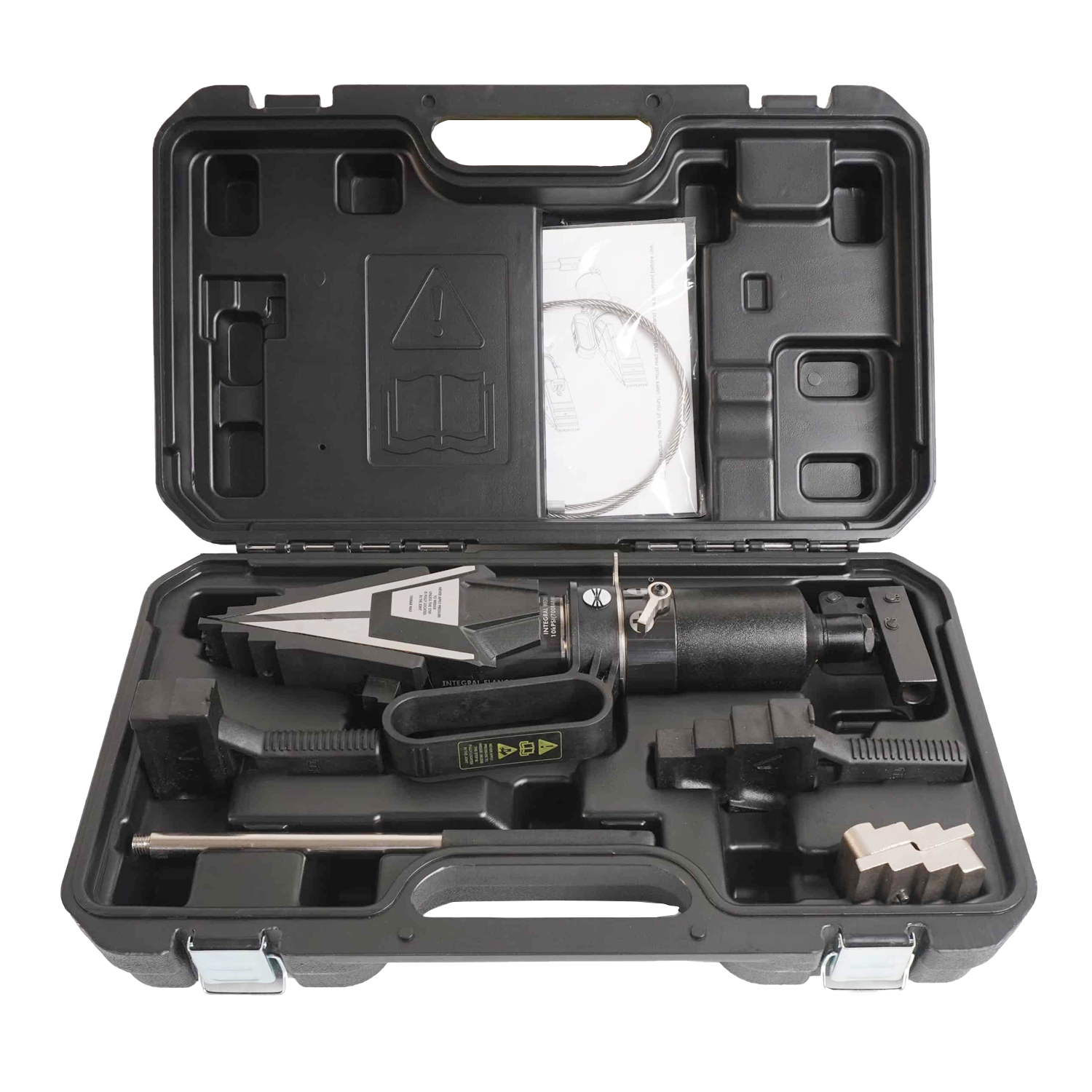

Tool Kit Inclusions:

  • 1 x SWi2025TI Flange Spreader Wedgehead
  • 1 x 10,000psi (700bar) Integral Hydraulic Pump/Cylinder
  • 1 x Set of Safety Blocks
  • 1 x Pair of Stepped Blocks
  • 1 x Lanyard
  • 1 x Hex Key
  • 1 x Carry-Strap
  • 1 x Instruction Manual
  • 1 x Carry Case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

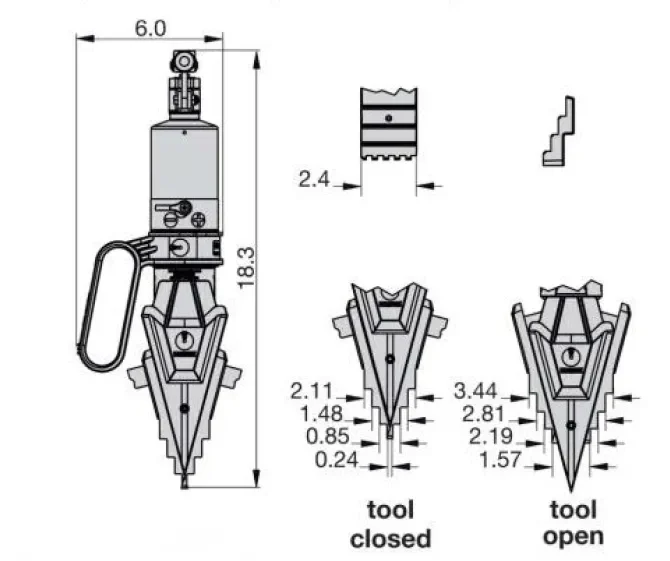

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 24
Maximum Spread (mm) 103.5
Tip Clearance (mm) 6
Jaw Width(mm) 60
Power Source Integral Hydraulic Type
Weight: 18.1

Series Specifications

Series Comparison

Model Capacity/Ton Maximum Spread/mm Tip Clearance/mm Jaw Width/mm Oil Capacity/cm3 Power Weight/Kg
SWi2025TE 24 103,5 6 60 250 Split Hydraulic Power 15
SWi2025TI 24 103.5 6 60 * Integral Hydraulic Type 18.1
SWi1214TM 14 103.5 6 60 * Mechanical Type 13
SW14.5Tl 15 81 6 * * Integral Hydraulic Type 10

Product Description

Product Lines: Integral Hydraulic Flange Spreader

Tool Kit Inclusions:

  • 1 x SWi2025TI Flange Spreader Wedgehead
  • 1 x 10,000psi (700bar) Integral Hydraulic Pump/Cylinder
  • 1 x Set of Safety Blocks
  • 1 x Pair of Stepped Blocks
  • 1 x Lanyard
  • 1 x Hex Key
  • 1 x Carry-Strap
  • 1 x Instruction Manual
  • 1 x Carry Case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)24
Maximum Spread (mm)103.5
Tip Clearance (mm)6
Jaw Width(mm)60
Power SourceIntegral Hydraulic Type
Weight:18.1

Series Specifications

Series Comparison

ModelCapacity/TonMaximum Spread/mmTip Clearance/mmJaw Width/mmOil Capacity/cm3PowerWeight/Kg
SWi2025TE24103,5660250Split Hydraulic Power15
SWi2025TI24103.5660*Integral Hydraulic Type18.1
SWi1214TM14103.5660*Mechanical Type13
SW14.5Tl15816**Integral Hydraulic Type10
