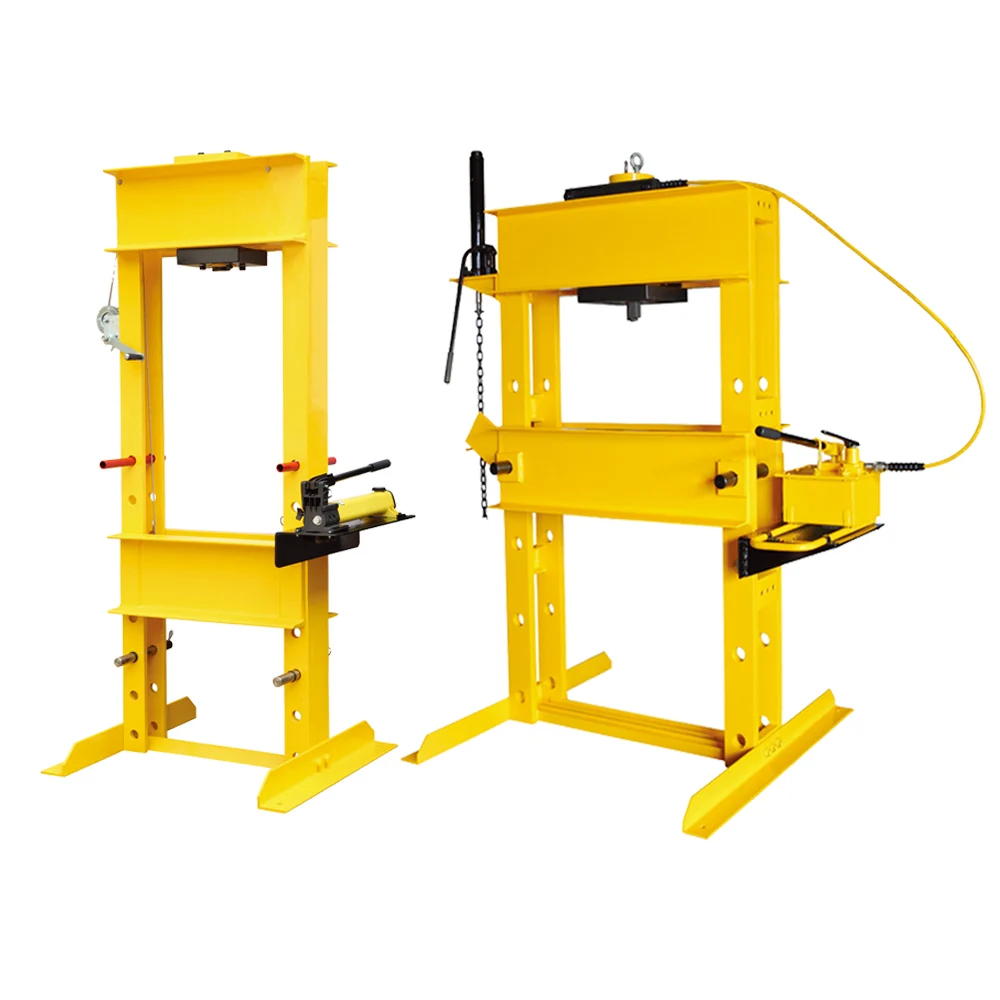

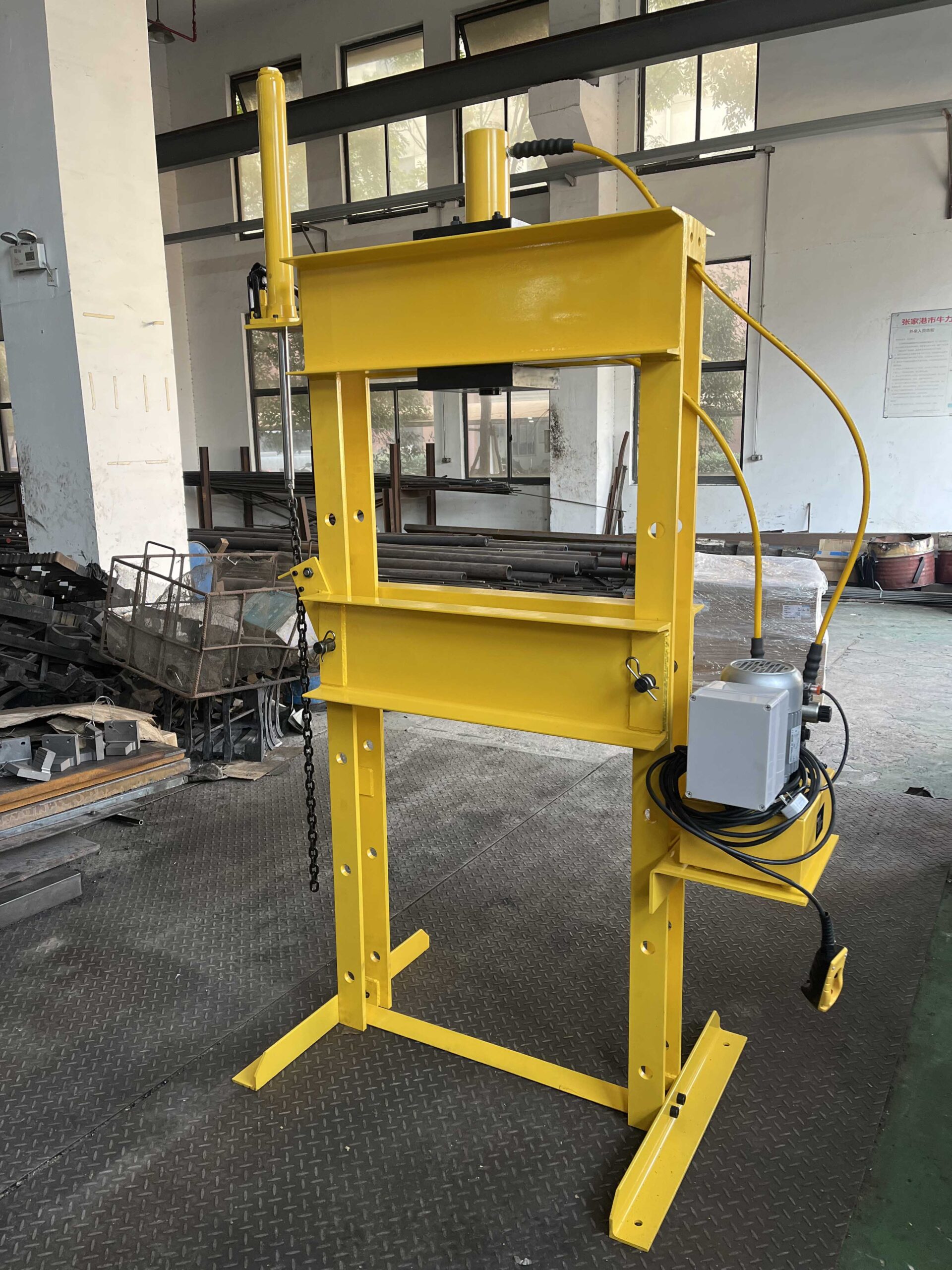

H-Frame Hydraulic Press
PullerTop Hydraulic Presses are available in a wide variety of standard capacities and configurations, or you can “build your own” with the easy-to-use matrix. The press capacities range from 10-ton to 200-ton and are available in Bench,, H-Frame and Roll-Frame models.
Product Description
Product Lines: Hydraulic Press
- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift™” bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side
- All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery

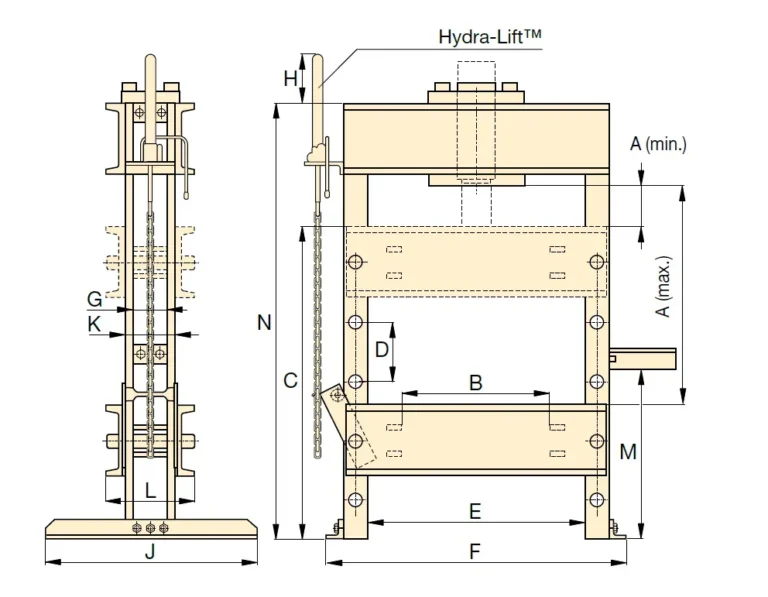

Dimension
Series Comparison
| Model Number | Capacity(T) | Distance A(mm) | Max Distance E(mm) | Cylinder models | Stroke(mm) | Fast forward speed (mm/sec) |
Stamping speed (mm/sec) |
Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| IPE-1215 | 10T | 62-1016 | 473 | RC1010 | 254 | 28.2 | 3.8 | 135 |
| IPA-1220 | 8.5 | 2.3 | 72 | |||||
| IPH-1240 | 7.8 | 1.7 | 71 | |||||
| IPH-1234 | 11 | 1.7 | 85 | |||||
| IPH-1244 | 8.5 | 2.3 | 73 | |||||
| IPE-2505 | 25T | 177-1384 | 736 | RC256 | 152 | 16 | 1.6 | 274 |
| IPE-2510 | RC2514 | 355 | 23 | 3.6 | 313 | |||
| IPA-2520 | RC2514 | 355 | 3.6 | 1 | 276 | |||
| IPH-2531 | RC2514 | 355 | 4.9 | 0.7 | 281 | |||
| IPA-3071 | 30T | 177-1384 | 736 | RR-3014 | 355 | 42 | 0.6 | 310 |
| IPE-3060 | RR-3014 | 355 | 18 | 2.8 | 325 | |||
| IPH-3080 | RR-3014 | 355 | 3.6 | 0.7 | 301 | |||
| IPE-5010 | 50T | 179-1233 | 730 | RC-5013 | 330 | 20 | 1.9 | 495 |
| IPA-5021 | RC-506 | 152 | 25 | 0.3 | 439 | |||
| IPH-5030 | RC-506 | 152 | 19 | 0.7 | 439 | |||
| IPH-5031 | RC-506 | 152 | 2.3 | 0.3 | 420 | |||
| IPE-5005 | RC-506 | 152 | 7.7 | 0.8 | 421 | |||
| IPA-5073 | RC-5013 | 330 | 26 | 0.8 | 479 | |||
| IPE-5060 | RC-5013 | 330 | 20 | 1.9 | 499 | |||
| IPH-5080 | RC-5013 | 330 | 19 | 0.7 | 455 | |||
| IPA-10023 | 100T | 177-1079 | 889 | RC10010 | 254 | 14 | 0.4 | 750 |
| IPE-10010 | RC10010 | 254 | 14 | 1 | 776 | |||
| IPH-10030 | RC10010 | 254 | 10 | 0.4 | 751 | |||
| IPE-10060 | RR-10013 | 330 | 11 | 1 | 816 | |||
| IPH-10080 | RR-1006 | 152 | 10 | 0.4 | 755 | |||
| IPE-15065 | 150T | 317-1231 | 1219 | RR15013 | 330 | 9 | 1.4 | 1794 |
| IPE-20065 | 200T | 317-1231 | 1219 | RR-20013 | 330 | 6.7 | 1 | 1794 |
