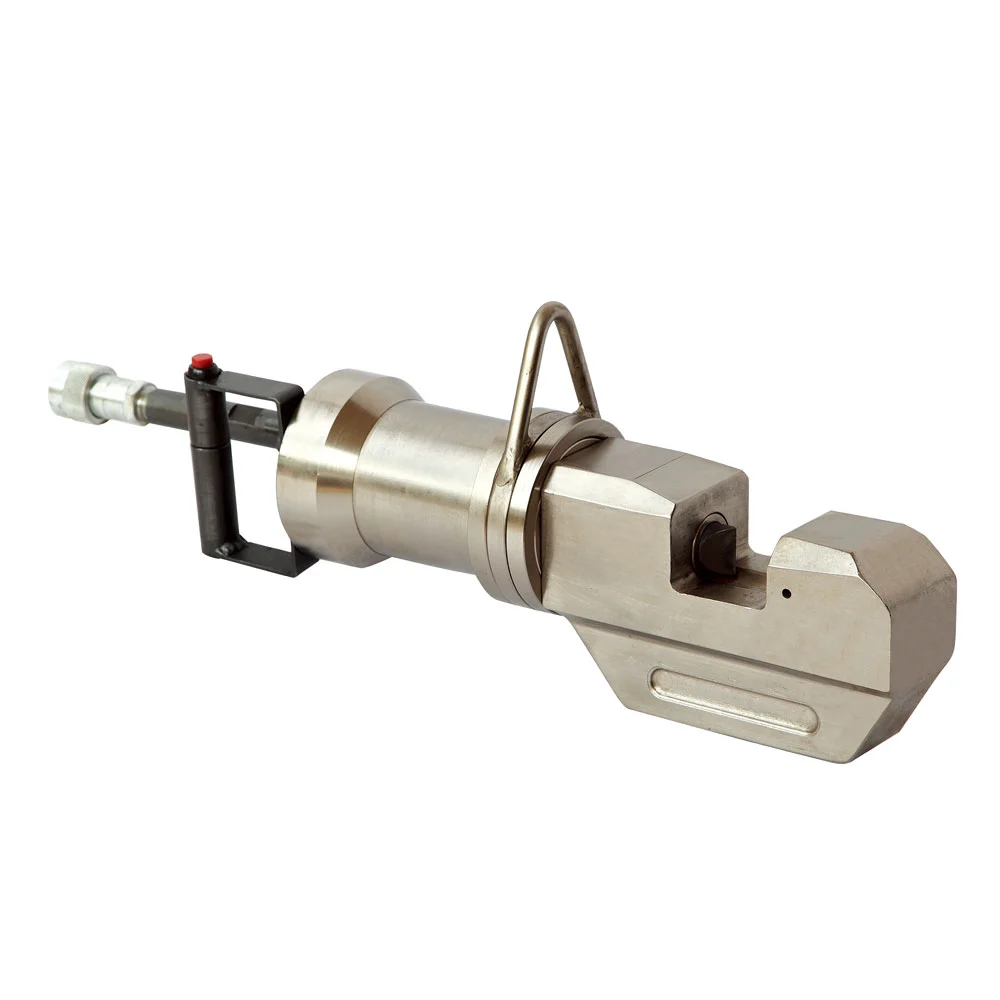

Hydraulic Steel Bar Cutter

Pullertop hydraulic steel bar cutters are driven by a specialized external hydraulic pump for optimal power and a higher duty cycle compared with other cutter types. These cutters are ideal for use in production or manufacturing facilities with demanding, high-volume cutting applications.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Cutter

  • Your fast, safe and simple solution for cutting metal bar
  • Driven by a specialized external hydraulic pump for optimal power and a higher duty cycle compared with other cutter types. These cutters are ideal for use in production or manufacturing facilities with demanding, high-volume cutting applications.
  • Highly durable, long-lasting blades outlast angle grinder or saw blades
  • Controlled cutting process enhances user safety compared with use of cut-off blades
  • Minimal spark risk compared to torching, grinding and sawing methods
  • Safety guard helps protect hands from injury.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

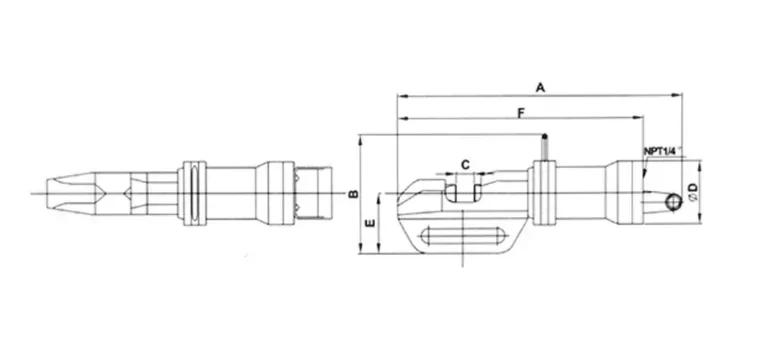

Dimension

Series Comparison

Model Cutting Type Capacity/Ton Max Cutting Dia/mm A/mm B/mm C/mm D/mm E/mm Blade Type Weight/Kg
RC140 Mixed 15 14 397 247 22 144 * EG0140 11
RC150 Faced 20 16 420 200 25 105 90 EG0150 14
RC350 Faced 35 25 580 240 30 128 122 EG0350 34
RC450 Mixed 45 32 580 246 38.5 138 114 EG0450 48
