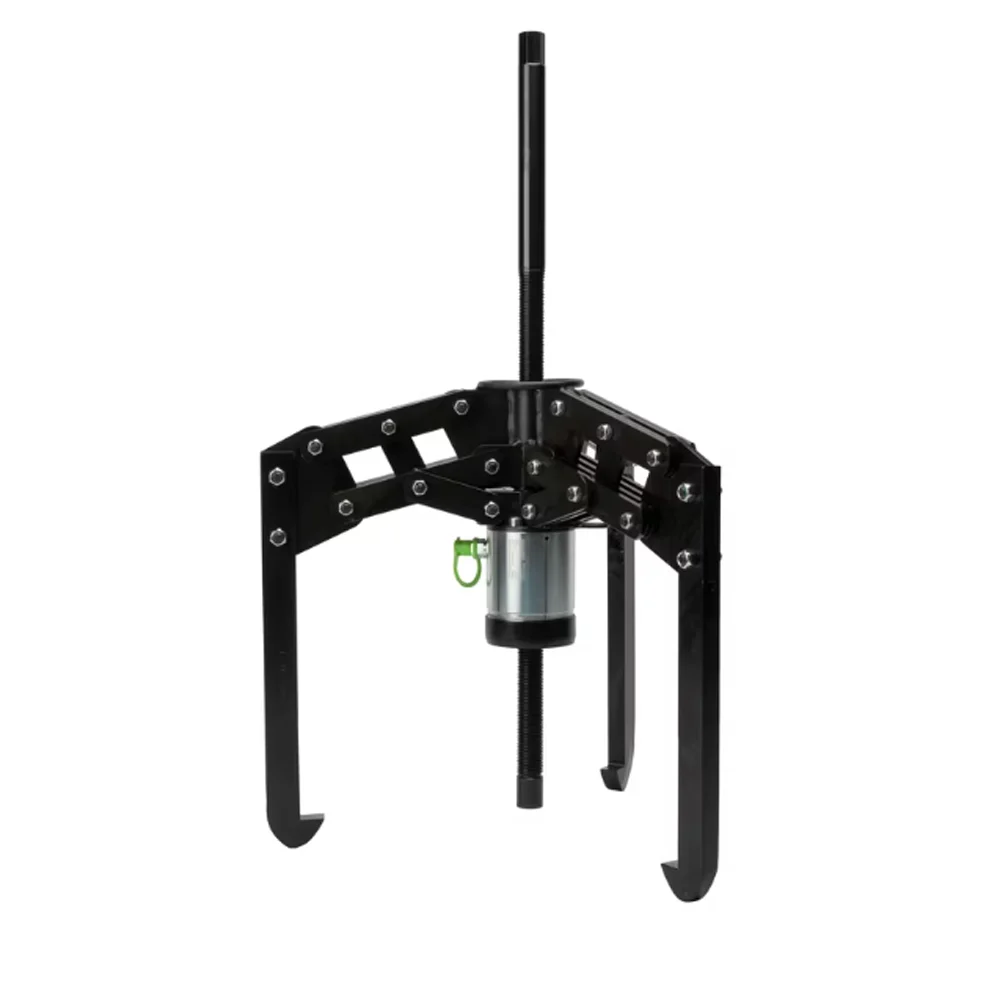

Hydraulically Assisted Heavy Duty Jaw Pullers ，TMHP series
The hydraulically-assisted pullers TMHP 15, TMHP 30 and TMHP 50 provide new combined forces of puller power and safety. They are self-centring pullers for the occasions when large forces are inevitable.
Product Description
Series: TMHP Series
- High forces can be easily applied as the puller is self-centring
- The combination of a spindle and hydraulic cylinder allows the working length
to be easily adjusted - Unique pantograph system gives exceptional grip and helps counteract
misalignment during operation - Equipped with a lifting handle and eye bolt, facilitates easy handling
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Comparison
| Model No. | Capacity（T） | Maximum working pressure（Mpa） | Stroke(mm) | Spread（mm） | Reach（mm） | Weight(Kg) |
|---|---|---|---|---|---|---|
| TMHP 15/260 | 15 | 80 | 100 | 195-386 | 264 | 31 |
| TMHP 30/170 | 30 | 80 | 50 | 290-500 | 170 | 43 |
| TMHP 30/350 | 30 | 80 | 50 | 290-500 | 350 | 54 |
| TMHP 30/600 | 30 | 80 | 50 | 290-500 | 600 | 58 |
| TMHP 50/140 | 50 | 80 | 40 | 310-506 | 140 | 60 |
| TMHP 50/320 | 50 | 80 | 40 | 310-506 | 320 | 65 |
| TMHP 50/570 | 50 | 80 | 40 | 310-506 | 570 | 72 |
