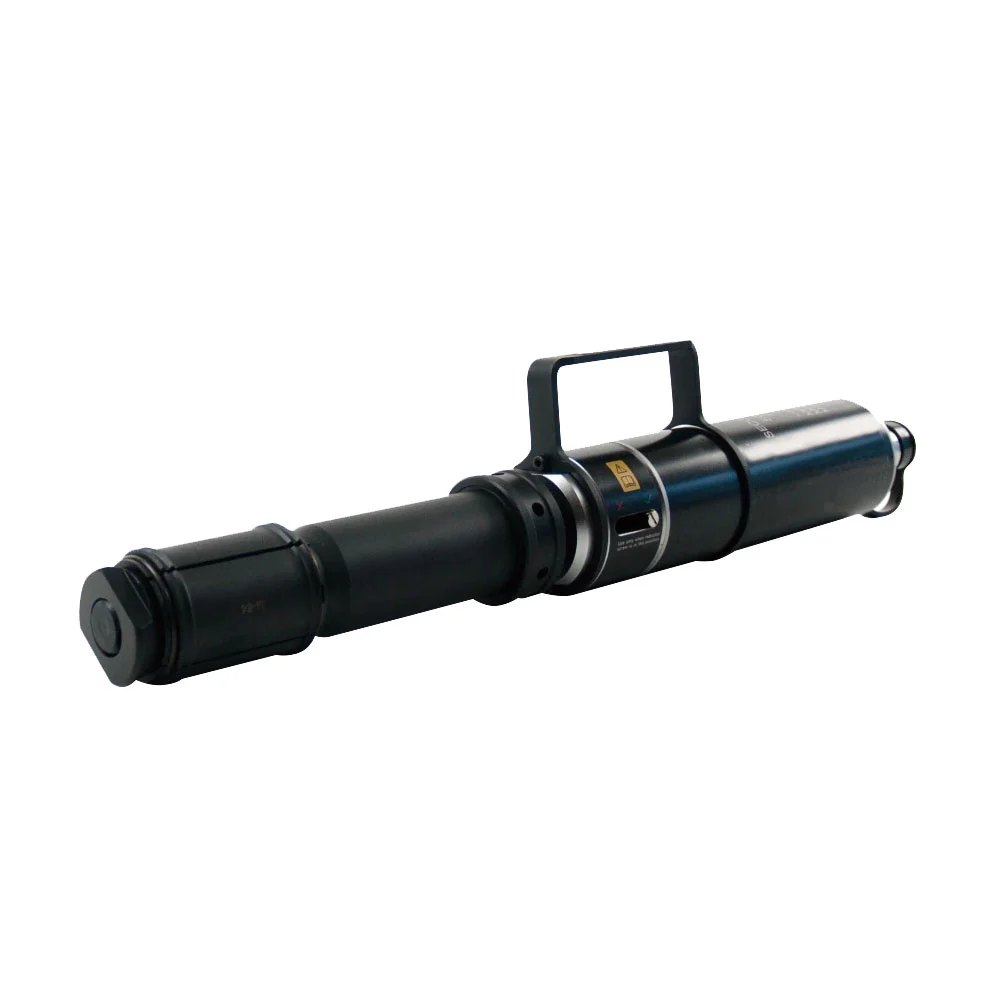

Mechanical & Hydraulic Secure-Grip Flange Spreader

Compared with other flange separators, the collect style flange spreaders can separate flanges with 0mm gaps and has a larger output option (up to 25 tons). It is suitable for pipeline maintenance, repair, testing, and flange replacement applications while causing no flange damage.

Upload File

Product Description

Product Lines: Collect Style Flange Spreaders

  • Suitable for pipeline maintenance,repair,testing and flange replacement applications without causing flange damage
  • Compared with other flange seperators,it can seperate flanges with zero clearance and has a larger output option(up to 25 tons)

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

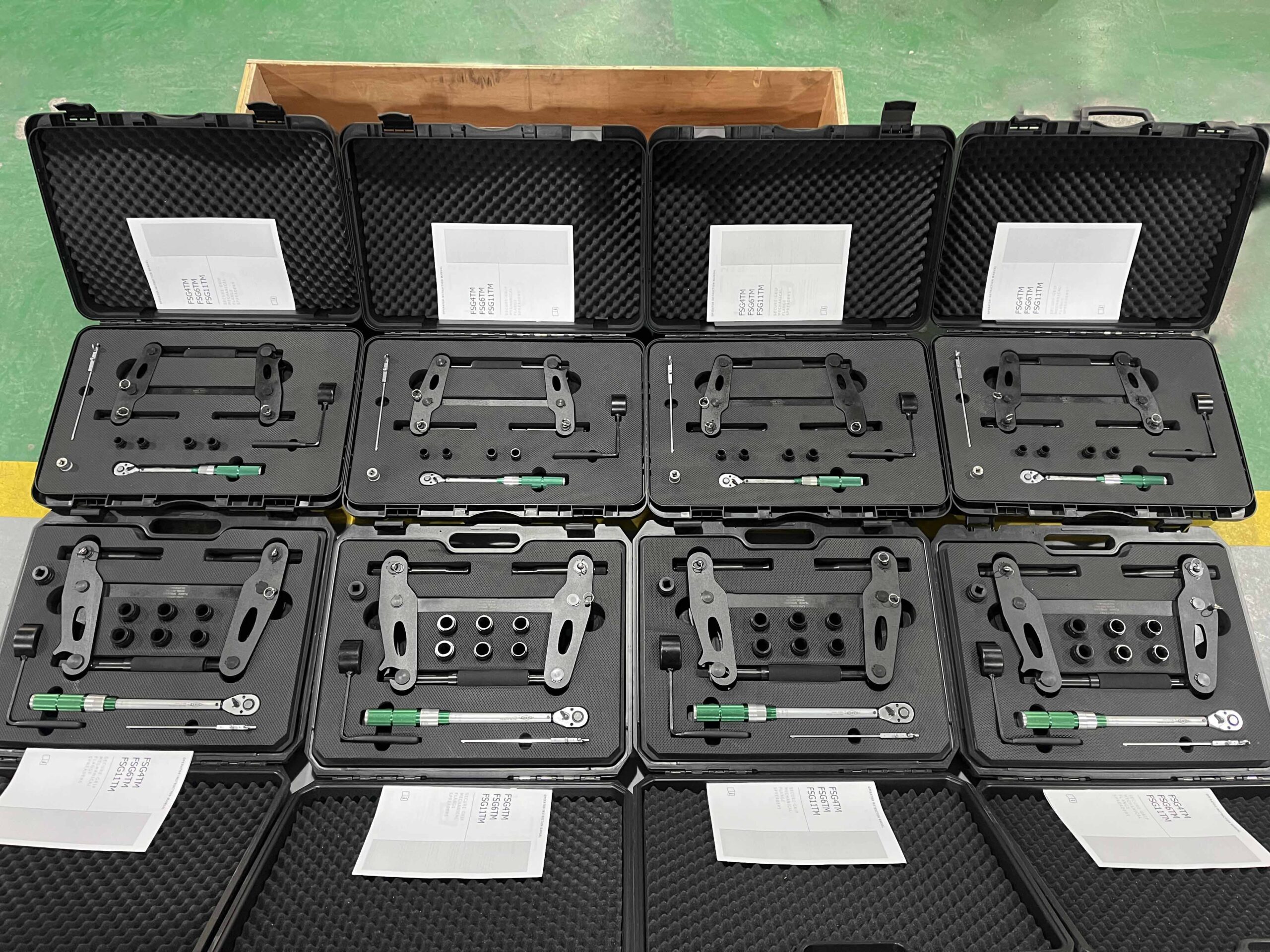

Image Gallery

Series Specifications

Maximum Spreading Force (ton) 4-25
Maximum Spread (mm) 75-120
Tip Clearance (mm) 0
Weight: 12.8-50

Series Comparison

Model Capacity(Ton) Max Spread(mm) Tip Clearance(mm) Type Usable On Flanges Specified To Accept The Following Bolt Sizes Oil Capacity (cm3) Weight(Kg)
SG4TM 4 75 0 Mechanical M16,M20,5/8”,3/4” * 12.8

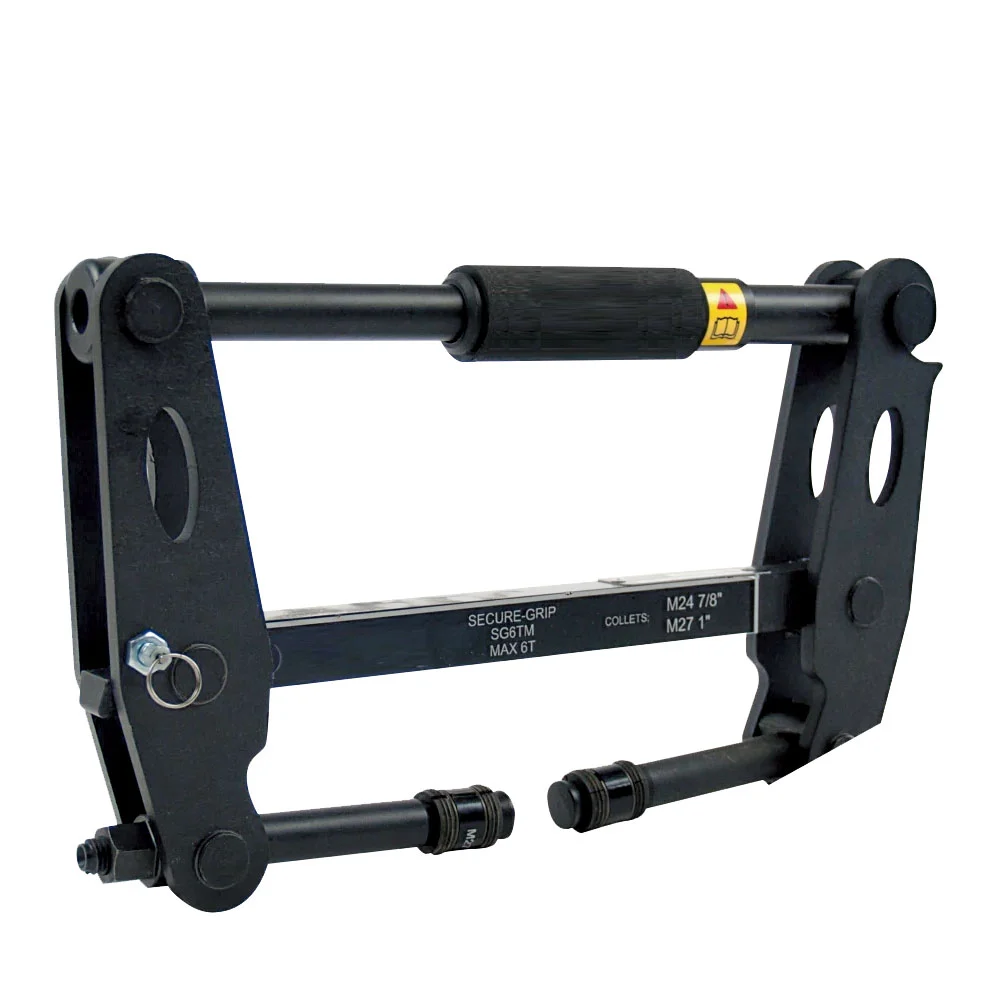

SG6TM 6 80 0 Mechanical M24,M27,7/8”,1” * 16
SG11TM 11 90 0 Mechanical M30,M33,M36,1 1/8”,1 1/4”,1 3/8” * 20

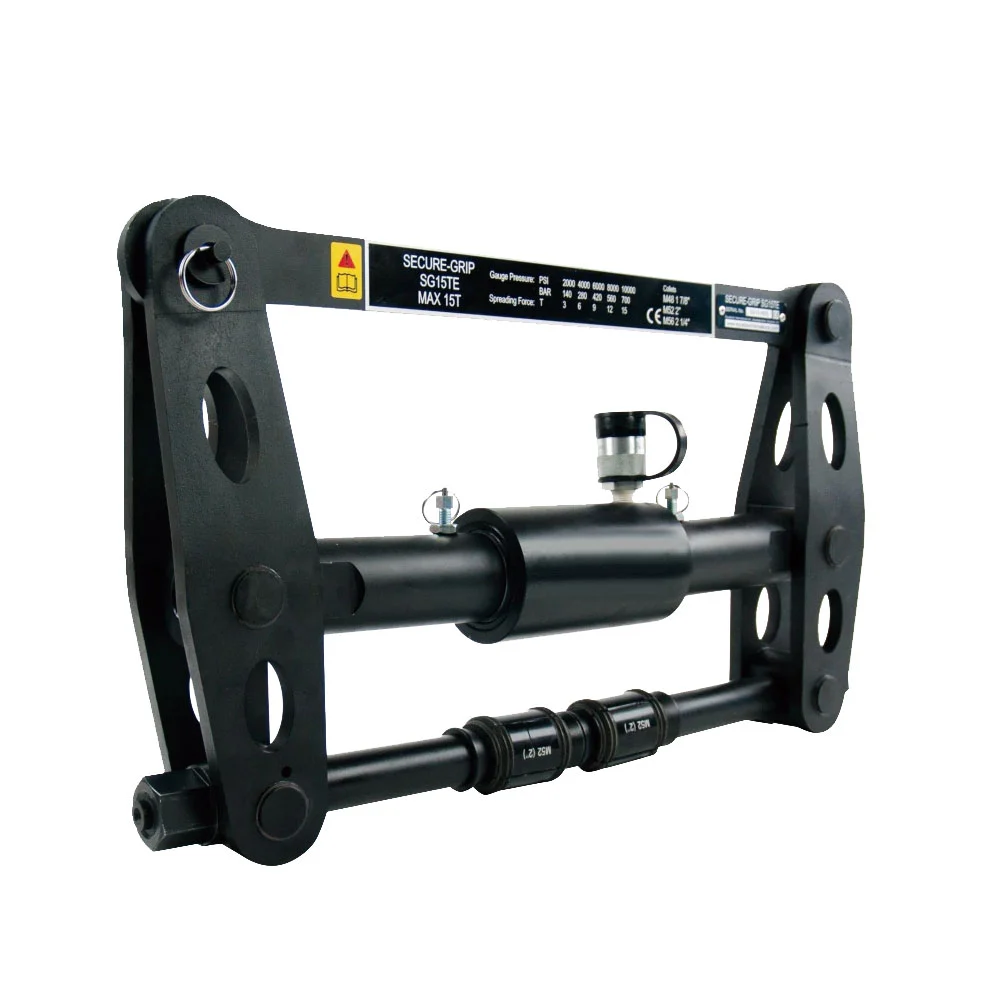

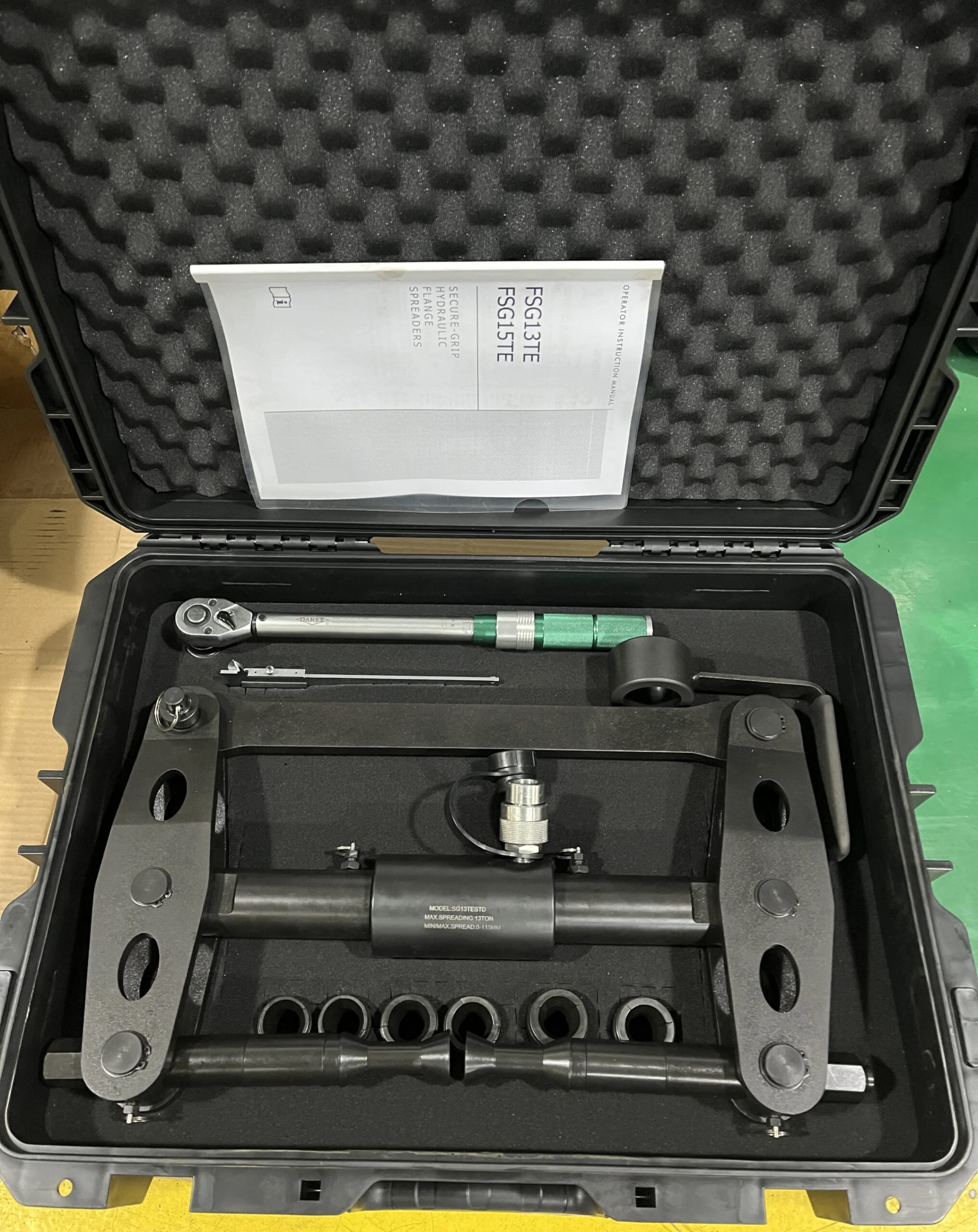

SG13TE 13 115 0 Hydraulic M39(1 1/2”),N42(1 5/8”),M45(1 3/4”) 300 40.5
SG15TE 15 100 0 Hydraulic M48(1 7/8”),M52(2”),M56(2 1/4”) 400 45
SG18TE 18 100 0 Hydraulic M60(2 3/8”),M64(2 1/2”),M70(2 3/4”) 400 45
SG25TE 25 120 0 Hydraulic M76(3”),M80(3 1/4”),M84(3 3/8”),M90(3 1/2”),M95(3 3/4”),M100(4”) 500 50

Product Description

Product Lines: Collect Style Flange Spreaders

  • Suitable for pipeline maintenance,repair,testing and flange replacement applications without causing flange damage
  • Compared with other flange seperators,it can seperate flanges with zero clearance and has a larger output option(up to 25 tons)

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Maximum Spreading Force (ton)4-25
Maximum Spread (mm)75-120
Tip Clearance (mm)0
Weight:12.8-50

Series Comparison

ModelCapacity(Ton)Max Spread(mm)Tip Clearance(mm)TypeUsable On Flanges Specified To Accept The Following Bolt SizesOil Capacity (cm3)Weight(Kg)
SG4TM4750MechanicalM16,M20,5/8”,3/4”*12.8
SG6TM6800MechanicalM24,M27,7/8”,1”*16
SG11TM11900MechanicalM30,M33,M36,1 1/8”,1 1/4”,1 3/8”*20
SG13TE131150HydraulicM39(1 1/2”),N42(1 5/8”),M45(1 3/4”)30040.5
SG15TE151000HydraulicM48(1 7/8”),M52(2”),M56(2 1/4”)40045
SG18TE181000HydraulicM60(2 3/8”),M64(2 1/2”),M70(2 3/4”)40045
SG25TE251200HydraulicM76(3”),M80(3 1/4”),M84(3 3/8”),M90(3 1/2”),M95(3 3/4”),M100(4”)50050
