Product Description

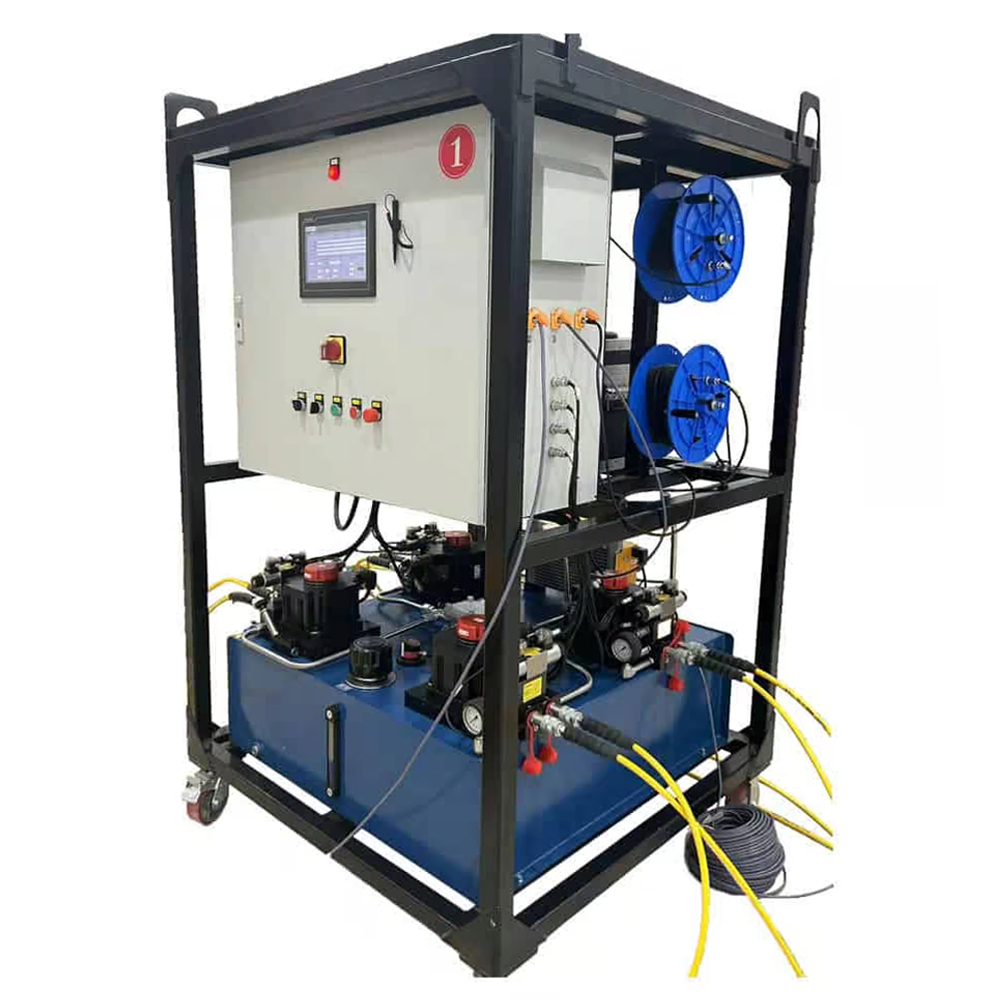

Product Lines: Synchronous Lifting Pump
- Each point has independent servo drive high pressure pump and valve group
- Continuous operation without lag and fast lifting speed
- Standard load balancing valve, high synchronous fallback accuracy
- The speed is continuously adjustable and the running speed can be set steplessly
- Pre-lifting, synchronous lifting and synchronous lowering functions
- Proportional ramp displacement function, each point can set the target displacement independently, and run in the same proportion
- Equipped with air cooling radiator and filtration system
- Sensor parameter setting, pre-lifting tonnage setting, alarm pressure value setting
- Overpressure alarm, over-tolerance alarm, sensor signal error alarm, displacement sensor over-travel alarm, servo alarm, liquid temperature and level alarm
- Fully protected frame, rain cover, forklift bottom, lifting lugs
- Multiple pump stations can be connected online to achieve any combination of points
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

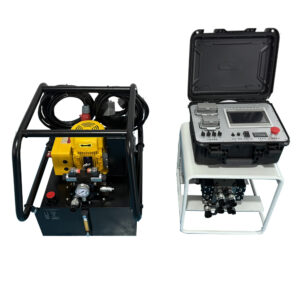

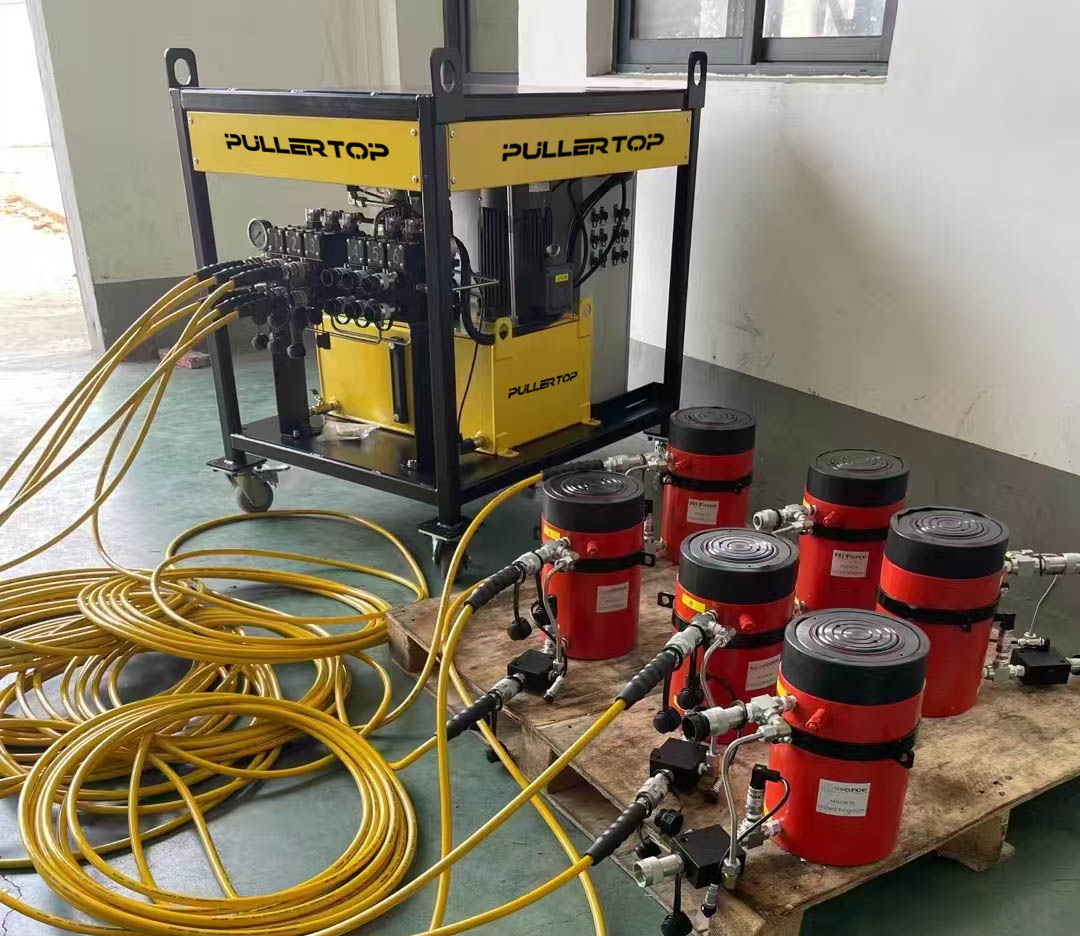

Image Gallery
Product parameters
Series Comparison
Model | Voltage(V) | Power(KW) | High Pressure Flow (L/Min) | Oil capacity (L) | Number of points | Displacement Sensor Range | Sensor Cable Length | Features |
---|---|---|---|---|---|---|---|---|
PESM40120-4 | 220 | 1*4 | 0.5*4 | 120 | 4 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering |
PESM80120-4-3 | 380 | 3*4 | 1.5*4 | 120 | 4 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering |
PESM80200-8 | 380 | 3*8 | 1.5*8 | 200 | 8 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering |
PESM950200-4 | 380 | 5.5*4 | 2.7*4 | 200 | 4 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering |
PESM950200-8 | 380 | 5.5*8 | 2.7*8 | 200 | 8 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering |
PESM830120-4-3 | 380 | 3*12 | 1.5*12 | 120*3 | 12 | 500mm / 1000mm | 20M | Pre-lifting/synchronous lifting/ synchronous lowering 3 sets of 12-point joint control, independent |
The above parameters are for reference only and are generally quoted based on actual working conditions.
