Product Description
Product Lines: Hydraulic Accessories

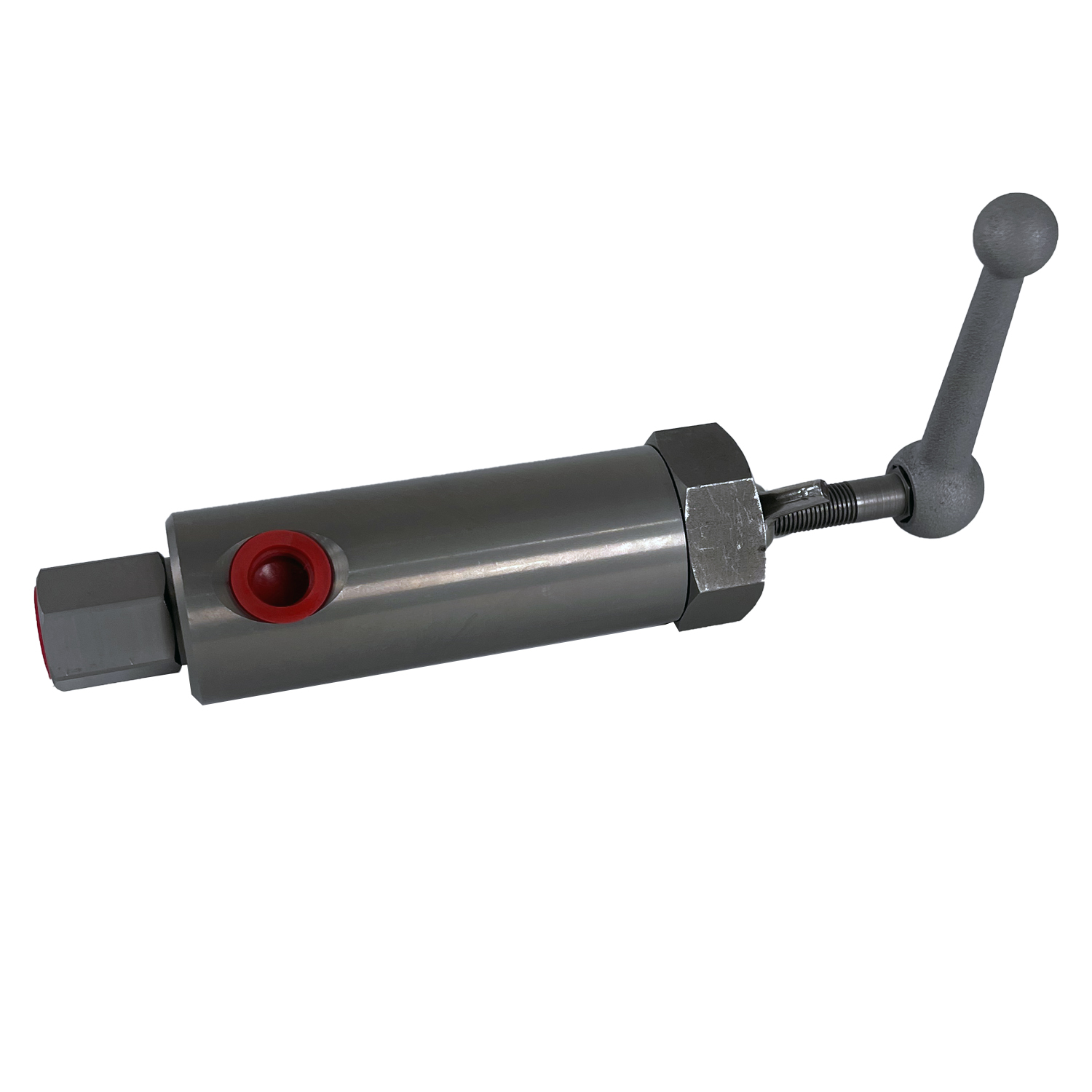

- Limits pressure developed by the pump in hydraulic circuit, thus limiting the force imposed on other components
- 800-10,000 psi adjustment range; ± 3% repeatability
- Valve opens whenever preset pressure is reached. To increase pressure setting, turn handle clockwise
- Used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety
- Regulate oil flow or system pressure
- All valves feature NPT or SAE porting to insure against leakage at rated pressure
- Can easily be installed in any system
- All valves are painted, coated or plated for corrosion resistance
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

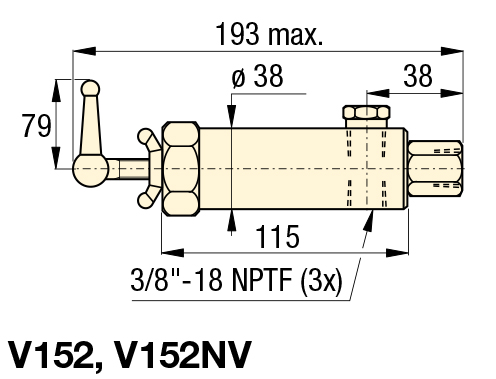

Dimension
Series Specifications
| Maximum Operating Pressure | 10,000 psi (700 bar) |
| Maximum Oil Flow | 1,830 in3/min |
| Oil Ports | 3x NPT 3/8″ |
| Pressure Function | +3% Repeatability |
