Product Description
Product Lines: Air Hydraulic Pump
- Rugged construction – built for long life and easy service.
- Control the input air and valve with the foot pedal, which is easier to operate than a hand pump.
- Ideal for powering single-acting cylinders and portable hydraulic tools.
- Operates in all positions for increased versatility in use and mounting.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

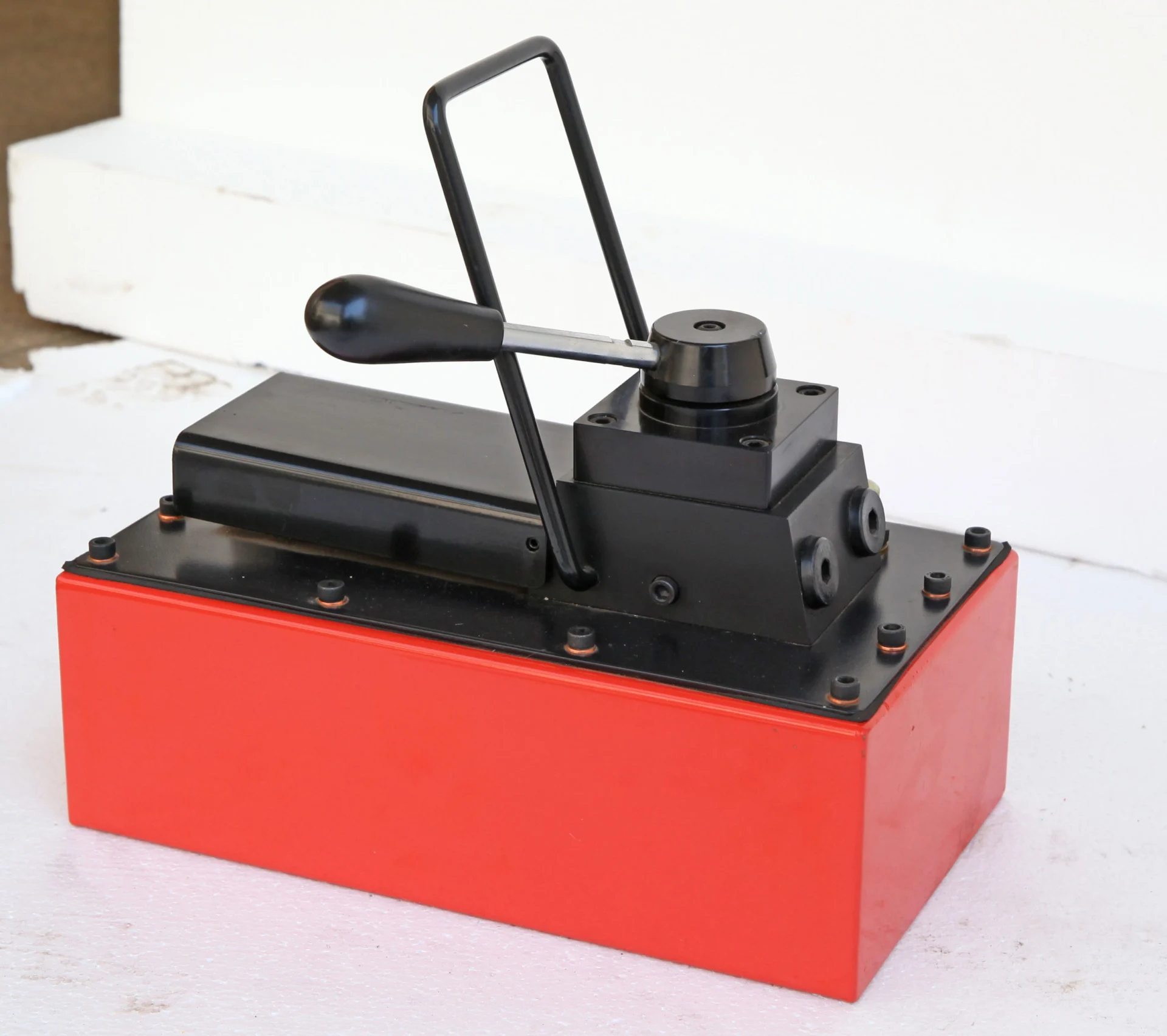

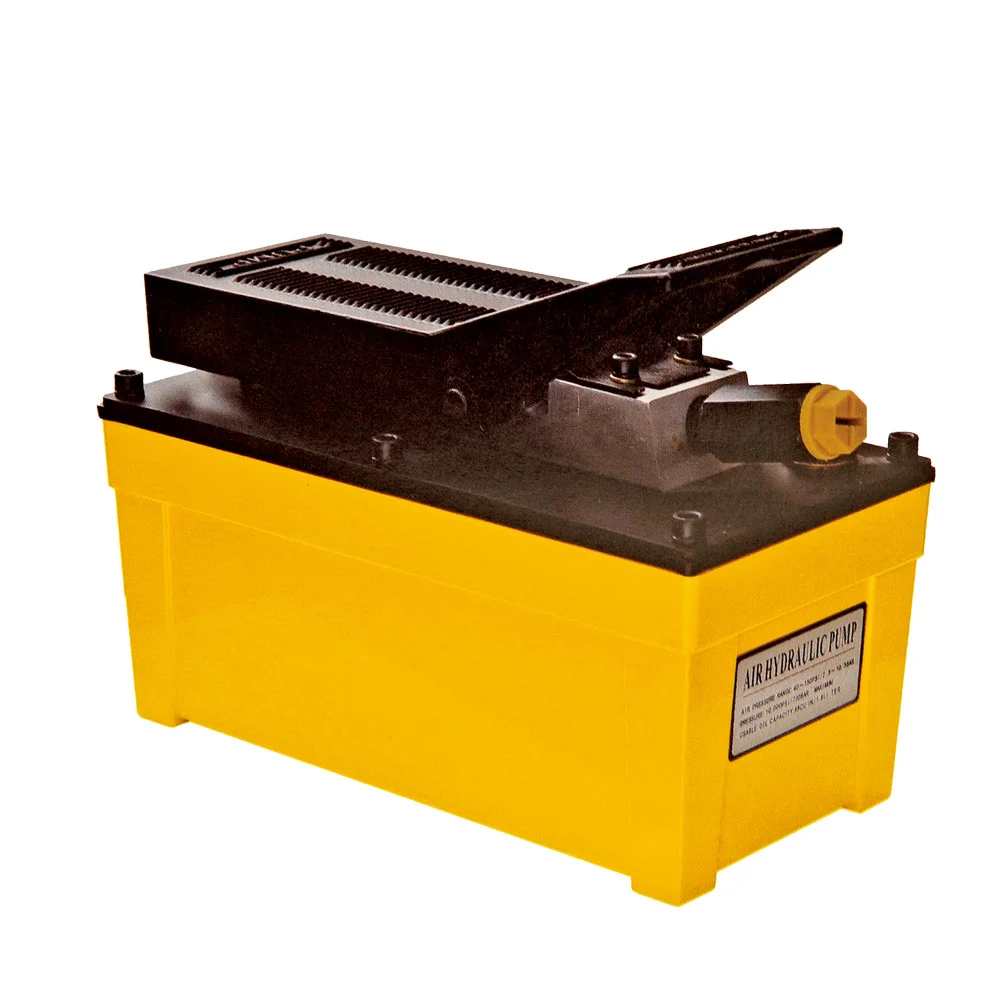

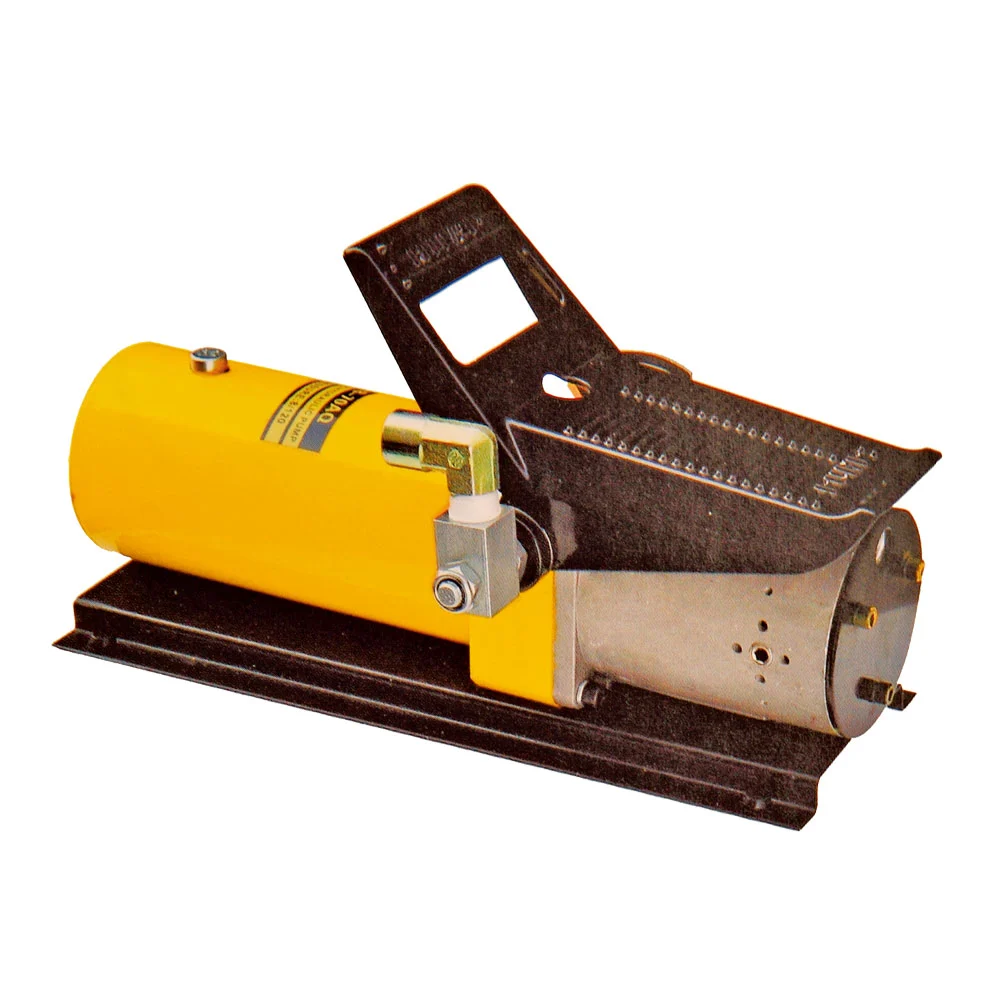

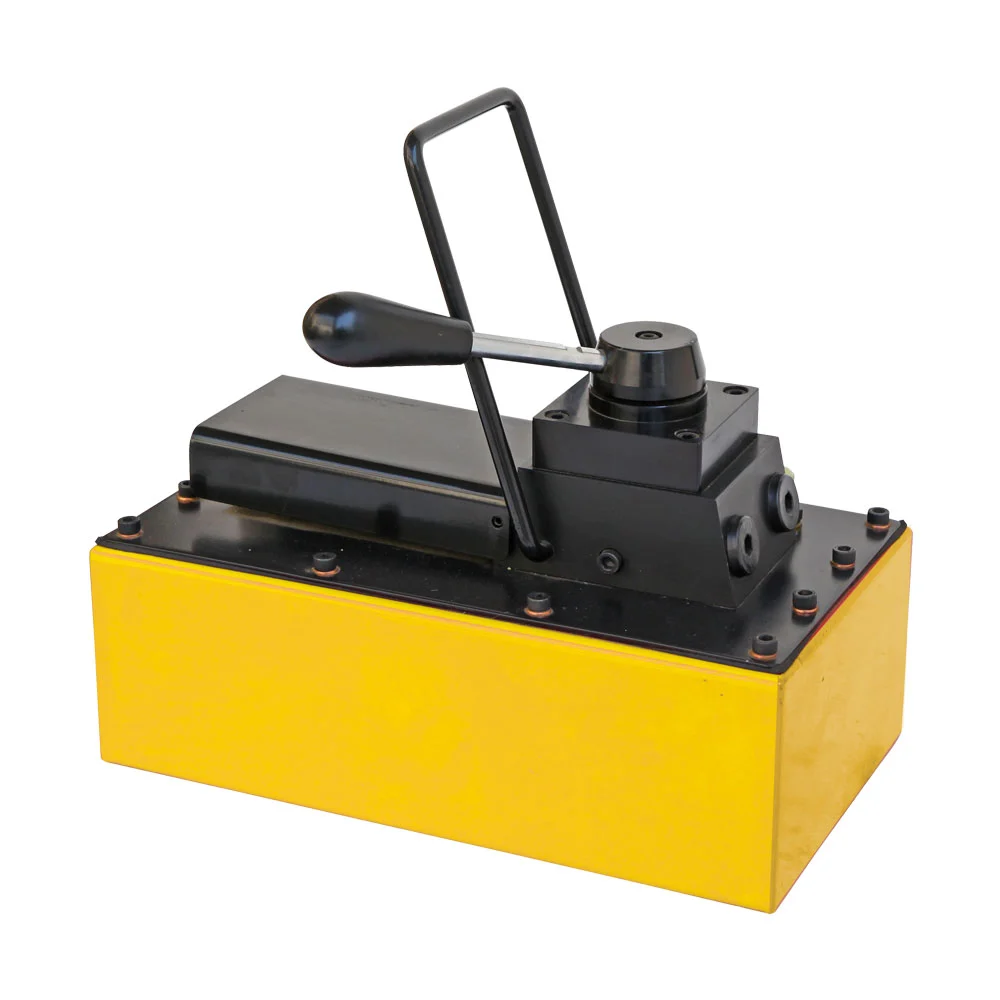

Image Gallery
Series Specifications
| Oil Capacity: | 690-4000cm3 |
| Pump Type: | Single-acting/Double acting |
| Maximum Operating Pressure : | 700Bar |
| Weight: | 8.1-12Kg |
Series Comparison
| Model | Usable Oil Capacity/cm3 | Pump Type | Output Pressure/bar | Air Supply Required/bar | Packing Size/cm | Weight/Kg |
|---|---|---|---|---|---|---|
| AHP-70AQ | 690 | Single-acting | 700 | 8 | 37*18*19 | 8.9 |
| AHP-70BQ | 1700 | Single-acting | 700 | 8 | 28*15*20 | 8.1 |
| DAHP-70CQ | 4000 | Double-acting | 700 | 8 | 32*18*25 | 12 |
