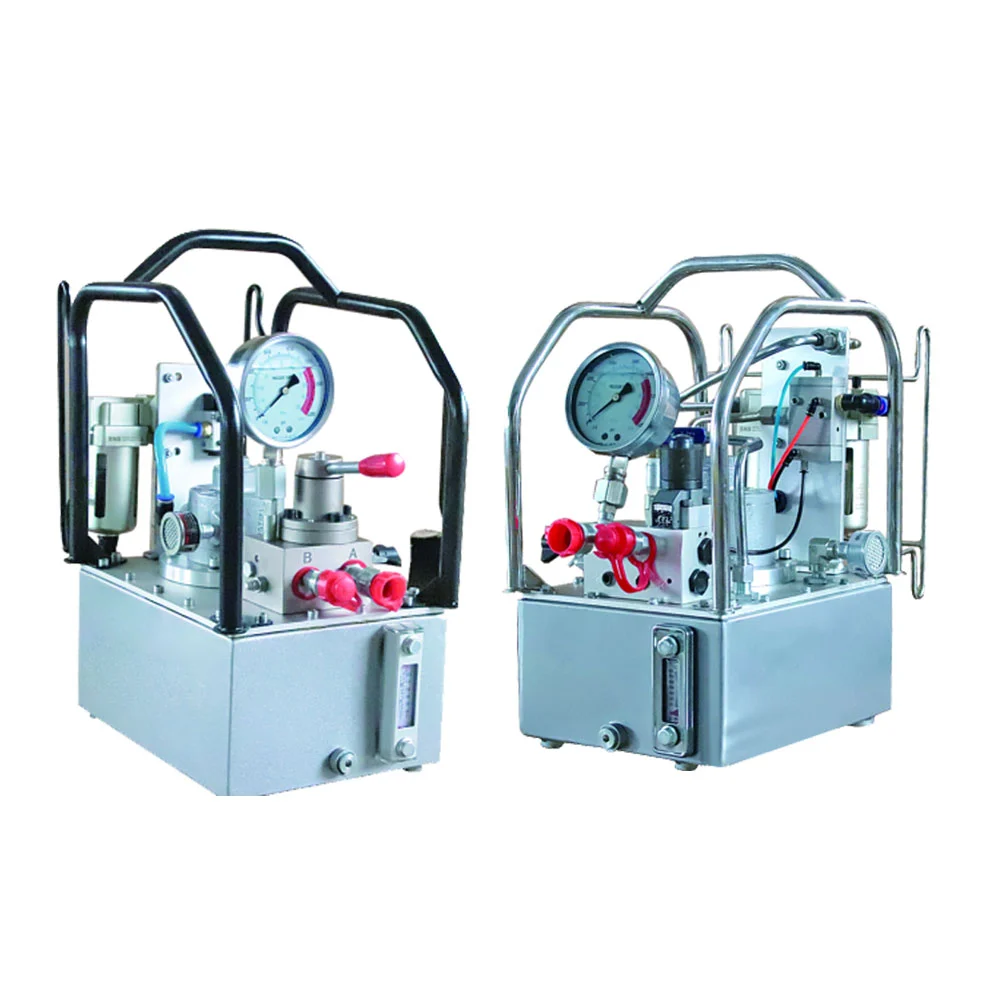

Pneumatic Hydraulic Torque Wrench Pump

Pullertop air-driven hydraulic pumps are ideal tools for hydraulic torque wrench and bolt tensioners. our air hydraulic pumps are designed for high efficiency, safe reliability, and precise control.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Wrench Two-stage Pump

  • Using compressed air as the power source, generally used in explosion-proof, coal mines, and other applications, it has the advantages of being explosion-proof, safe, having no heat, and can work continuously for a long time.
  • The pump station is made of aluminum-titanium alloy, light in weight, and easy to carry.
  • The air source pressure needs to meet the requirements of 4-8 bar.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Oil Capacity: 7.6L
Pump Type: Two Stage
Maximum Operating Pressure : 700Bar
Weight: 21Kg

Series Comparison

Model Air Pressure(bar) Rated Power(KW) Air Consumption(m³/h) Low-Pressure Rating (bar) High-Pressure Rating (bar) Low-Pressure Flow
(L/min)
High-Pressure
Flow
(L/min)
Usable Oil Capacity/L Dimension/mm Weight/Kg
AH7.6H 4-8 1.3 134 60 700 6 0.8 7.6 435X265X530 21
AH7.6E 4-8 1.3 134 60 700 6 0.8 7.6 428X281X448 21
