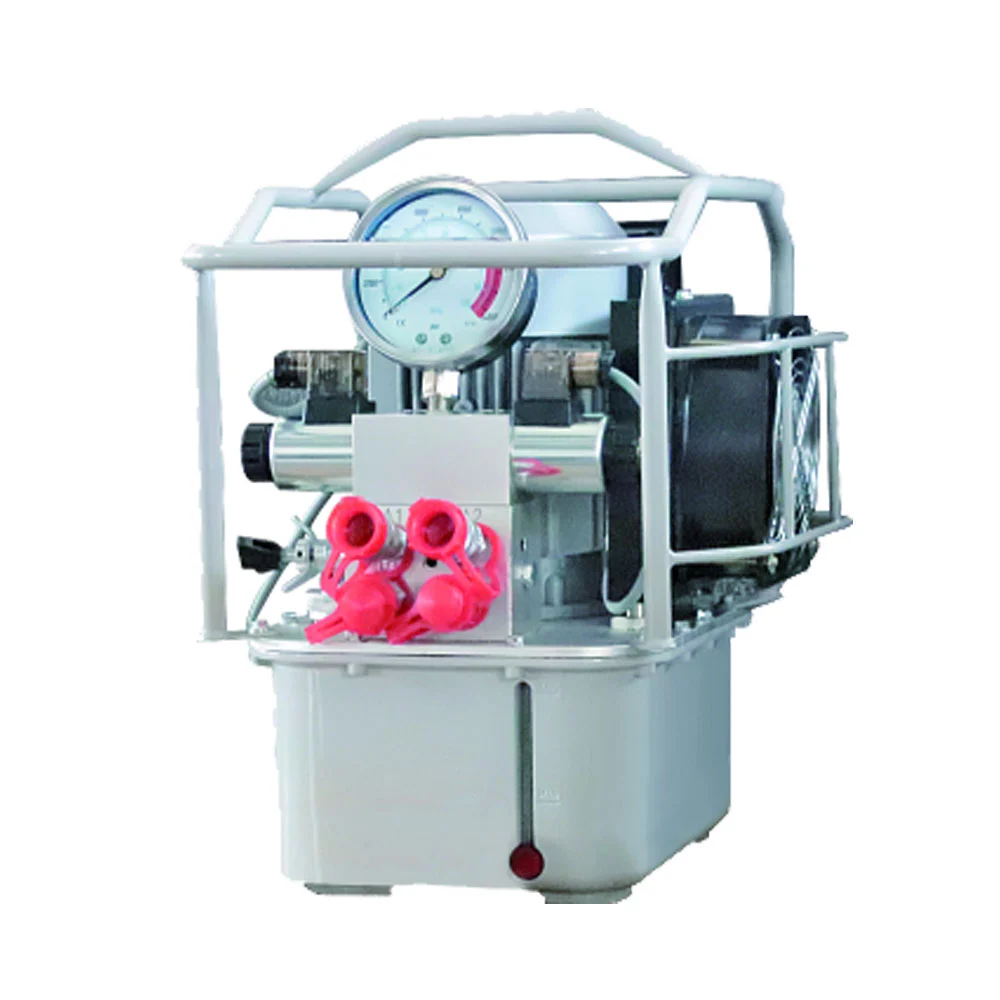

Two Speed Electric Hydraulic Torque Wrench Pump

Pullertop manufactures/supplies all kinds of high-precision electric hydraulic torque wrench pumps.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Wrench Two-stage Pump

  • Draft pump, for torque wrench, and solenoid valve control.
  • Two-speed hydraulic pump.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Oil Capacity: 7.6L
Pump Type: Two Stage
Maximum Operating Pressure : 700Bar
Weight: 27Kg

Series Comparison

Model Outlet Power Parameters
Low-Pressure Rating (bar)
High-Pressure Rating (bar) Low-Pressure Flow
(L/min)
High-Pressure
Flow
(L/min)
Usable Oil Capacity/L Dimension/mm Weight/Kg
PE7.6 2D-2 4×1/4 NPT 220V/380V
1.1KW
60 700 6 0.8 7.6 394X300X420 27
PE7.6 2D-4 8×1/4 NPT 220V/380V
1.1KW
60 700 6 0.8 7.6 394X300X420 27.5
