C Series, Single Acting General Purpose Hydraulic Cylinders

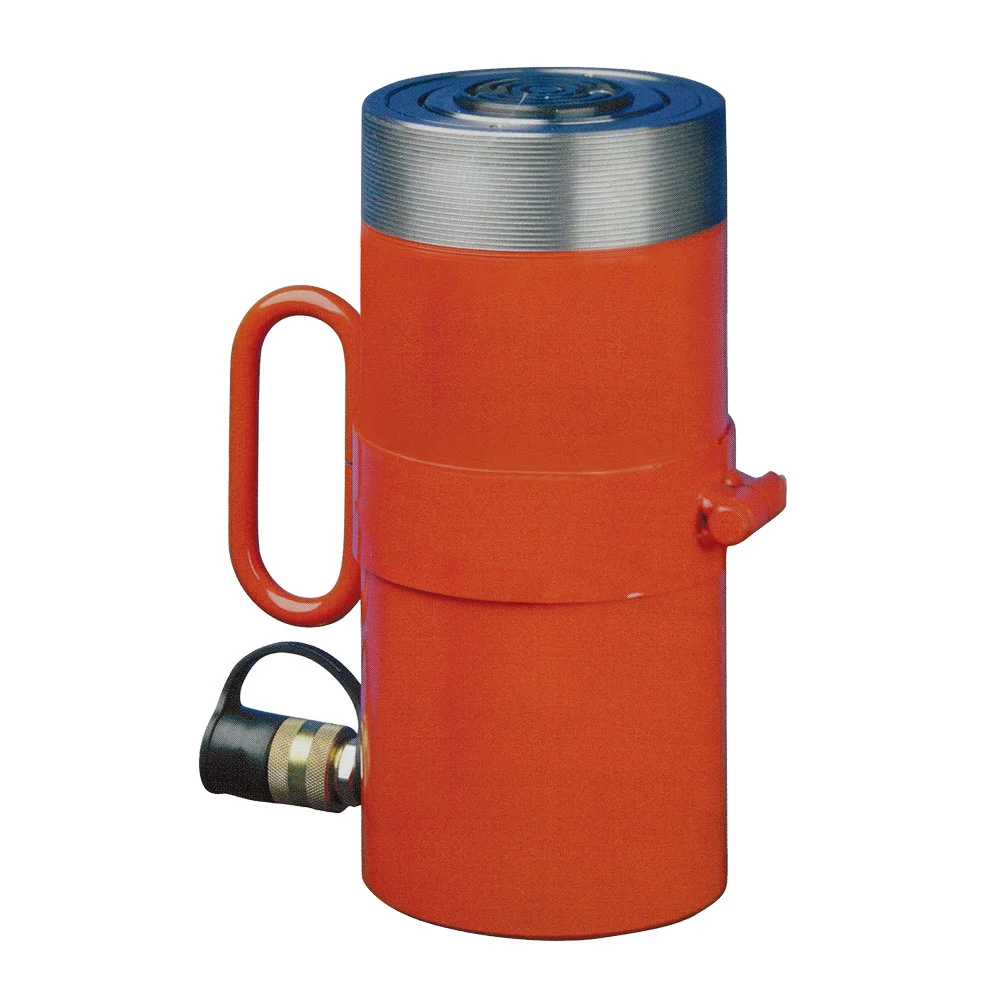

Pullertop C series single-Acting, spring-return high quality, general purpose cylinder used for lifting and pressing. Designed to utilize aluminum bronze bearings to significantly reduce wear. Piston return speed and spring life are bolstered by Maximum sized springs. Constructed for durability, using a Solid steel cylinder body for integrity. Chrome-plated piston rod resists wear and corrosion adding to the cylinder’s life cycle. Intricately customizable through the wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
Product Description
Series: C Series
Product Lines: General Purpose Hydraulic Cylinders
- Aluminum bronze bearing reduces wear caused by off-center loads.
- Maximum-sized springs speed piston return and increase spring life.
- Collar threads are standard on all C-Series models, simplifying fixturing applications.
- Removable rubber boots protect collar threads during transport and storage.
- Solid steel cylinder body for durability.
- Chrome-plated piston rod resists wear and corrosion.
- A wide range of accessories is available that mount onto the piston rod, collar, or base.
- Base mounting holes are standard on 5 through 55-ton cylinders and optional on 75 and 100-ton cylinders.
- A 3/8″ NPTF female half-coupler is standard.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Capacity: | 5-100 Ton |
| Stroke: | 25.4-406.4mm |
| Collapsed Height: | 92.1-522.3mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 2.6-51.2Kg |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm | Outside Dia/mm | Cylinder Bore Dia/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| C51 | 5 | 25.4 | 6.4 | 18 | 110.3 | 38.1 | 25.4 | 1 |
| C53C | 5 | 82.6 | 6.4 | 52 | 165.1 | 38.1 | 25.4 | 1.5 |
| C55C | 5 | 133.4 | 6.4 | 85 | 215.9 | 38.1 | 25.4 | 1.8 |
| C57C | 5 | 184.2 | 6.4 | 118 | 273.1 | 38.1 | 25.4 | 2.3 |
| C59C | 5 | 235 | 6.4 | 151 | 323.9 | 38.1 | 25.4 | 2.6 |
| C101C | 10 | 25.4 | 14.4 | 36 | 92.1 | 57.2 | 38.1 | 1.8 |
| C102C | 10 | 54 | 14.4 | 79 | 122 | 57.2 | 38.1 | 2.3 |
| C104C | 10 | 104.8 | 14.4 | 151 | 171.5 | 57.2 | 38.1 | 3 |
| C106C | 10 | 155.6 | 14.4 | 225 | 247.7 | 57.2 | 38.1 | 4.3 |
| C108C | 10 | 206.4 | 14.4 | 362 | 298.5 | 57.2 | 38.1 | 5 |
| C1010C | 10 | 257.2 | 14.4 | 370 | 349.3 | 57.2 | 38.1 | 5.9 |
| C1012C | 10 | 308 | 14.4 | 444 | 400.1 | 57.2 | 38.1 | 6.6 |
| C1014C | 10 | 358.8 | 14.4 | 518 | 150.9 | 57.2 | 38.1 | 7.3 |
| C1016C | 10 | 406.4 | 14.4 | 592 | 520.7 | 57.2 | 38.1 | 8.4 |
| C151C | 15 | 25.4 | 20.3 | 51 | 123.8 | 69.9 | 44.5 | 3.4 |
| C152C | 15 | 54 | 20.3 | 110 | 149.2 | 69.9 | 44.5 | 4 |
| C154C | 15 | 104.8 | 20.3 | 211 | 200 | 69.9 | 44.5 | 5.2 |
| C156C | 15 | 155.6 | 20.3 | 315 | 271.4 | 69.9 | 44.5 | 6.9 |
| C158C | 15 | 206.4 | 20.3 | 418 | 322.2 | 69.9 | 44.5 | 8.1 |
| C1510C | 15 | 257.2 | 20.3 | 521 | 373 | 69.9 | 44.5 | 9.4 |
| C1512C | 15 | 308 | 20.3 | 625 | 423.8 | 69.9 | 44.5 | 10.5 |
| C1514C | 15 | 358.8 | 20.3 | 728 | 474.6 | 69.9 | 44.5 | 11.8 |
| C1516C | 15 | 406.4 | 20.3 | 824 | 522.3 | 69.9 | 44.5 | 12.8 |
| C251C | 25 | 25.4 | 33.2 | 84 | 139.7 | 85.7 | 57.2 | 5.4 |
| C252C | 25 | 50.8 | 33.2 | 169 | 164.5 | 85.7 | 57.2 | 6.3 |
| C254C | 25 | 101.6 | 33.2 | 338 | 215.9 | 85.7 | 57.2 | 8 |
| C256C | 25 | 158.8 | 33.2 | 526 | 273.1 | 85.7 | 57.2 | 9.8 |
| C258C | 25 | 209.6 | 33.2 | 697 | 323.9 | 85.7 | 57.2 | 11.6 |
| C2510C | 25 | 260.4 | 33.2 | 865 | 374.4 | 85.7 | 57.2 | 13.3 |
| C2512C | 25 | 311.2 | 33.2 | 1036 | 425.5 | 85.7 | 57.2 | 15 |
| C2514C | 25 | 362 | 33.2 | 1205 | 476.3 | 85.7 | 57.2 | 16.7 |
| C308C | 30 | 209.6 | 41.6 | 880 | 325.1 | 101.6 | 63.5 | 16.2 |
| C552C | 50 | 50.8 | 71.2 | 362 | 174.6 | 127 | 79.4 | 14.7 |
| C554C | 50 | 108 | 71.2 | 769 | 231.8 | 127 | 79.4 | 18.7 |
| C556C | 50 | 158.8 | 71.2 | 1131 | 282.6 | 127 | 79.4 | 23.1 |
| C5510C | 50 | 260.4 | 71.2 | 1853 | 384.2 | 127 | 79.4 | 30.4 |
| C5513C | 50 | 336.6 | 71.2 | 2398 | 460.4 | 127 | 79.4 | 35.3 |
| C756C | 75 | 155.6 | 102.6 | 1596 | 314.3 | 146.1 | 95.3 | 33.3 |
| C7513C | 75 | 333.4 | 102.6 | 3421 | 492.1 | 146.1 | 95.3 | 49.6 |
| C1002C | 100 | 50.8 | 133 | 675 | 219.1 | 158.8 | 104.8 | 28.6 |
| C1006C | 100 | 168.3 | 133 | 2245 | 336.6 | 158.8 | 104.8 | 41.3 |
| C10010C | 100 | 260.4 | 133 | 3467 | 428.6 | 158.8 | 104.8 | 51.3 |
