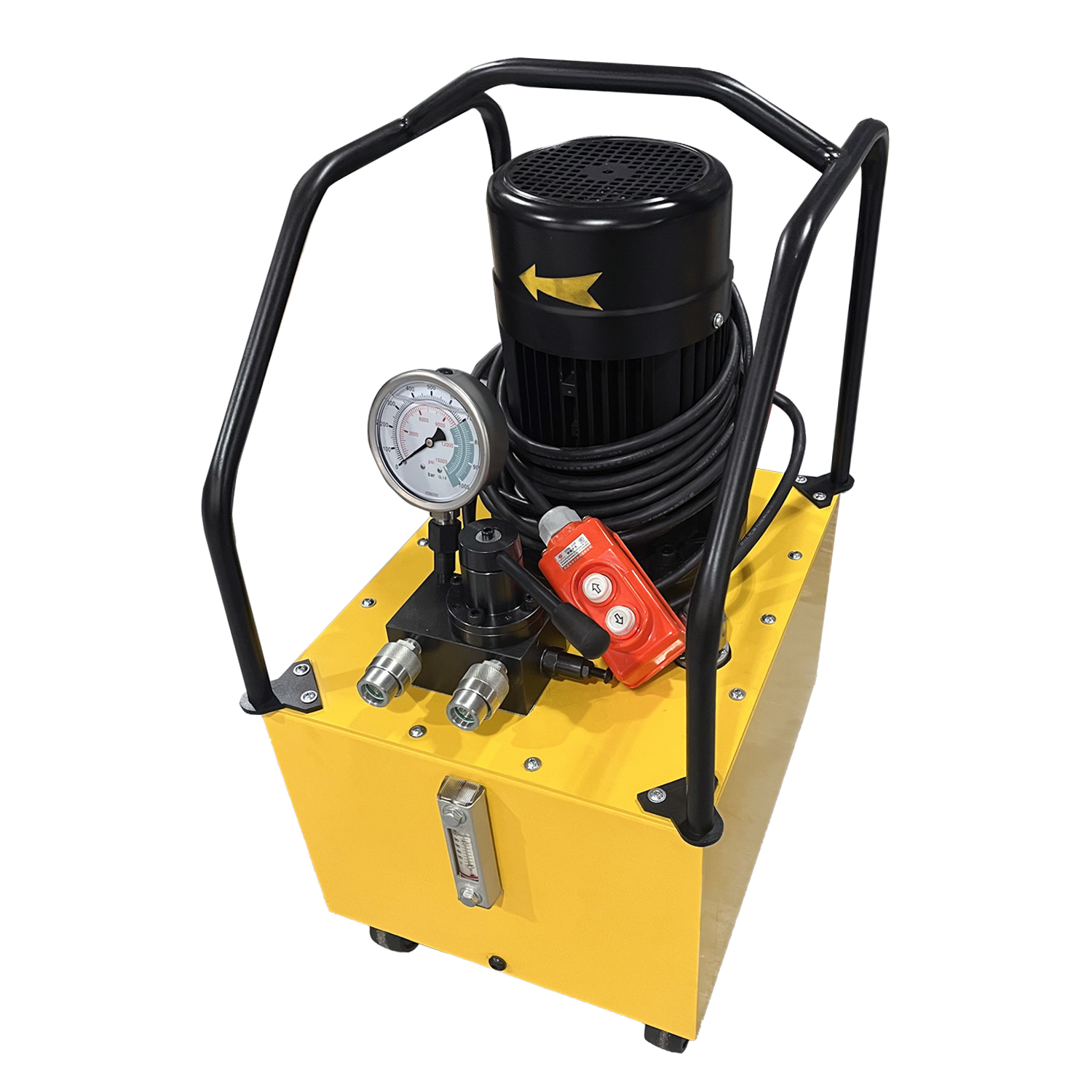

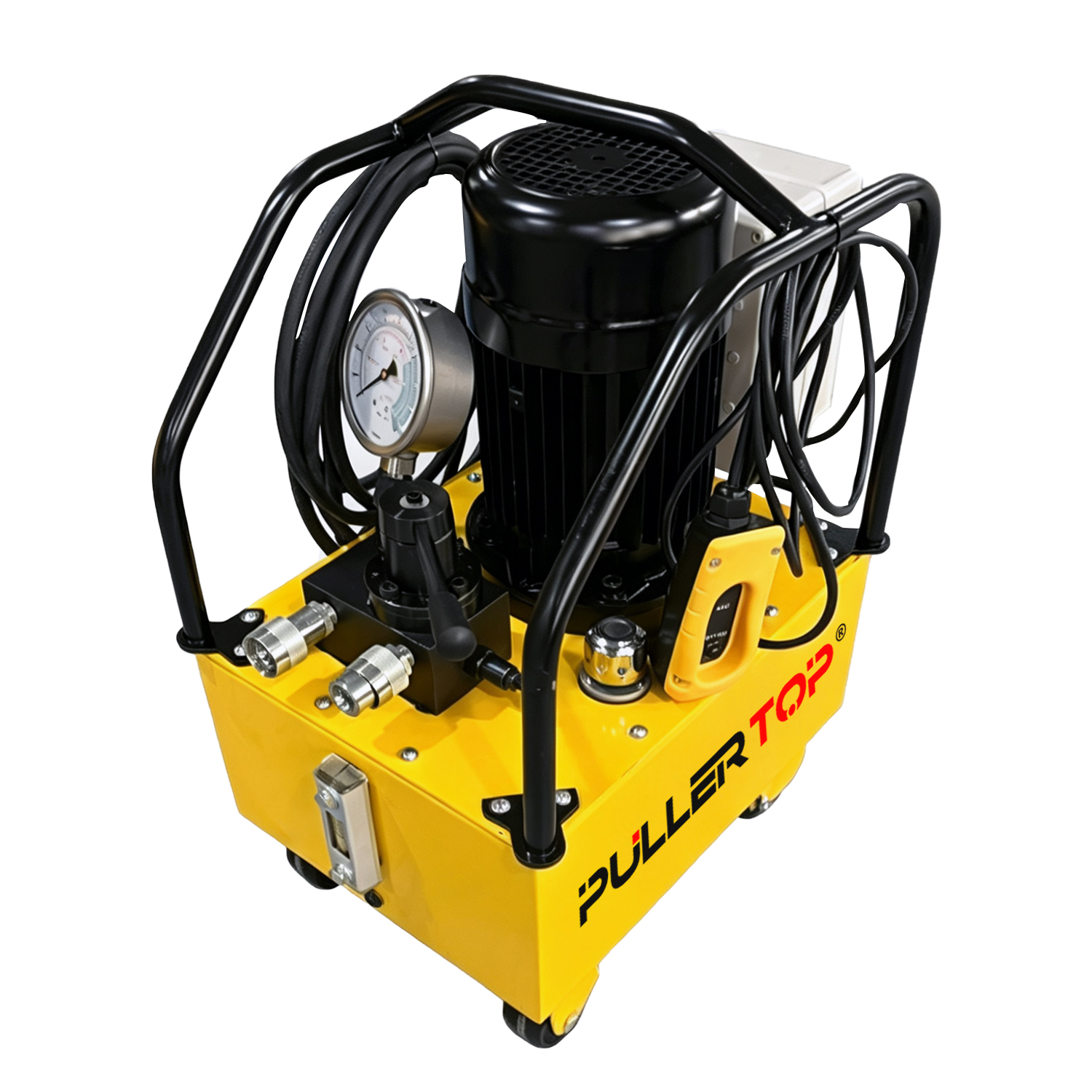

Double Acting Electric Hydraulic Pump
Pullertop’s double-acting electric hydraulic power pack comes with an oil capacity of 15 to 60L, are the ideal solution to power a wide range of double-acting hydraulic tools.
Product Description
Product Lines: Electric Hydraulic Pumps
- Two-speed operation reduces cycle time for improved productivity.
- All valves are 3 positions for Advance-Hold-Retract.
- All the pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.
- Manual valve and motor control Internal pressure relief valve prevents overloading
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

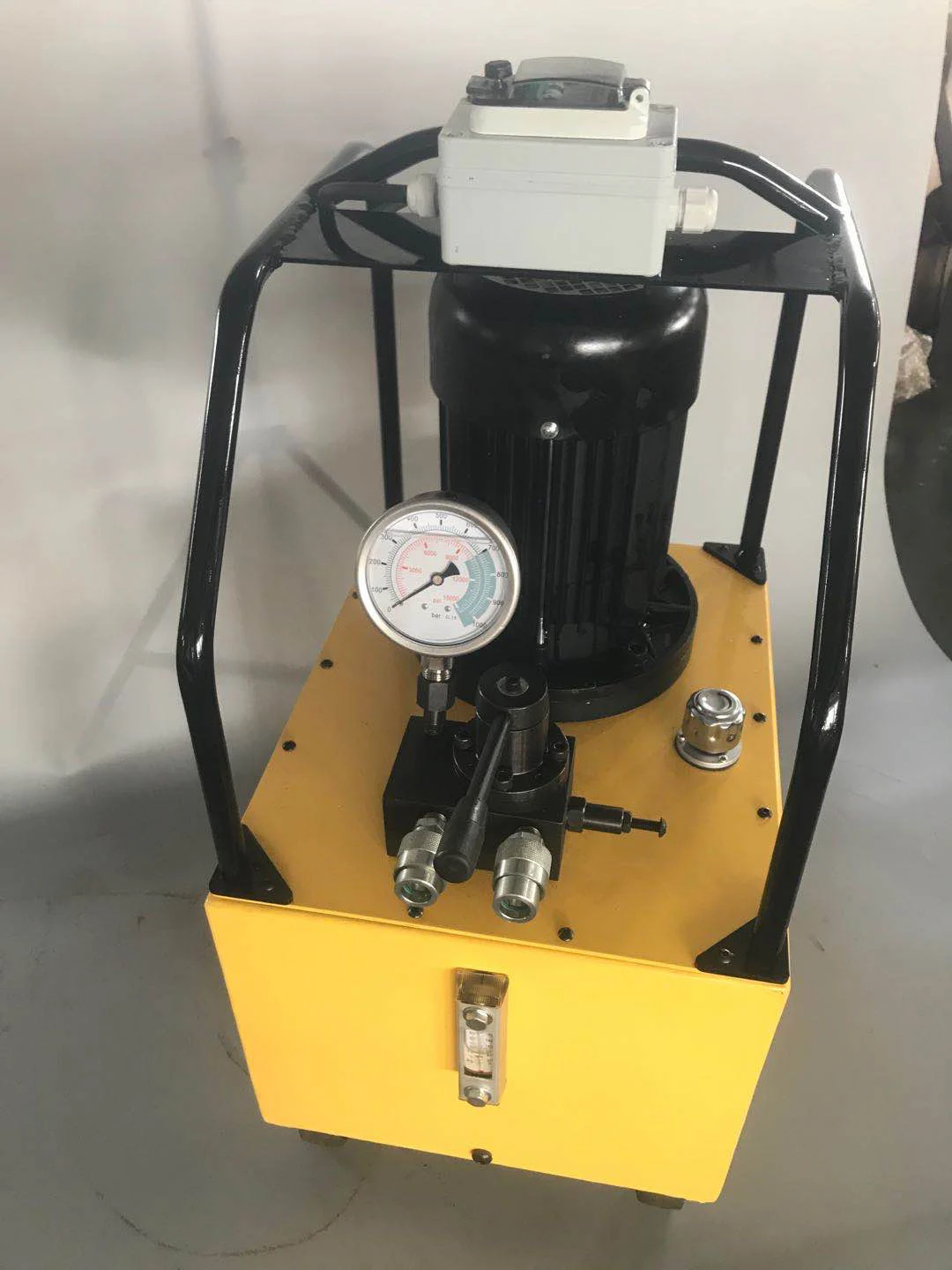

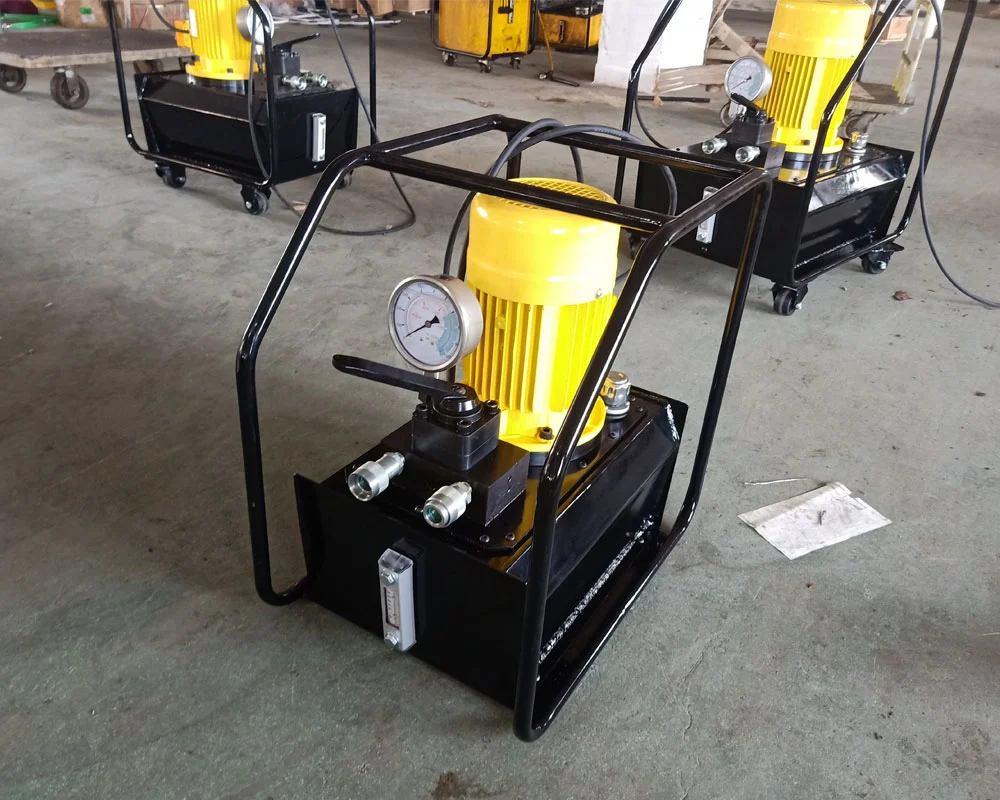

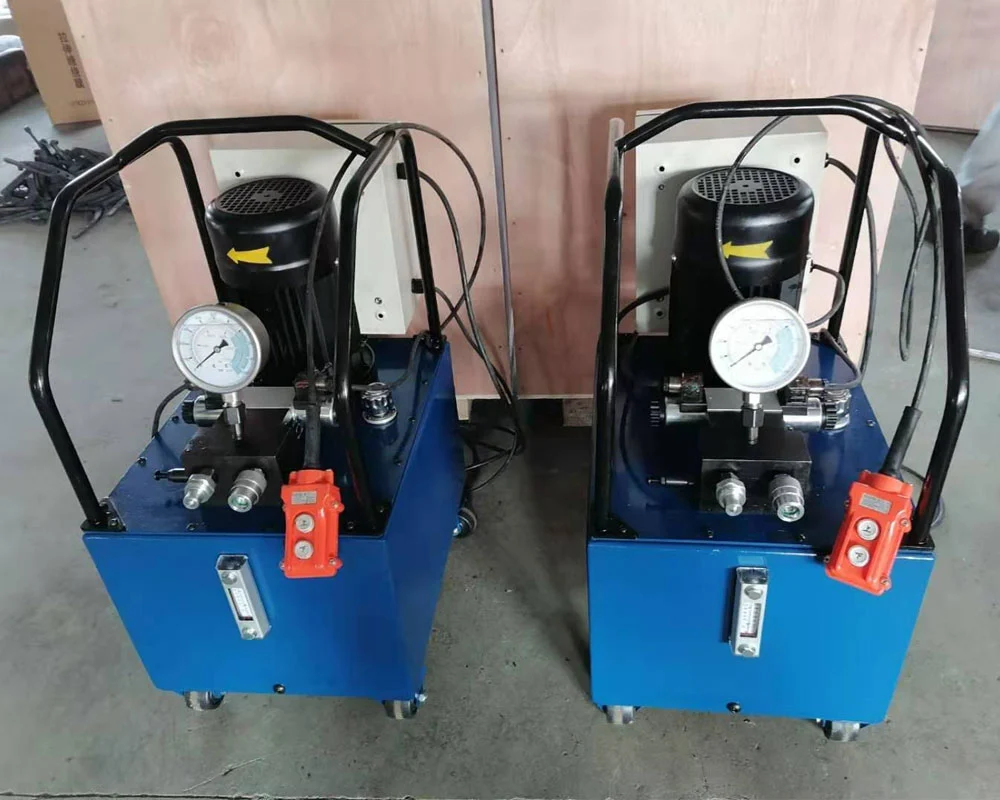

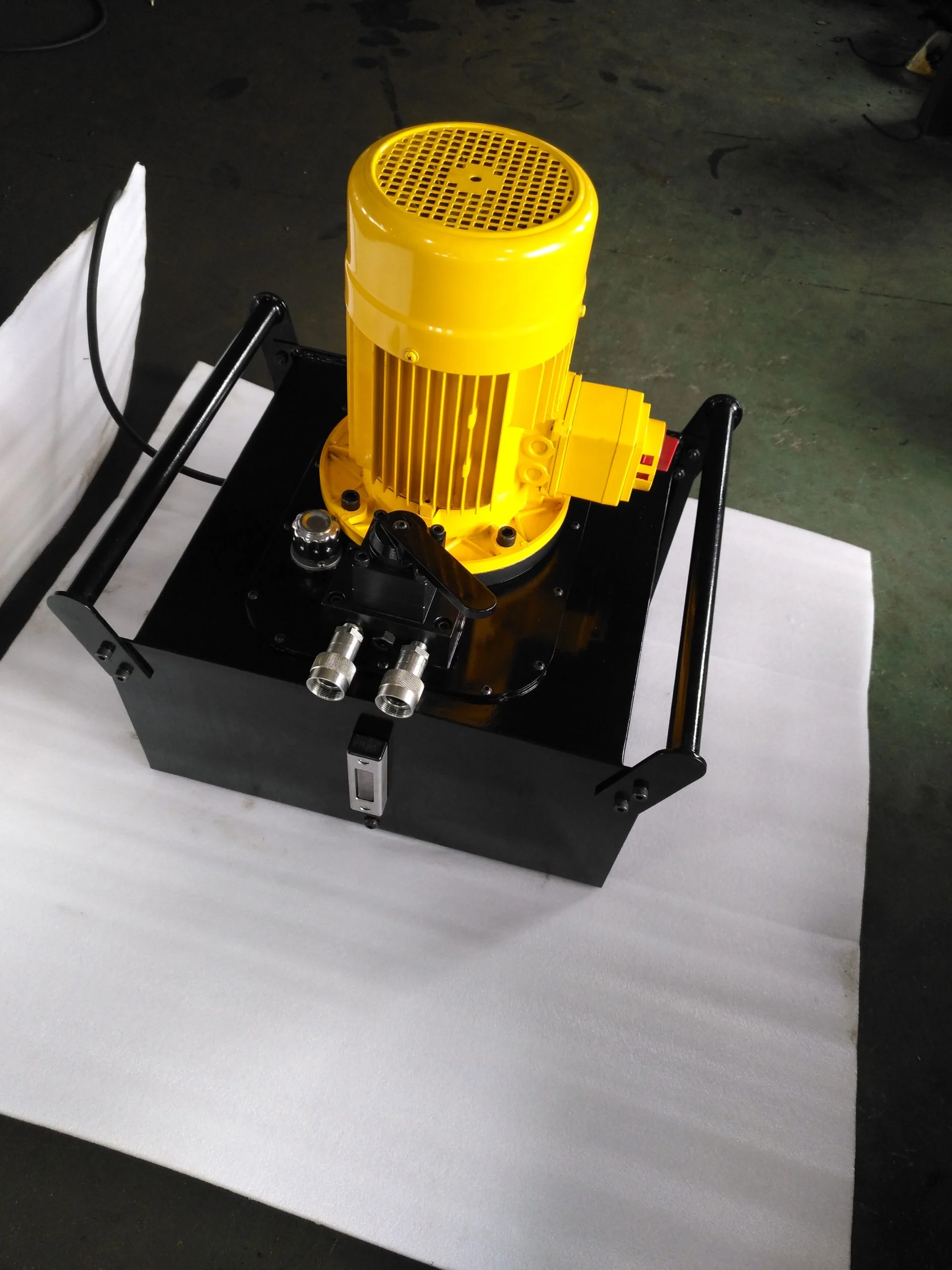

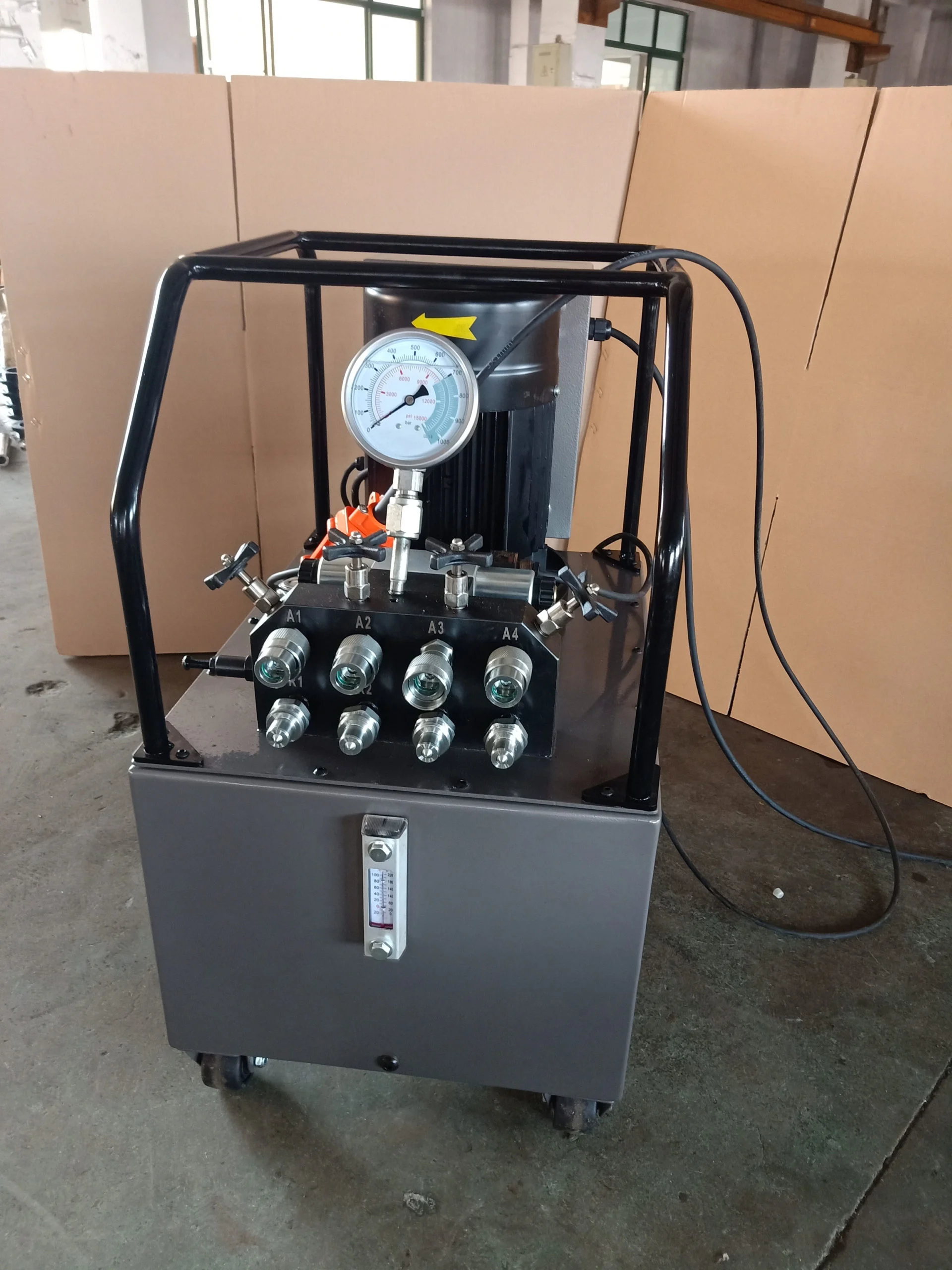

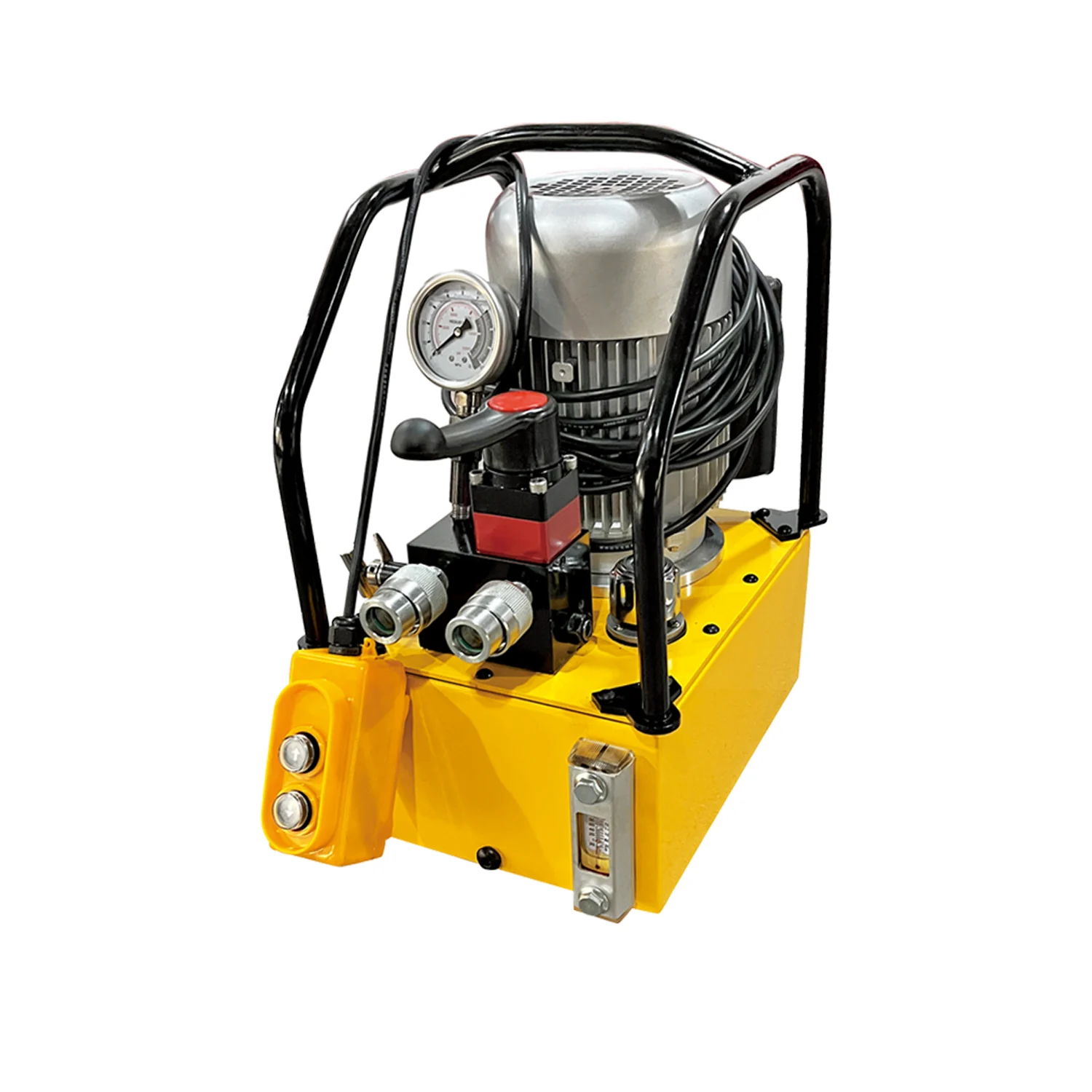

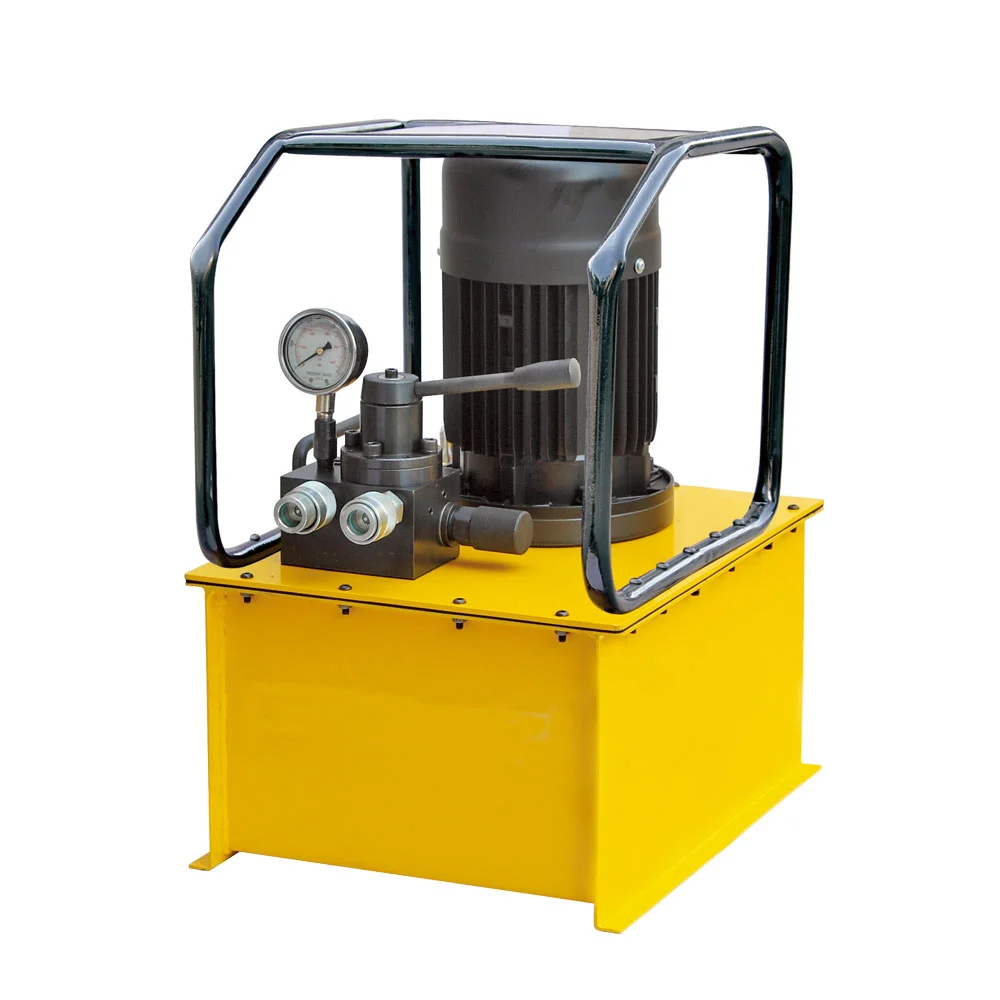

Image Gallery
Series Specifications
| Oil Capacity: | 12-50L |
| Pump Type: | Double-acting, Two-sped |
| Maximum Operating Pressure : | 700Bar |
| Weight: | 29-60Kg |
Series Comparison
| Model | Usable Oil Capacity/L | Pump Type | First Stage Pressure/bar | Second Stage Pressure/bar | Low-Pressure Oil Flow (L/min) | High-Pressure Oil Flow (L/min) | Power | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| PE12DD | 12 | Double-acting | 70 | 700 | 6 | 1 | 1.5KW 220/380V | 29 |
| PE30DD | 30 | Double-acting | 70 | 700 | 6 | 1 | 2.2KW 220/380V | 45 |
| PE50DD | 50 | Double-acting | 70 | 700 | 6 | 1 | 4KW 220/380V | 60 |
