Single Acting Electric Hydraulic Pumps

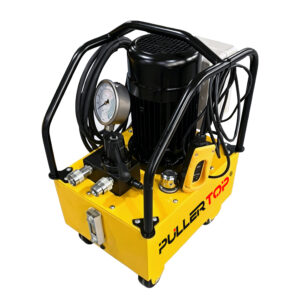

Pullertop’s single-acting electric hydraulic power pack comes with an oil capacity of 8 to 30L, are the ideal solution to power a wide range of single-acting hydraulic tools.

Download Catalog
Upload File

Product Description

Product Lines: Electric Hydraulic Pumps

  • Two-speed operation reduces cycle time for improved productivity.
  • All valves are 3 positions for Advance-Hold-Retract.
  • All the pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.
  • Manual valve and motor control Internal pressure relief valve prevents overloading

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

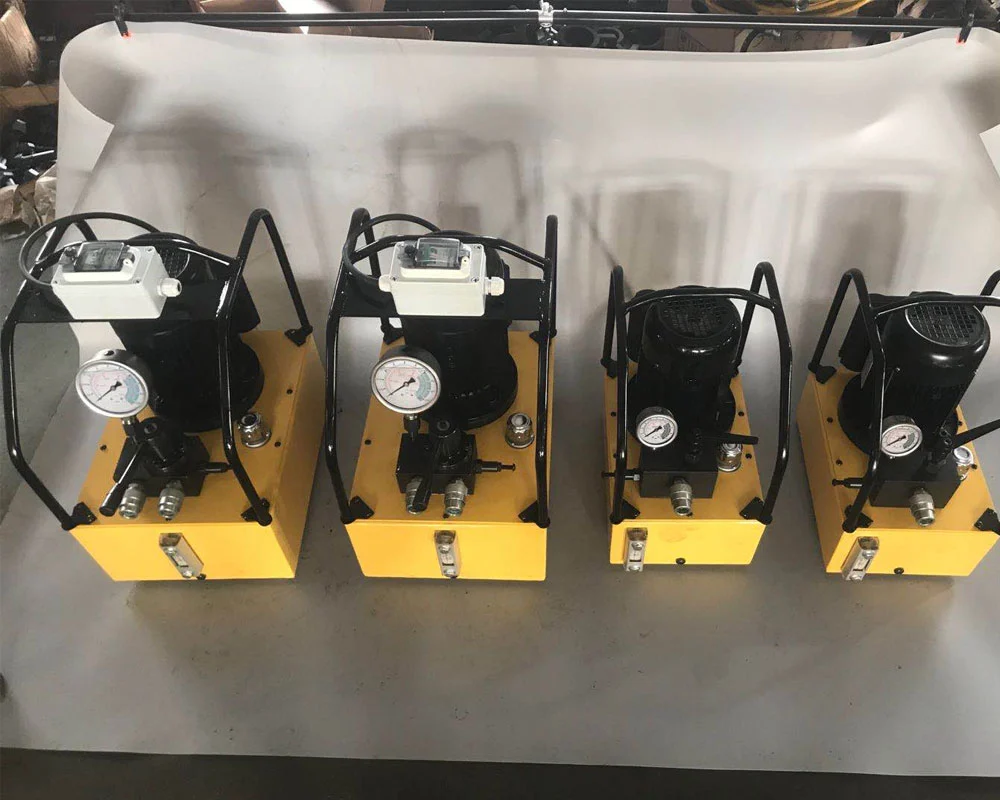

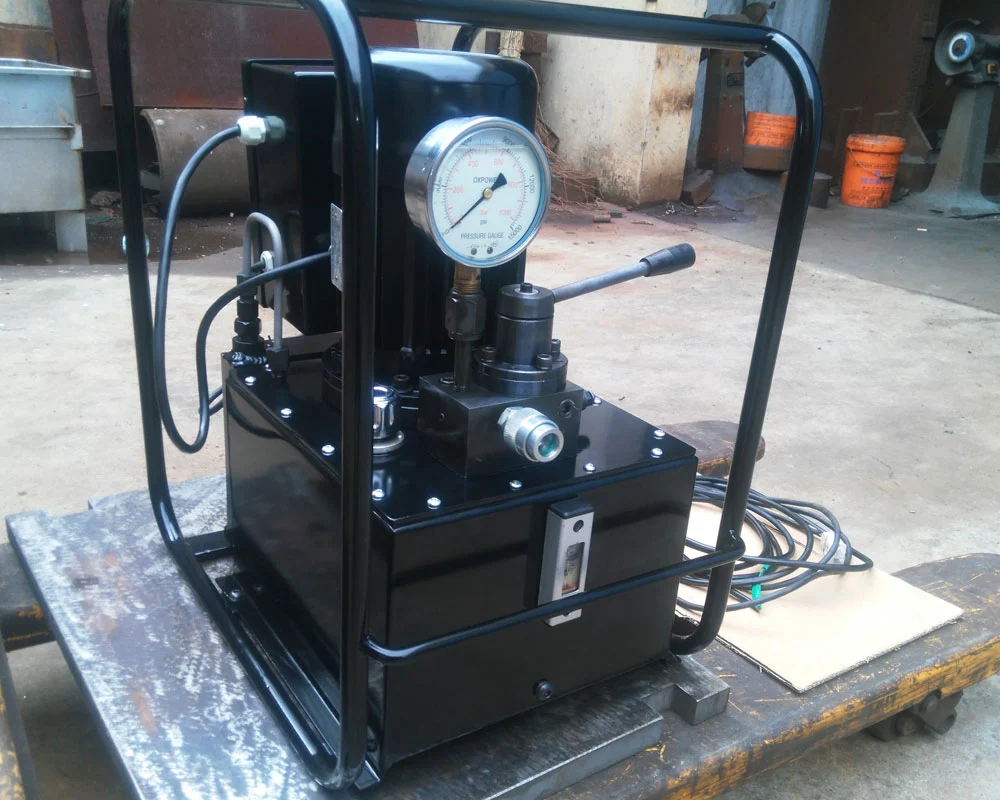

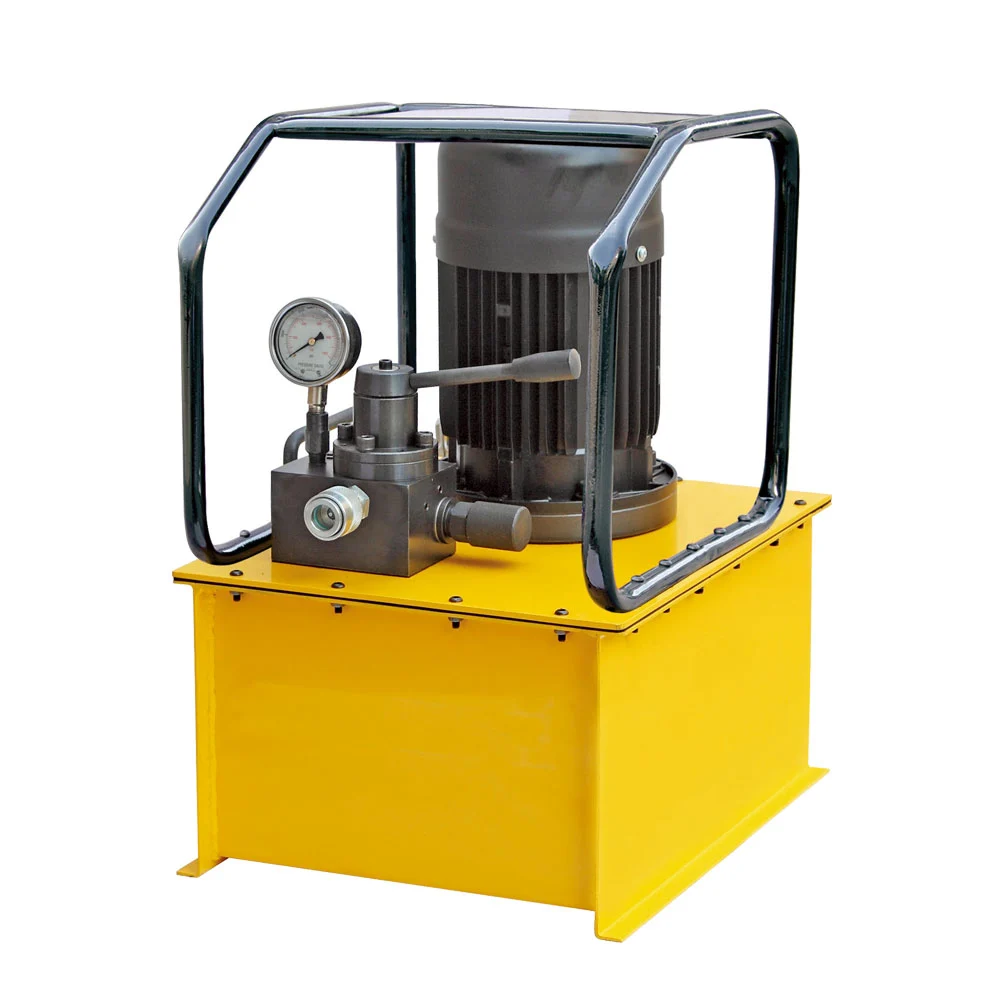

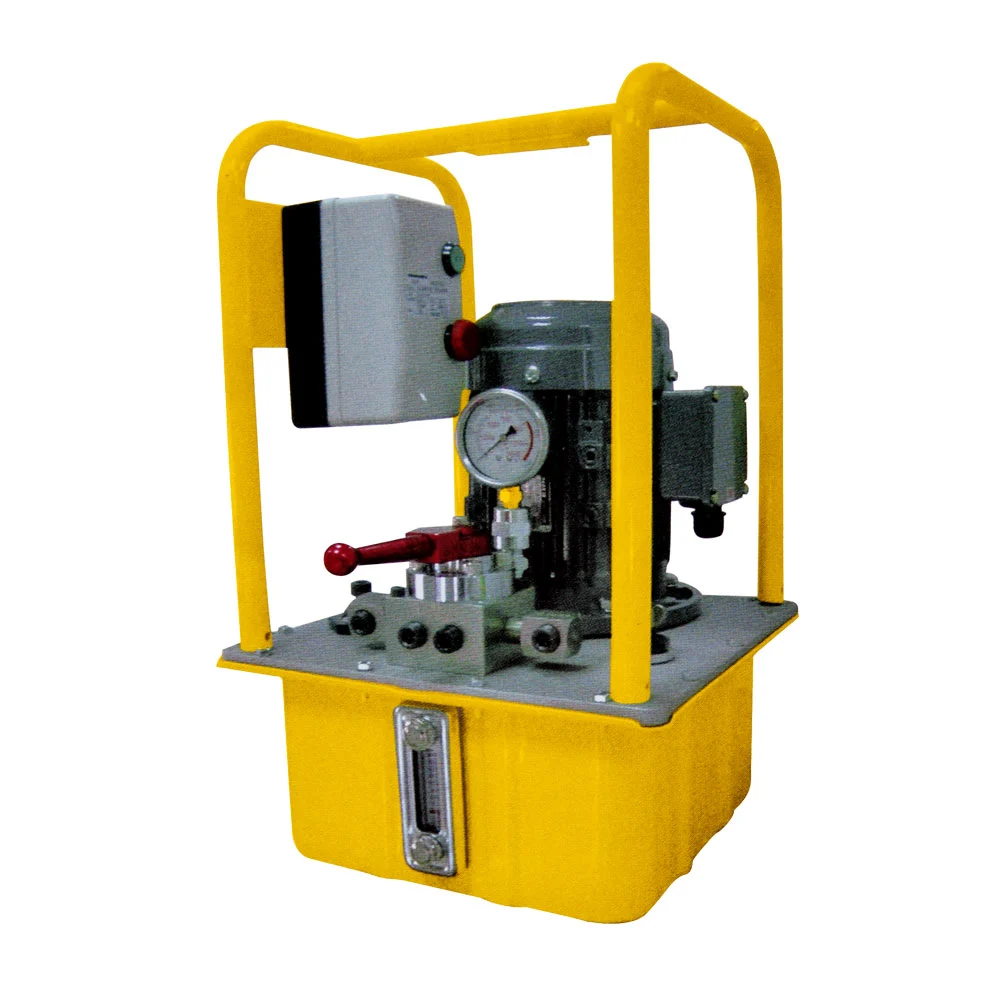

Image Gallery

Series Specifications

Oil Capacity: 8-30L
Pump Type: Single-acting, Two-sped
Maximum Operating Pressure : 700Bar
Weight: 20-45Kg

Series Comparison

Model Usable Oil Capacity/L Pump Type First Stage Pressure/bar Second Stage Pressure/bar Low-Pressure Oil Flow (L/min) High-Pressure Oil Flow (L/min) Power Weight/Kg
PE8DS 8 Single-acting 70 700 4 0.5 0.75KW 220V 20
PE12DS 12 Single-acting 70 700 6 1 1.5KW 220/380V 29
PE30DS 30 Single-acting 70 700 6 1 2.2KW 220/380V 45
