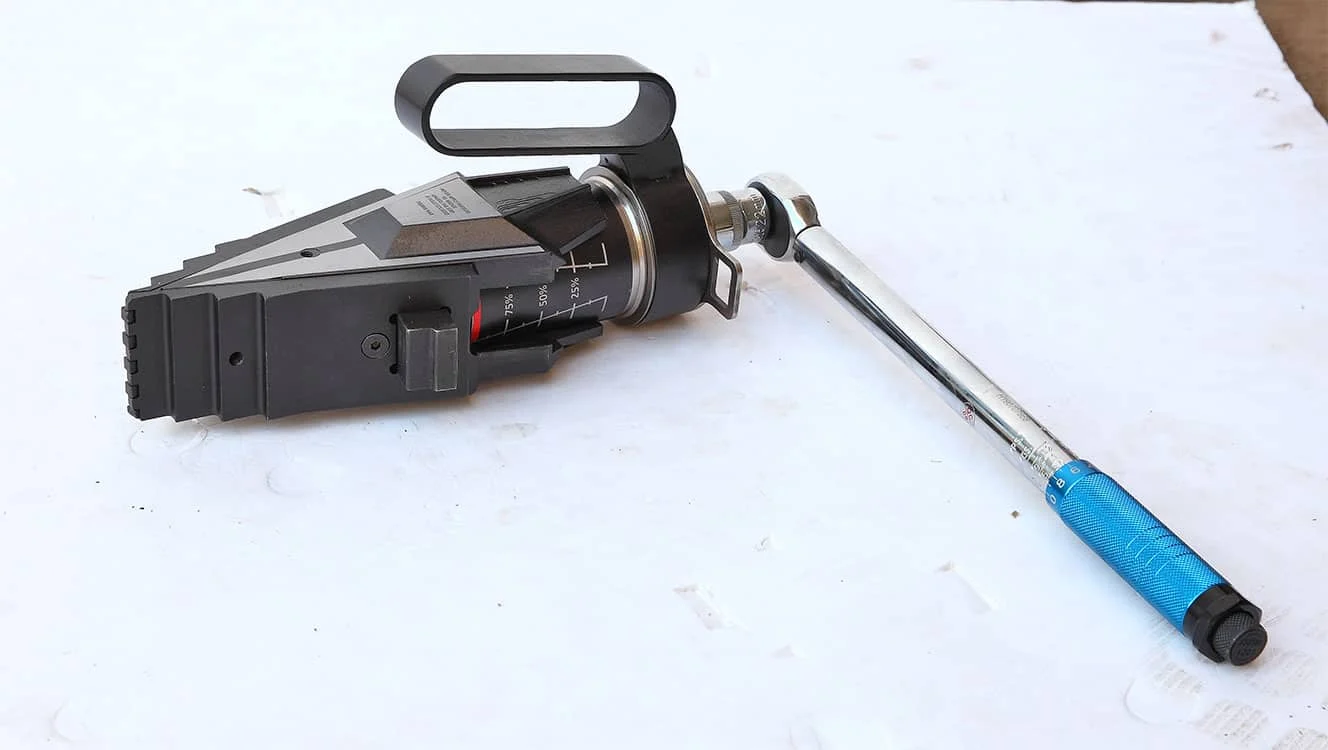

FSW14TM, 14 Ton Mechanical Flange Spreader

Pullertop supplies full ranges of hydraulic flange spreaders, our flange spreader tools are normally used for separating flanges, widely being used in industrial applications such as pipeline maintenance, pipeline construction, testing and flange replacement, maintenance gaskets, pressure vessels, cylinder head opening, power plants, bearing disassembly, oil and electricity drilling, motor rotor disassembly, offshore platforms, jacking work, Shipbuilding, industrial equipment, horizontal movement of workpieces and so on. Tool selection is made on the basis of the access gap between the flange faces, the flange size, and the required scope of work.

Download Catalog
Upload File

Product Description

Product Lines: Mechanical Flange Spreader

A simple solution to mechanically spreading flange joints with a minimum access gap of 6.0mm (0.25″). The FSW14TM Innovative Mechanical Flange Spreading Wedge provides a 30% higher spreading capacity than the FSW9TM.

The tool is smaller, lighter, and narrower than the FSW9TM. It features a swivel handle, no finger pinch points, and a safety lanyard as standard.

The FSW14TM is mechanically operated and capable of exerting a 14T (140kN) Spreading Force.

Delivery Includes:

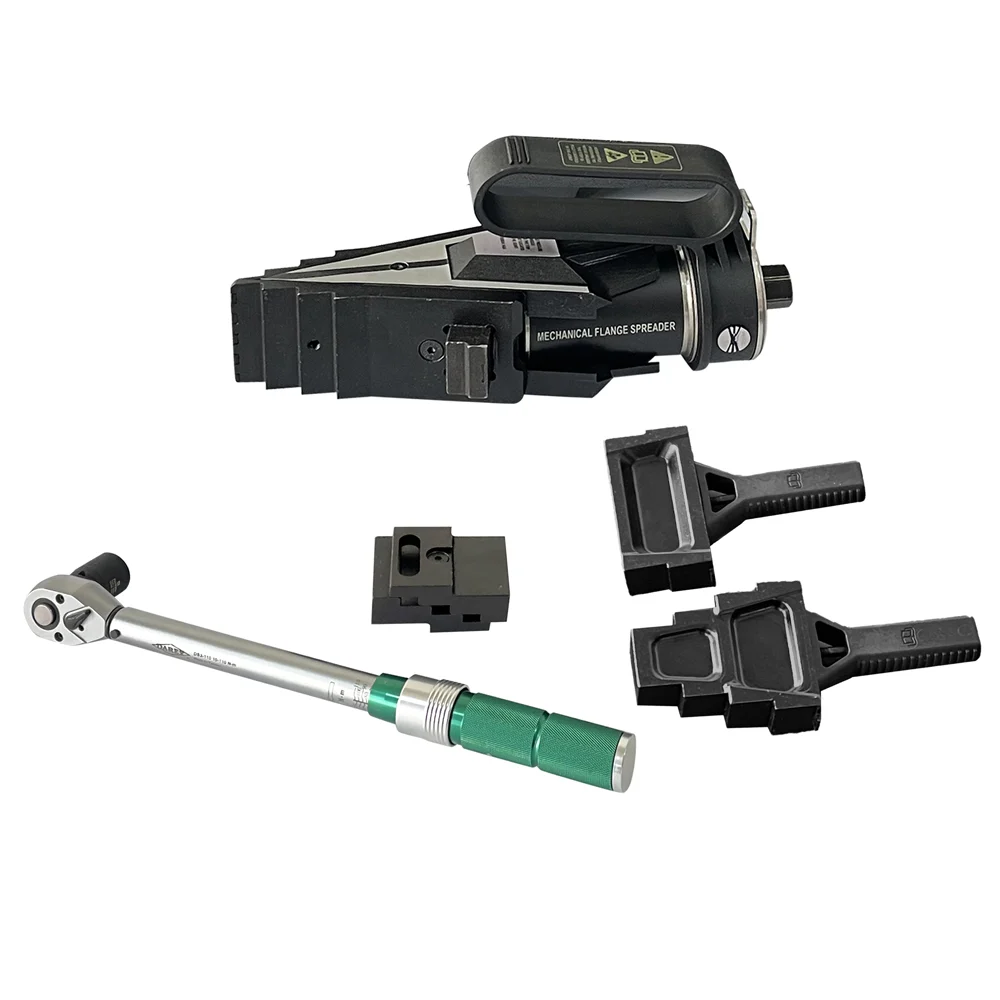

1 x FSW14TM Mechanical Flange Spreader Wedgehead

1 x FSW14TM Mechanical Flange

1 x 14TM Mechanical Cylinder

1 x (230N.m) Torque Wrench with 22mm Socket

1 x Set of Safety Blocks

1 x Pair of Stepped Blocks

1 x Lanyard

1 x Hex Key

1 x Instruction Manual

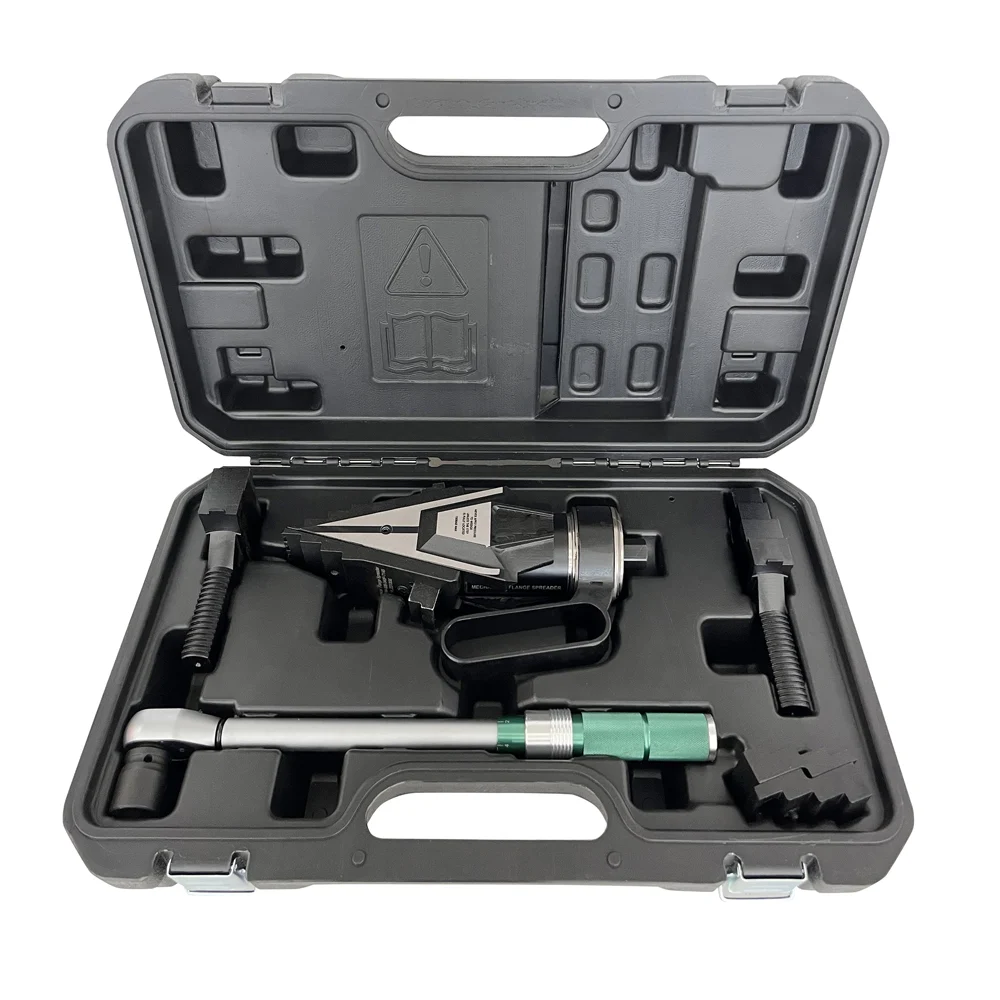

1 x Plastic Carry Case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 14
Maximum Spread (mm) 103.5
Tip Clearance (mm) 6
Spreader Tip Width(mm) 15
Tool Weight(kg) 6,2
With Case Weight (kg) 13

Series Comparison

Model Capacity/Ton Maximum Spread/mm Tip Clearance/mm Jaw Width/mm Oil Capacity/cm3 Power Weight/Kg
FSW25TE, 24 103,5 6 60 250 Split Hydraulic Power 15
FSW25TI 24 103.5 6 60 * Integral Hydraulic Type 18.1
FSW14TM 14 103.5 6 60 * Mechanical Type 13
FSH-15 15 81 6 * * Integral Hydraulic Type 10
