Portable High Tonnage Hydraulic Jacks

Portable High Tonnage Hydraulic Jacks from Pullertop feature a load-lowering valve that enables the safe and smooth lowering of loads through the removal of load chatter and bounce. These jacks have a maximum lifting height of 1778 mm.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Portable High Tonnage Jacks

  • Load lowering valve. Lowers load smoothly and safely. Eliminates dangerous chatter and bounce.
  • Full range of rod extensions. Jack comes fully equipped with extensions to match lifting pad heights on most rolling stock. Max. lifting height to 1778 mm.
  • Low collapsed height, long stroke. 610mm collapsed height for low-clearance lift pads.360 mm stroke for maximum lift.
  • Adjustable, ergonomic handle. The handle tilts to start the job and is easily locked/unlocked without moving from the operating position.
  • Cribbing block set with handles and convenient storage rack. Provides solid mechanical load holding.
  • High-profile, low rolling resistance, foam-filled tires. Jack can be moved and positioned with minimal effort. No chance of downtime due to punctured tires.
  • Electric and air motor options. Quiet, powerful air and electric motor-powered units are available.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

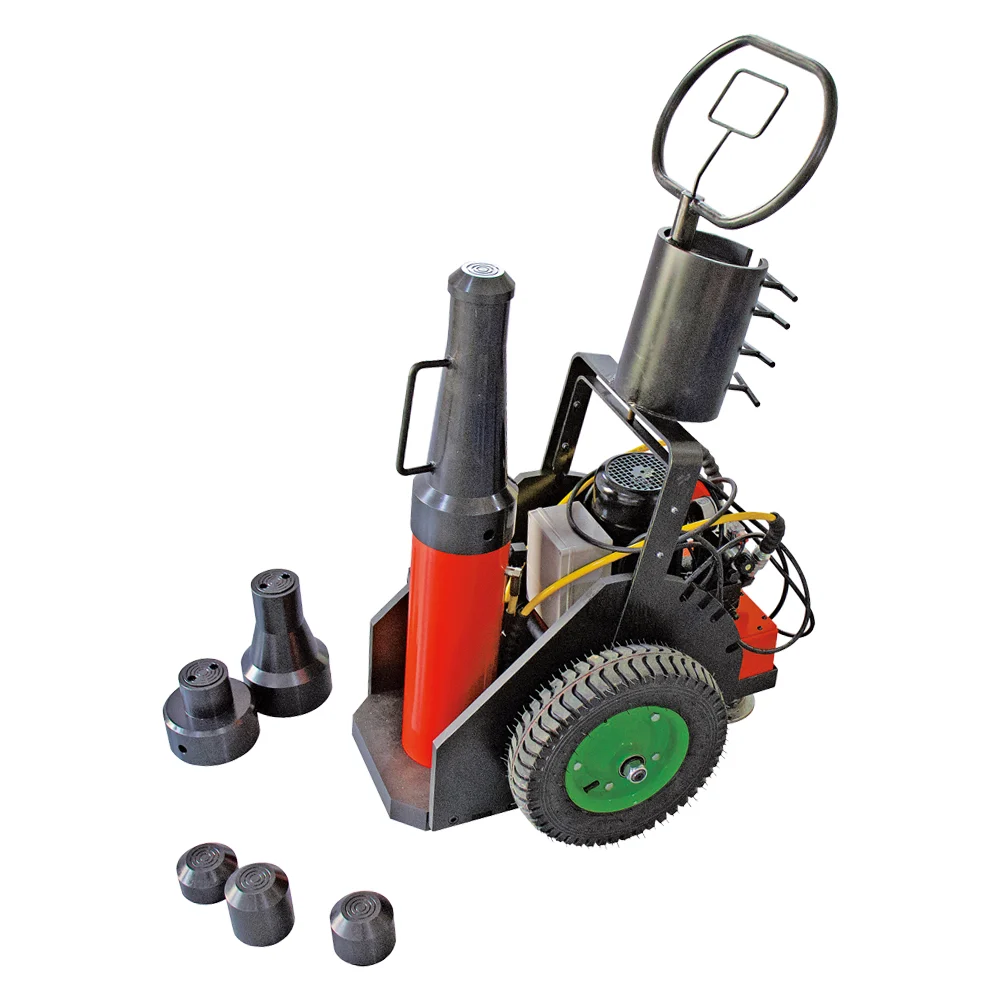

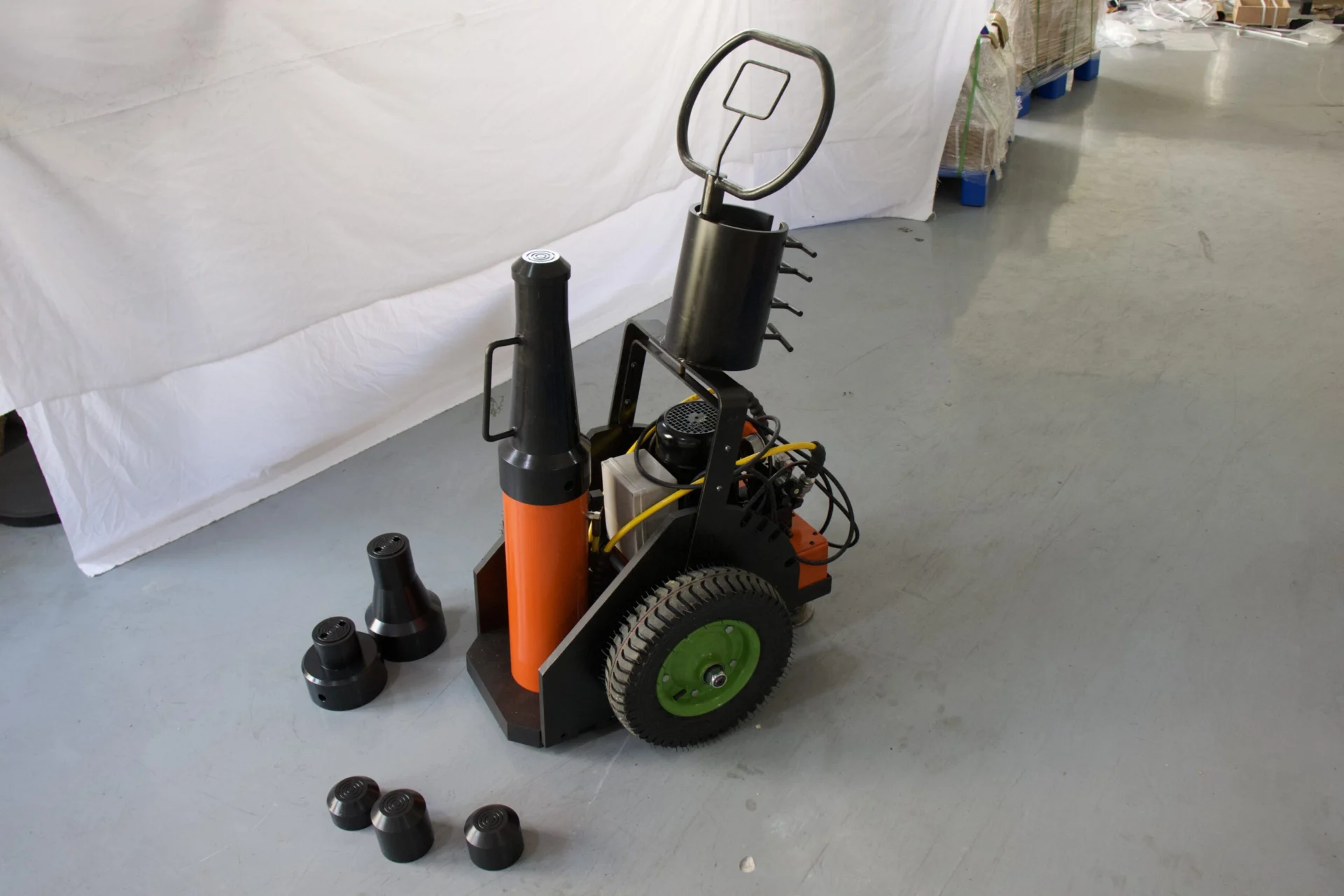

Product Picture

Series Specifications

Capacity: 60-100 Ton
Stroke: 354mm
Extended Height: 1493-1771mm
Maximum Operating Pressure : 70Mpa
Weight: 265Kg

Series Comparison

Model Number Capacity/Ton Stroke/mm Extended Height/mm Weight/Kg
6014 60 354 1771 265
10014 100 354 1493 265
