Portable Railroad Jacks

Pullertop wheeled jack is a portable lifting system for lifting heavy loads. it is a self-locking jack that performs automatic mechanical locking during lifting, lowering, and holding.

Download Catalog
Upload File

Product Description

Series: JE/JA Series

Product Lines: Portable High Tonnage Jacks

  • The strong and heavy-duty structure makes the Hydraulic Jacking System have a long service life.
  • The large base pad supports a hydraulic cylinder.
  • Omni-directional wheels are convenient for transportation and placement.
  • The hydraulic control check valve provides pressure self-locking in case of an emergency.
  • The cylinder and pump are easy to disassemble and can be easily used on other occasions or for maintenance.
  • Comes with a full range of rod extensions.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

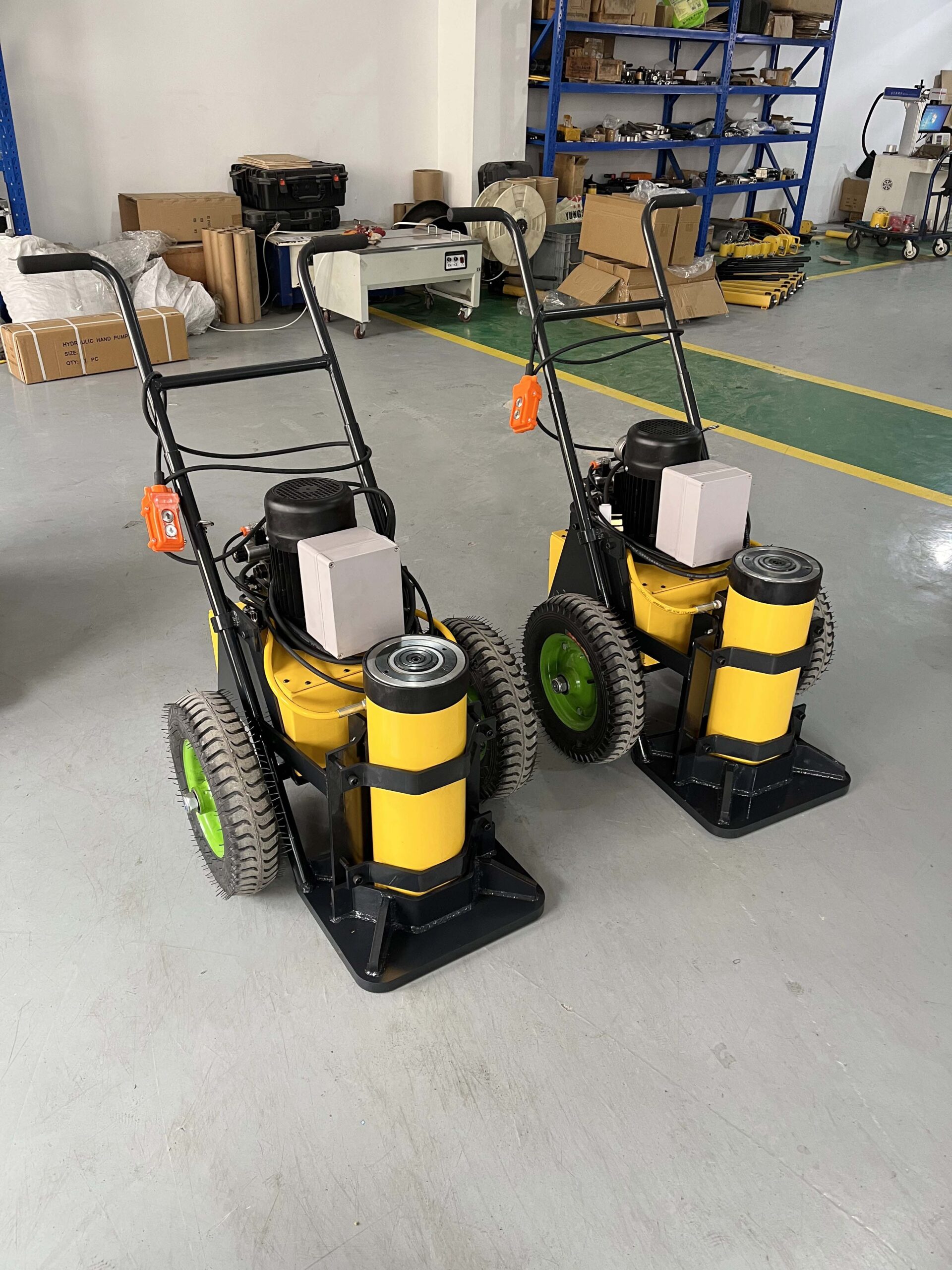

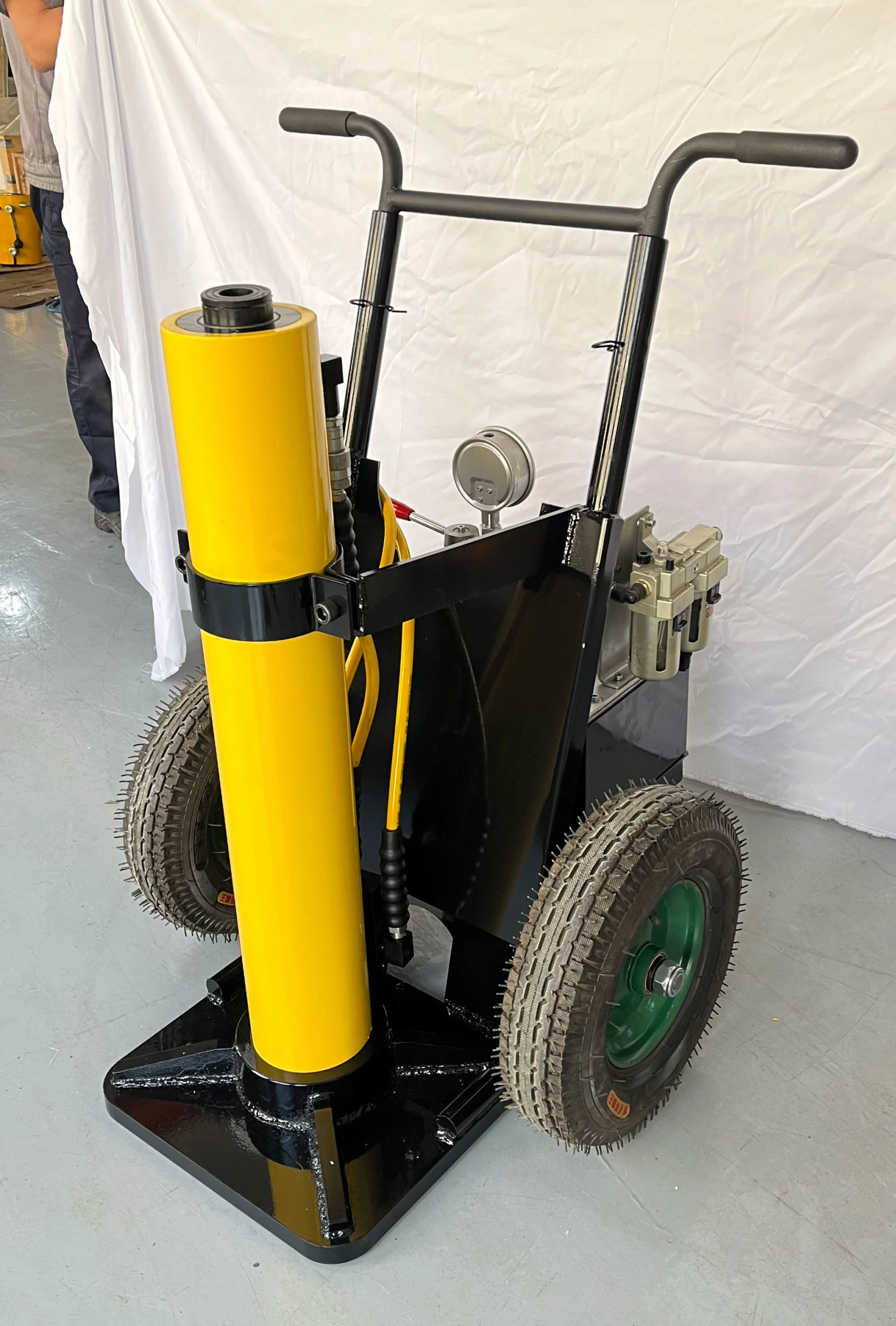

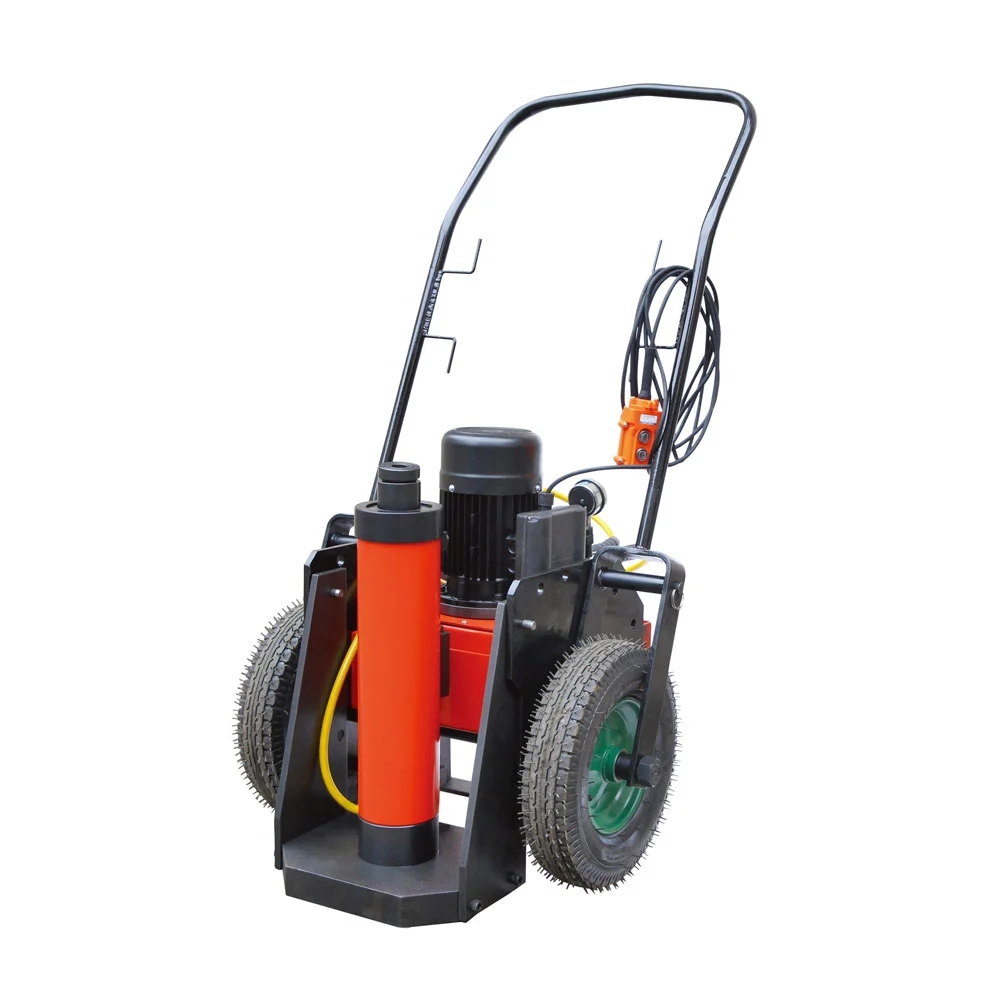

Product Picture

Series Specifications

Capacity: 55-200 Ton
Stroke: 333mm
Collapsed Height: 660-1143 mm
Extended Height: 994-1476 mm
Maximum Operating Pressure : 70Mpa
Weight: 300-450Kg

Series Comparison

Model Number Capacity/Ton Stroke/mm Retracted Height/mm Extended Height/mm Weight/Kg
5526 55 333 660/838/1143 994/1172/1476 300
10033 100 333 660/838/1143 994/1172/1476 320
15033 150 333 660/838/1143 994/1172/1476 350
20033 200 333 660/838/1143 994/1172/1476 450

1. The pump has two options of Air and hydraulic drive

2. In addition, there are step blocks、extension rods and jack modules of different heights for customers to choose and match
