Tri-section Pulling Plate Bearing Puller

The tri-section pulling plates, T3 series, are especially designed for use in combination with three-armed pullers. The plates grip behind the inner ring of the bearing. This prevents the pulling forces from being transmitted through the outer ring and the rolling elements, minimising the risk of bearing damage.

Download Catalog
Upload File

Product Description

Product Lines: Mechanical Pullers

  • The unique design of the T3 series allows the application of force on most efficient point; the inner ring, and thereby requiring less force for dismounting than when pulling on the outer ring.
  • The firm grip behind the bearing’s inner ring ensures that the pulling forces are only transmitted through the inner ring and not through the outer ring or the rolling elements, preventing bearing damage.
  • The tri-section construction allows even force distribution, preventing bearing locking and/or tilting on the shaft.
  • Suitable for use in combination with any three-armed puller.
  • Special wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft.
  • Available in a wide range, covering most common shaft sizes.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

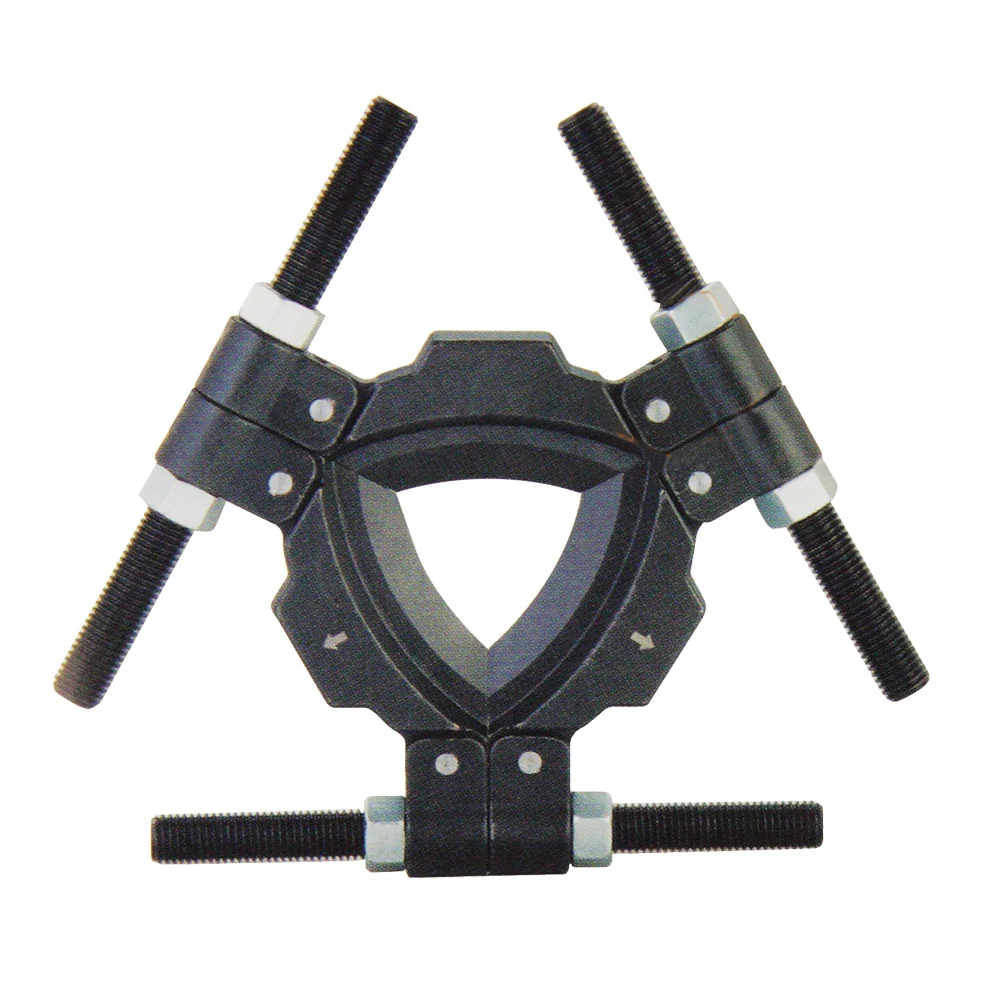

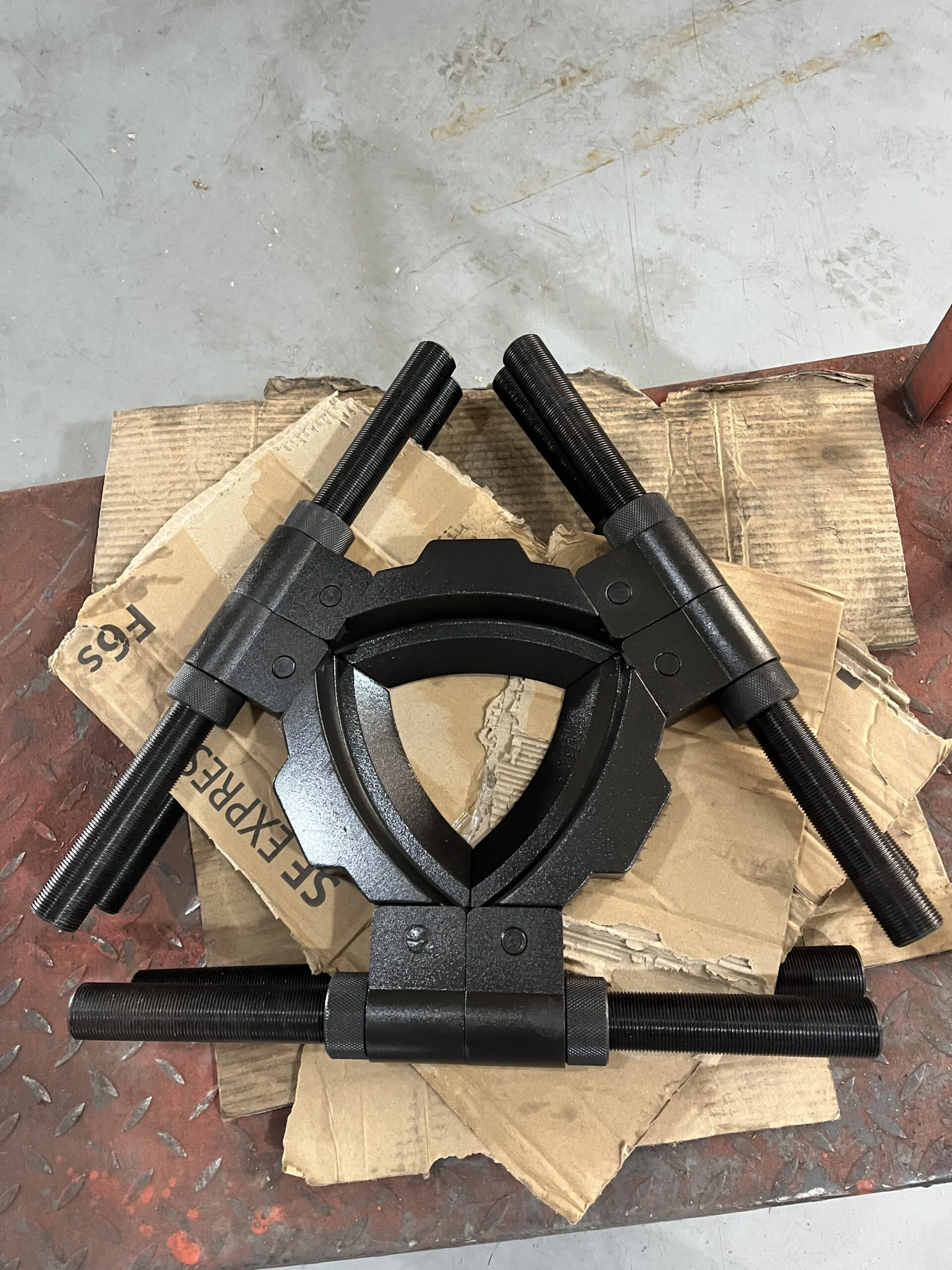

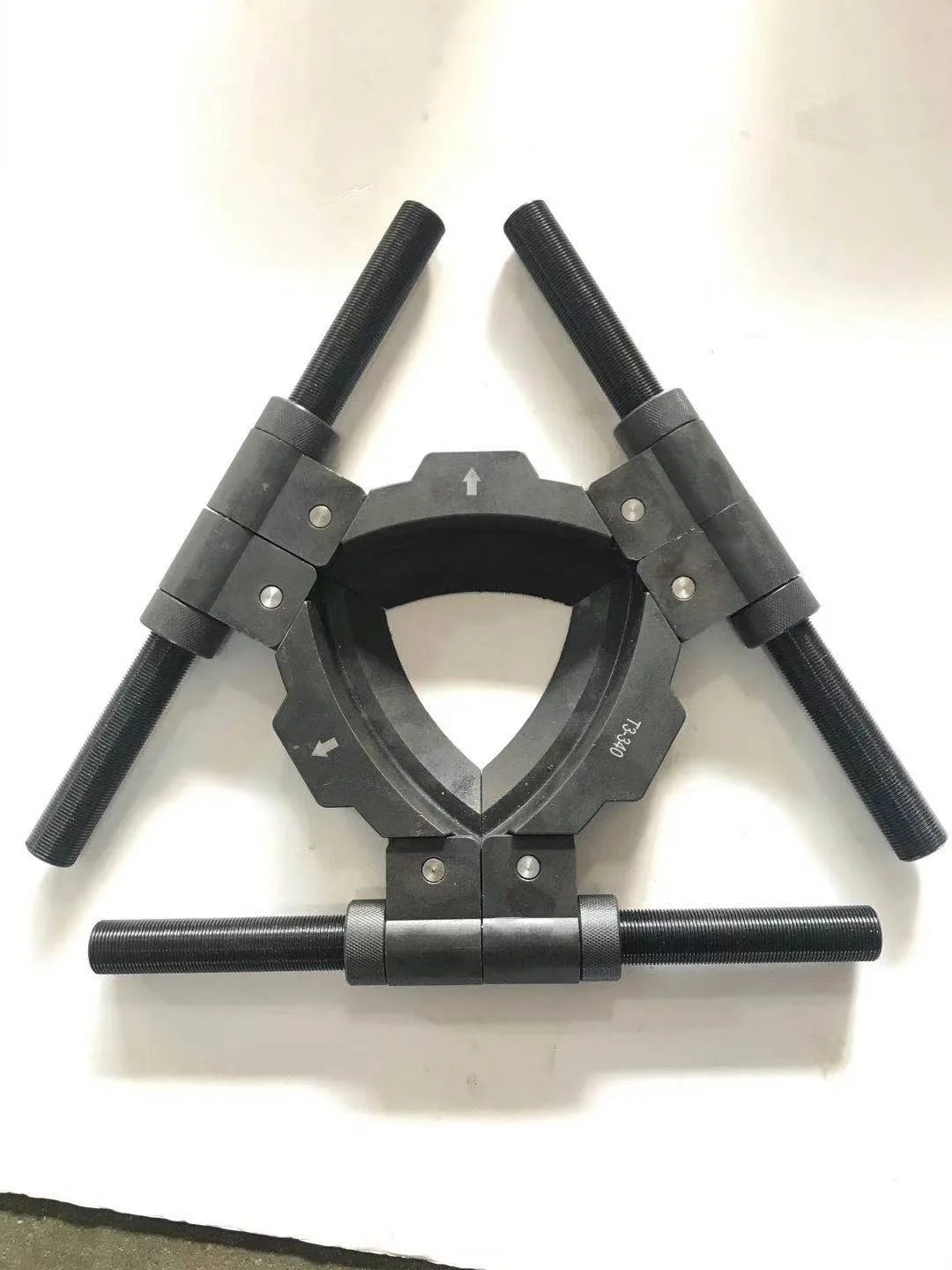

Tri-section Pulling Plate Bearing Puller

Dimension Drawing

Series Comparison

Model Capacity/Ton For Shaft Dia A/mm For Shaft Dia A2/mm Max. Reach/mm C/mm D/mm E/mm F/mm G/mm H/mm Weight/Kg
T3-160 6 25 160 216 105 240 5/8”-11UNF 8 2 6.5 3.5
T3-210 8 50 210 280 117 285 7/8”-14UNF 10 2 9 5.5
T3-340 20 90 340 460 175 460 1 1/4”-12UNF 14 2 8 18
T3-495 30 140 495 660 235 660 1 3/4”-12UNF 20 2 12 45
