SWi5TI-S, 8.7 Ton, Integral Hydraulic Flange Spreader

The FSW5TI is a 8.7-ton integral hydraulic spreader manufactured by Pullertop. It is designed to hydraulically spread flange joints with a minimum access gap of 4.0mm,flange plates can be opened up to 101mm range.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Integral Hydraulic Flange Spreader

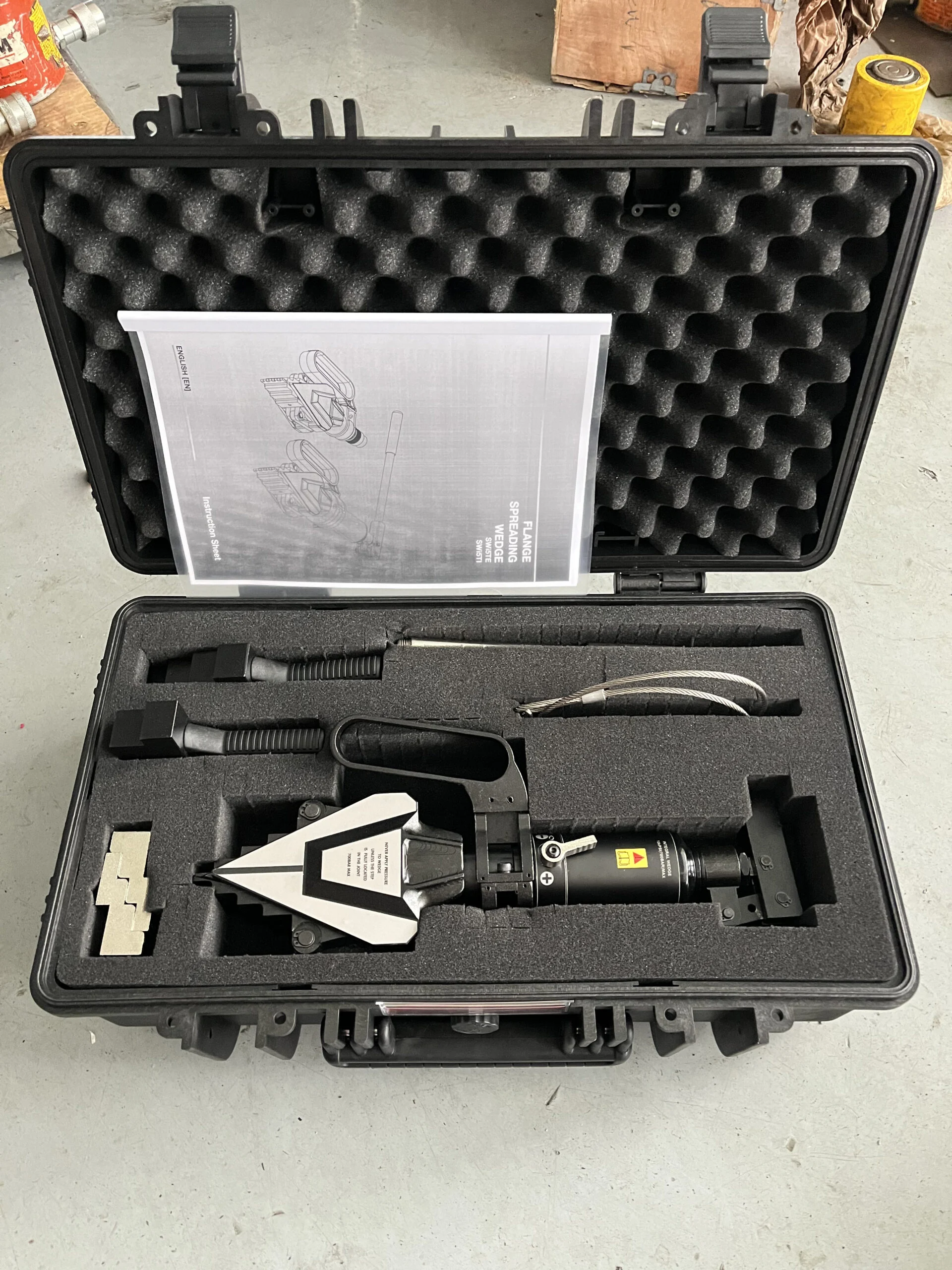

  • Set Includes

    • 1 x SWi5TI Flange Spreading Tool
    • 1 x Standard Safety Block
    • 1 x Lanyard
    • 1 x Moulded Plastic Carry Case with protective foam inserts

  • User Features

    • Practical, portable and lightweight
    • Moulded plastic handle for comfort
    • Revolving handle to aid horizontal or vertical spreading
    • Removable handle for improved access

  • Safety Features

    • No finger pinch-points
    • Increased step depth on upper steps
    • Safety lanyard – 39 inches (1 m) length
    • Forged key components for strength and reliability

  • Maintenance Features

    • Rapid disassembly and assembly
    • Narrow jaw teeth – improved tool wear

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

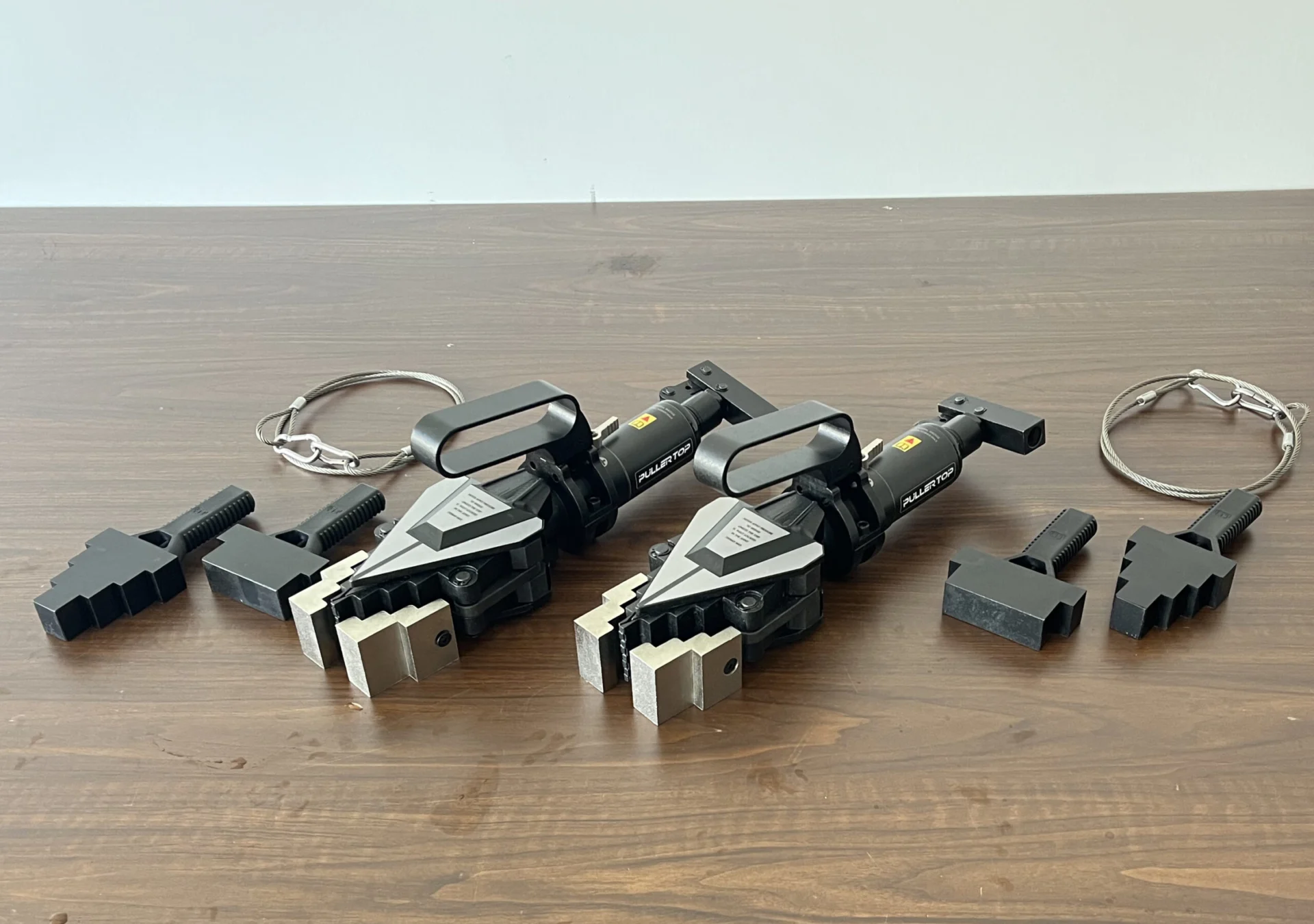

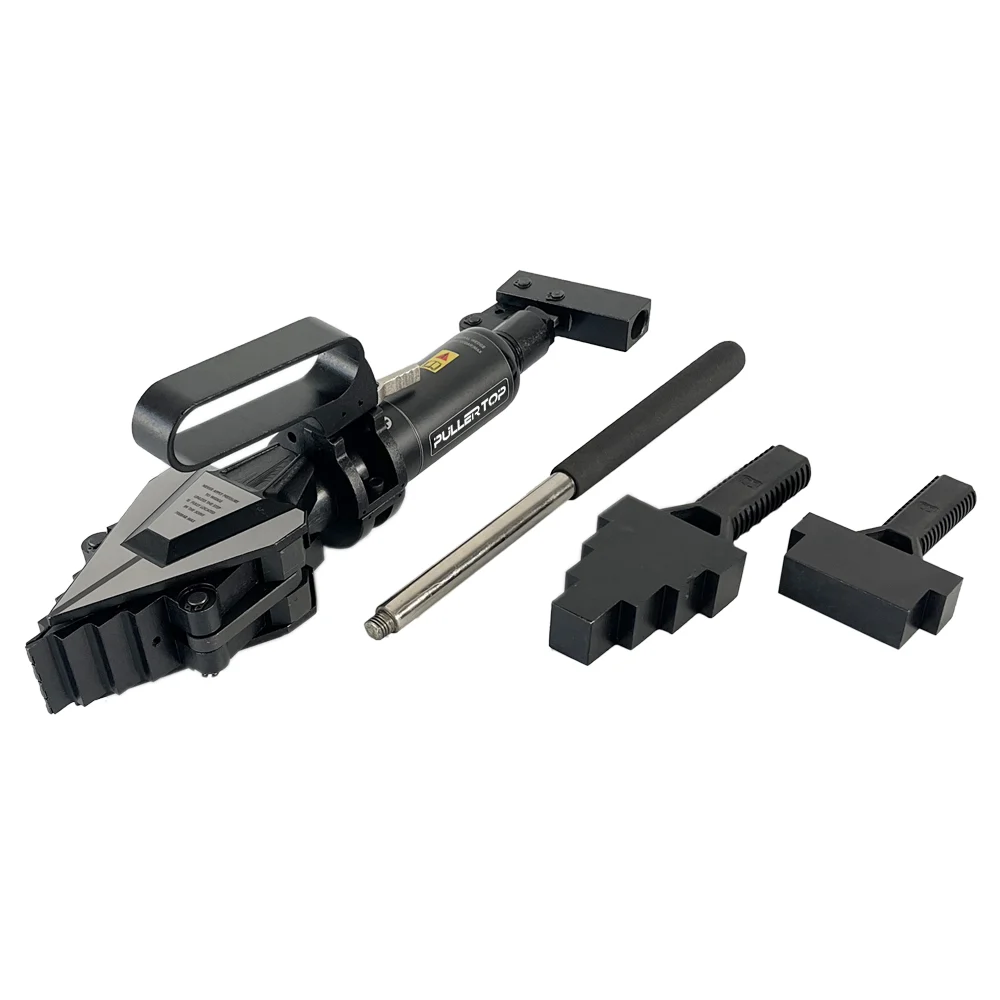

Image Gallery

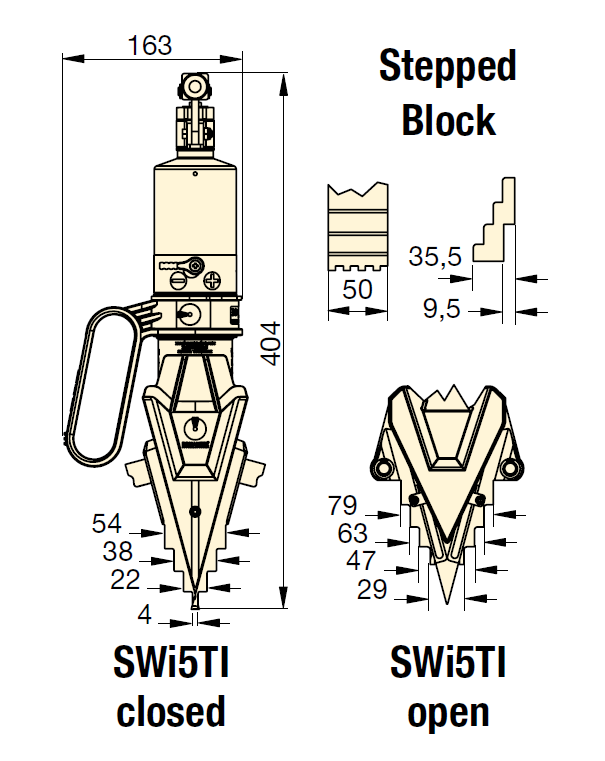

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 8.7
Maximum Spread (mm) 101
Tip Clearance (mm) 4
Jaw Width(mm) 50
Power Source Integral Hydraulic Type
Weight: 10,5
