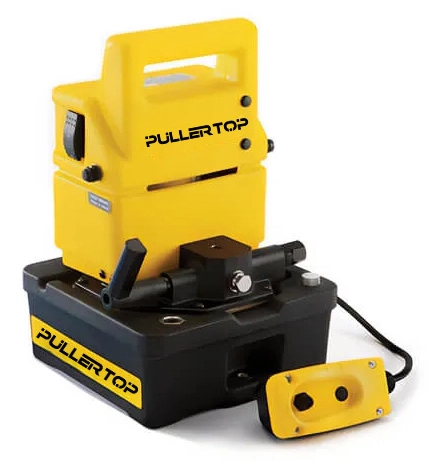

PU Series,Economy Electric Hydraulic Pump

PU Series electric over hydraulic pumps combine economy with high-performance – ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools. All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments. Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Electric Hydraulic Pumps

The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design make it ideal for applications which require easy transport of the pump. The universal motor works well on long extension cords or generator-driven electrical power supplies.

For applications not requiring load holding,Lightweight and compact design: 11,8 to 18,6 kg

Large easy-carry handle for maximum portability,two-speed operation reduces cycle times for improved productivity

High strength molded shroud, with integral handle, protects motor from contamination and damage,designed for intermittent duty cycle.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Oil Capacity:	1.9-3.8L
Pump Type:	Double-acting, Double-speed
Maximum Operating Pressure :	700Bar
Weight:	11.8-18.6Kg

Series Comparison

Pump Type	Model No.	Usable Oil Capacity(L)	Pressure Rating（bar）		Flow(L/min)		Valve Type	Valve Function	Weight(Kg)
Pump Type	Model No.	Usable Oil Capacity(L)	LP	HP	LP	HP	Valve Type	Valve Function	Weight(Kg)
Single-Acting	PUD1100E	1.9	13	700	3.31	0.32	Dump**	Advance/Retract	11.8
	PUD1101E	3.8	13	700	3.31	0.32	Dump**	Advance/Retract	17.2

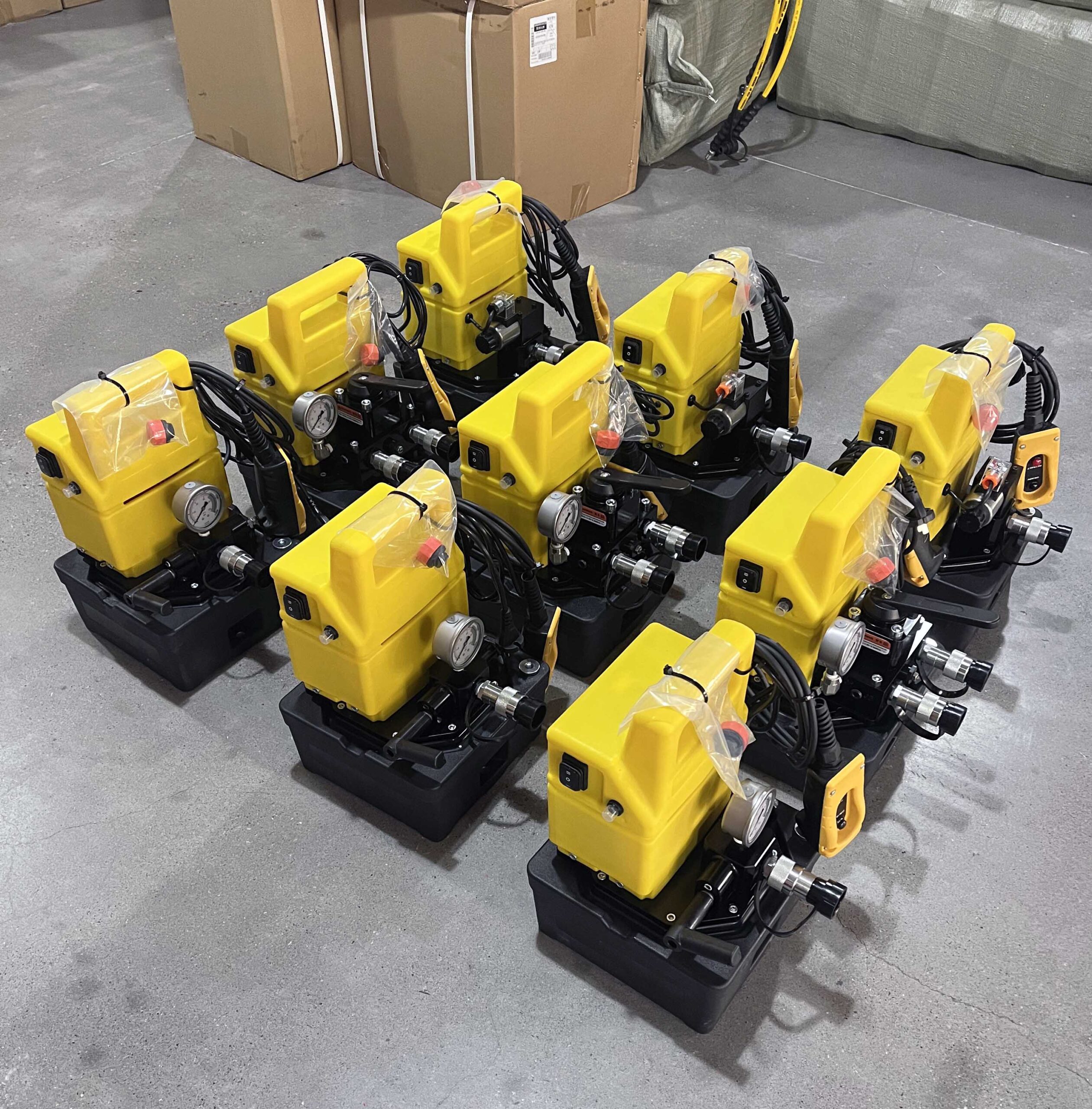

	PUJ1200E	1.9	13	700	3.31	0.32	3/2 manual	Advance/ Hold/Retract	10

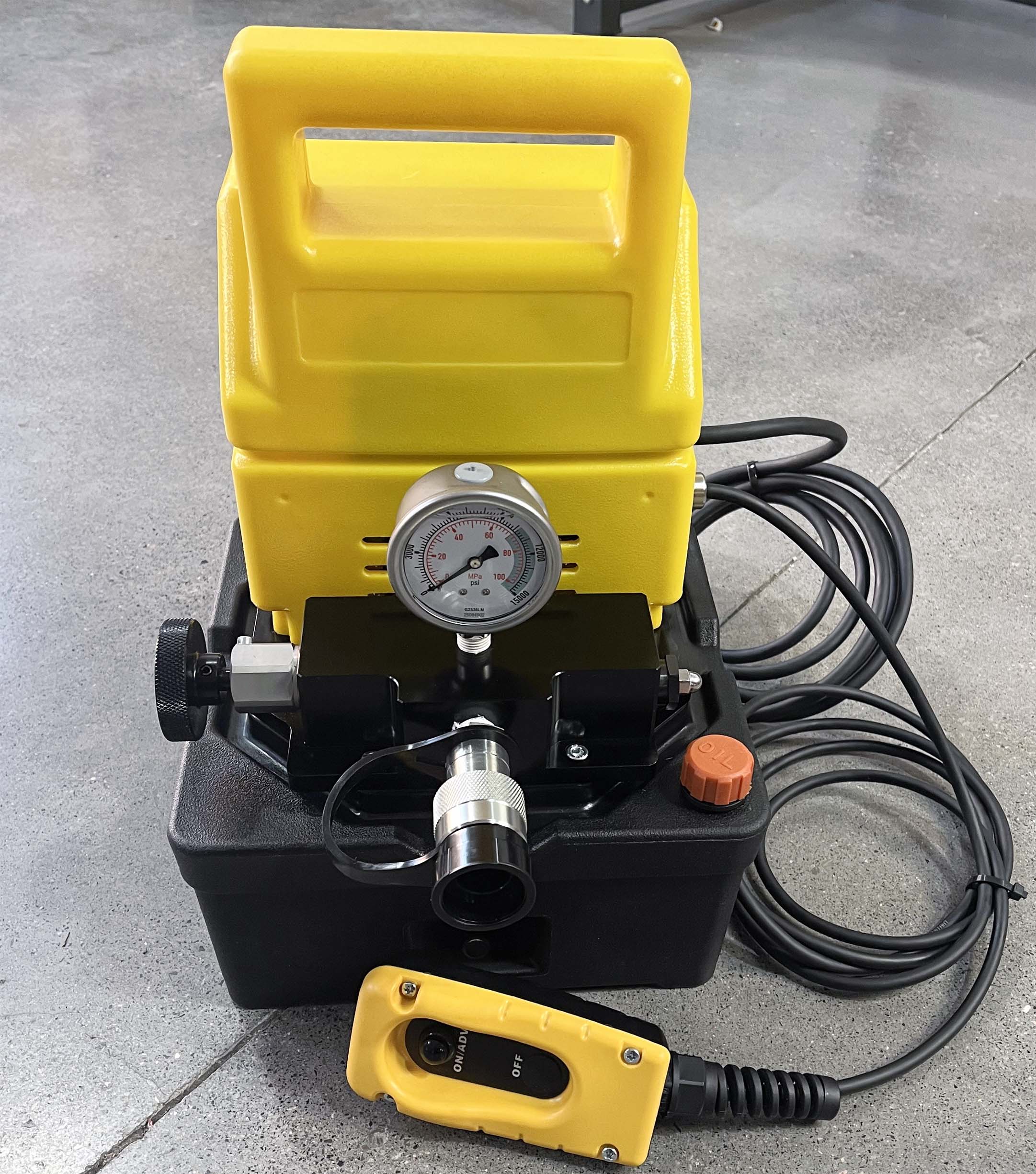

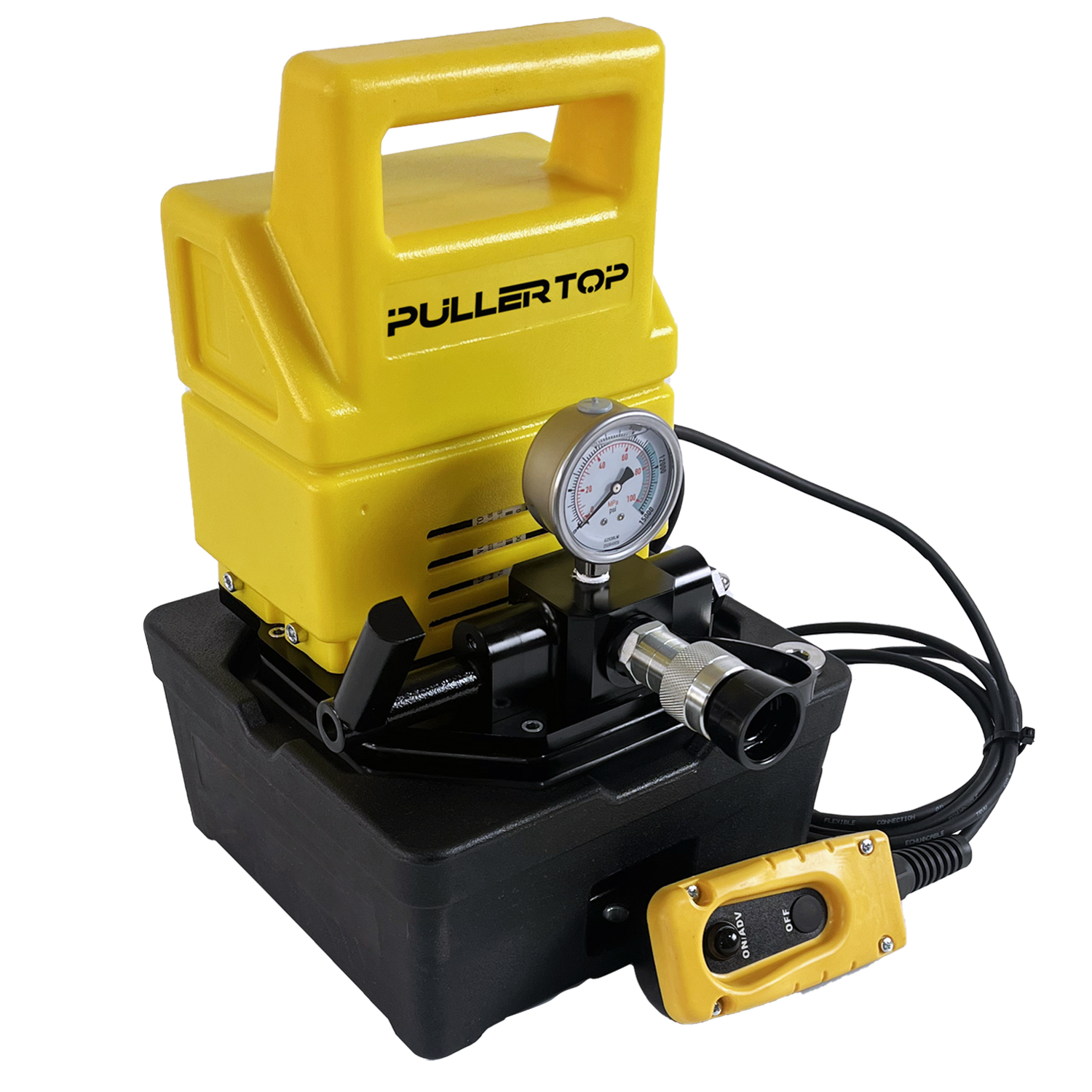

	PUJ1201E	3.8	13	700	3.31	0.32	3/2 manual	Advance/ Hold/Retract	15.4
	PUD1300E	1.9	13	700	3.31	0.32	3/2 solenoid	Dump & Hold	12

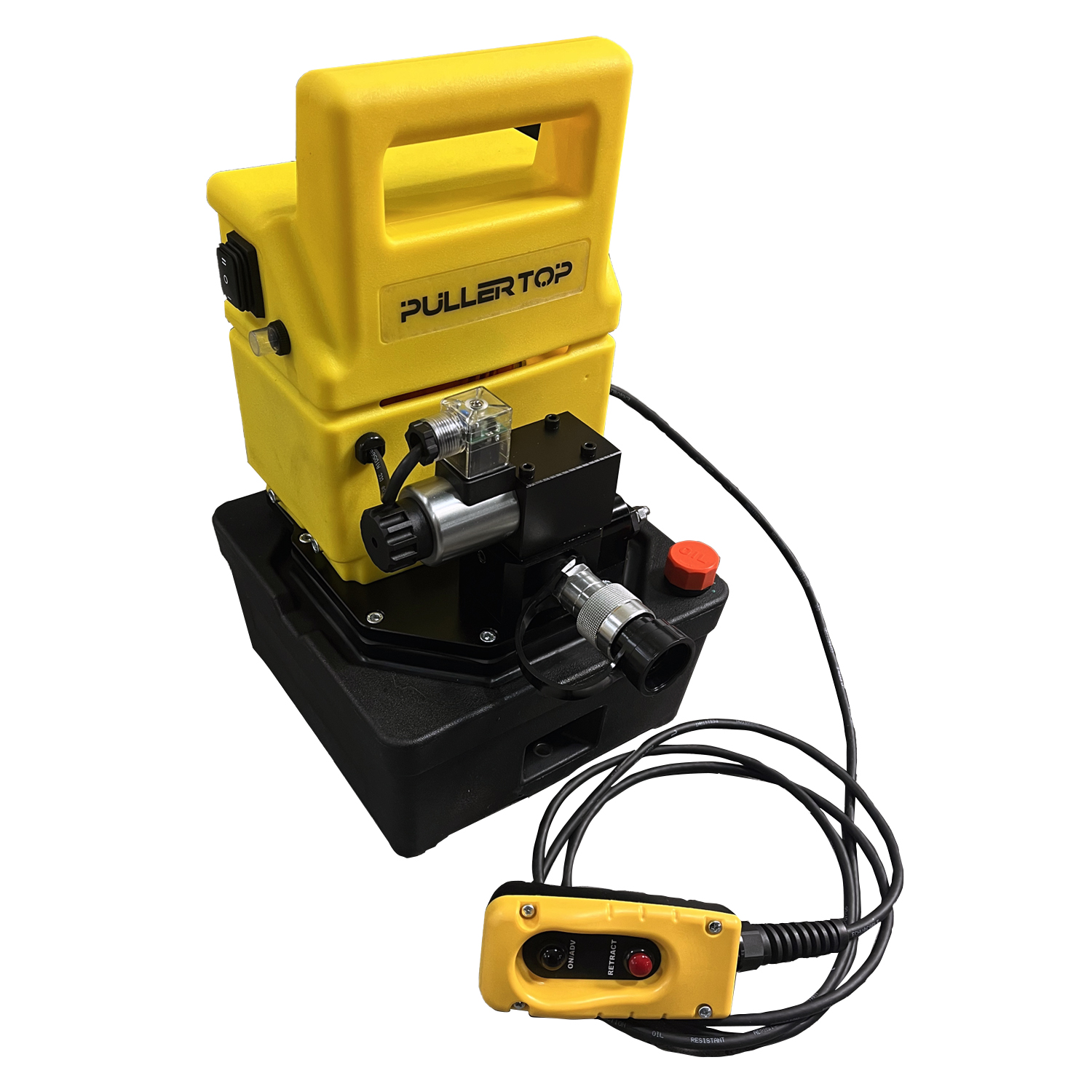

	PUD1301E	3.8	13	700	3.31	0.32	3/2 solenoid	Dump & Hold	17.5
Double-Acting	PUJ1400E	1.9	13	700	3.31	0.32	4/3 manual	Advance/ Hold/Retract	13.2

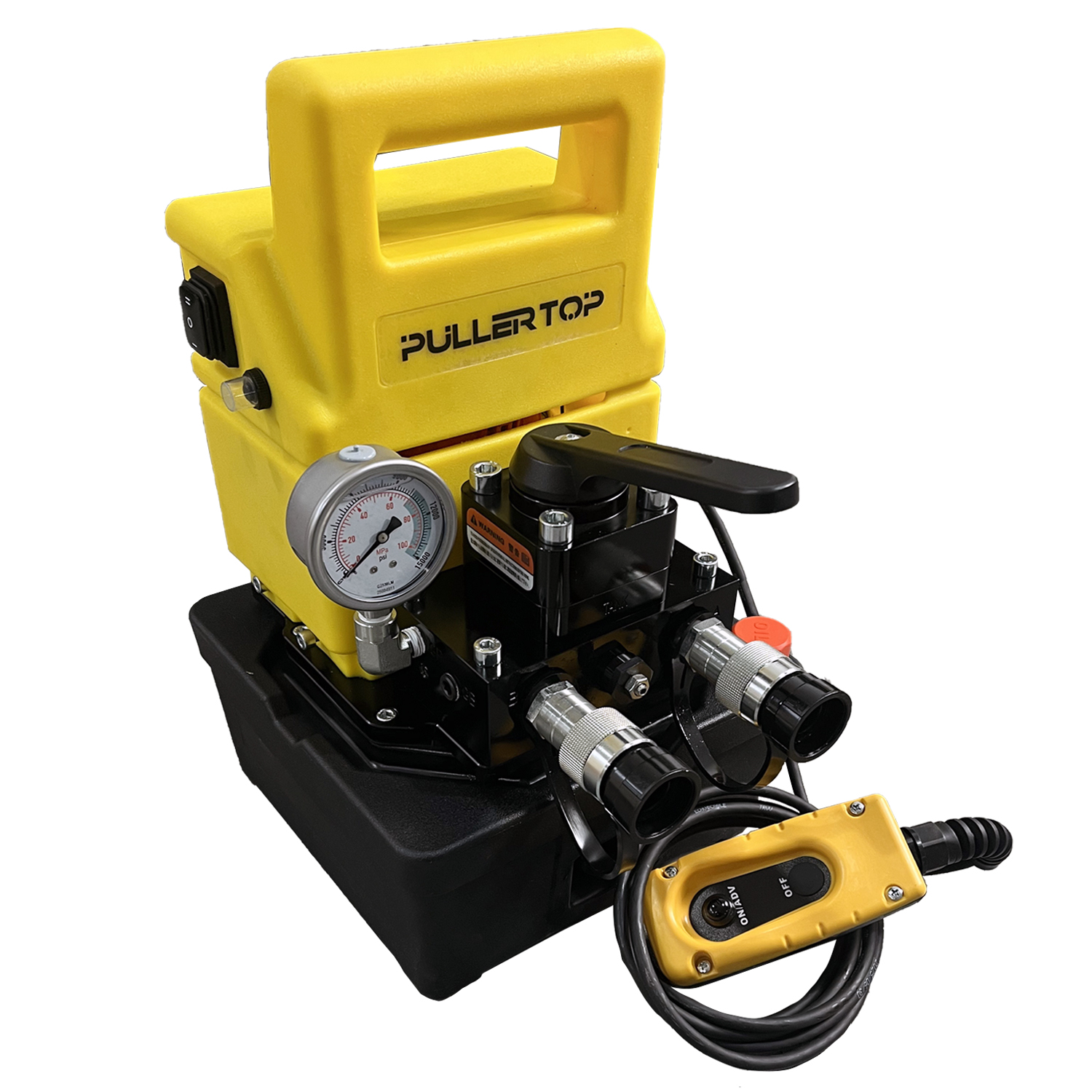

Double-Acting	PUJ1401E	3.8	13	700	3.31	0.32	4/3 manual	Advance/ Hold/Retract	18.6
