ZE-Series, Electric Hydraulic Pump

The ZE-Series pump utilizes many of the same robust valves, reservoir, and pump components as other pumps in the ZE family. Combined with the efficient, easy to service pumping element, it is suited to continuous use in manufacturing and workshop environments.
Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Electric Hydraulic Pumps

Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.

Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.

Low-voltage pendant, on certain models, provides additional safety for the operator.
Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.

Models available to suit single-acting or double-acting cylinders.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

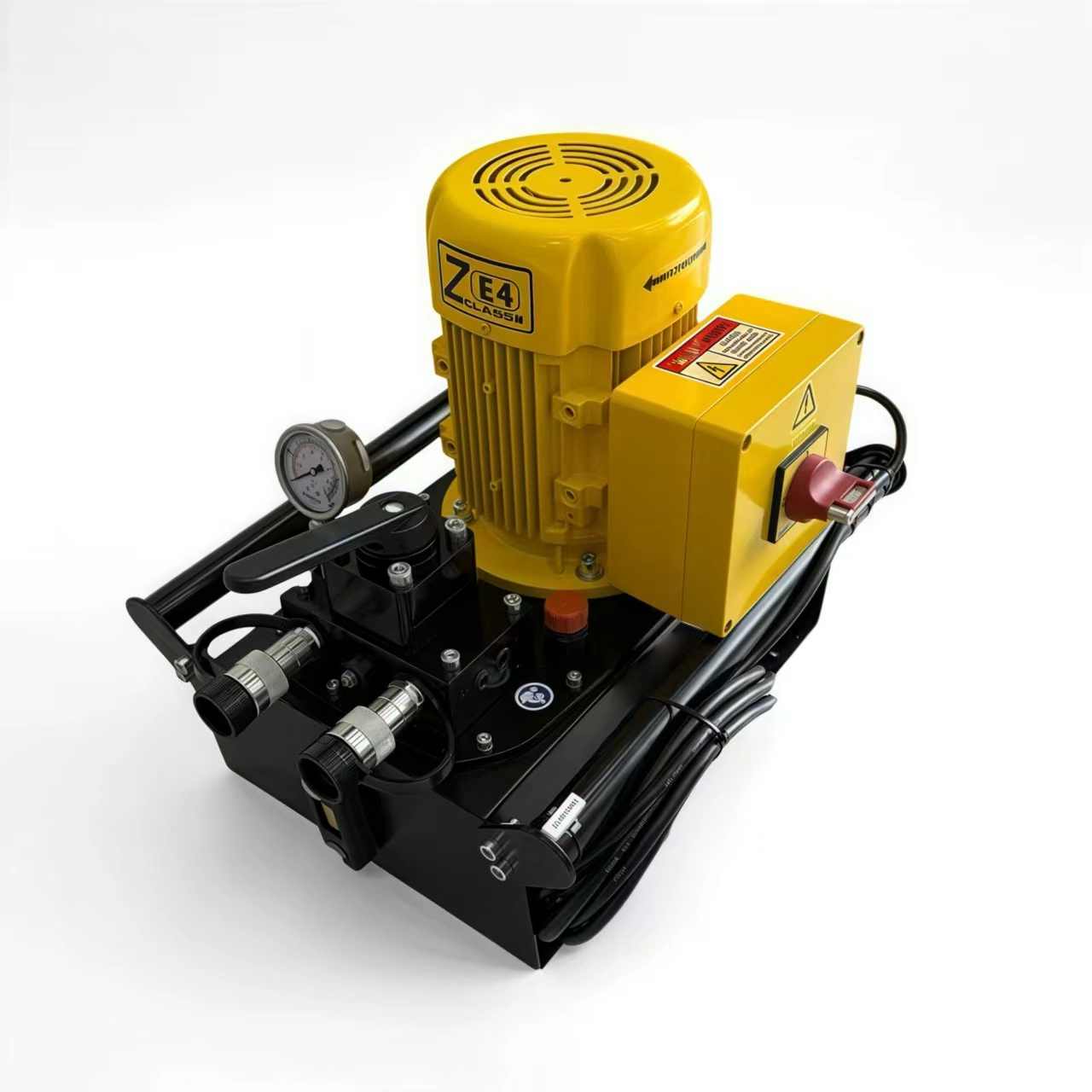

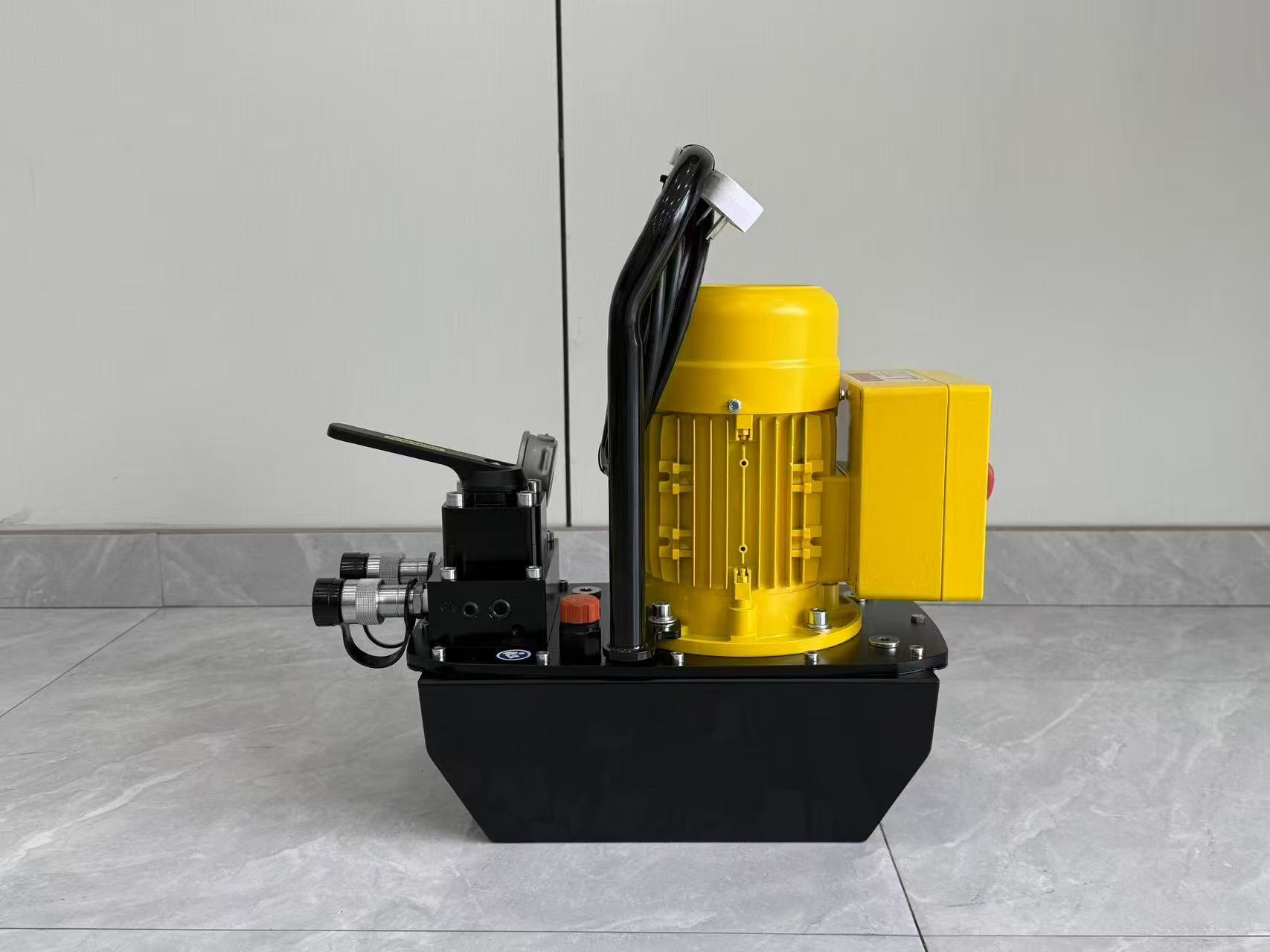

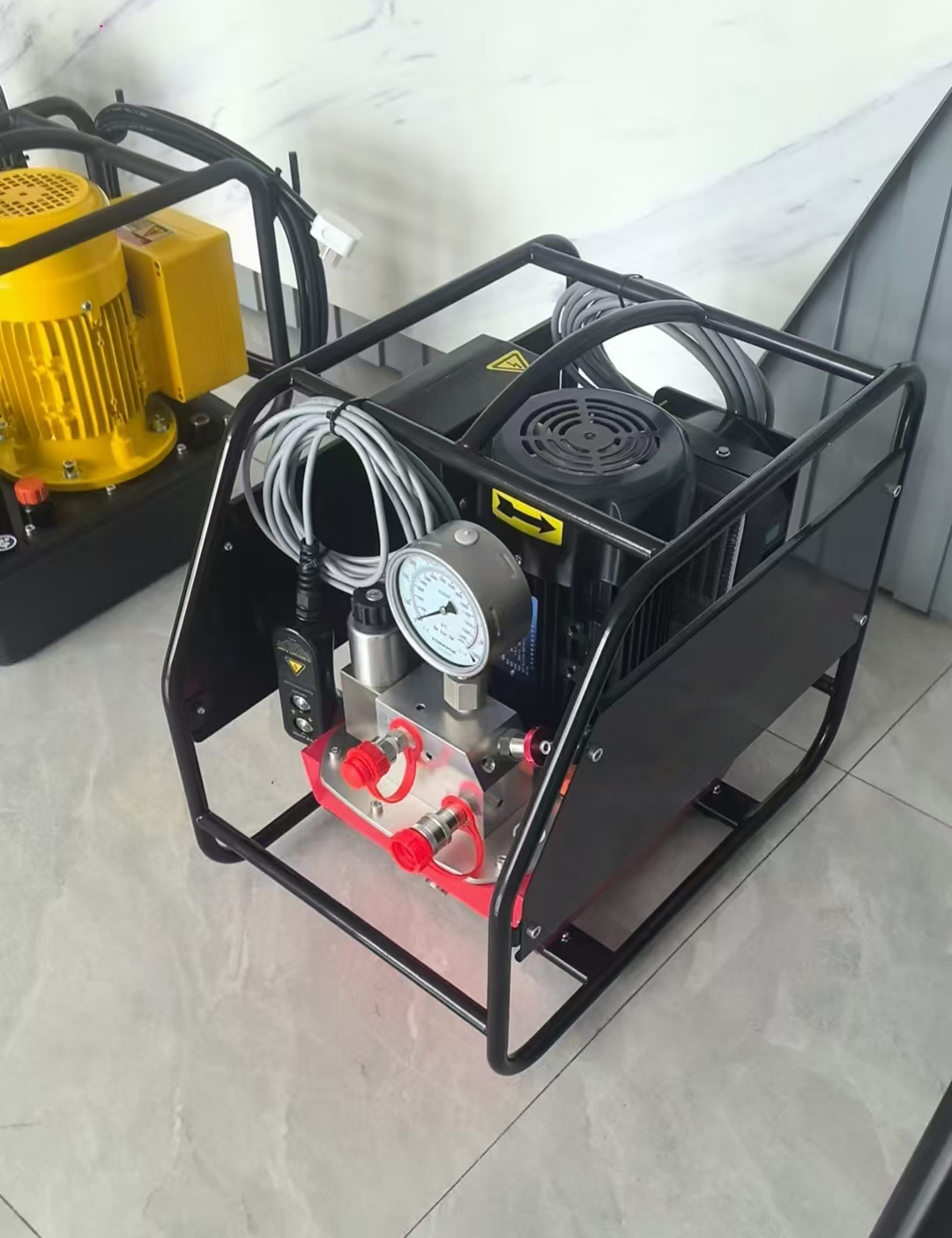

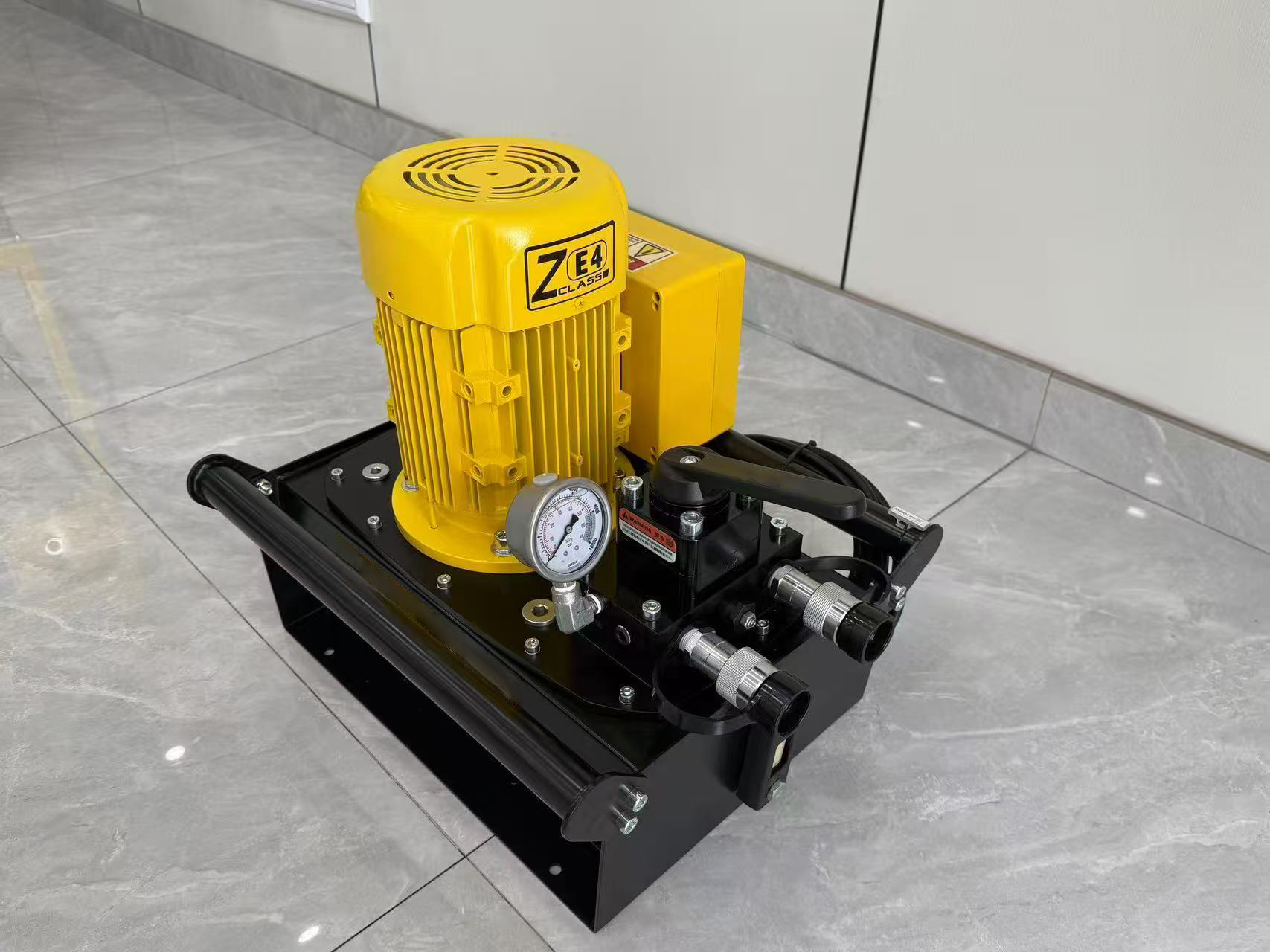

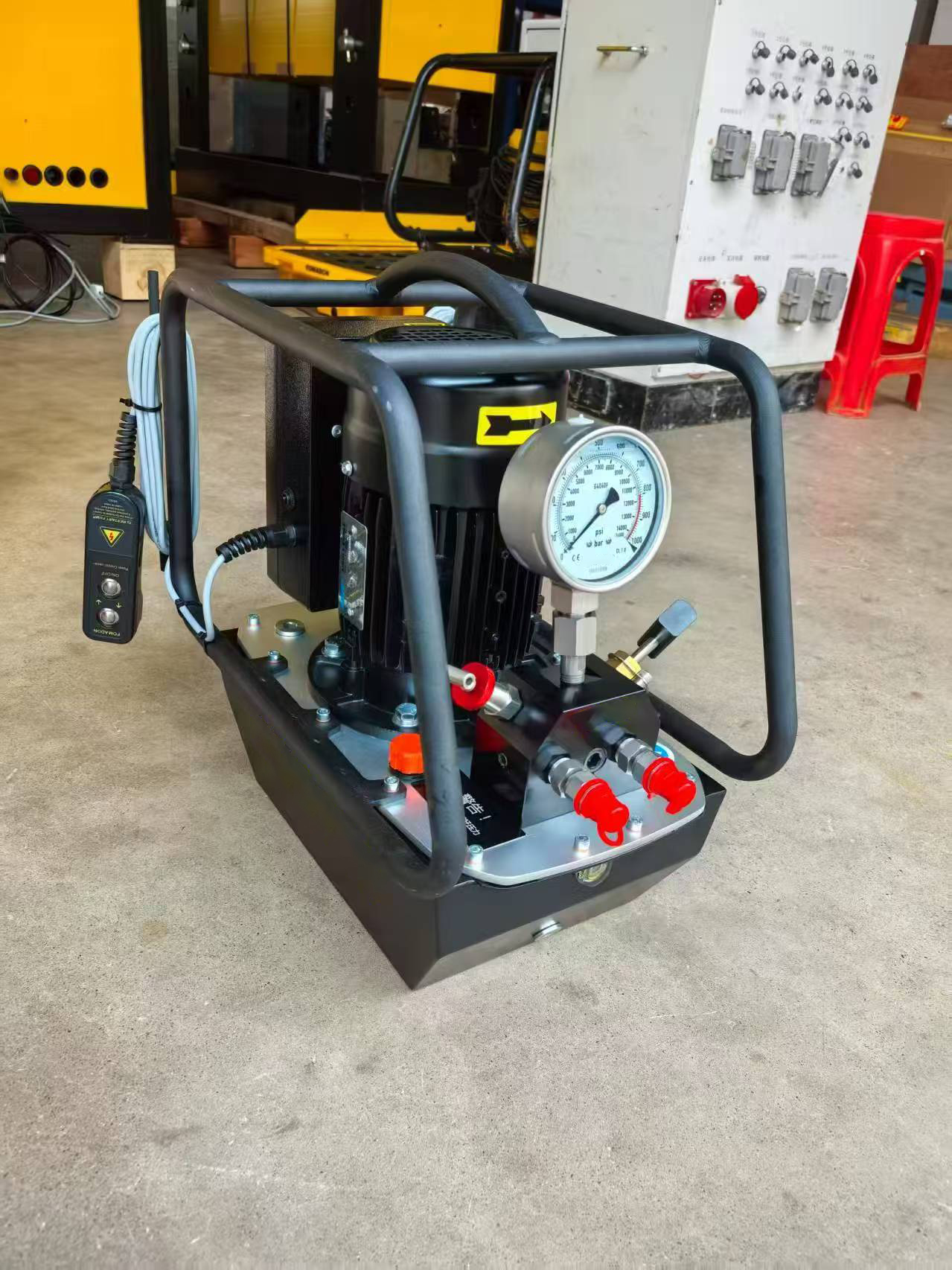

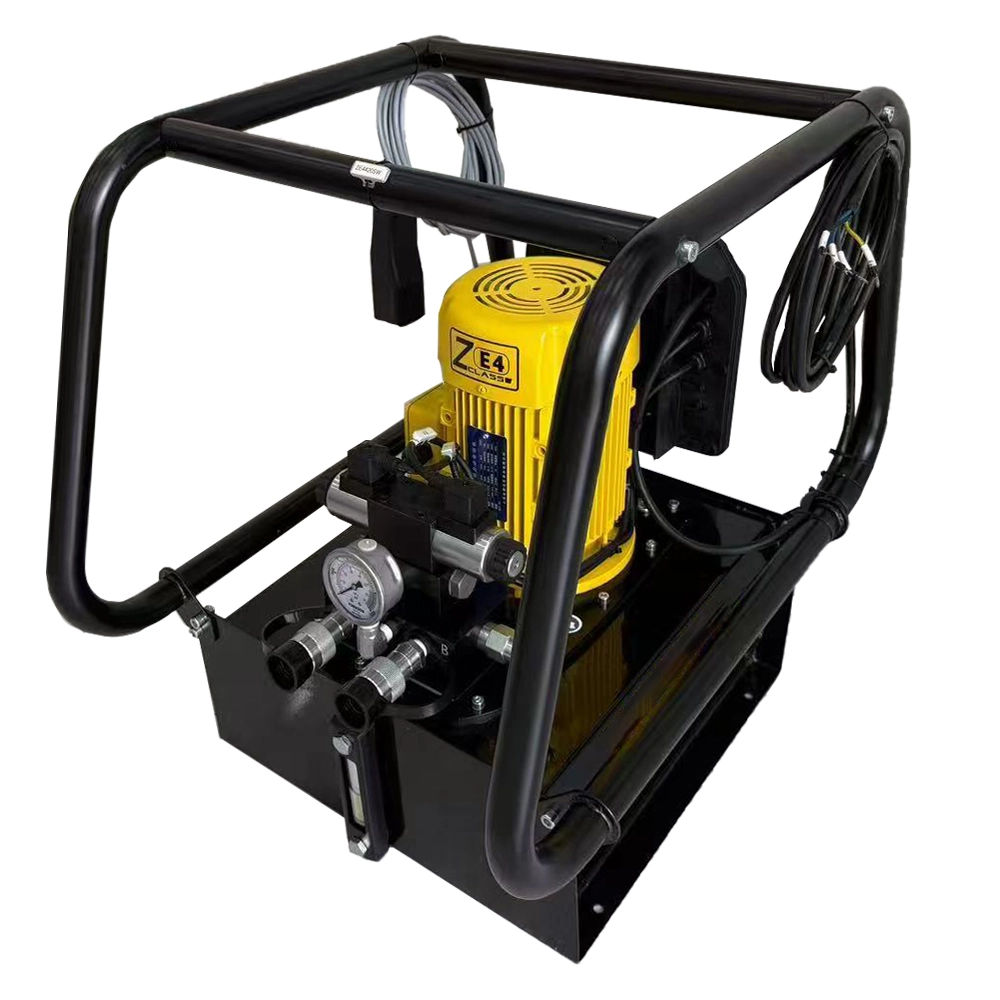

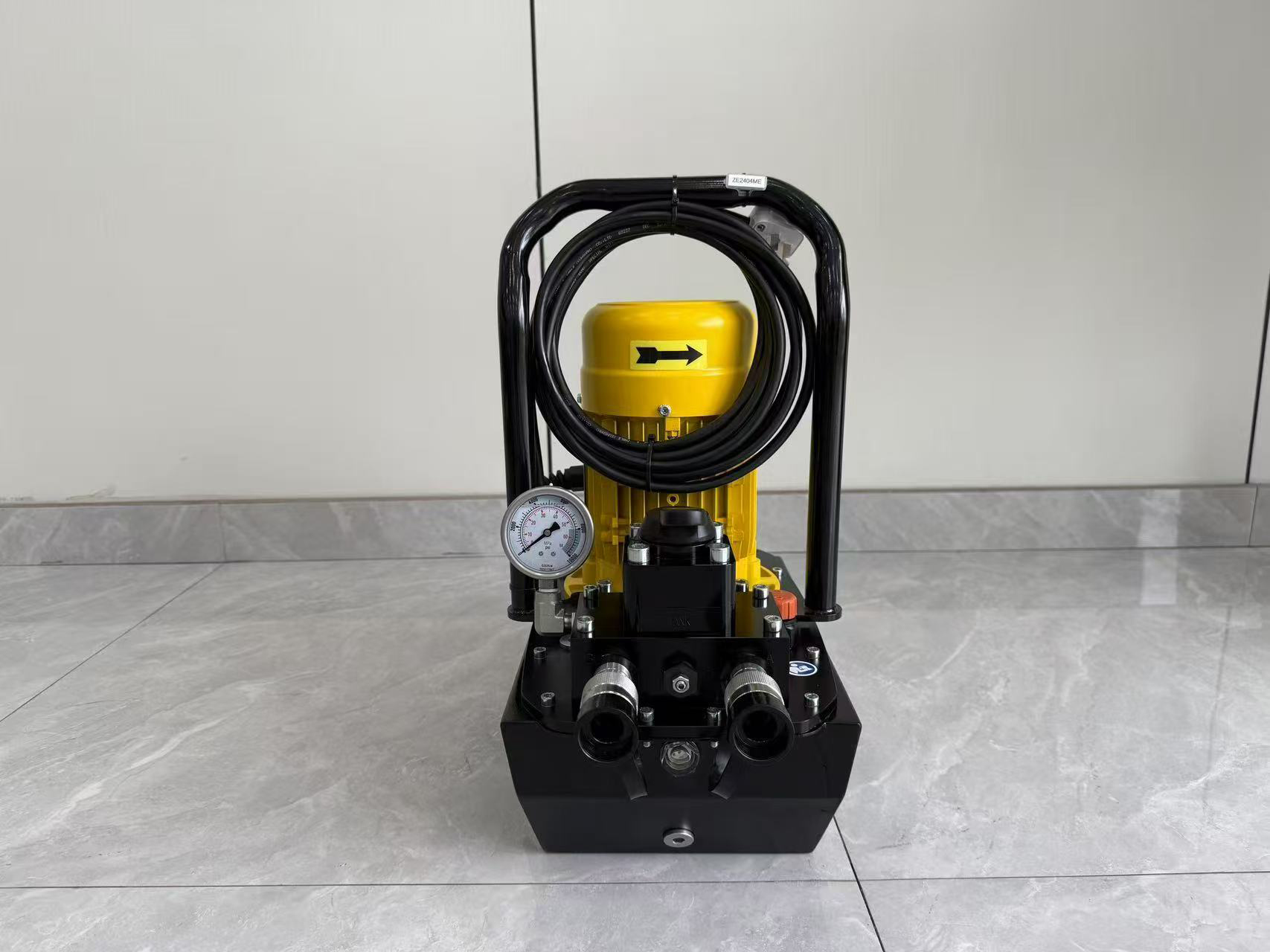

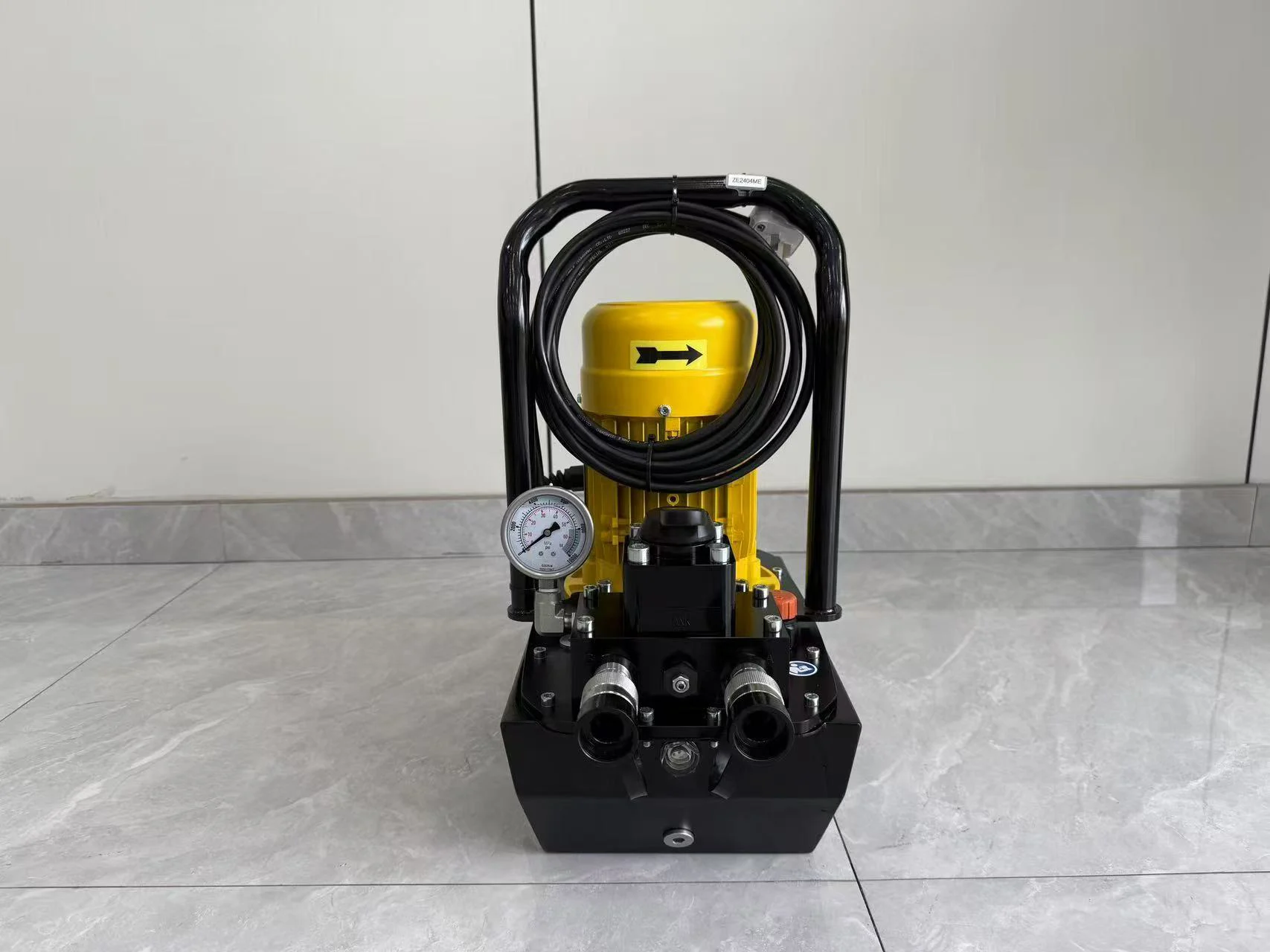

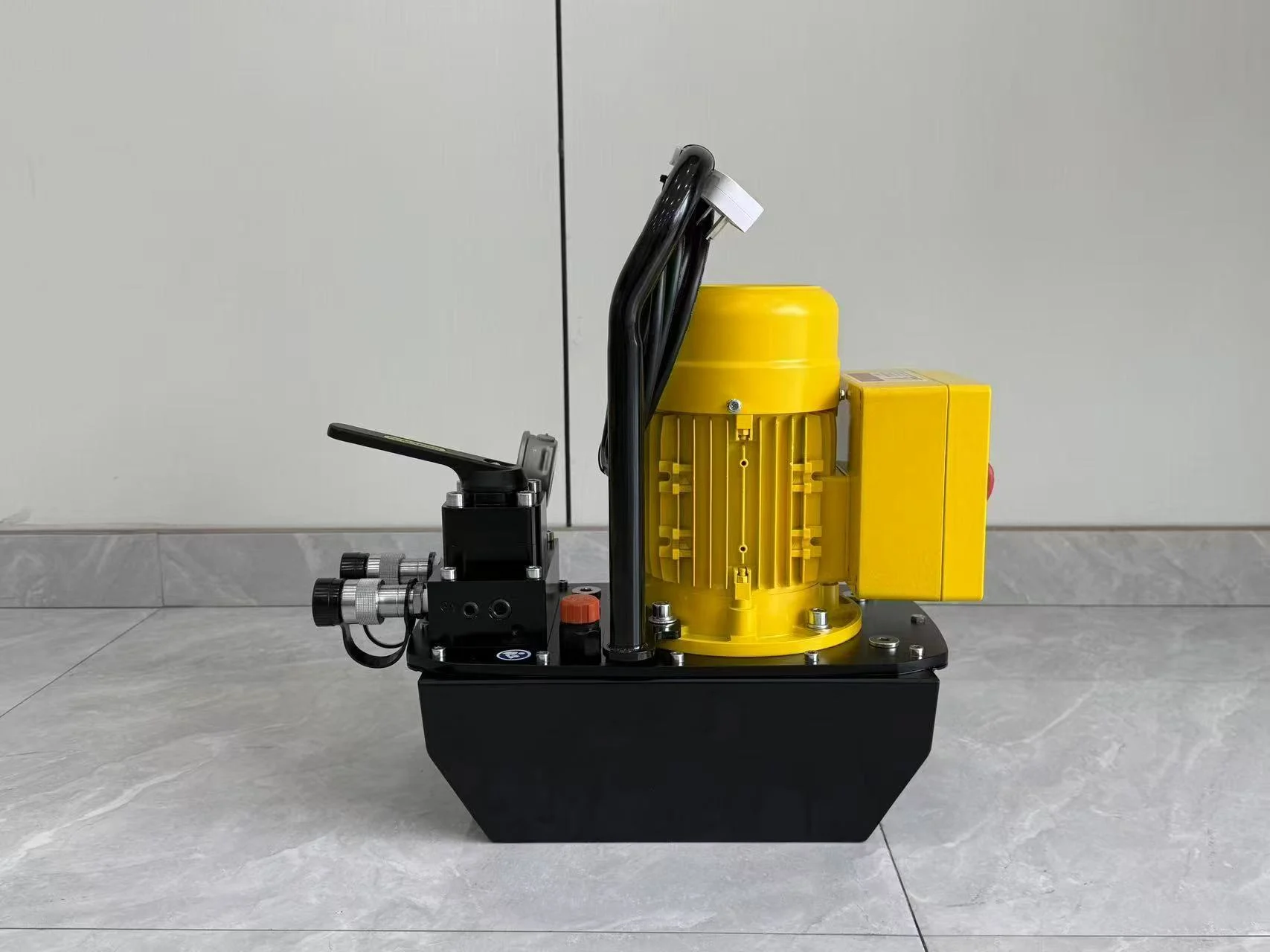

Image Gallery

Series Specifications

Oil Capacity:	4-40L
Pump Type:	Double-acting, Double-speed
Maximum Operating Pressure :	700Bar
Weight:	36-120Kg

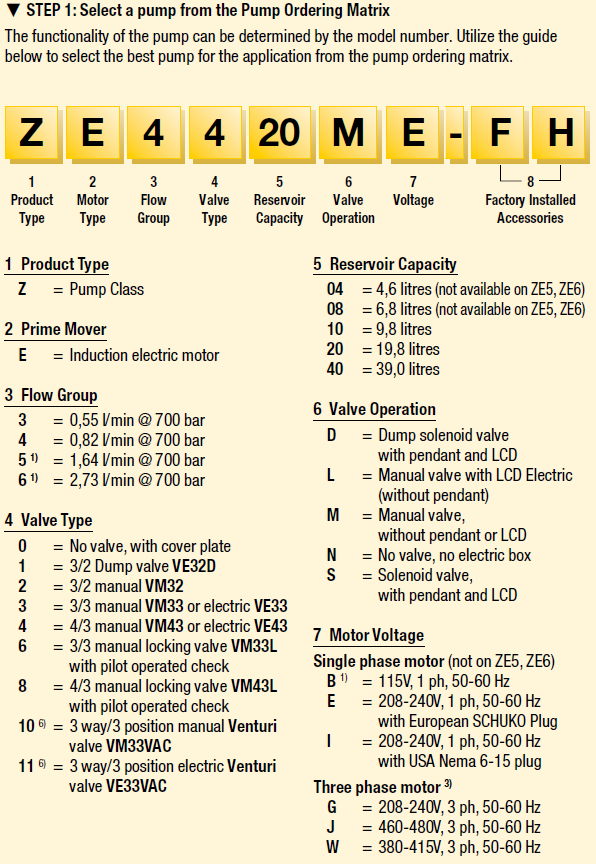

ZE-Series, Pump Ordering Guide

Series Comparison

Pump Series	Output Flow Rate at 50 Hz（L/min）				Pump Unit	Available Reservoir Sizes（L）	Motor Size (KW）	Relief Valve Adjustment Range(bar)
	Low pressure		High pressure
	7bar	50bar	350bar	700bar
ZE3	0.59	0.59	0.57	0.55	Single-stage	4-40	0.75	70-700
	6.15	5.26	0.57	0.55	Two-stage
ZE4	0.87	0.87	0.84	0.82	Single-stage	4-40	1.2	70-700
	8.88	8.2	0.84	0.82	Two-stage
ZE5	1.75	1.72	1.68	1.64	Single-stage	10-40	2.2	70-700
	11.61	11.27	1.68	1.64	Two-stage
ZE6	3	2.94	2.86	2.73	Single-stage	10-40	5.5	70-700
	12.29	12.15	2.86	2.76	Two-stage
