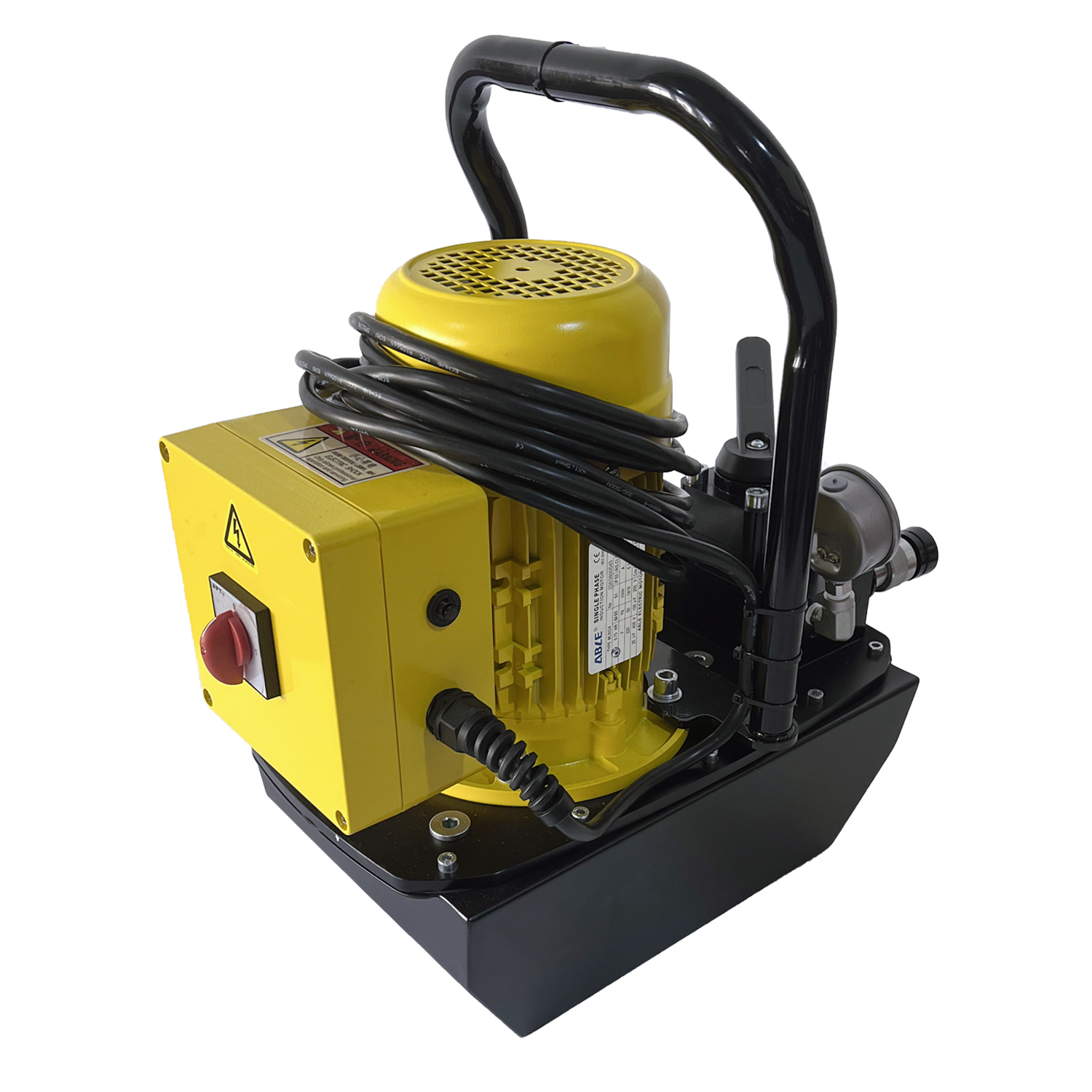

ZE2-Series, Electric Hydraulic Pumps

PullerTop ZE2 electric hydraulic pumps are based on our Z Pump platform – our most efficient and market proven design. The ZE2 pump utilizes many of the same robust valves, reservoir, and pump components as larger pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE2 is suited to continuous use in manufacturing and workshop environments.The 0.75KW induction motor in the ZE2 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption compared to standard universal motors.Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Electric Hydraulic Pumps

0.75 kW induction motor for long life and quiet operation

6,8 litres, steel reservoir offers capacity and cool operation for wide range of applications

Heavy-duty bearings extend pump life by reducing heat, improving lubrication and reducing wear

Replaceable piston check valves increase service life of major pump components

VE32D solenoid dump valve model available

Pendant and manual control options for ease of use.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

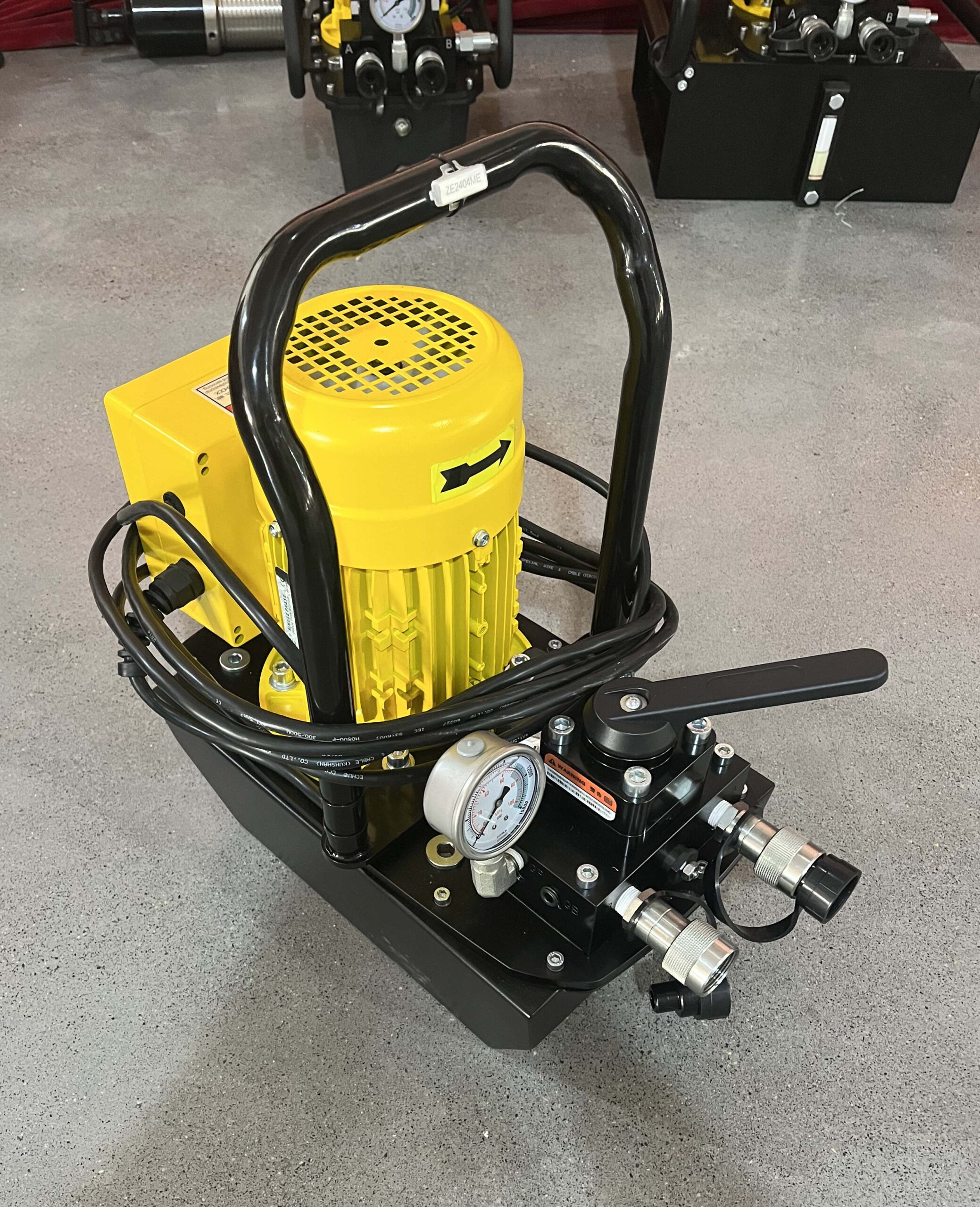

Image Gallery

Series Specifications

Oil Capacity:	6.8L
Pump Type:	Single/Double-acting, Double-speed
Maximum Operating Pressure :	700Bar
Weight:	38-50Kg

Series Comparison

Used with Cylinder *	Valve Hold Function	Useable Oil Capacity(L)	Model Number 1) Two-Stage Pump	Flow at 7 bar (l/min)	Flow at 700 bar (l/min)	Valve Type	Valve Operation	Motor Size(Kw)	Weight(Kg)
S/A	–	6.8	ZE2108DE	2.7	0.27	VE32D	Solenoid with Pendant	0.75	42.4
S/A	–	6.8	ZE2208ME 2)	2.7	0.27	VM32	Manual without Pendant	0.75	37.8
S/A	•	6.8	ZE2308ME 2)	2.7	0.27	VM33	Manual without Pendant	0.75	38.3
D/A	•	6.8	ZE2408ME 2)	2.7	0.27	VM43	Manual without Pendant	0.75	38.3
S/A	–	6.8	ZE2208PE	2.7	0.27	VM32	Manual with Pendant	0.75	41.3
S/A	•	6.8	ZE2308PE	2.7	0.27	VM33	Manual with Pendant	0.75	41.7
D/A	•	6.8	ZE2408PE	2.7	0.27	VM43	Manual with Pendant	0.75	41.7
S/A	•	6.8	ZE2308EE	2.7	0.27	VE33	Solenoid with Pendant	0.75	49
D/A	•	6.8	ZE2408EE	2.7	0.27	VE43	Solenoid with Pendant	0.75	49

S/A = Single-Acting, D/A = Double-Acting.
1) All models can be ordered with the following Factory Installed Accessories/Options:
F = with Return Line Filter, G = with 0-1000 bar gauge (ø 63,5 mm), S = Single-stage pump unit.
2) Models can be ordered with Pressure Switch (P).
