Product Description
Product Lines: Electric Hydraulic Pumps
- All ZU4 Torque Pump Models
- Features Z-Class high-efficiency pump design for higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
- Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
- High-strength, molded composite shroud protects motor and electrical components, while providing an ergonomic, nonconductive handle for easy transport
- Low-voltage pendant provides additional safety for the operator
- Relief valve adjustment range 1800 – 10,000 psi
- Pro-Series Only
- LCD readout provides pressure and torque display, and diagnostic and readout capabilities never offered before on a portable electric pump
- Auto cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed. The pump can be used with or without auto cycle feature
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery

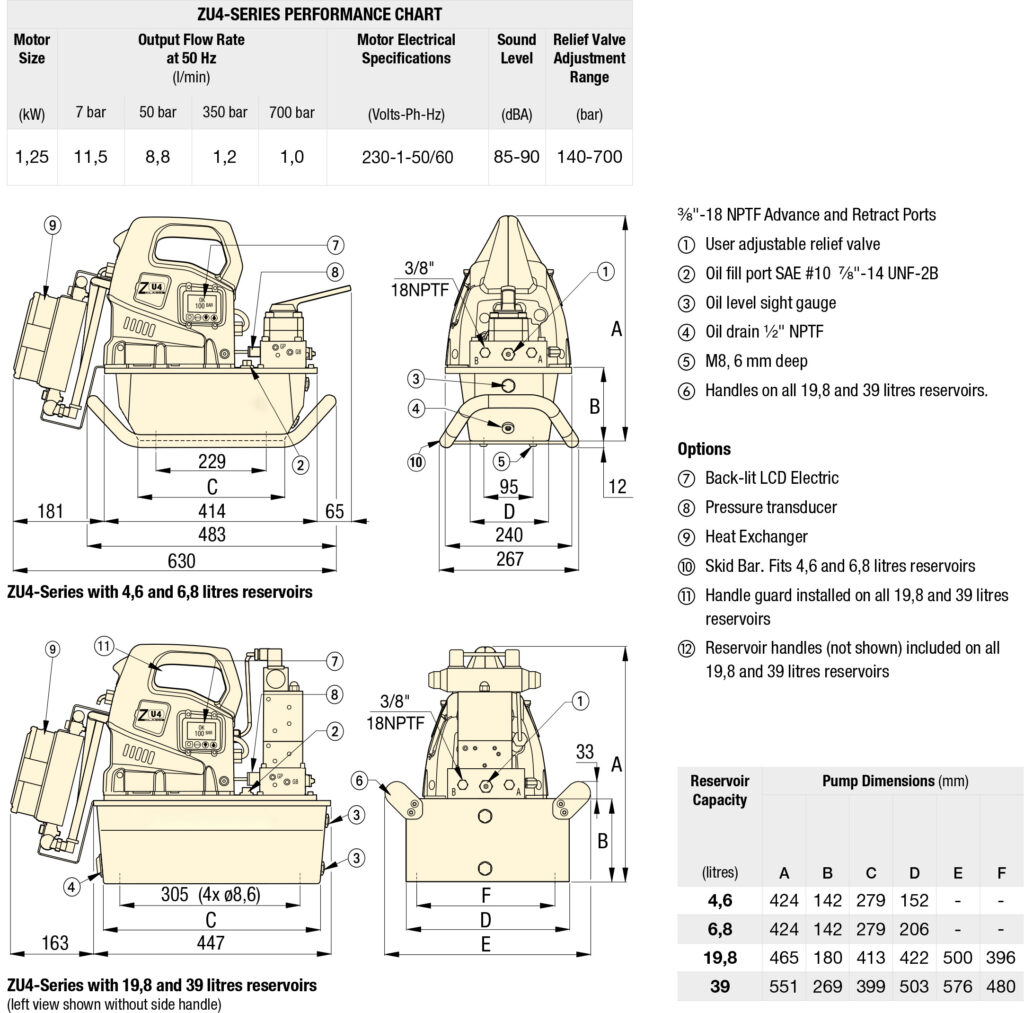

Series Specifications
| Oil Capacity: | 4.6-40L |
| Pump Type: | Single/Double-acting, Double-speed |
| Maximum Operating Pressure : | 700Bar |
| Weight: | 27-79Kg |
