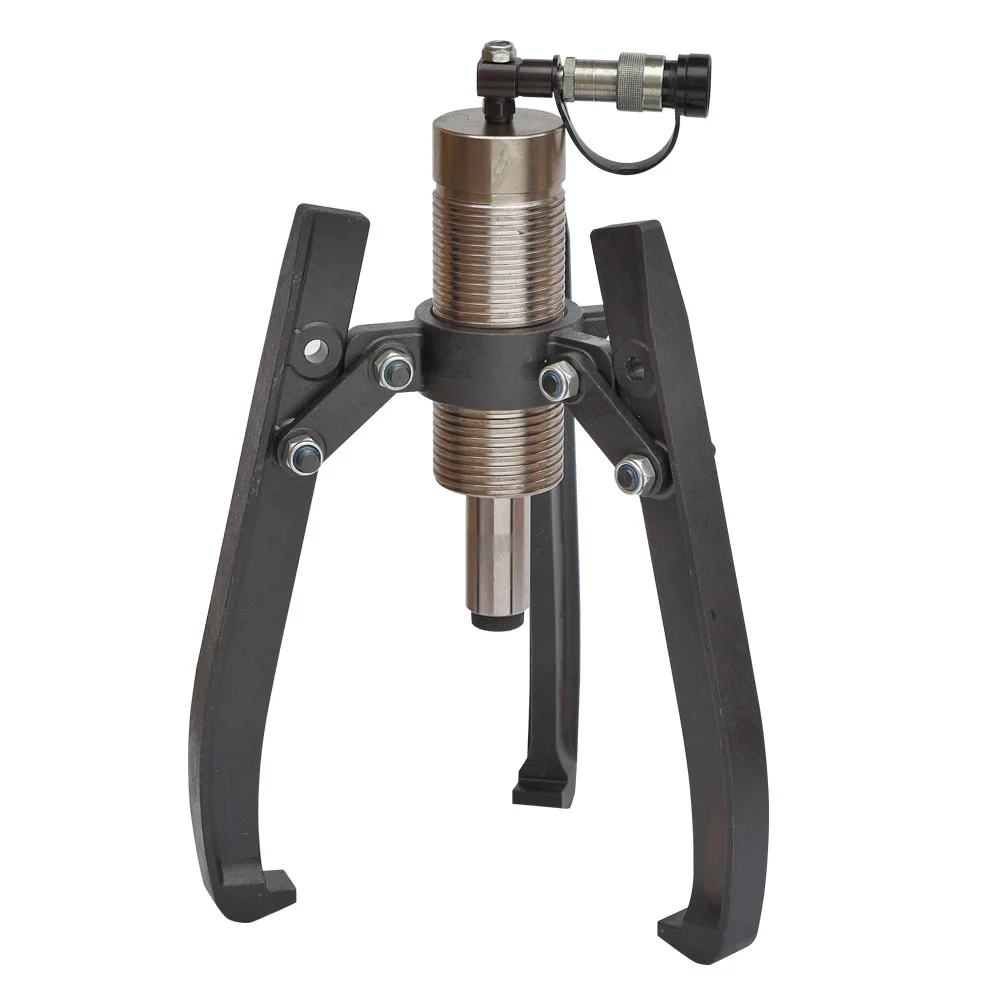

4-50 Ton Split Hydraulic Bearing Puller

Pullertop split-type hydraulic pullers are used to remove shaft-fitted parts (bearings or couplings). In addition to railway vehicle maintenance, mechanical installation, mine maintenance, and construction support, it can disassemble circular workpieces such as pulleys, gears, and bearings in various mechanical equipment.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Bearing Puller

Self-contained hydraulic puller.

360° rotary coupler design for safe operation.

Jaws proceed with forging made parts and special treatment for providing the best strength and long life use

A unique safety valve designed to reduce the risk of the puller overload by limiting the applied force

Manganous-phosphate coating for corrosion proof.

2/3 jaws combination puller head as jaws can be installed with 2 or 3 jaws as a changeable type against the limited space

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Comparison

Model	Capacity/Ton	Reach/mm	Spread/mm	Stroke/mm	Weight/Kg
UR-4	4	185	255	60	4.5
UR-6	6	245	330	70	5.4
UR-8	6	230	350	85	7.4
UR-12	12	260	375	85	9.5
UR-20	20	350	520	111	23
UR-30	30	435	550	111	35
UR-50	50	635	615	143	50
