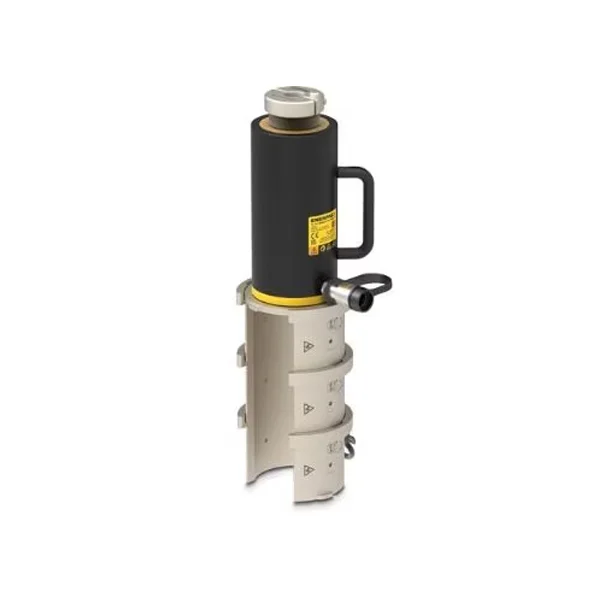

PPH Series ,Hydraulic Pin Puller Kit

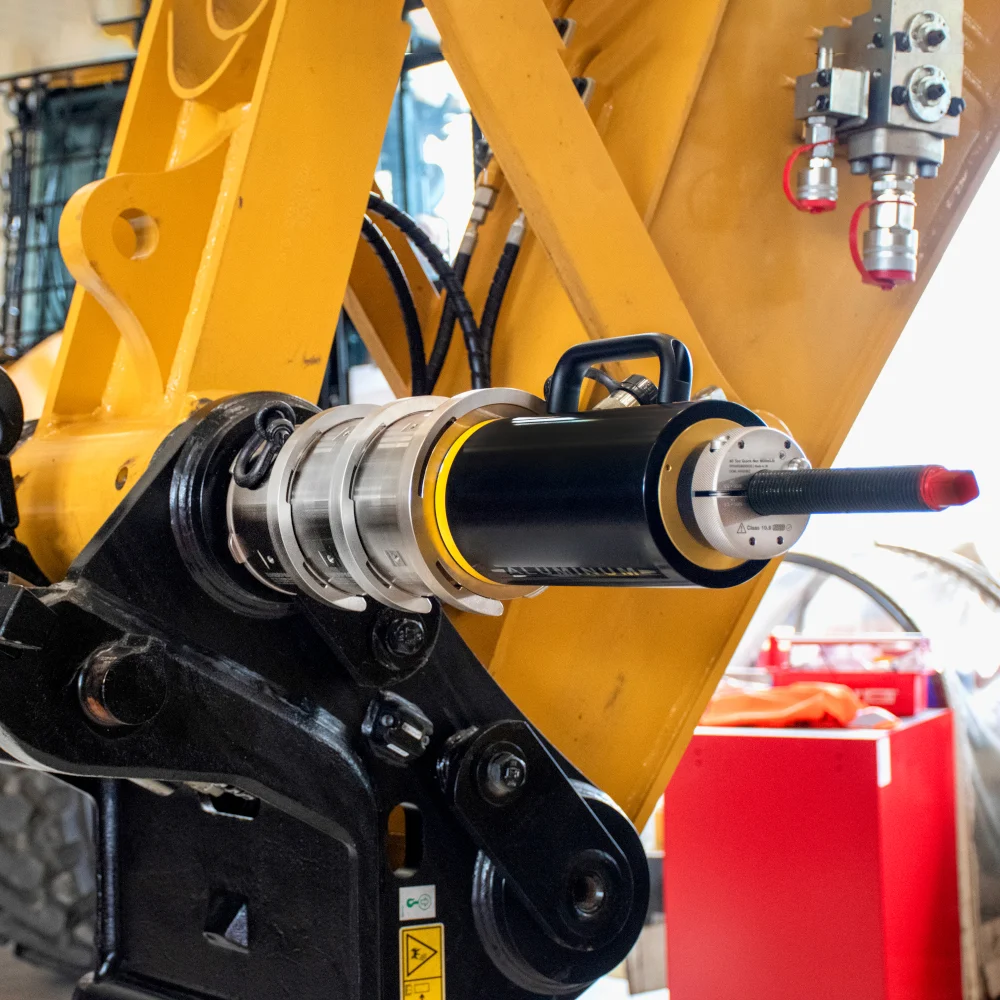

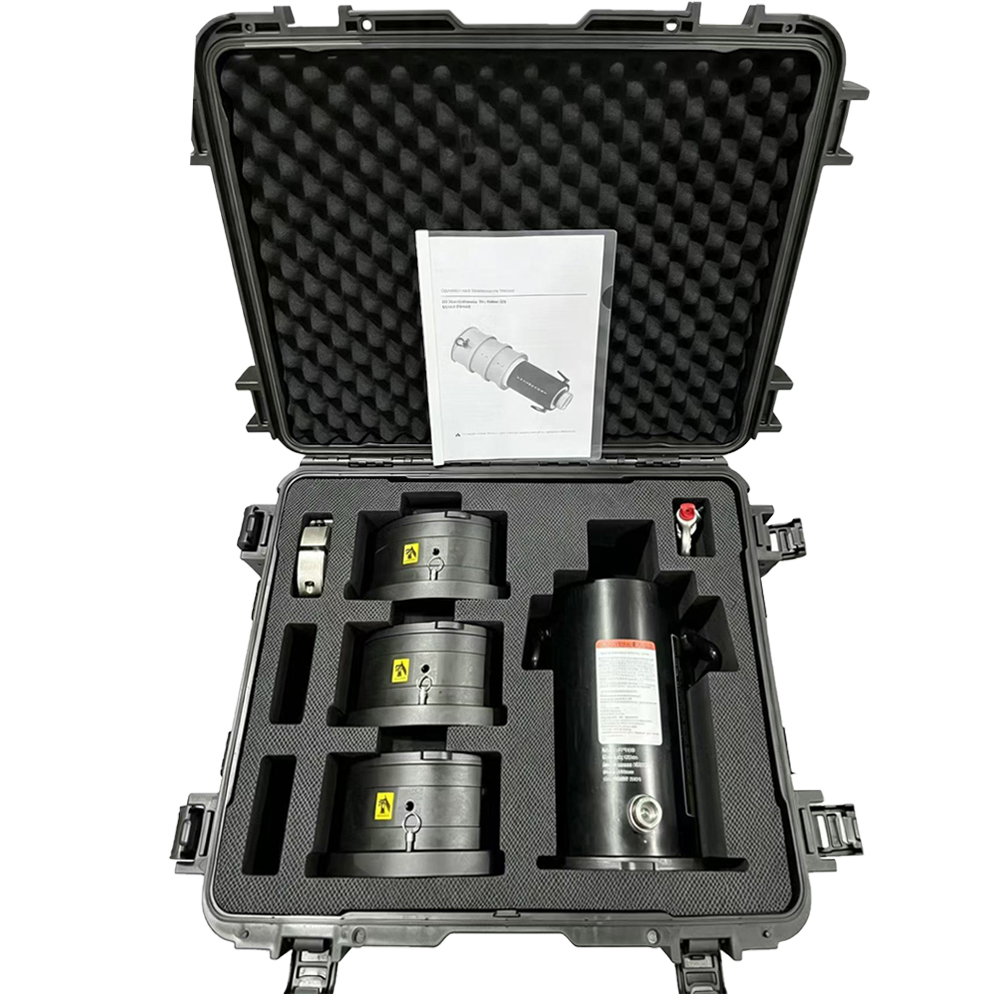

Pullertop PPH-Series Hydraulic Pin Pullers provide a faster, safer, and easier pin removal solution for carrying out maintenance on heavy machinery, mining & construction equipment. The kit includes 1 cylinder, 1 quick nut, 3 column sections, 1 shackle and 1 eyebolt. It comes complete in a storage case with wheels.
Product Description
Product Lines: Hydraulic Pin Puller
- Accelerated Pin Removal for Heavy Machinery & Construction Equipment
- Locked-In Safety and Efficiency
- Secure Handling and Ergonomic Construction
- Surpasses Conventional and DIY Solutions
- Experience the Future of Pin Removal – Faster, Safer, Simpler
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
Capacity: | 40-66 Ton |
Stroke: | 100mm |
Collapsed Height: | 615-671mm |
Maximum Operating Pressure : | 70Mpa |
Weight: | 22.5-47.5Kg |

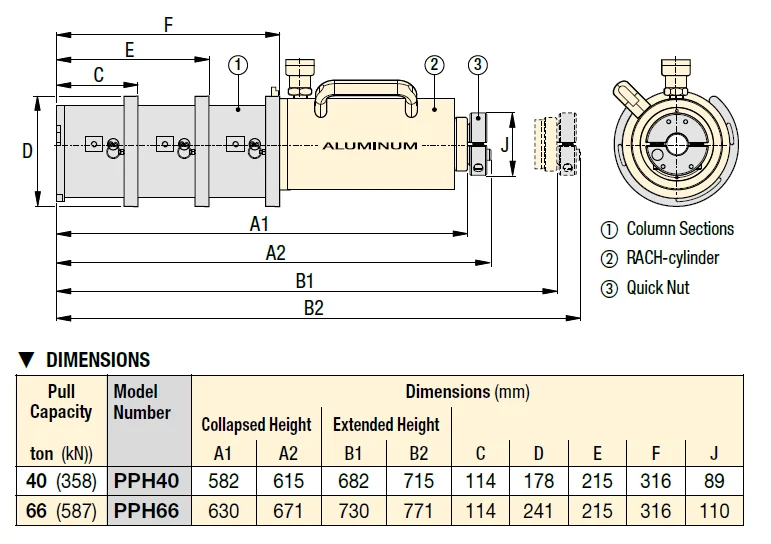

Dimension
Series Comparison
Model No. | Capacity(T) | Stroke(mm) | Kit Collapsed Height(mm) | Oil capacicy (cm³) | Kit Weight(kg) | Quick Nut Internal Thread |
---|---|---|---|---|---|---|
PPH40 | 40 | 100 | 615 | 511 | 22.5 | 1″ – 14 UNS,1¼” – 12 UNF,M30 x 3.5 |

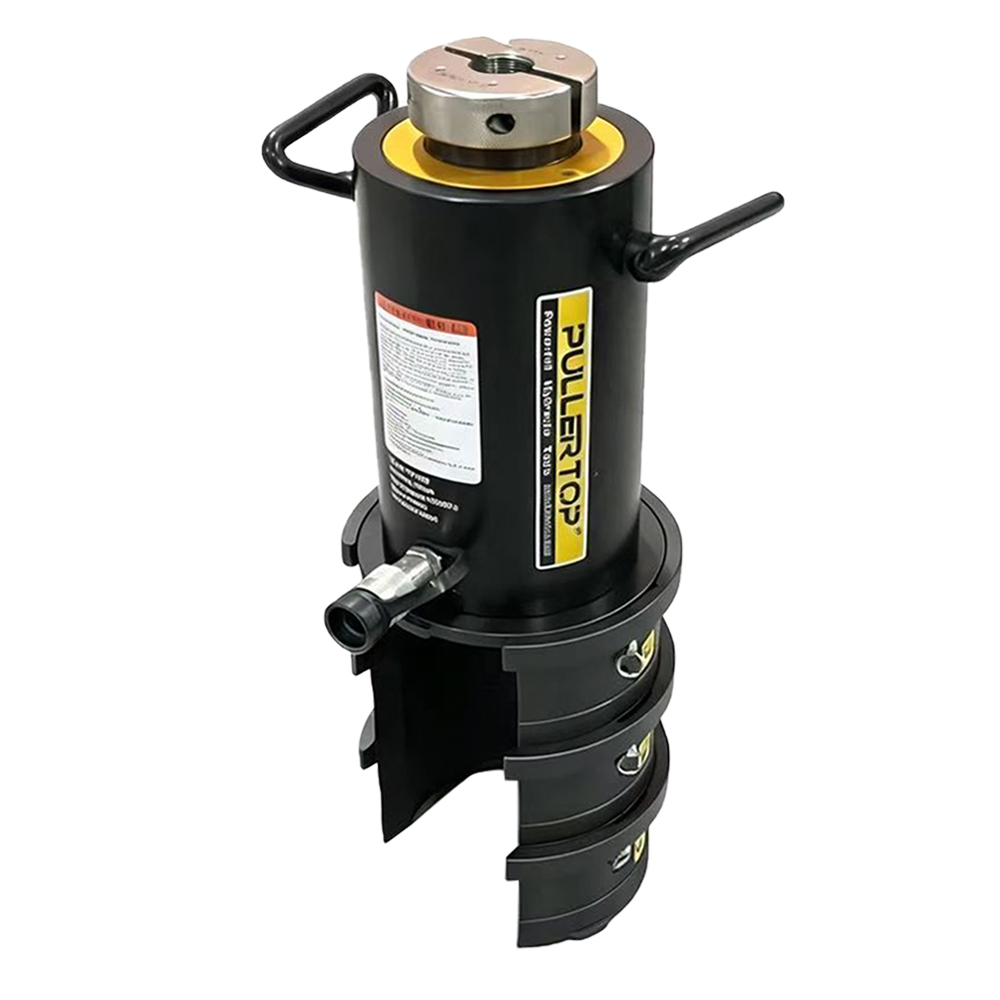

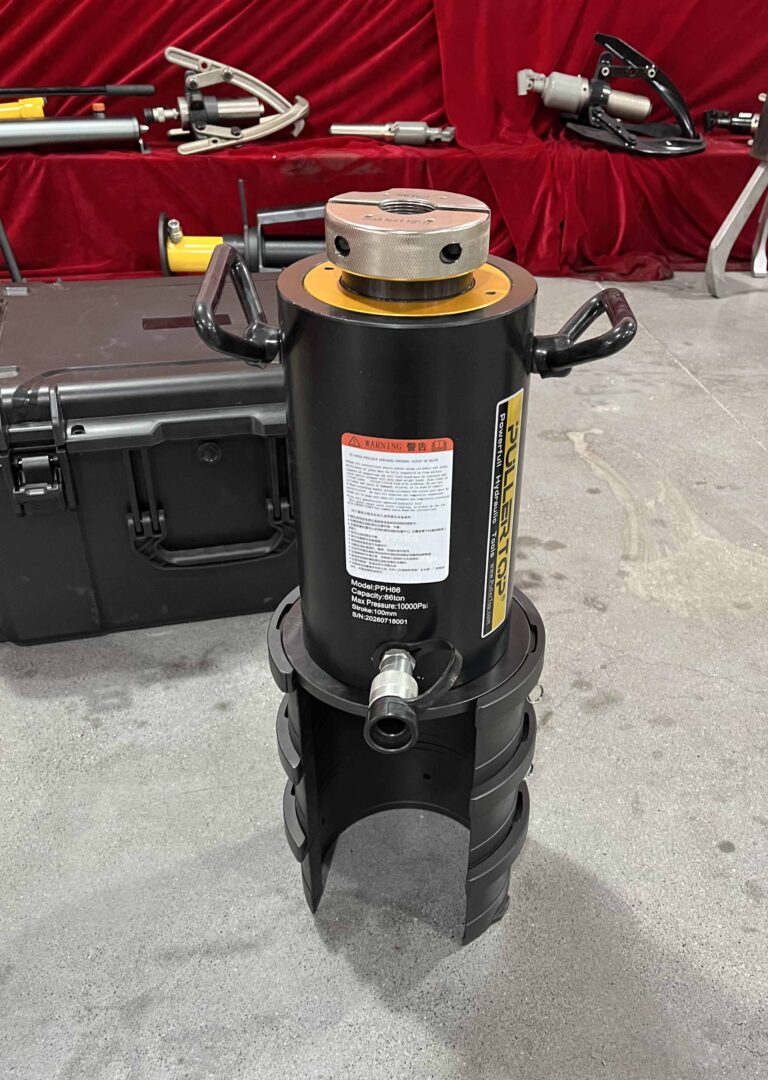

PPH66 | 66 | 100 | 671 | 847 | 47.5 | 1½” – 12 UNF,1¼” – 12 UNF M36 x 4,M48 x 5 |
