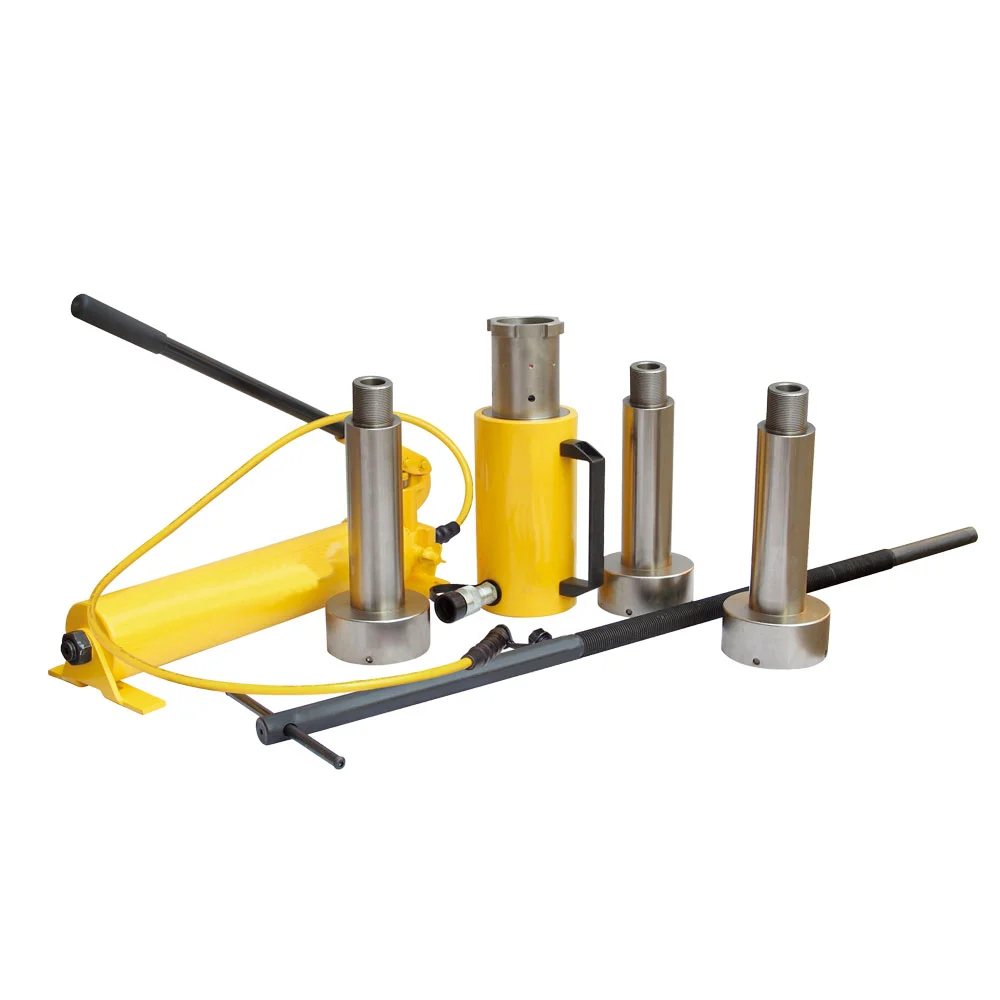

Hydraulic coupler puller

Hydraulic coupler puller focuses on dismantling the hydraulic couplings. With the feature of saving time and strength, it is easy to operate, without injury to the equipment. Widely used in steel plant, metallurgy, electric power, cement plant, coal mine etc.

Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Bearing Puller

  • Easy to install, the best design in structure. Aluminium alloy plunger, light weight.
  • Easy to operate, only need to operate the 700 bar hand pump to remove the coupler from shaft safely.
  • Good performance, no injury to the equipment after finished the dismantling.
  • Can be used for couplers with several different sizes, no matter coupler is domestic or imported, big size or small size, just need to notice the screw specification of the coupler , the special connector can be customized to match with the puller.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Comparison

Model Capacity/Ton Working Pressure/Mpa Oil Capacity/cm3 Cylinder Length/mm Stroke/mm Accessories Cylinder Weight/Kg
HP-2075 20 70 450 304 75 M36X2 10
HP-4290 42 70 530 375 90 M42,M46,M64 18
