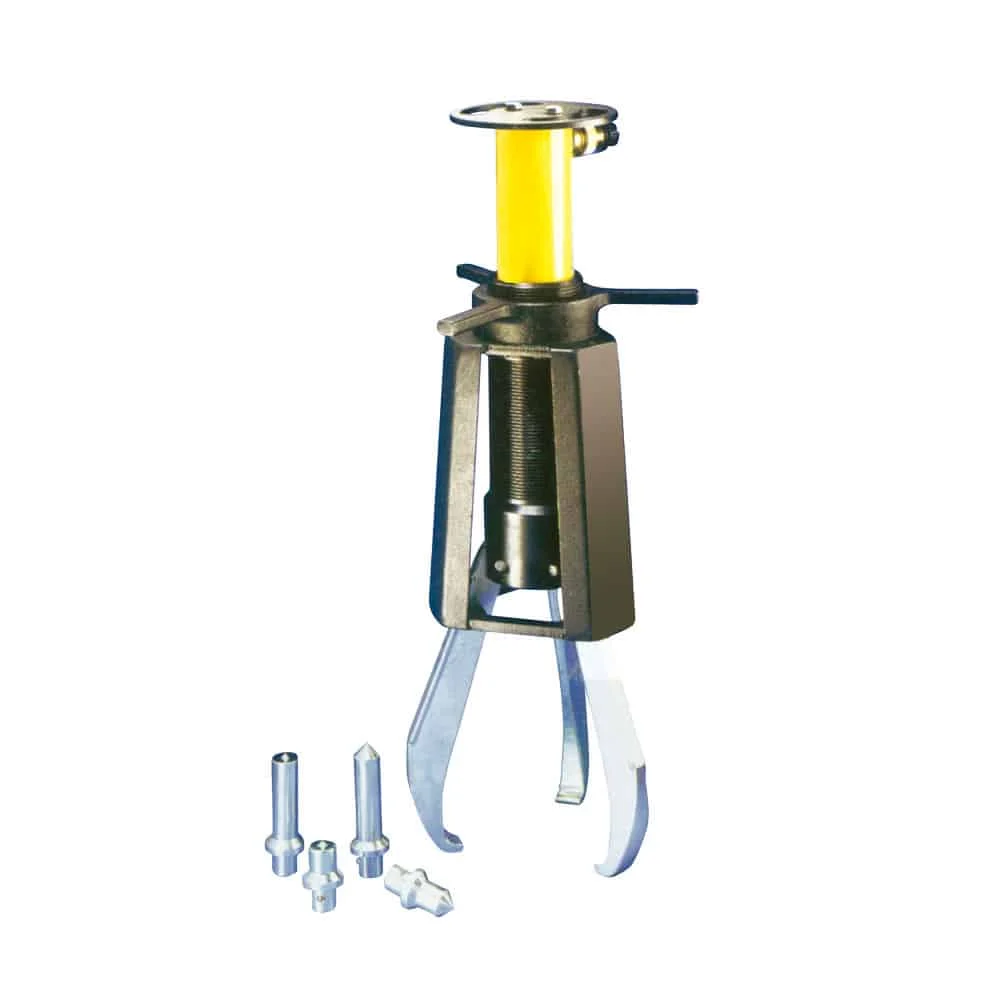

Safety Cage Hydraulic Puller
Pullertop safety cage hydraulic pullers are more efficient than traditional pullers, as one person can do the job whereas traditional pullers often require two operators. The opening, closing, locking, and aligning of the jaws are all done automatically by simply turning the T-handle.
Product Description
Product Lines: Hydraulic Pullers
- ‘Safety Cage’ jaw retention system
- High force hydraulic system for effortless pulling of large components
- Slim tapered jaws for better gripping in tight spots
- Available in 2 and 3 jaw design
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

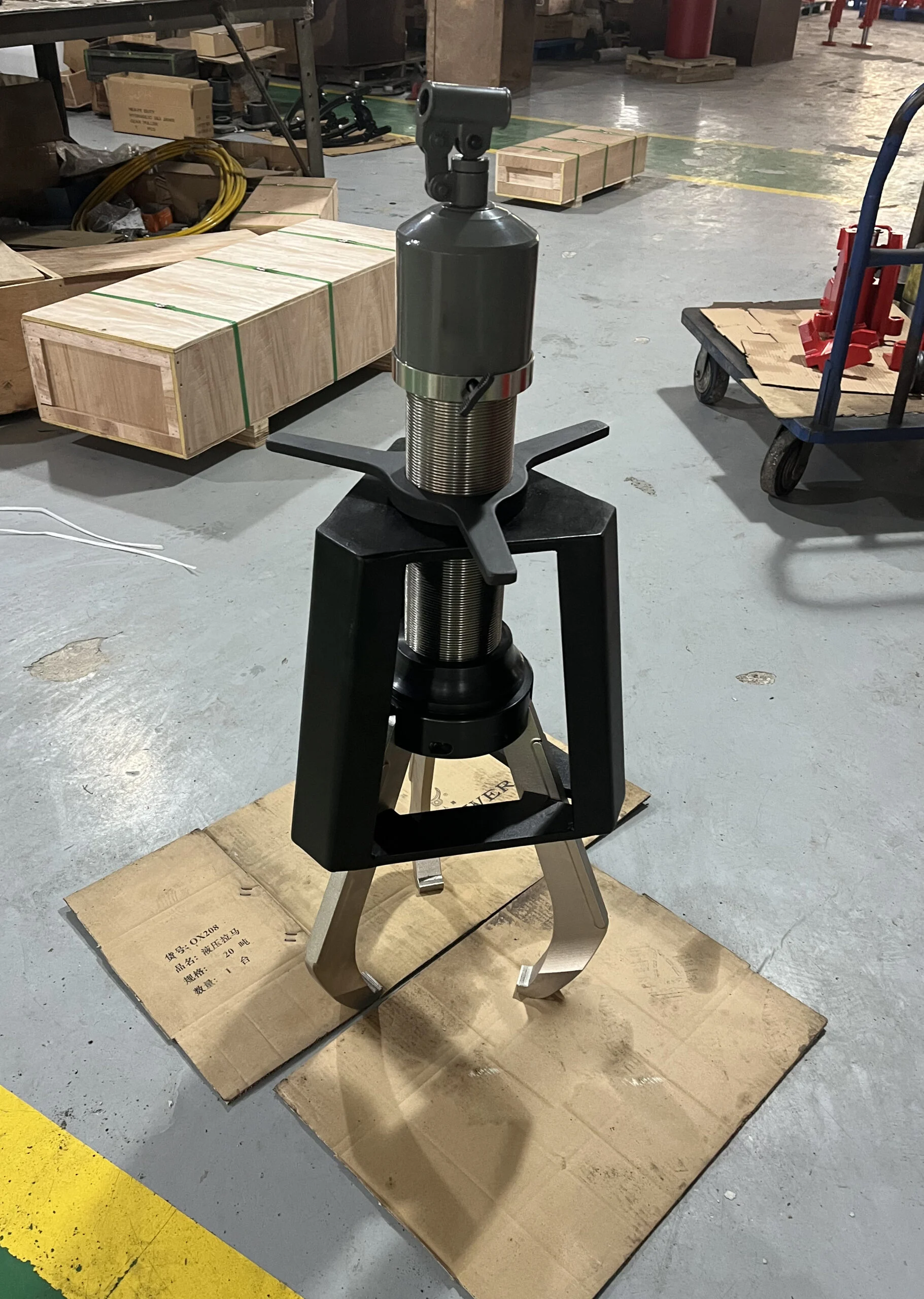

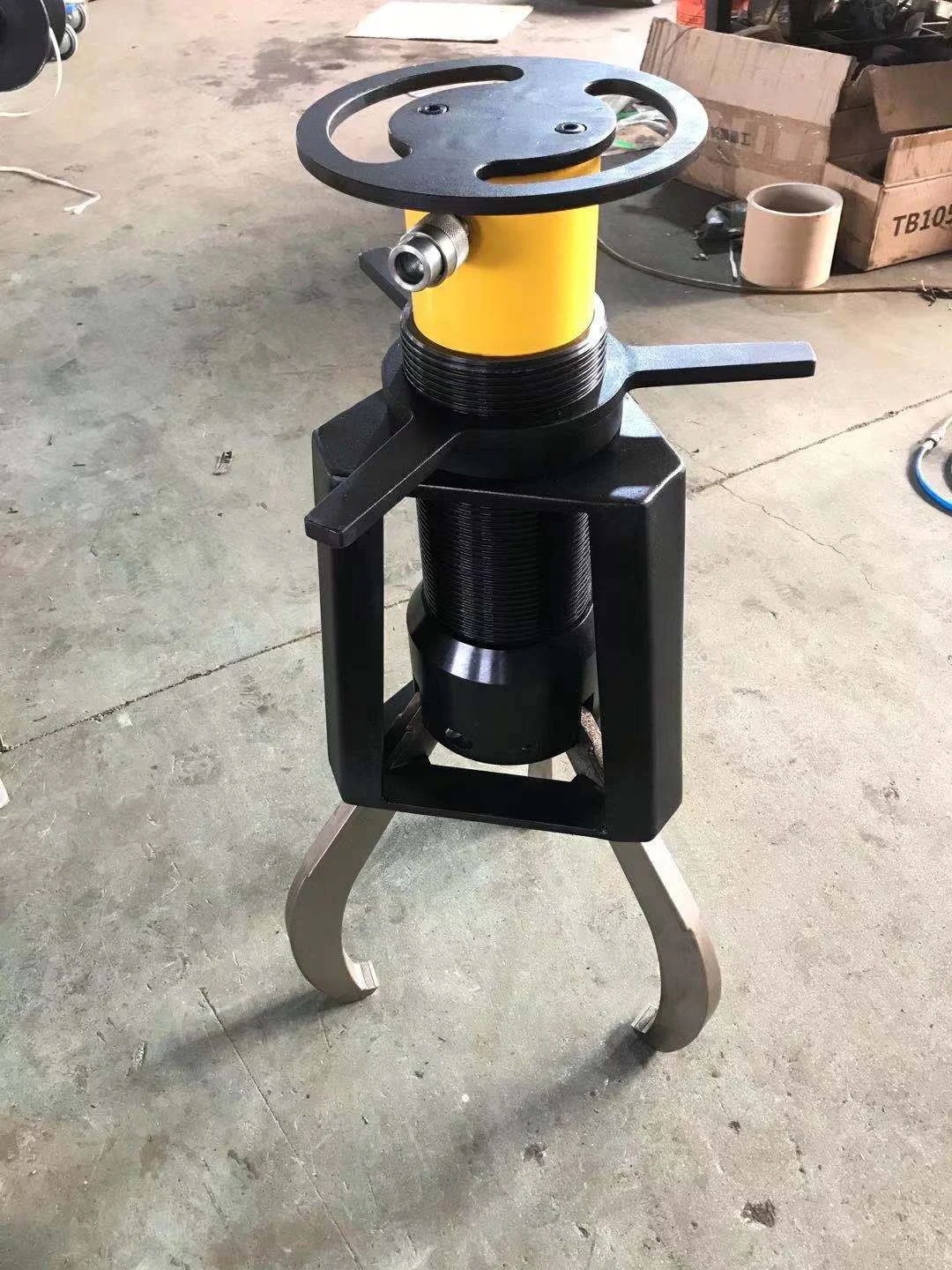

Image Gallery
Series Comparison
| Model | Number of Jaws | Capacity(Ton) | Hydraulic Cylinder | Stroke(mm) | Min. Spread(mm) | Max. Spread(mm) | Max Reach(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| EPH-208 | 2 | 10 | RC-106 | 152 | 19 | 304 | 203 | 10 |
| EPH-210 | 2 | 15 | RC-1510 | 254 | 25 | 381 | 245 | 22 |
| EPH-213 | 2 | 25 | RC-2514 | 362 | 63 | 457 | 304 | 44 |
| EPH-216 | 2 | 50 | RC-5013 | 336 | 76 | 635 | 355 | 87 |
| EPH-108 | 3 | 10 | RC-106 | 152 | 19 | 304 | 203 | 11 |
| EPH-110 | 3 | 15 | RC-1510 | 254 | 25 | 381 | 245 | 23 |
| EPH-113 | 3 | 25 | RC-2514 | 362 | 63 | 457 | 304 | 48 |
| EPH-116 | 3 | 50 | RC-5013 | 336 | 76 | 635 | 355 | 91 |
