Automate Center Hydraulic Puller
Pullertop Hydraulic pullers are more efficient than traditional pullers, as one person can do the job whereas traditional pullers often require two operators. The opening, closing, locking, and aligning of the jaws are all done automatically by simply turning the T-handle.
Product Description
Product Lines: Hydraulic Puller
- Roll threaded shafts for less effort when applying high torque
- More efficient pulling, as one man can do the job whereas manual pullers often require two operators
- Slim tapered jaws for better gripping in tight spots
- Supplied with a full hydraulic set including pump, hose, cylinder, gauge, gauge
adaptor and wooden case - Dismantling tonnage from 10 to 60 tons
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

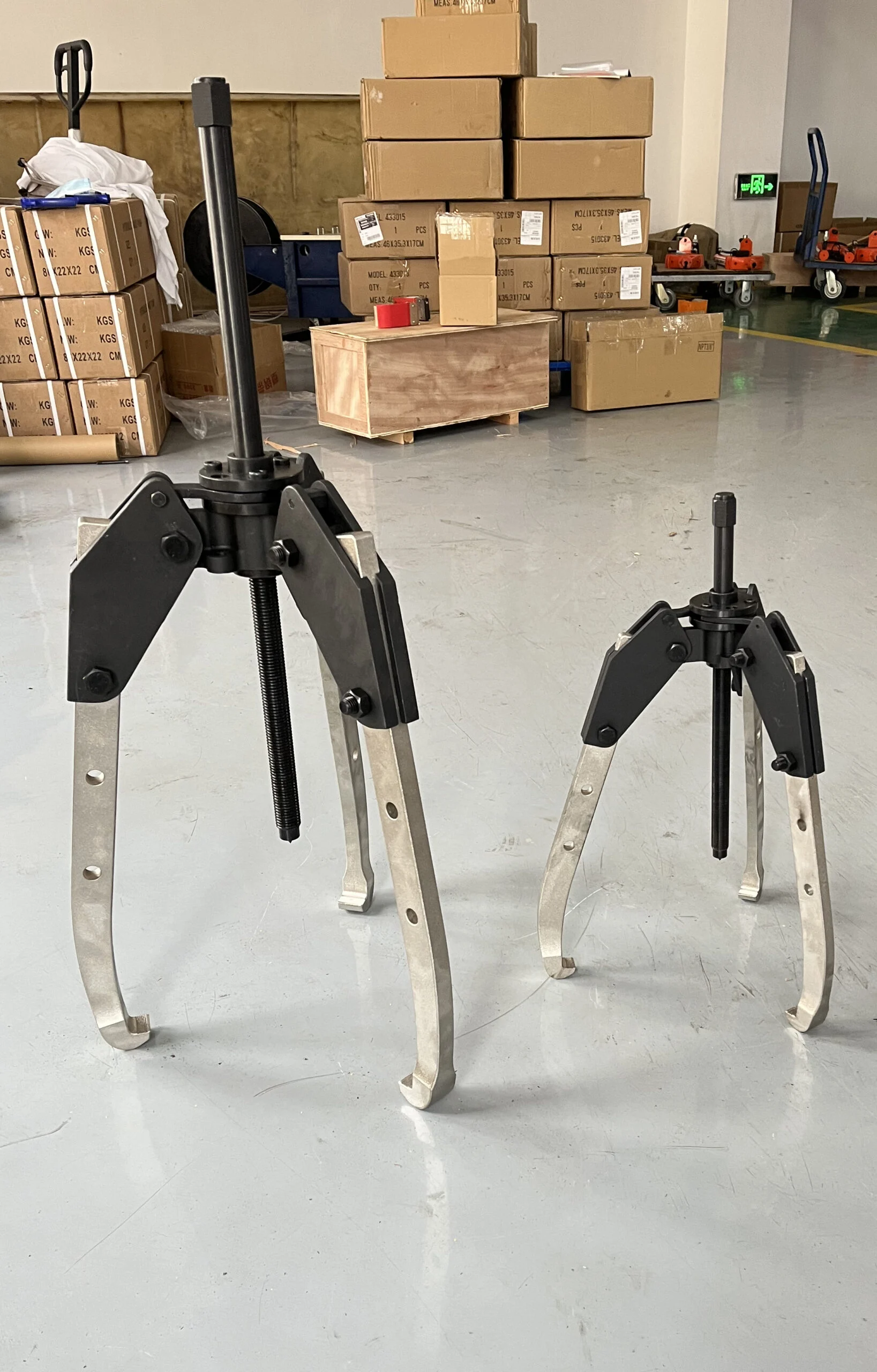

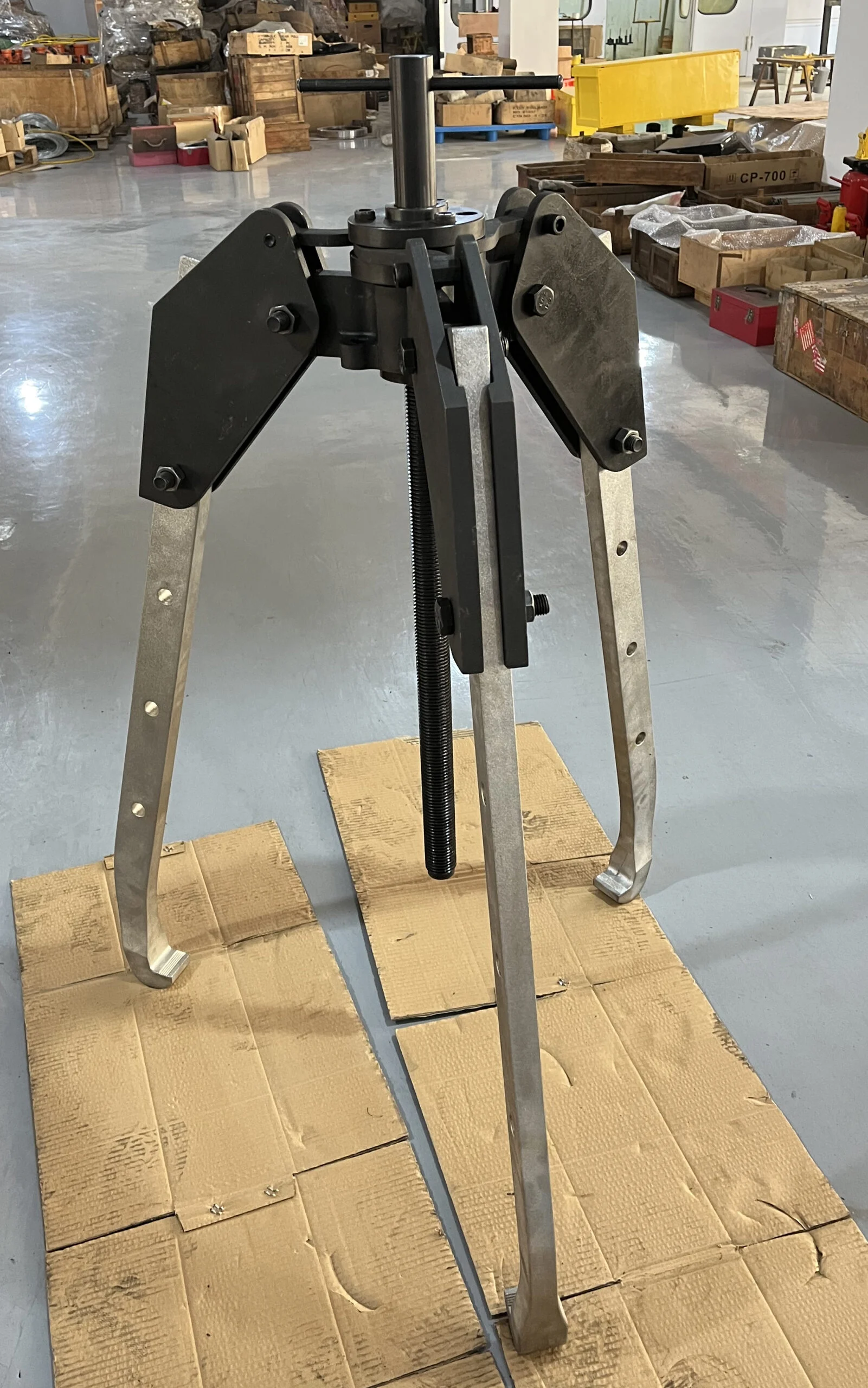

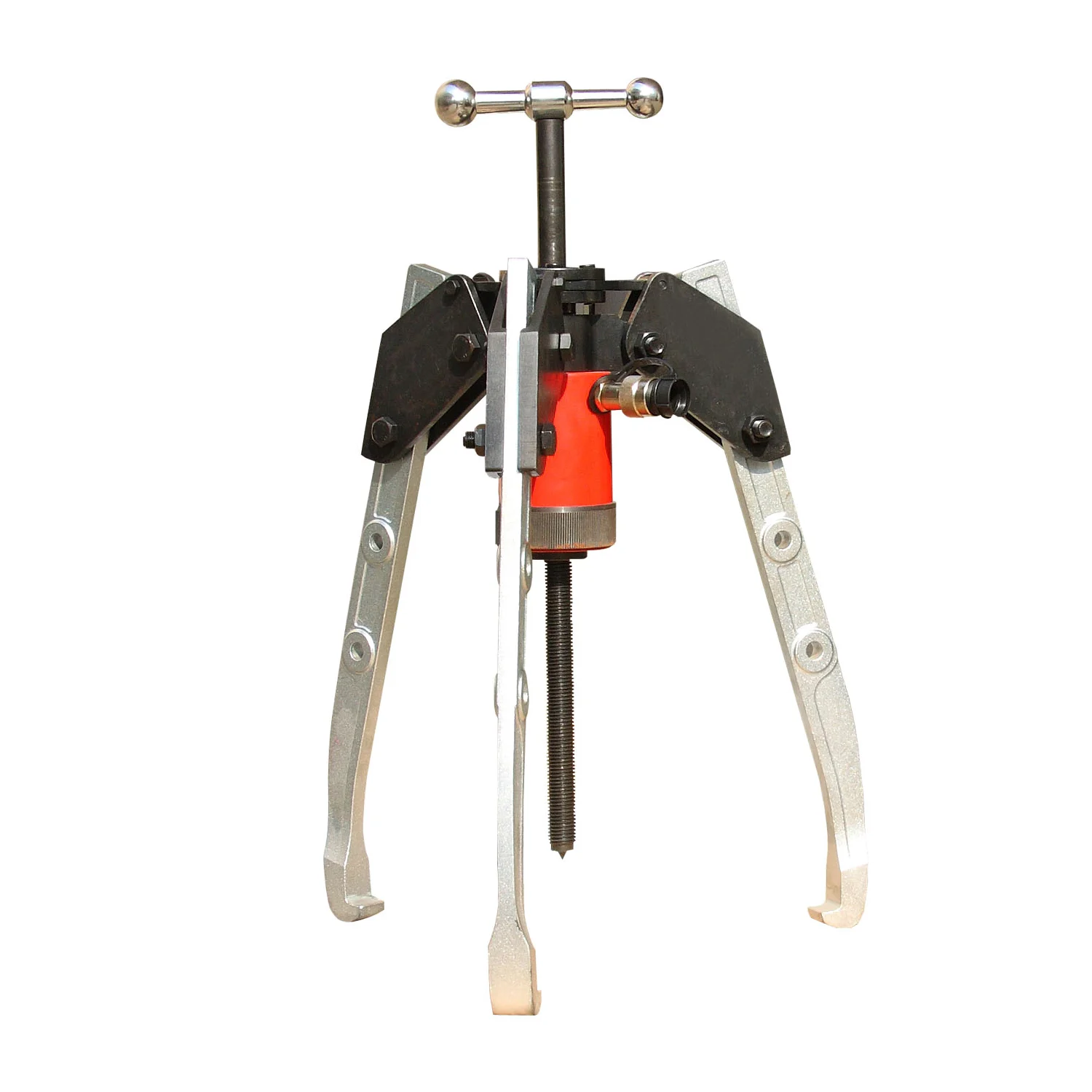

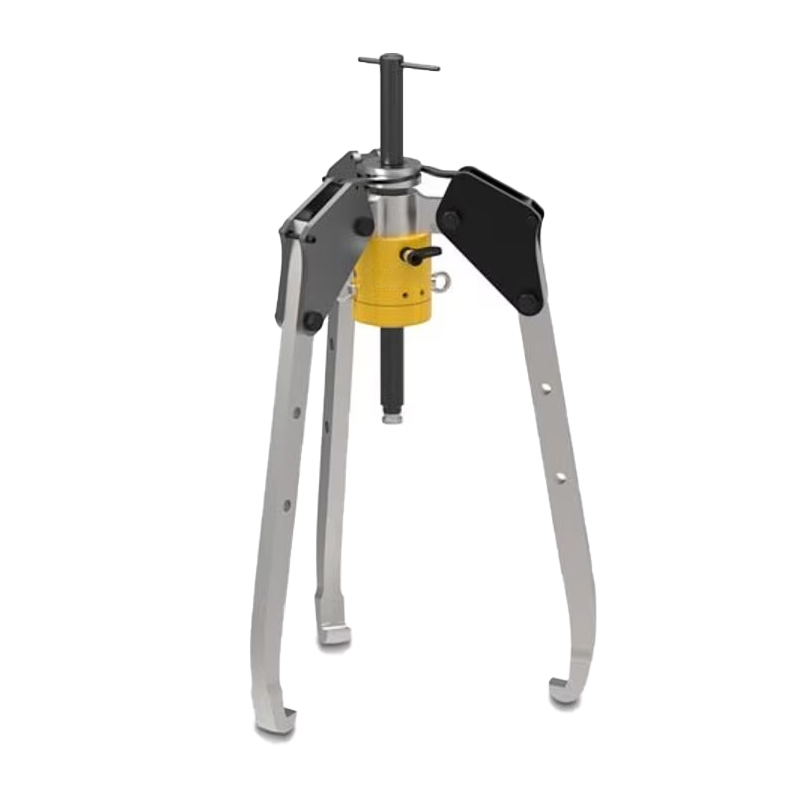

Image Gallery
Series Comparison
| Model No. | Capacity（T） | Max.reach（mm） | Max. spread（mm） | Weight(kg) |
|---|---|---|---|---|
| KY10 | 10 | 296 | 350 | 12 |
| KY20 | 20 | 320 | 480 | 34 |
| KY30 | 30 | 407 | 580 | 60 |
| KY60 | 60 | 727 | 920 | 90 |
