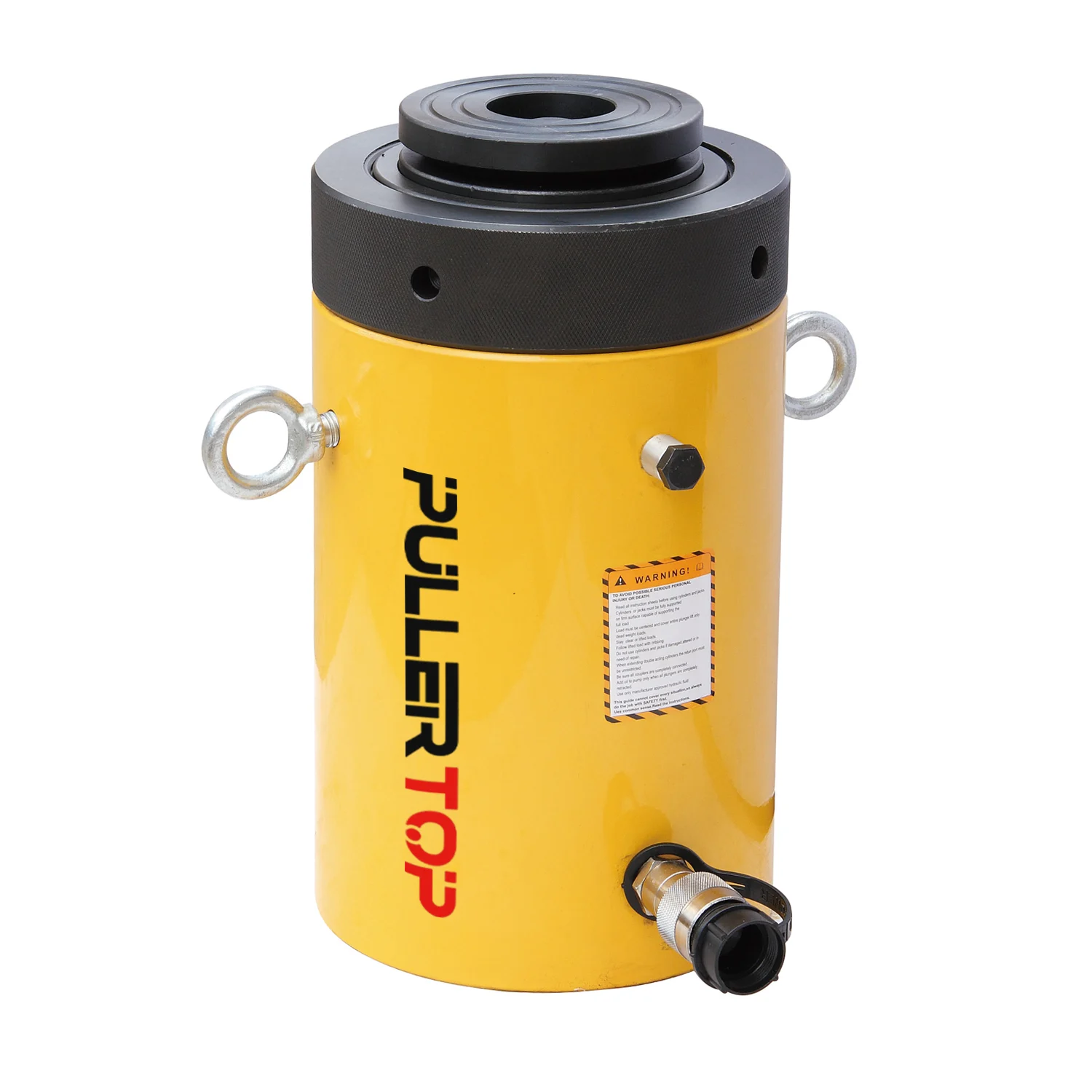

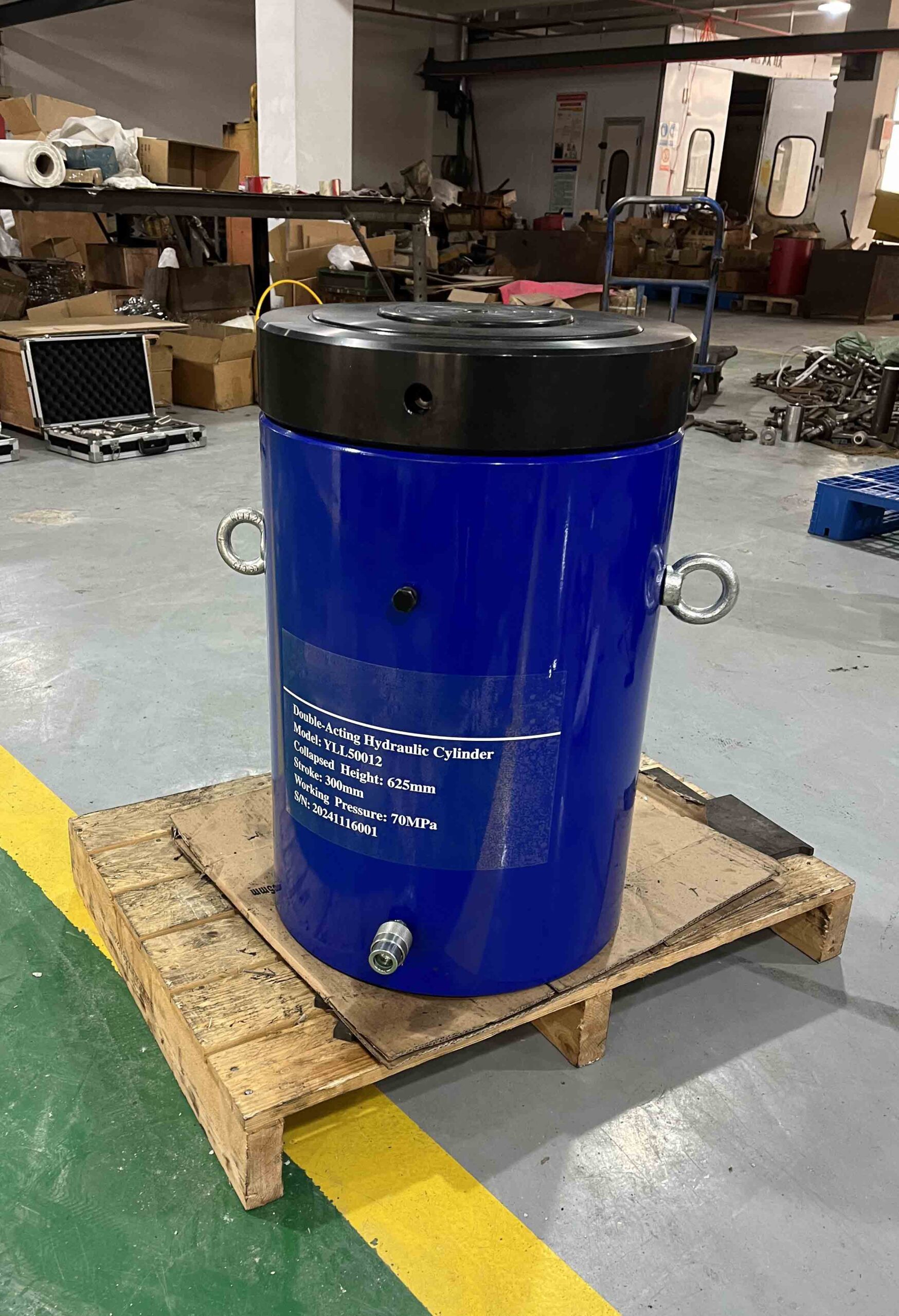

CLL Series, Single Acting Lock Nut Hydraulic Cylinders

Pullertop CLL series single-acting lock nut hydraulic cylinders are available from 50 tons to 1000 tons capacity and features a mechanical lock nut design for load holding over a long period of time.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: CLL Series

Product Lines: Lock Nut Hydraulic Cylinders

Safety lock nut for mechanical load holding for a long period of time.

Single-acting, load return.

Designed to withstand up to 10% side-load of maximum capacity.

Overflow port as stroke limiter to prevent plunger blow-out.

Baked enamel finish for increased corrosion resistance.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Capacity:	50-1000 Ton
Stroke:	50-300mm
Collapsed Height:	164-745mm
Maximum Operating Pressure :	70Mpa
Weight:	15-1430Kg

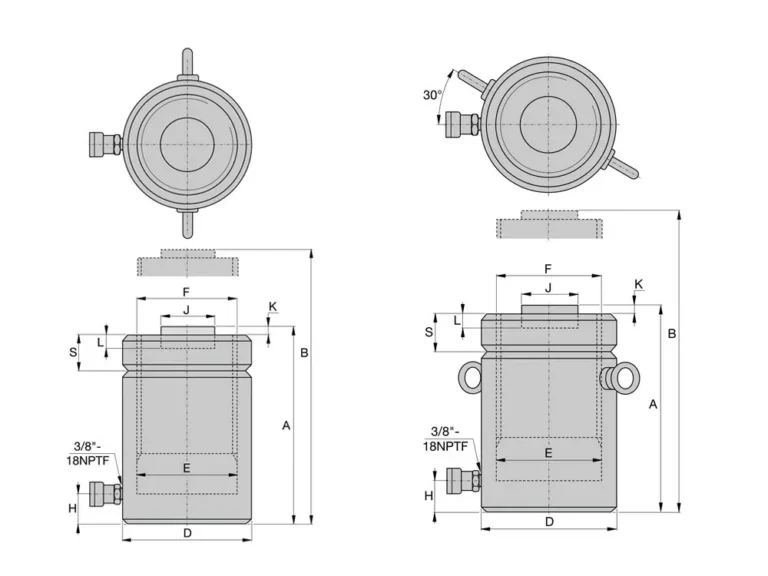

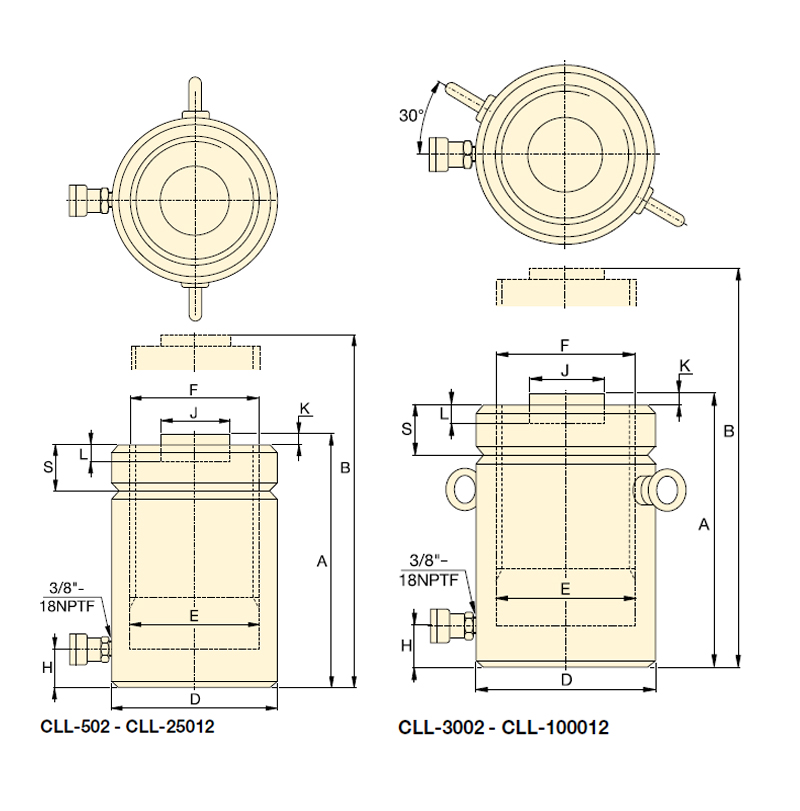

Dimension

Series Comparison

Model Number	Capacity/Ton	Stroke/mm	Cylinder Effective Area/cm2	Oil Capacity/cm3	Collapsed Height/mm(A)	Extended Height/mm(B)	Outside Dia/mm(D)	Cylinder Bore Dia/mm(E)	Plunger Dia/mm(F)	Base To Advance Port/mm(H)	Standard Saddle Dia/mm(J)	Saddle Protri. From Plgr./mm(K)	Depth of Plunger Hole/mm(L)	Lock Nut Height/mm(S)	Saddle Dia/mm(J1)	Saddle Height/mm(K1)	Saddle Model Number	Weight/Kg
CLL-502	50	50	70.8	354	164	214	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	15
CLL-504	50	100	70.8	708	214	314	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	20
CLL-506	50	150	70.8	1062	264	414	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	25
CLL-508	50	200	70.8	1416	314	514	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	30
CLL-5010	50	250	70.8	1770	364	614	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	35
CLL-5012	50	300	70.8	2124	414	714	125	71	Tr 95×4	30	71	2	13	36	71	24	CAT-100	40
CLL-1002	100	50	132.7	663.5	187	237	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	30
CLL-1004	100	100	132.7	1327	237	337	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	39
CLL-1006	100	150	132.7	1990.5	287	437	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	48
CLL-1008	100	200	132.7	2654	337	537	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	56
CLL-10010	100	250	132.7	3317.5	387	637	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	64
CLL-10012	100	300	132.7	3981	437	737	165	71	Tr 130×6	30	71	2	13	44	71	24	CAT-100	73
CLL-1502	150	50	201	1005	209	259	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	53
CLL-1504	150	100	201	2010	259	359	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	66
CLL-1506	150	150	201	3015	309	459	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	78
CLL-1508	150	200	201	4020	359	559	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	92
CLL-15010	150	250	201	5025	409	659	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	104
CLL-15012	150	300	201	6030	459	759	205	130	Tr160×6	39	130	2	25	44	130	20	CAT-200	117
CLL-2002	200	50	268.8	1417	243	293	235	130	Tr185×6	50	130	2	25	50	130	20	CAT-200	83
CLL-2006	200	150	268.8	4251	343	493	235	130	Tr185×6	50	130	2	25	50	130	20	CAT-200	118
CLL-20012	200	300	268.8	7085	443	693	235	130	Tr185×6	50	130	2	25	50	130	20	CAT-200	153
CLL-2502	250	50	362.9	1814.5	249	299	275	150	Tr 215×6	50	150	2	25	56	150	21	CAT-250	116
CLL-2506	250	150	362.9	5443.5	349	499	275	150	Tr 215×6	50	150	2	25	56	150	21	CAT-250	163
CLL-25012	250	300	362.9	9072.5	449	699	275	150	Tr 215×6	50	150	2	25	56	150	21	CAT-250	210
CLL-3002	300	50	452.2	2261	295	345	310	139	Tr 240×6	59	139	5	25	60	195	75	CAT-300	173
CLL-3006	300	150	452.2	6783	395	545	310	139	Tr 240×6	59	139	5	25	60	195	75	CAT-300	233
CLL-30012	300	300	452.2	11305	495	745	310	139	Tr 240×6	59	139	5	25	60	195	75	CAT-300	293
CLL-4002	400	50	572	2905	335	385	350	159	Tr 265×6	70	159	5	25	70	225	85	CAT-400	251
CLL-4006	400	150	572	8715	435	585	350	159	Tr 265×6	70	159	5	25	70	225	85	CAT-400	327
CLL-40012	400	300	572	14525	535	785	350	159	Tr 265×6	70	159	5	25	70	225	85	CAT-400	403
CLL-5002	500	50	730.2	3651	375	425	400	179	Tr 305×6	80	179	5	25	80	250	91	CAT-500	367
CLL-5006	500	150	730.2	10953	475	625	400	179	Tr 305×6	80	179	5	25	80	250	91	CAT-500	467
CLL-50012	500	300	730.2	18255	575	825	400	179	Tr 305×6	80	179	5	25	80	250	91	CAT-500	568
CLL-6002	600	50	854.9	4274.5	395	445	430	194	Tr 330×6	85	194	5	25	85	275	96	CAT-600	447
CLL-6006	600	150	854.9	12823.5	495	645	430	194	Tr 330×6	85	194	5	25	85	275	96	CAT-600	563
CLL-60012	600	300	854.9	21372.5	595	845	430	194	Tr 330×6	85	194	5	25	85	275	96	CAT-600	680
CLL-8002	800	50	1163.6	5818	455	505	505	224	Tr 385×6	100	224	5	25	100	320	123	CAT-800	711
CLL-8006	800	150	1163.6	17454	555	705	505	224	Tr 385×6	100	224	5	25	100	320	123	CAT-800	871
CLL-80012	800	300	1163.6	29090	655	905	505	224	Tr 385×6	100	224	5	25	100	320	123	CAT-800	1031
CLL-10002	1000	50	1451.5	7257.5	495	545	560	249	Tr 430×6	110	249	5	25	110	360	136	CAT-1000	951
CLL-10006	1000	150	1451.5	21772.5	595	745	560	249	Tr 430×6	110	249	5	25	110	360	136	CAT-1000	1143
CLL-100012	1000	300	1451.5	36287.5	695	945	560	249	Tr 430×6	110	249	5	25	110	360	136	CAT-1000	1335
