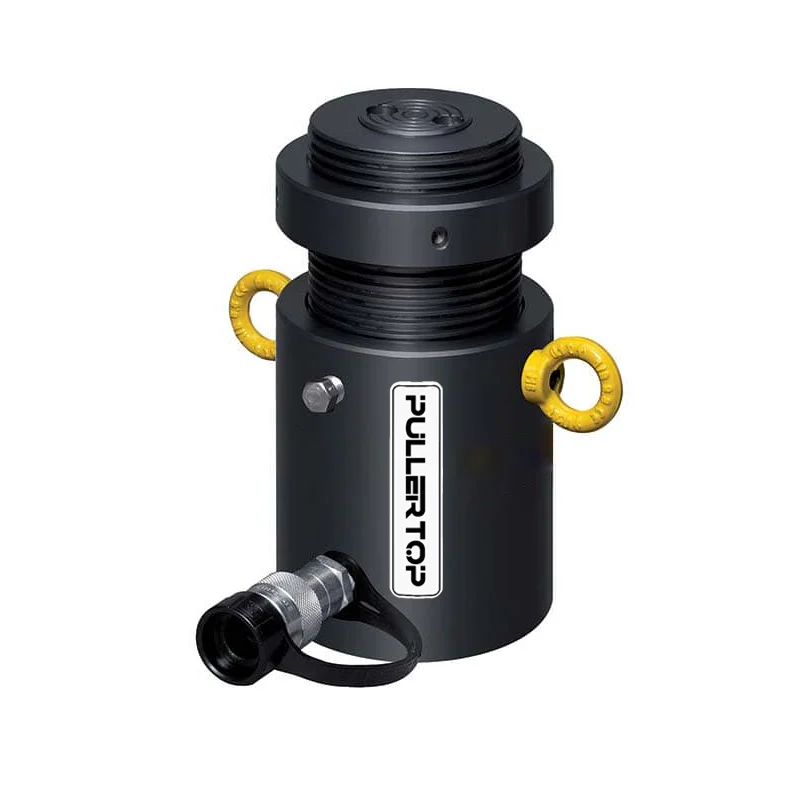

HCL Series, Single Acting Lock Nut Hydraulic Cylinder

HCL Series High Tonnage Hydraulic Cylinders feature a lock nut to provide secure mechanical load holding for extended periods. These single-acting load return cylinders contain fewer parts than other types making them simple to use and maintain.

All PullerTop High-Tonnage Cylinders are equipped with numerous special features to ensure the durability, safety, and performance needed for large-scale construction projects. Among these features are low-wear high-pressure seals, replaceable composite plunger support bearings, and a robust nitrocarburized finish on the body, lock nut and plunger.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: HCL Series

Product Lines: Lock Nut Hydraulic Cylinders

Safe mechanical load holding for extended periods,low friction lock nut spins easily, saving time and effort

Load return design – simple to use and maintain,withstands 10% side-load up to 90% of maximum stroke

Nitrocarburized surface resists side-loading and cyclic wear

Overflow port as stroke limiter – prevents plunger blow-out,base mounting holes included as standard.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Capacity:	50-1000 Ton
Stroke:	50-300mm
Collapsed Height:	164-734mm
Maximum Operating Pressure :	70Mpa
Weight:	17-1460Kg

Series Comparison

Model No.	Capacity（T）	Lifting.H（mm）	Min.H（mm）	Cylinder Dia.(mm)	Oil Capacity（cm³）	Weight(Kg)
HCL-502	50T	50	164	130	393	17
HCL-504		100	214		785	22
HCL-506		150	264		1178	27
HCL-508		200	314		1571	32
HCL-5010		250	364		1963	38
HCL-5012		300	414		2356	43

HCL-1002	100T	50	187	175	716	35
HCL-1004		100	237		1431	44
HCL-1006		150	287		2147	54
HCL-1008		200	337		2863	63
HCL-10010		250	387		3578	73
HCL-10012		300	437		4294	82

HCL-1502	150T	50	209	215	1069	59
HCL-1504		100	259		2138	73
HCL-1506		150	309		3207	87
HCL-1508		200	359		4276	102
HCL-15010		250	409		5346	116
HCL-15012		300	459		6415	130

HCL-2002	200T	50	238	250	1418	85
HCL-2004		100	288		2835	105
HCL-2006		150	338		4253	124
HCL-2008		200	388		5671	143
HCL-20010		250	438		7088	163
HCL-20012		300	488		8506	182

HCL-2502	250T	50	249	280	1815	119
HCL-2504		100	299		3631	143
HCL-2506		150	349		5446	167
HCL-2508		200	399		7261	192
HCL-25010		250	449		9076	216
HCL-25012		300	499		10892	240

HCL-3002	300T	50	278	305	2169	158
HCL-3004		100	328		4337	186
HCL-3006		150	378		6506	215
HCL-3008		200	428		8675	244
HCL-30010		250	478		10843	272
HCL-30012		300	528		13012	301

HCL-4002	400T	50	317	350	2863	236
HCL-4004		100	367		5726	274
HCL-4006		150	417		8588	311
HCL-4008		200	467		11451	349
HCL-40010		250	517		14314	387
HCL-40012		300	567		17177	425

HCL5002	500T	50	357	400	3653	341
HCL5004		100	407		7306	390
HCL5006		150	457		10.959	439
HCL5008		200	507		14.612	489
HCL50010		250	557		18.265	538
HCL50012		300	607		21.918	587

HCL6002	600T	50	380	430	4276	427
HCL6004		100	430		8553	484
HCL6006		150	480		12829	541
HCL6008		200	530		17106	598
HCL60010		250	580		21382	655
HCL60012		300	630		25659	712

HCL8002	800T	50	430	505	5821	668
HCL8004		100	480		11642	746
HCL8006		150	530		17462	825
HCL8008		200	580		23283	904
HCL80010		250	630		29104	982
HCL80012		300	680		34925	1061

HCL10002	1000T	50	484	570	7603	959
HCL10004		100	534		15205	1059
HCL10006		150	584		22808	1160
HCL10008		200	634		30411	1260
HCL100010		250	684		38013	1360
HCL100012		300	734		45616	1460
