CLSG Series, Single Acting High Tonnage Hydraulic Cylinders

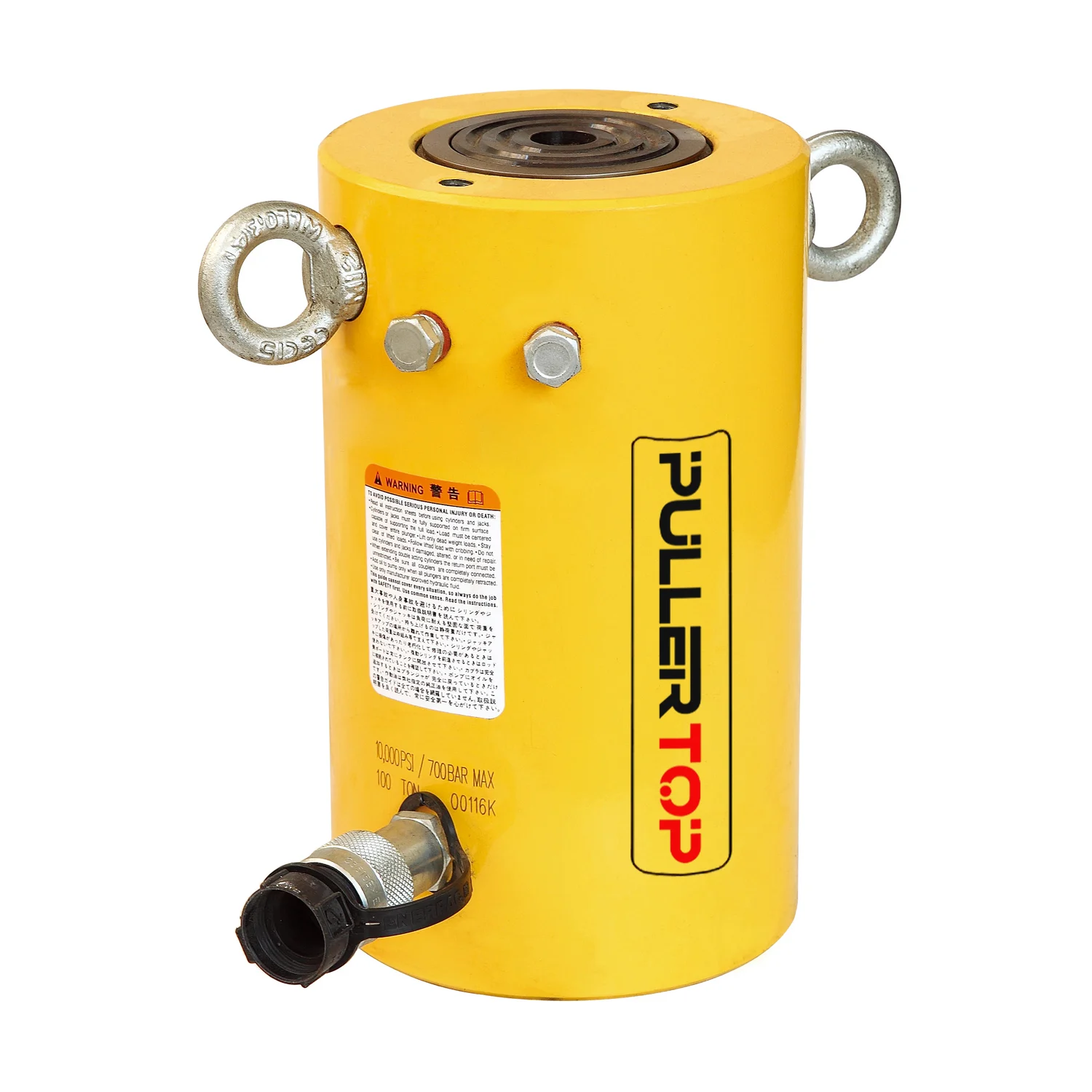

Pullertop  CLSG SERIES single-acting high-tonnage construction cylinders are ideally suited for construction, civil engineering, heavy fabrication, and maintenance applications. All models are supplied with a tilting saddle fitted as standard and have an over-stroke restrictor port to prevent over-extension of the piston. additional capacities and stroke options are available on request.

PRICE ON REQUEST
Download Catalog
Upload File

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: CLSG Series

Product Lines: High Tonnage Hydraulic Cylinders

  • Interchangeable, hardened grooved saddles are standard configuration

  • Plunger wiper reduces contamination, extending cylinder life

  • Single-acting, load retraction

  • Base mounting holes for easy fixturing

  • Hardened and chromed piston reduces wear and corrosion

  • Hardened alloy steel guide ring eliminates over travel and provides support to reduce wear from off-center loads

  • High strength composite bearing provides support for off-center loads without damaging the cylinder walls

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Product Picture

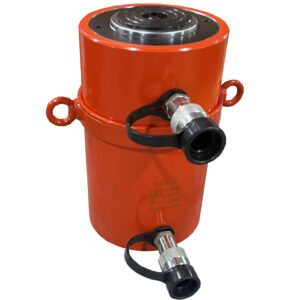

CLRG Series, Double Acting High Tonnage Hydraulic Cylinders

Series Specifications

Capacity: 50-1000 Ton
Stroke: 50-300mm
Collapsed Height: 162-814mm
Maximum Operating Pressure : 70Mpa
Weight: 17-1439Kg

Dimension

Series Comparison

Model Number Capacity/Ton Stroke/mm Push Max Cylinder Capacity/KN Pull Max Cylinder Capacity/KN Push Cylinder Effective Area/cm2 Pull Cylinder Effective Area/cm2 Push Oil Capacity/cm3 Pull Oil Capacity/cm3 Collapsed Height/mm(A) Extended Height/mm(B) Outside Dia/mm(D) Cylinder Bore Dia/mm(E) Plunger Dia/mm(F) Base To Advance Port/mm(H) Top To Retract Port/mm(I) Saddle Dia/mm(J) Saddle Protri. From Page./mm(K) Depth of Plunger Hole/mm(L) Saddle Dia/mm(J1) Saddle Height/mm(K1) Saddle Model Weight/Kg
CLSG-502 50 50 539 269 77 38.5 385 192 162 212 130 99 70 52 33 50 1 19 50 24 CATG-50 17
CLSG-504 50 100 539 269 77 38.5 770 385 212 312 130 99 70 52 33 50 1 19 50 24 CATG-50 20
CLSG-506 50 150 539 269 77 38.5 1155 577 262 412 130 99 70 52 33 50 1 19 50 24 CATG-50 23
CLSG-508 50 200 539 269 77 38.5 1540 770 312 512 130 99 70 52 33 50 1 19 50 24 CATG-50 27
CLSG-5010 50 250 539 269 77 38.5 1924 962 362 612 130 99 70 52 33 50 1 19 50 24 CATG-50 31
CLSG-5012 50 300 539 269 77 38.5 2309 1155 412 712 130 99 70 52 33 50 1 19 50 24 CATG-50 34
CLSG-1002 100 50 929 433 132.7 61.9 664 309 179 229 165 130 95 54 48 75 1 19 73 29 CATG-100 19
CLSG-1004 100 100 929 433 132.7 61.9 1327 619 229 329 165 130 95 54 48 75 1 19 73 29 CATG-100 29
CLSG-1006 100 150 929 433 132.7 61.9 1991 928 279 429 165 130 95 54 48 75 1 19 73 29 CATG-100 40
CLSG-1008 100 200 929 433 132.7 61.9 2655 1237 329 529 165 130 95 54 48 75 1 19 73 29 CATG-100 50
CLSG-10010 100 250 929 433 132.7 61.9 3318 1546 379 629 165 130 95 54 48 75 1 19 73 29 CATG-100 61
CLSG-10012 100 300 929 433 132.7 61.9 3982 1856 429 729 165 130 95 54 48 75 1 19 73 29 CATG-100 71
CLSG-1502 150 50 1390 675 198.6 96.5 993 482 196 246 205 159 114 61 56 94 1 19 91 31 CATG-150 39
CLSG-1504 150 100 1390 675 198.6 96.5 1986 965 246 346 205 159 114 61 56 94 1 19 91 31 CATG-150 52
CLSG-1506 150 150 1390 675 198.6 96.5 2978 1447 296 446 205 159 114 61 56 94 1 19 91 31 CATG-150 65
CLSG-1508 150 200 1390 675 198.6 96.5 3971 1930 346 546 205 159 114 61 56 94 1 19 91 31 CATG-150 78
CLSG-15010 150 250 1390 675 198.6 96.5 4964 2412 396 646 205 159 114 61 56 94 1 19 91 31 CATG-150 92
CLSG-15012 150 300 1390 675 198.6 96.5 5957 2895 446 746 205 159 114 61 56 94 1 19 91 31 CATG-150 105
CLSG-2002 200 50 1861 889 265.9 127 1330 635 212 262 235 184 133 67 66 113 1 24 118 35 CATG-200 55
CLSG-2006 200 150 1861 889 265.9 127 3989 1905 312 462 235 184 133 67 66 113 1 24 118 35 CATG-200 91
CLSG-20012 200 300 1861 889 265.9 127 7977 3809 462 762 235 184 133 67 66 113 1 24 118 35 CATG-200 146
CLSG-2502 250 50 2565 1068 366.4 152.6 1832 763 235 285 275 216 165 73 78 145 1 24 144 46 CATG-250 102
CLSG-2506 250 150 2565 1068 366.4 152.6 5497 2289 335 485 275 216 165 73 78 145 1 24 144 46 CATG-250 136
CLSG-25012 250 300 2565 1068 366.4 152.6 10993 4578 485 785 275 216 165 73 78 145 1 24 144 46 CATG-250 207
CLSG-3002 300 50 3193 1060 456.2 151.4 2281 757 322 372 310 241 197 101 75 177 1 19 160 62 CATG-300 184
CLSG-3006 300 150 3193 1060 456.2 151.4 6843 2270 422 572 310 241 197 101 75 177 1 19 160 62 CATG-300 232
CLSG-30012 300 300 3193 1060 456.2 151.4 13685 4541 572 872 310 241 197 101 75 177 1 19 160 62 CATG-300 303
CLSG-4002 400 50 3919 1354 559.9 193.5 2800 967 374 424 350 267 216 114 105 196 3 27 193 51 CATG-400 270
CLSG-4006 400 150 3919 1354 559.9 193.5 8399 2902 474 624 350 267 216 114 105 196 3 27 193 51 CATG-400 330
CLSG-40012 400 300 3919 1354 559.9 193.5 16797 5804 624 924 350 267 216 114 105 196 3 27 193 51 CATG-400 421
CLSG-5002 500 50 5114 1733 730.6 247.6 3653 1238 419 469 400 305 248 114 135 228 3 27 228 63 CATG-500 401
CLSG-5006 500 150 5114 1733 730.6 247.6 10959 3713 519 669 400 305 248 114 135 228 3 27 228 63 CATG-500 480
CLSG-50012 500 300 5114 1733 730.6 247.6 21918 7427 669 969 400 305 248 114 135 228 3 27 228 63 CATG-500 599
CLSG-6002 600 50 5987 2068 855.3 295.4 4276 1477 429 479 430 330 267 114 135 247 3 27 241 76 CATG-600 474
CLSG-6006 600 150 5987 2068 855.3 295.4 12829 4431 529 679 430 330 267 114 135 247 3 27 241 76 CATG-600 565
CLSG-60012 600 300 5987 2068 855.3 295.4 25659 8862 679 979 430 330 267 114 135 247 3 27 241 76 CATG-600 701
CLSG-8002 800 50 8234 2709 1176.3 387 5881 1935 484 534 505 387 317 149 135 297 3 27 287 75 CATG-800 741
CLSG-8006 800 150 8234 2709 1176.3 387 17644 5806 584 734 505 387 317 149 135 297 3 27 287 75 CATG-800 868
CLSG-80012 800 300 8234 2709 1176.3 387 35288 11611 734 1034 505 387 317 149 135 297 3 27 287 75 CATG-800 1058
CLSG-10002 1000 50 10260 3792 3792 541.7 7329 2709 564 614 560 432 343 174 170 323 3 27 311 93 CATG-1000 1062
CLSG-10006 1000 150 10260 3792 3792 541.7 21986 8126 664 814 560 432 343 174 170 323 3 27 311 93 CATG-1000 1213
CLSG-100012 1000 300 10260 3792 3792 541.7 43972 16252 814 1114 560 432 343 174 170 323 3 27 311 93 CATG-1000 1439
