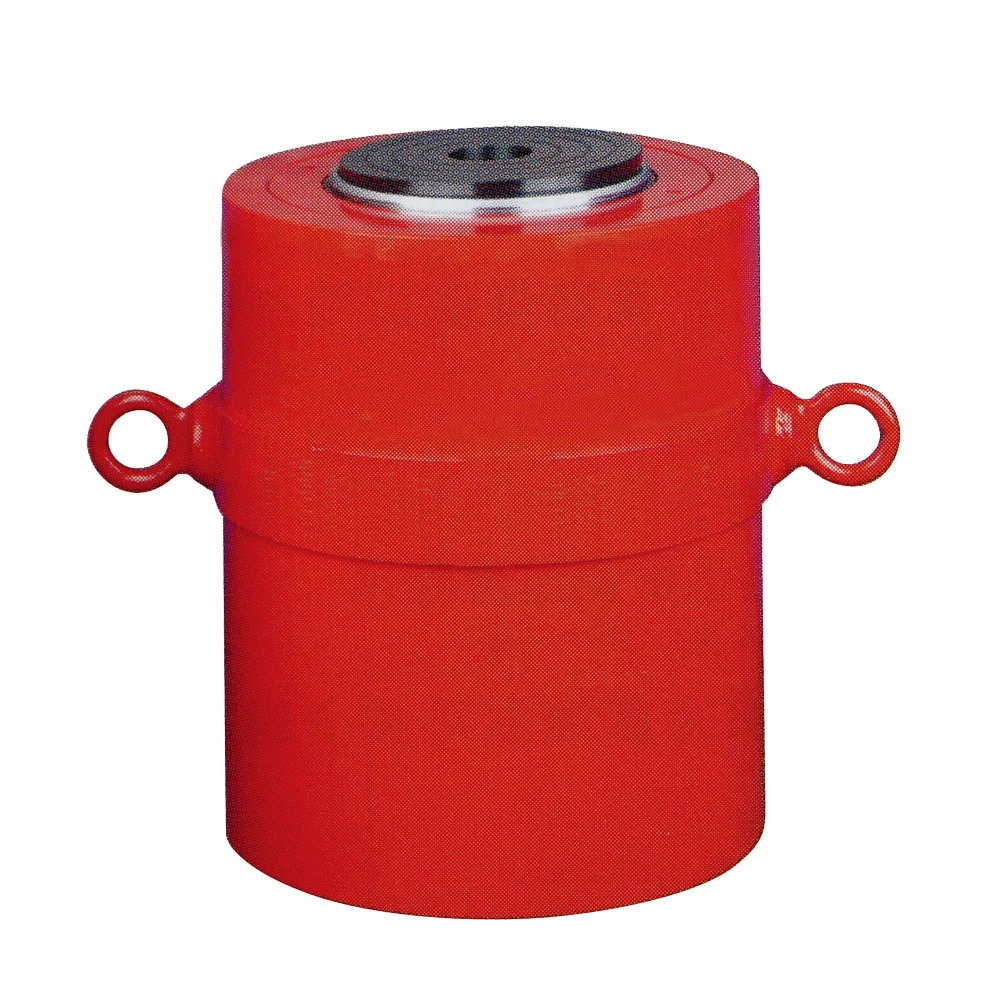

R Series, Double Acting High Tonnage Hydraulic Cylinders
Pullertop R series hydraulic cylinders are high-tonnage hydraulic jacks with a capacity from 100 tons to 565 tons. It features a double-acting design for fast lifting and lowering operation and comes standard with swivel caps to reduce the effects of off-center loading.
Product Description
Series: R Series
Product Lines: High Tonnage Hydraulic Cylinders
- Cylinders come standard with swivel caps to reduce the effects of off-center loading
- Cylinders may be “dead-ended” without damage.
- Hard chrome plated, heat-treated piston rod reduces wear on piston and gland nut.
- A built-in safety relief valve prevents over-pressurization of the retraction circuit.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Capacity: | 100-565 Ton |
| Stroke: | 50.8-304mm |
| Collapsed Height: | 168.7-599.3mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 24.5-455.4Kg |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Push Oil Capacity/cm3 | Pull Oil Capacity/cm3 | Collapsed Height/mm(A) | Cylinder Dia/mm(D) | Piston Dia/mm(E) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| R1002D | 100 | 50.8 | 676 | 315 | 168.7 | 165.1 | 95.3 | 24.5 |
| R1004D | 100 | 101.6 | 1353 | 628 | 219.5 | 165.1 | 95.3 | 30.6 |

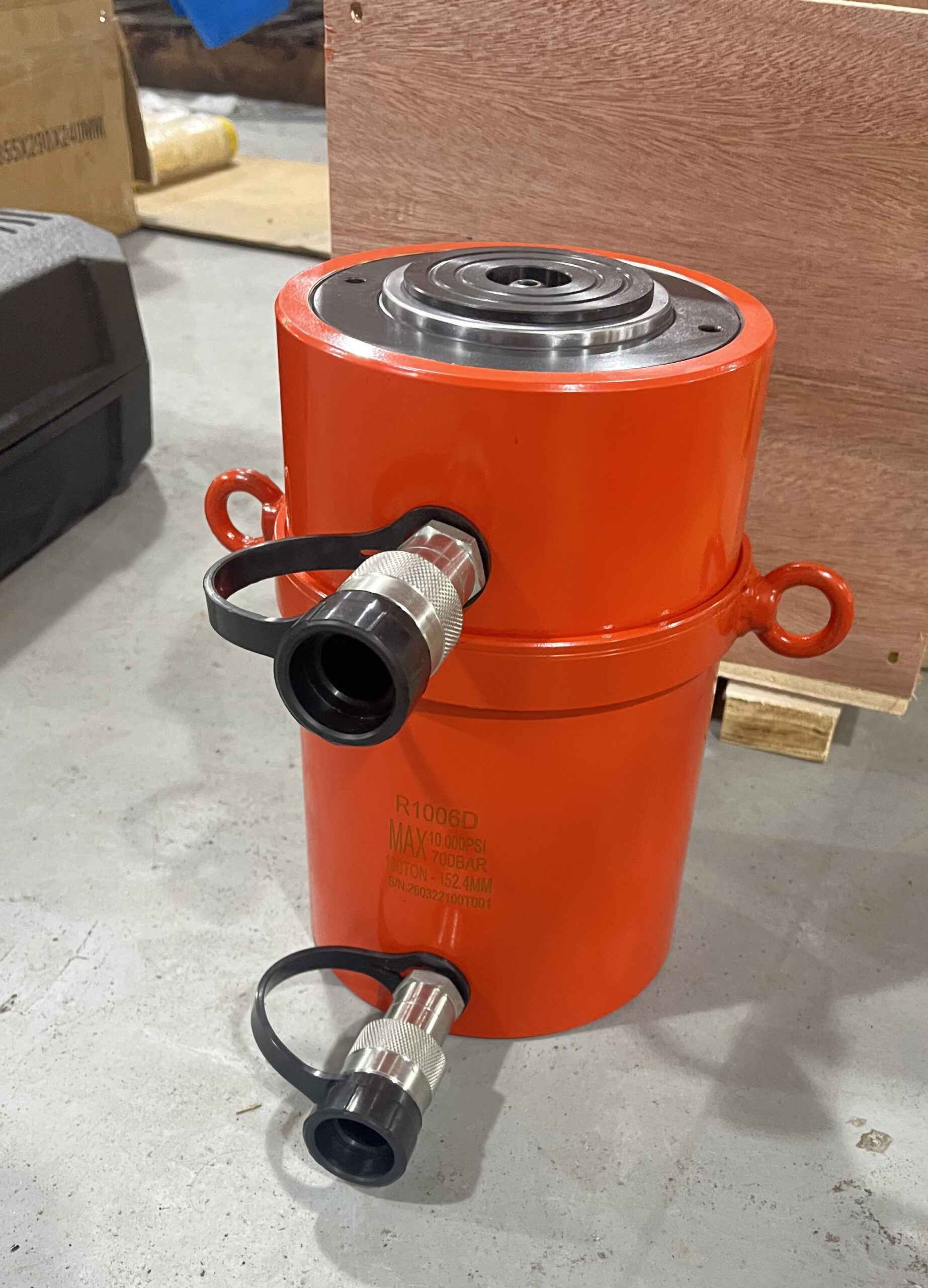

| R1006D | 100 | 152.4 | 2027 | 945 | 270.3 | 165.1 | 95.3 | 36.8 |
| R1008D | 100 | 203.2 | 2705 | 1256 | 321.1 | 165.1 | 95.3 | 42.9 |
| R10010D | 100 | 254 | 3378 | 1574 | 371.9 | 165.1 | 95.3 | 49 |
| R10012D | 100 | 304 | 4058 | 1884 | 422.7 | 165.1 | 95.3 | 55.1 |
| R1502D | 150 | 50.8 | 1007 | 485 | 188.9 | 204.8 | 114.3 | 43.1 |
| R1504D | 150 | 101.6 | 2012 | 970 | 239.7 | 204.8 | 114.3 | 52.4 |
| R1506D | 150 | 152.4 | 3021 | 1456 | 290.5 | 204.8 | 114.3 | 61.7 |
| R1508D | 150 | 203.2 | 4025 | 1940 | 341.3 | 204.8 | 114.3 | 71 |
| R1510D | 150 | 254 | 5031 | 2424 | 392.1 | 204.8 | 114.3 | 80.3 |
| R1512D | 150 | 304.8 | 6037 | 2909 | 442.9 | 204.8 | 114.3 | 89.6 |
| R2002D | 200 | 50.8 | 1355 | 643 | 206.8 | 235 | 133.4 | 61.7 |
| R2004D | 200 | 101.6 | 2707 | 1287 | 257.6 | 235 | 133.4 | 73.3 |
| R2006D | 200 | 152.4 | 4064 | 1929 | 308.4 | 235 | 133.4 | 84.9 |
| R2008D | 200 | 203.2 | 5415 | 2575 | 359.2 | 235 | 133.4 | 96.5 |
| R20010D | 200 | 254 | 6773 | 3214 | 410 | 235 | 133.4 | 108.5 |
| R20012D | 200 | 304.8 | 8122 | 3862 | 460.8 | 235 | 133.4 | 120 |
| R2802D | 280 | 50.8 | 1860 | 772 | 233.8 | 276.2 | 165.1 | 98.7 |
| R2804D | 280 | 101.6 | 3720 | 1544 | 284.6 | 276.2 | 165.1 | 116.7 |
| R2806D | 280 | 152.4 | 5579 | 2322 | 355 | 276.2 | 165.1 | 134.8 |
| R2808D | 280 | 203.2 | 7439 | 3089 | 386.2 | 276.2 | 165.1 | 152.7 |
| R28010D | 280 | 254 | 9299 | 3870 | 437 | 276.2 | 165.1 | 170.7 |
| R28012D | 280 | 304.8 | 11159 | 4633 | 487.8 | 276.2 | 165.1 | 188.7 |
| R3552D | 355 | 50.8 | 2326 | 777 | 288.9 | 298.5 | 196.9 | 147 |
| R3554D | 355 | 101.6 | 4646 | 1553 | 339.7 | 298.5 | 196.9 | 169 |
| R3556D | 355 | 152.4 | 6977 | 2332 | 390.5 | 298.5 | 196.9 | 191.1 |
| R3558D | 355 | 203.2 | 9292 | 3105 | 441.3 | 298.5 | 196.9 | 213 |
| R35510D | 355 | 254 | 11616 | 3881 | 492.1 | 298.5 | 196.9 | 235 |
| R35512D | 355 | 304.8 | 13939 | 4658 | 542.9 | 298.5 | 196.9 | 257 |
| R4302D | 430 | 50.8 | 2840 | 977 | 312.7 | 330.2 | 215.9 | 199.3 |
| R4304D | 430 | 101.6 | 5676 | 1956 | 363.5 | 330.2 | 215.9 | 226.3 |
| R4306D | 430 | 152.4 | 8521 | 2932 | 414.3 | 330.2 | 215.9 | 253.3 |
| R4308D | 430 | 203.2 | 11352 | 3913 | 465.1 | 330.2 | 215.9 | 280.3 |
| R43010D | 430 | 254 | 14190 | 4891 | 515.9 | 330.2 | 215.9 | 307.3 |
| R43012D | 430 | 304.8 | 17028 | 5869 | 566.7 | 330.2 | 215.9 | 334.3 |
| R5652D | 565 | 50.8 | 3707 | 1259 | 345.3 | 377.8 | 247.7 | 281 |
| R5654D | 565 | 101.6 | 7413 | 2517 | 396.1 | 377.8 | 247.7 | 315.4 |
| R5656D | 565 | 152.4 | 11120 | 3776 | 446.9 | 377.8 | 247.7 | 350.4 |
| R5658D | 565 | 203.2 | 14827 | 5035 | 497.7 | 377.8 | 247.7 | 385.4 |
| R56510D | 565 | 254 | 18533 | 6294 | 548.5 | 377.8 | 247.7 | 420.4 |
| R56512D | 565 | 304.8 | 22240 | 7552 | 599.3 | 377.8 | 247.7 | 455.4 |
