Double Acting Multiple Ram Cylinder
The longer stroke length of telescopic hydraulic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing. Baked enamel finish provides unparalleled corrosion protection for safe use in the harshest conditions.
Product Description
Series: MD Series
Product Lines: Telescopic Hydraulic Cylinder
- Long cylinder stroke in confined spaces
- Hardened surface resists side-loading and cyclic wear
- Corrosion protected, inside and out
- Use for low height, long stroke, double acting, oil return
- as per customer requirement.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

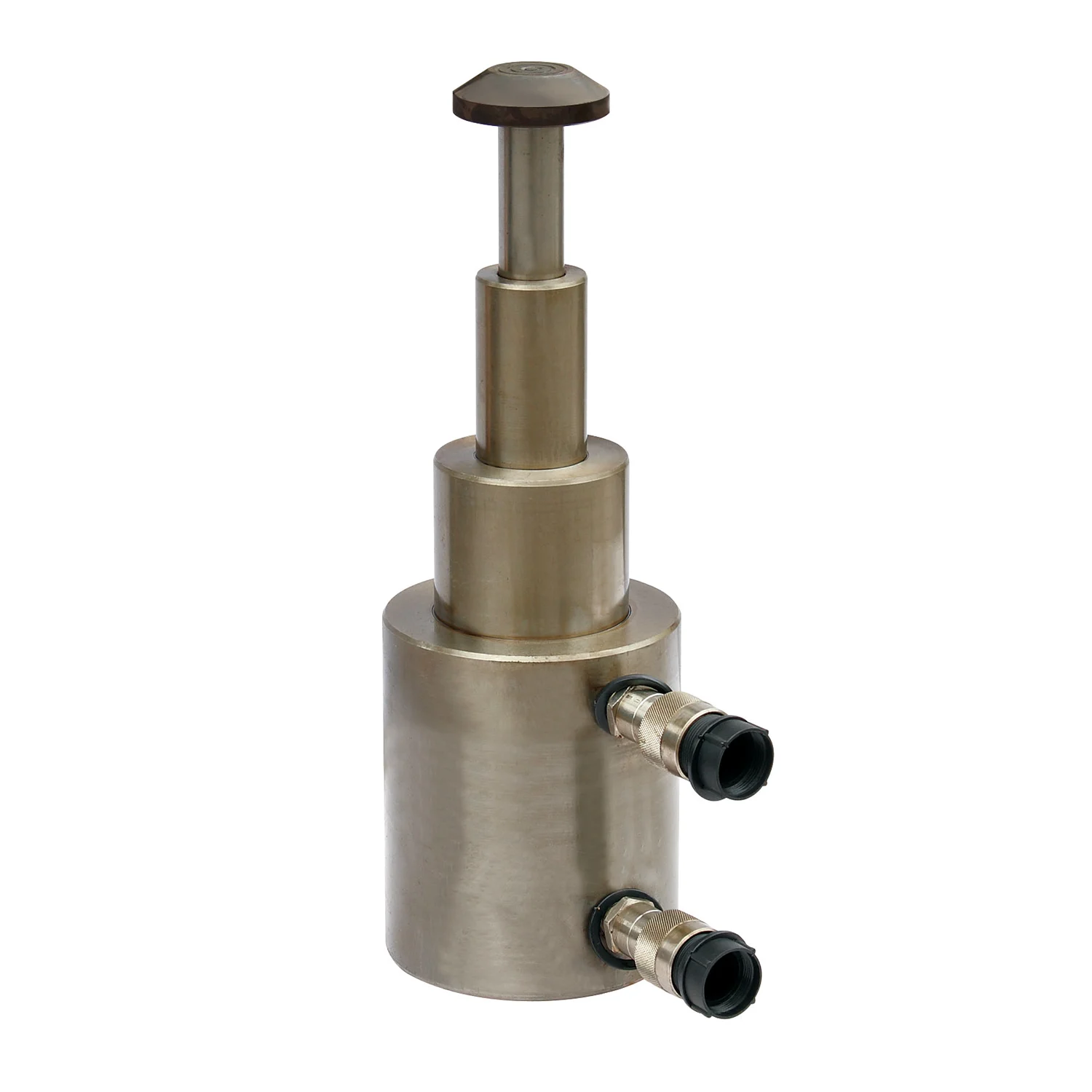

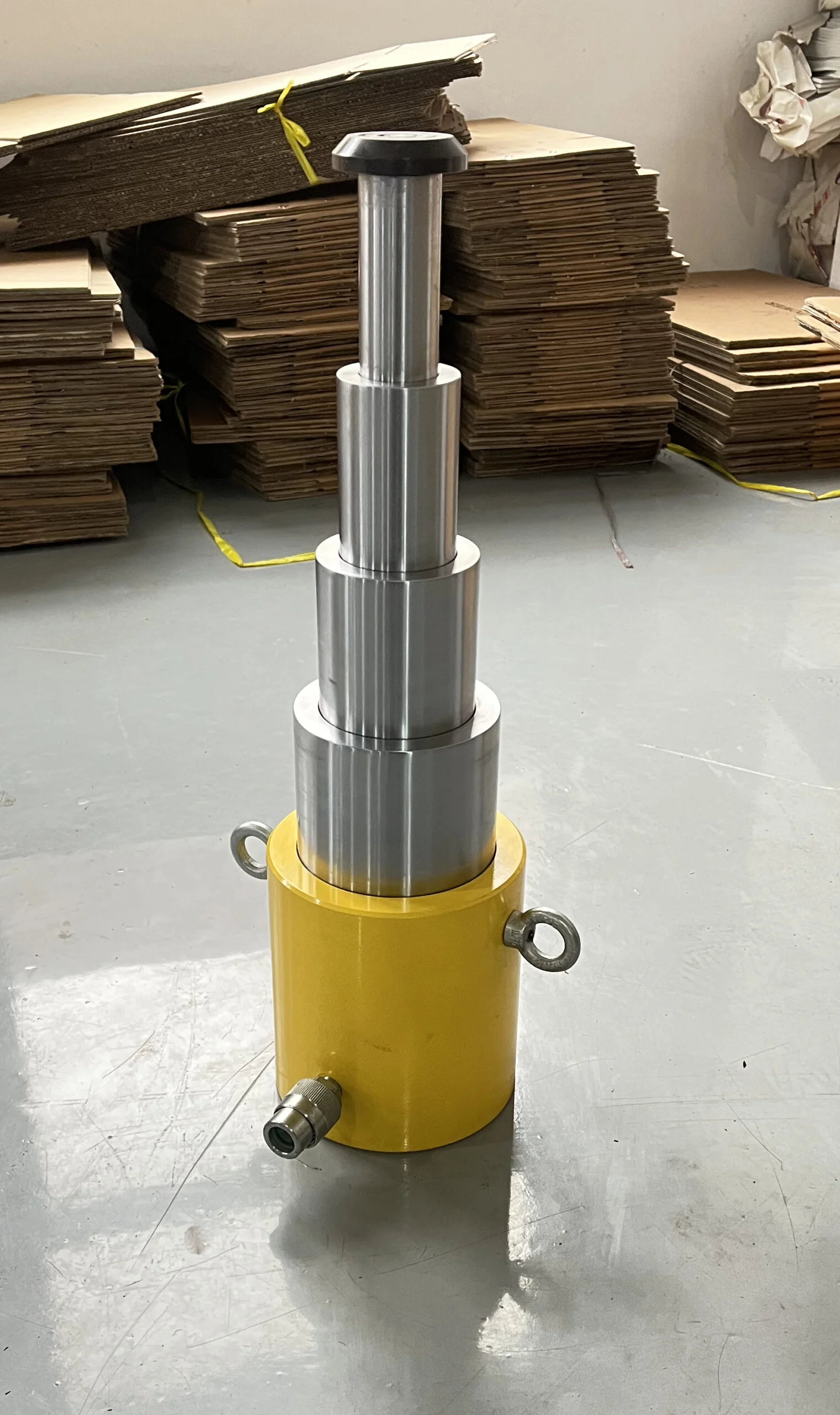

Product Picture
Series Specifications
| Capacity: | 20-100 Ton |
| Stroke: | 190-450mm |
| Collapsed Height: | 270-320mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 28-265Kg |
Series Comparison
| Model No. | Capacity（T） | Ram Qty. | Lifting.H（mm） | Cylinder Dia.(mm) | Min.H（mm） | Oil Capacity（cm³） | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| MD20-2 | 45 | 1 | 145 | 140 | 270 | 1500 | 28 |
| 20 | 2 | 155 | |||||
| MD20-3 | 70 | 1 | 145 | 170 | 320 | 2500 | 45 |
| 45 | 2 | 155 | |||||
| 20 | 3 | 150 | |||||
| MD100-2 | 300 | 1 | 210 | 300 | 320 | 4000 | 265 |
| 100 | 2 | 190 |
