Multiple Ram Cylinder
The longer stroke length of telescopic hydraulic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing. Baked enamel finish provides unparalleled corrosion protection for safe use in the harshest conditions.
Product Description
Series: MR Series
Product Lines: Telescopic Hydraulic Cylinder
- Long cylinder stroke in confined spaces
- Hardened surface resists side-loading and cyclic wear
- Corrosion protected, inside and out
- Use for low height, long stroke, single acting, load return
- as per customer requirement.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

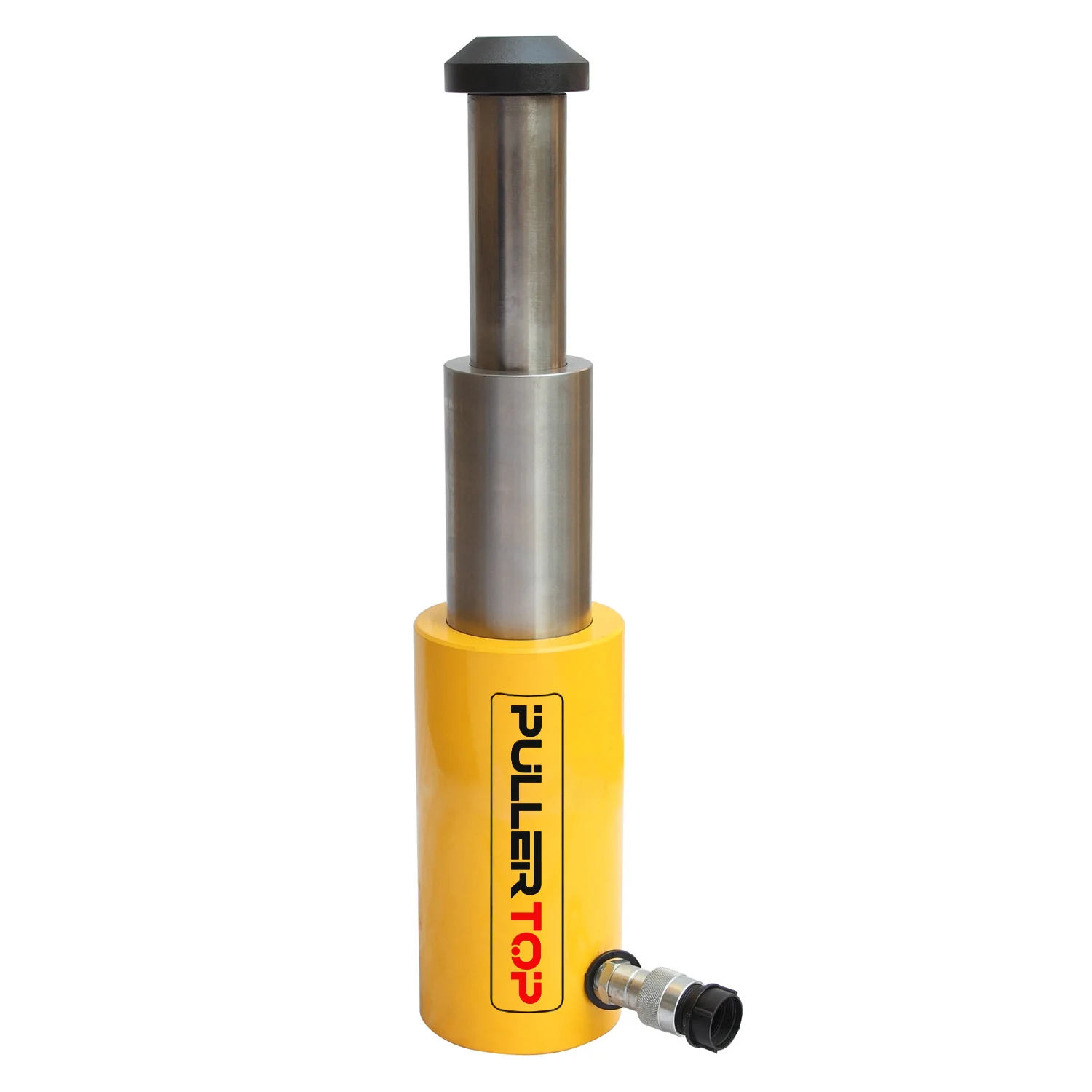

Product Picture
Series Specifications
| Capacity: | 10-50 Ton |
| Stroke: | 270-600mm |
| Collapsed Height: | 250-390mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 18-152Kg |
Series Comparison
| Model No. | Capacity（T） | Ram Qty. | Lifting.H（mm） | Cylinder Dia.(mm) | Min.H（mm） | Oil Capacity（cm³） | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| MR10-2 | 30 | Stage 1 | 135 | 110 | 250 | 810 | 18 |
| 10 | Stage 2 | 135 | |||||
| MR10-3 | 60 | Stage 1 | 145 | 152 | 280 | 2250 | 40 |
| 30 | Stage 2 | 145 | |||||
| 10 | Stage 3 | 145 | |||||
| MR15-2 | 40 | Stage 1 | 150 | 125 | 280 | 1308 | 28 |
| 15 | Stage 2 | 150 | |||||
| MR15-3 | 80 | Stage 1 | 170 | 175 | 320 | 3543 | 60 |
| 40 | Stage 2 | 170 | |||||
| 15 | Stage 3 | 160 | |||||
| MR30-2 | 60 | Stage 1 | 150 | 152 | 304 | 2088 | 45 |
| 30 | Stage 2 | 150 | |||||
| MR30-3 | 135 | Stage 1 | 200 | 220 | 366 | 6803 | 106 |
| 60 | Stage 2 | 200 | |||||
| 30 | Stage 3 | 200 | |||||
| MR50-2 | 100 | Stage 1 | 150 | 170 | 350 | 3800 | 68 |
| 50 | Stage 2 | 150 | |||||
| MR50-3 | 190 | Stage 1 | 200 | 230 | 390 | 9500 | 152 |
| 100 | Stage 2 | 200 | |||||
| 50 | Stage 3 | 200 |
