RT Series, Telescopic Hydraulic Cylinder
The longer stroke length of telescopic hydraulic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing. Baked enamel finish provides unparalleled corrosion protection for safe use in the harshest conditions.
Product Description
Series: RT Series
Product Lines: Telescopic Hydraulic Cylinder
- Nitrocarburized surface treatment inside and out provides corrosion
protection - 3% side-load of full capacity
- Double or triple wear bearings support lifting stages
- Tilting saddles with 5 degrees of maximum tilt standard on all models
- Certified lifting eyes for safe handling and positioning
- Steel cylinder base for maximum strength.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

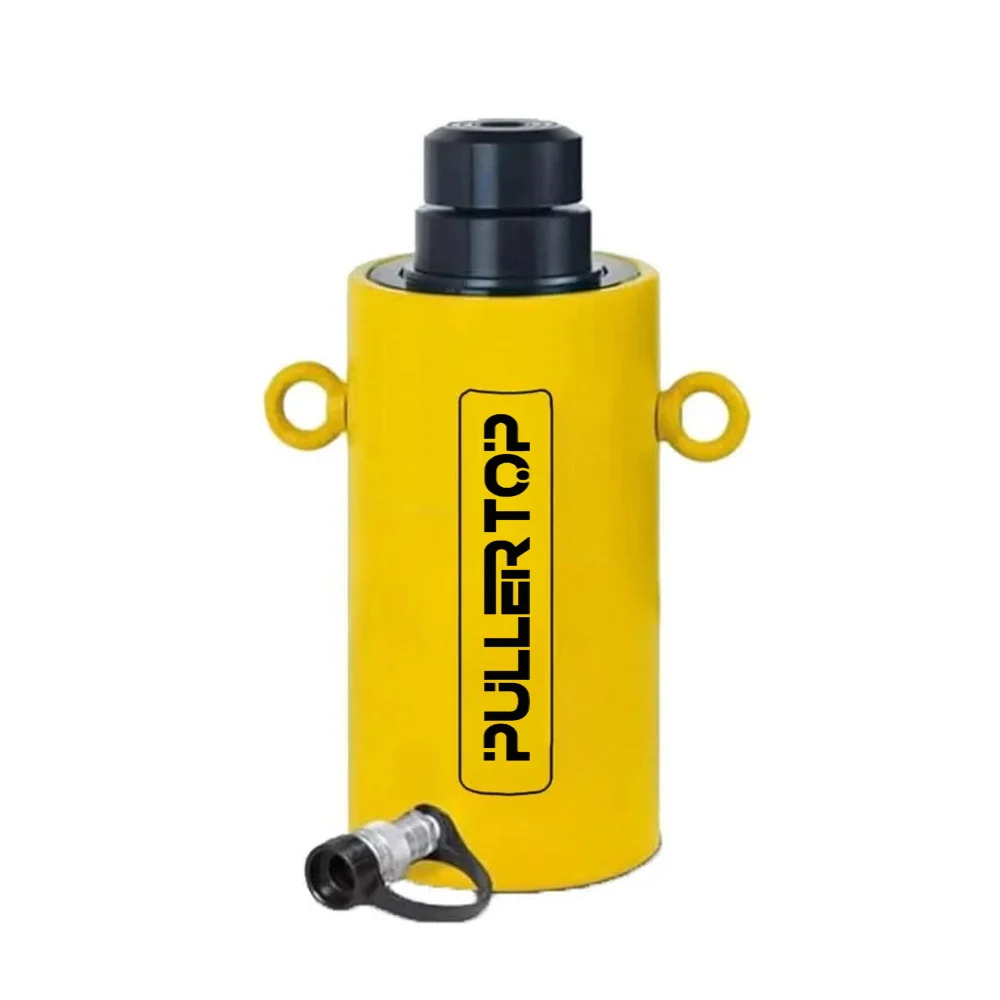

Product Picture
Series Specifications
| Capacity: | 14-32 Ton |
| Stroke: | 270-600mm |
| Collapsed Height: | 283-476mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 15-124Kg |
Dimensions
Series Comparison
| Model No. | Capacity（T） | Ram Qty. | Lifting.H（mm） | Cylinder Dia.(mm) | Min.H（mm） | Oil Capacity（cm³） | WeightKg) |
|---|---|---|---|---|---|---|---|
| RT1510 | 36 | Stage 1 | 135 | 110 | 283 | 944 | 15 |
| 14 | Stage 2 | 135 | |||||
| RT1817 | 95 | Stage 1 | 145 | 170 | 345 | 3092 | 40 |
| 41 | Stage 2 | 145 | |||||
| 17 | Stage 3 | 145 | |||||
| RT2111 | 51 | Stage 1 | 150 | 125 | 317 | 1487 | 22 |
| 20 | Stage 2 | 150 | |||||
| RT2119 | 126 | Stage 1 | 170 | 200 | 395 | 4661 | 67 |
| 51 | Stage 2 | 170 | |||||
| 20 | Stage 3 | 160 | |||||
| RT3311 | 81 | Stage 1 | 150 | 160 | 352 | 2359 | 40 |
| 32 | Stage 2 | 150 | |||||
| RT3323 | 202 | Stage 1 | 200 | 250 | 476 | 8816 | 124 |
| 81 | Stage 2 | 200 | |||||
| 32 | Stage 3 | 200 |
