Product Description

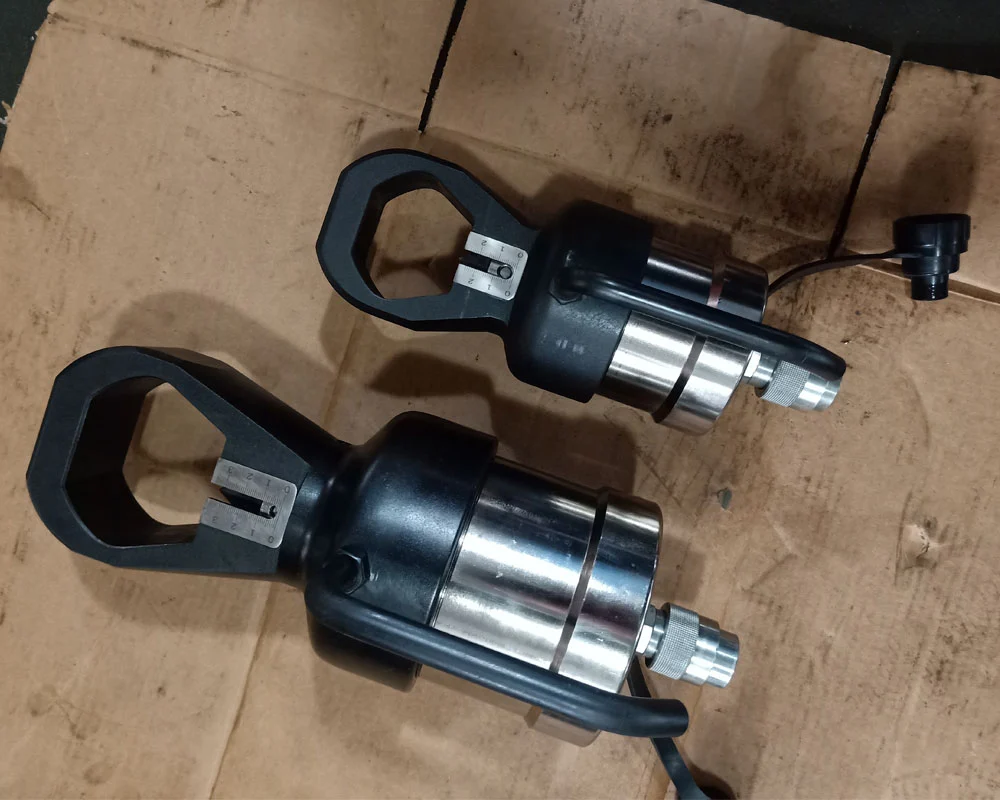

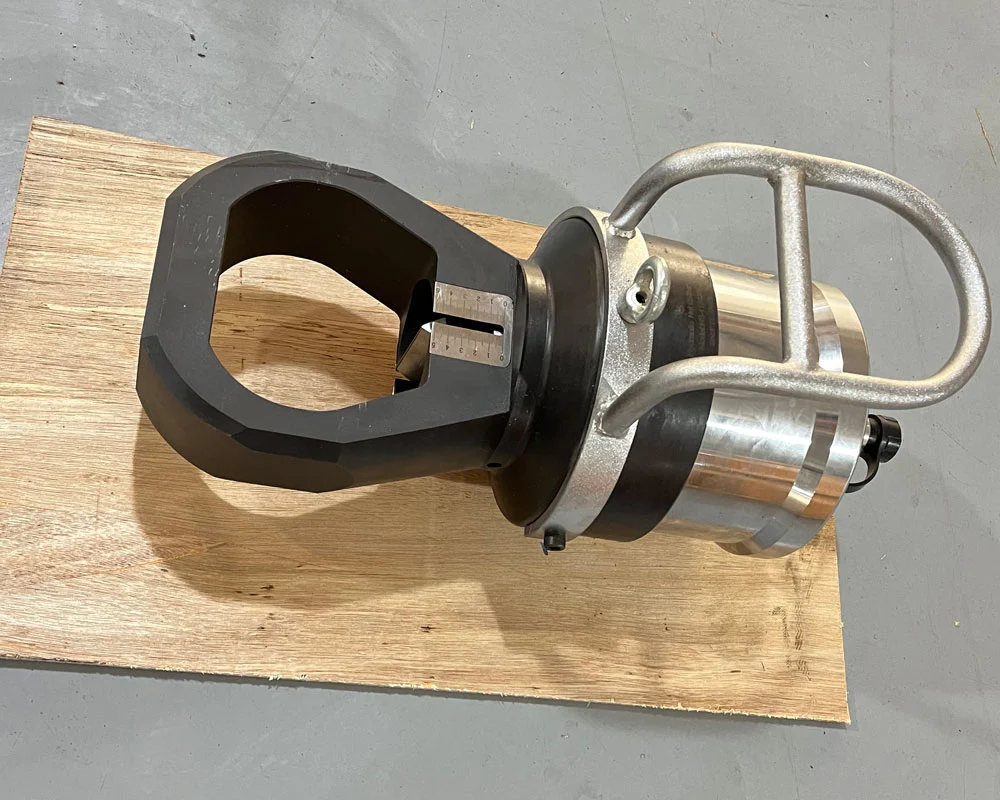

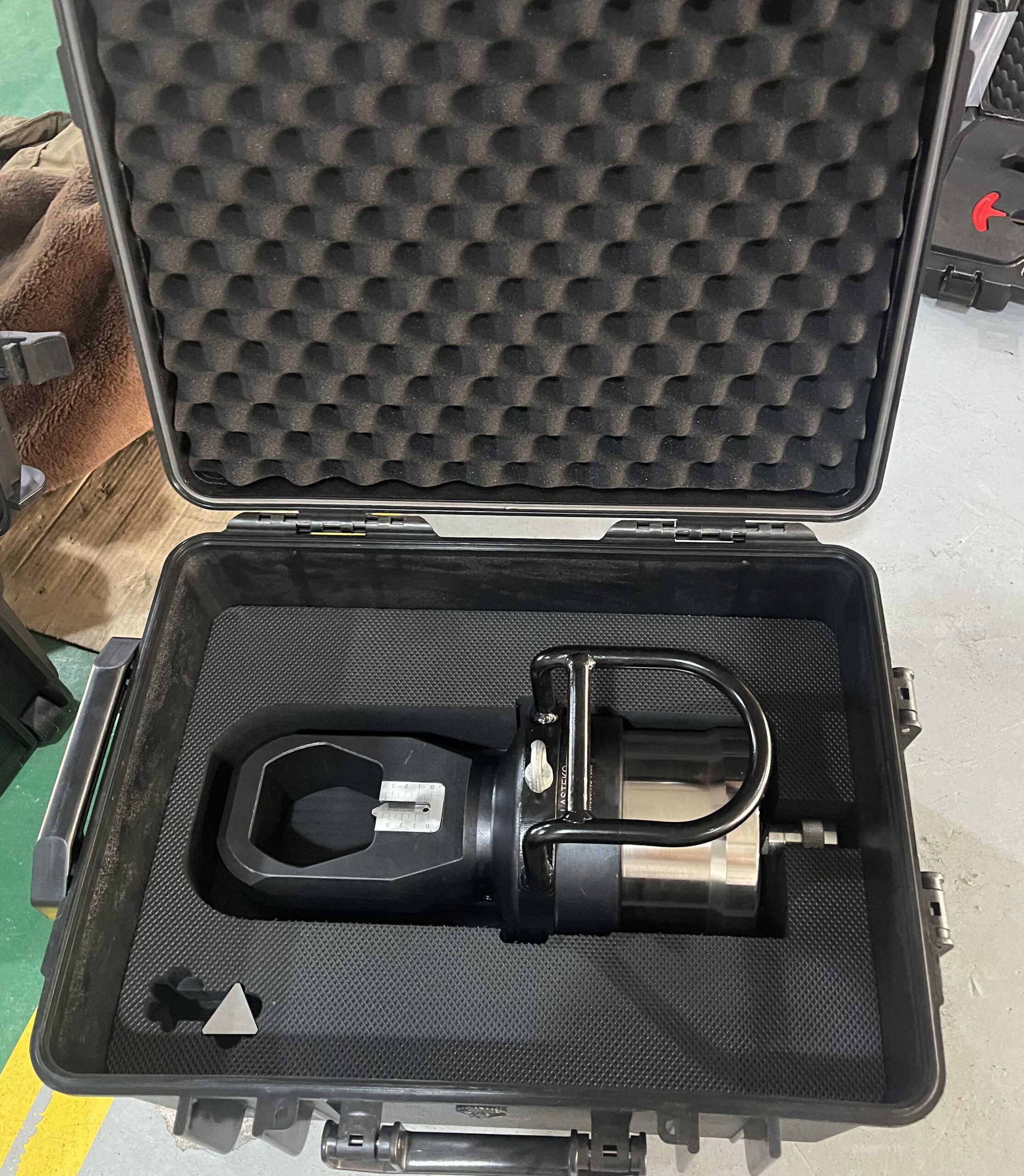

Product Lines: Hydraulic Nut Splitters
- Specially designed to suit ANSI B16.5/BS1560 Standard flanges
- Single-acting spring return
- Tri-blade design provides three cutting surfaces on a single blade
- Interchangeable heads design provides Max nut range flexibility
- The preset scale allows controlled blade extension, which avoids damage to bolt threads
- Grip tape and handle included for more secure maneuverability
- Nickel-plated cylinder body for excellent corrosion protection and improved durability in harsh environments
- Internal pressure relief valve for overload protection
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Specifications
Oil Capacity: | 260-819cm3 |
Capacity Class: | 35-193Ton |
Hexagon Nut: | 30-130mm |
Bolt Range: | M20-M90 |
Maximum Operating Pressure : | 700Bar |
Weight: | 37-71.5Kg |
Series Comparison
Model | Capacity/Ton | Bolt Range | Hexagon Nut/mm | Weight/Kg |
---|---|---|---|---|
NS-3041 | 35 | M20-M27 | 30-41 | 6.7 |
NS-3050 | 35 | M20-M30 | 30-50 | 6.9 |
NS-4660 | 65 | M30-M39 | 46-60 | 16 |
NS-4670 | 65 | M30-M45 | 46-70 | 16 |
NS-7080 | 103 | M45-M52 | 70-80 | 42 |
NS-7085 | 103 | M45-M56 | 70-85 | 43 |
NS-7095 | 103 | M45-M64 | 70-95 | 44 |
NS-70105 | 103 | M45-M72 | 70-105 | 45 |
NS-110115 | 193 | M76-M80 | 110-115 | 70 |
NS-110130 | 193 | M76-M90 | 110-130 | 82 |
