RAC-Series,Single-Acting Aluminum Hydraulic Cylinder
RAC-Series Aluminum Hydraulic Cylinders are lighter than steel equivalents for improved portability. These single-acting cylinders feature a high-strength return spring for rapid cylinder retraction.
Product Description
Series: RAC Series
Product Lines: Aluminum Hydraulic Cylinders
- Light weight，aluminium design for maximum portability
- Single-acting, spring return.
- Hard coat finish on all surfaces resists damage and
- extends cylinder Life.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

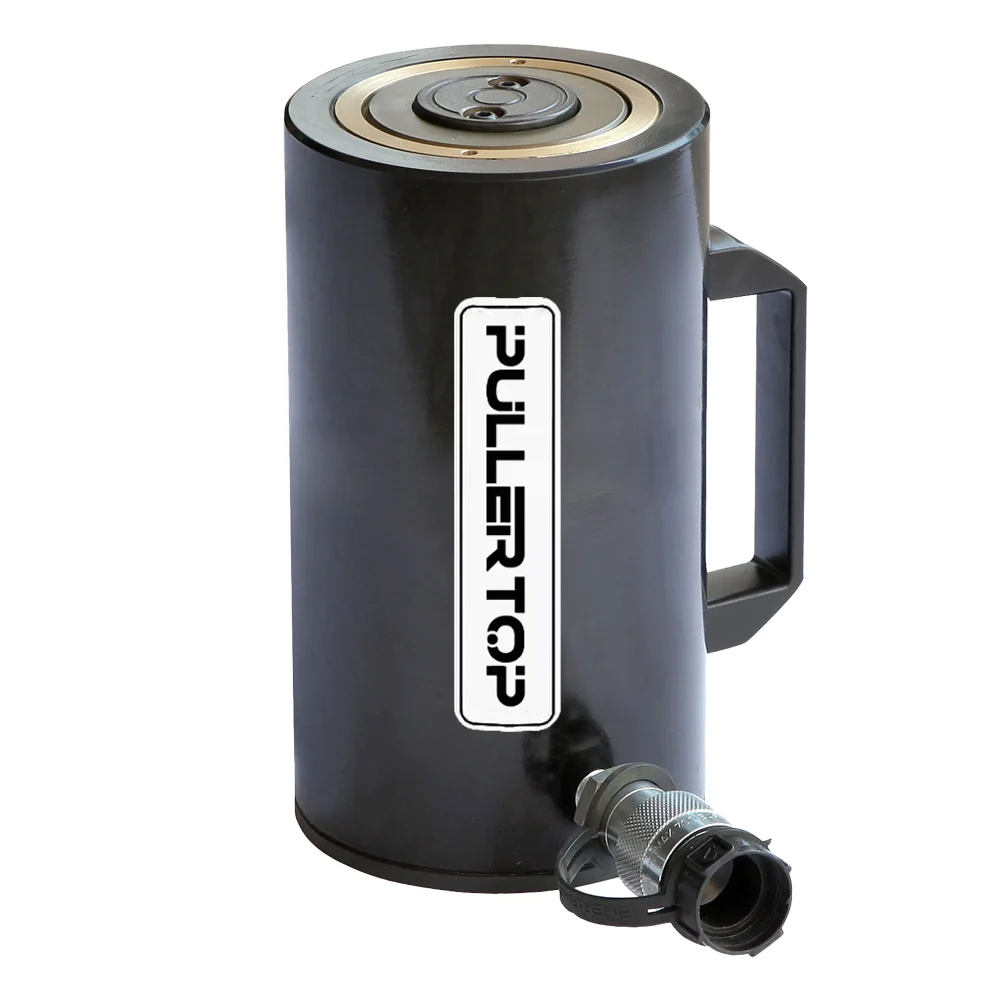

Product Picture
Series Specifications
| Capacity: | 20-150 Ton |
| Stroke: | 50-150mm |
| Collapsed Height: | 174-443mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 3.6-41.3Kg |
Series Comparison
| Model No. | Capacity（T） | Lifting.H（mm） | Min.H（mm） | Cylinder Dia.(mm) | Oil Capacity（cm³） | Piston Dia.（mm） | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| RAC-202 | 20 | 50 | 174 | 85 | 156 | 50 | 3.6 |
| RAC-204 | 100 | 224 | 312 | 4.1 | |||
| RAC-206 | 150 | 274 | 468 | 4.6 | |||
| RAC-208 | 200 | 324 | 624 | 5.1 | |||
| RAC-2010 | 250 | 374 | 780 | 5.6 | |||
| RAC-302 | 30 | 50 | 181 | 100 | 221 | 60 | 4.5 |
| RAC-304 | 100 | 231 | 442 | 5.2 | |||
| RAC-306 | 150 | 281 | 663 | 5.9 | |||
| RAC-308 | 200 | 331 | 884 | 6.6 | |||
| RAC-3010 | 250 | 381 | 1105 | 7.3 | |||
| RAC-502 | 50 | 50 | 186 | 130 | 354 | 80 | 8.5 |
| RAC-504 | 100 | 236 | 709 | 9.8 | |||
| RAC-506 | 150 | 286 | 1063 | 11.1 | |||
| RAC-508 | 200 | 336 | 1417 | 12.4 | |||
| RAC-5010 | 250 | 386 | 1771 | 13.7 | |||
| RAC-1002 | 100 | 50 | 221 | 180 | 715 | 110 | 17.3 |
| RAC-1004 | 100 | 271 | 1431 | 19.6 | |||
| RAC-1006 | 150 | 321 | 2147 | 21.9 | |||
| RAC-1008 | 200 | 371 | 2863 | 24.2 | |||
| RAC-10010 | 250 | 421 | 3578 | 26.5 | |||
| RAC-1502 | 150 | 50 | 243 | 230 | 1135 | 140 | 25.3 |
| RAC-1504 | 100 | 293 | 2270 | 29.3 | |||
| RAC-1506 | 150 | 343 | 3405 | 33.3 | |||
| RAC-1508 | 200 | 393 | 4540 | 37.3 | |||
| RAC-15010 | 250 | 443 | 5675 | 41.3 |
