RACH Series, Single Acting Aluminum Hollow PLunger Hydraulic Cylinders

Pullertop RACH series aluminum hydraulic cylinders feature a hollow plunger design, which provides both push and pull forces for applications such as tensioning, load testing, bush extracting, and maintenance.

PRICE ON REQUEST
Download Catalog
Upload File

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: RACH Series

Product Lines: Aluminum Hydraulic Cylinders

  • Lightweight aluminum design for maximum portability.

  • Single-acting, spring return.

  • Hollow plunger design for both pulls and push forces.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

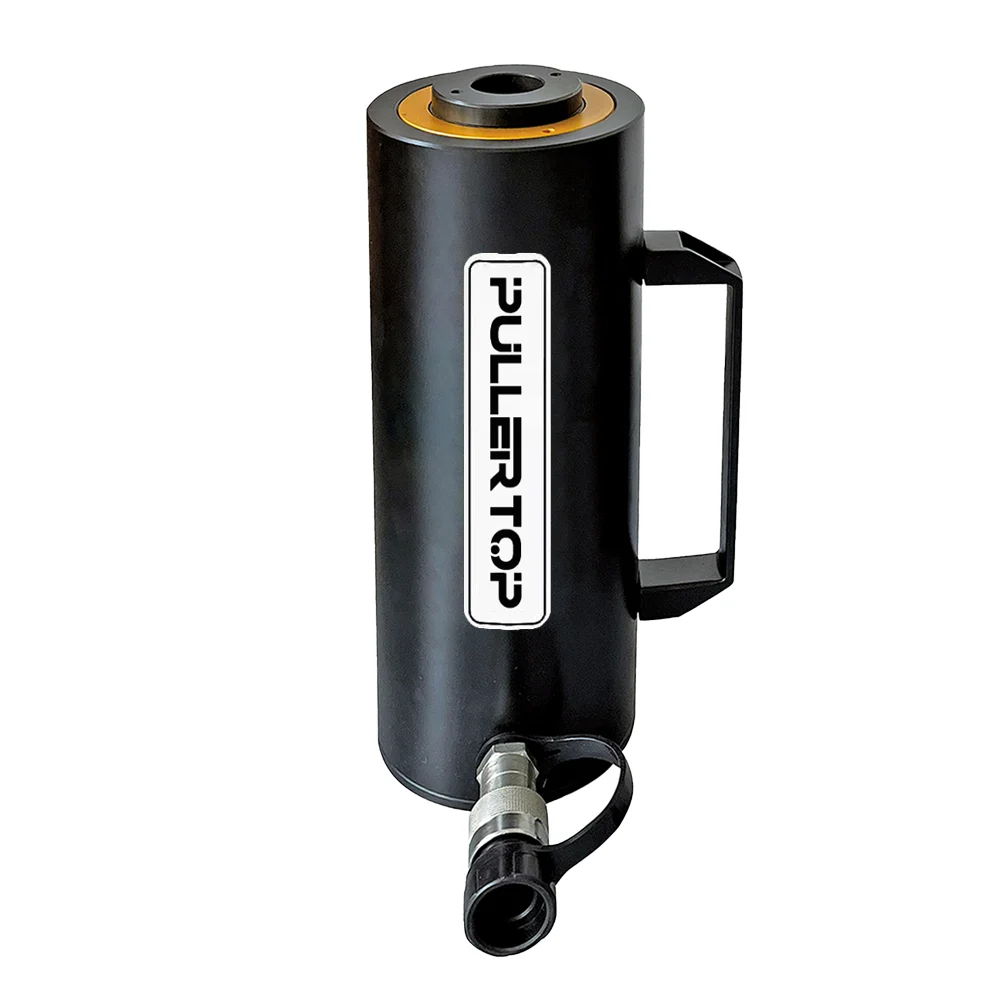

Product Picture

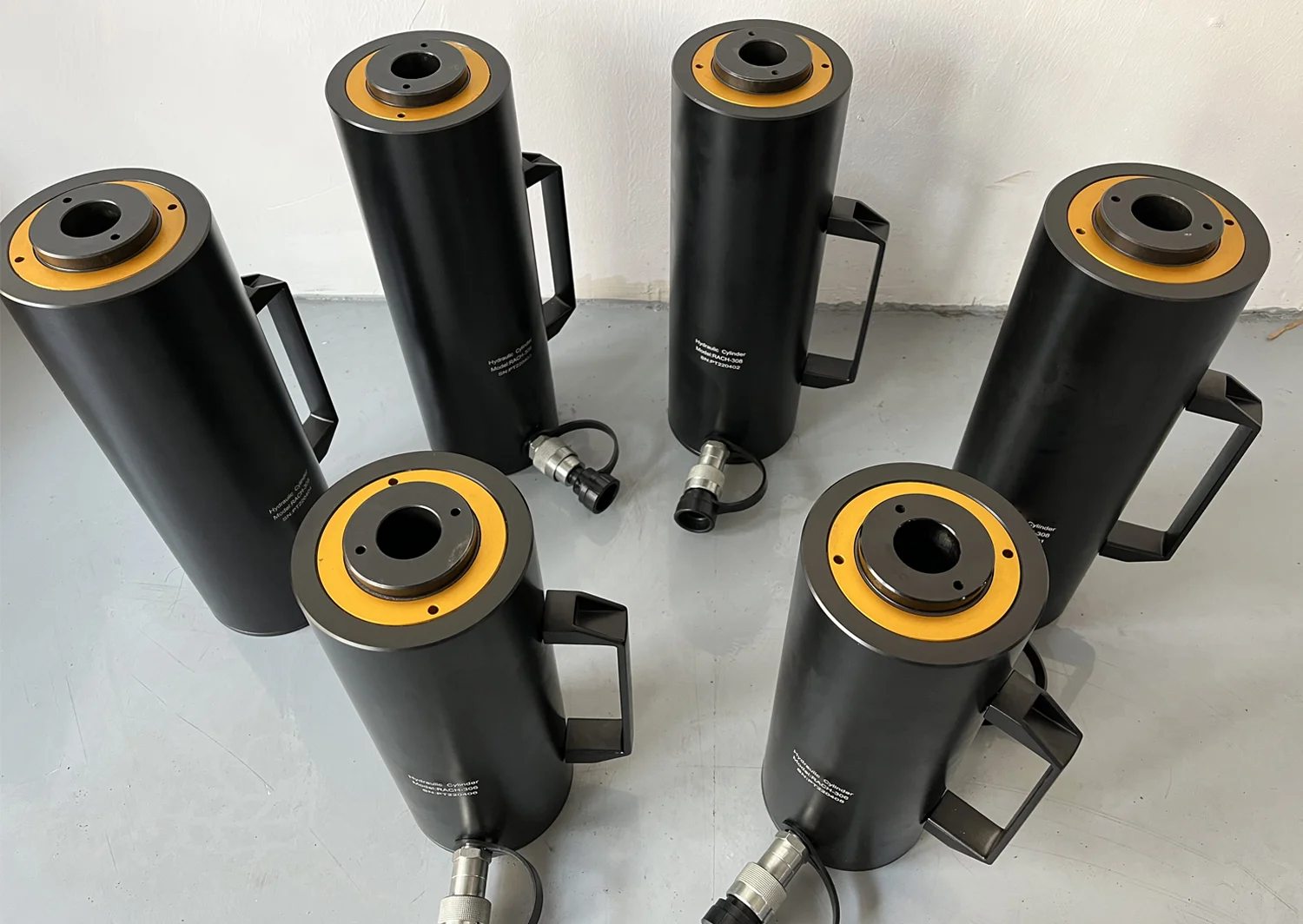

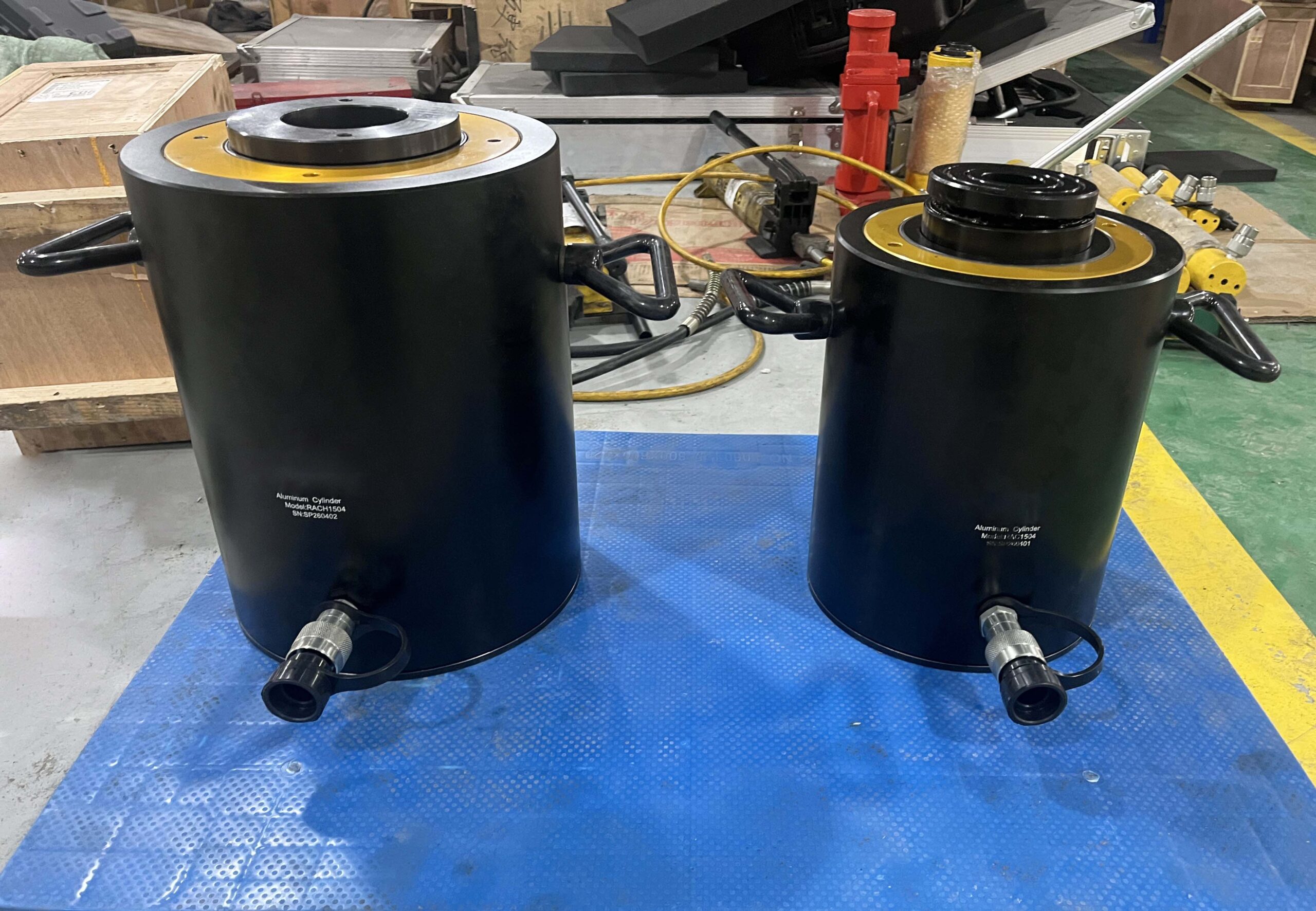

Gallery ImageGallery Image

Series Specifications

Capacity: 20-150 Ton
Stroke: 50-250mm
Collapsed Height: 188-570mm
Maximum Operating Pressure : 70Mpa
Weight: 5.2-77.2Kg

Series Comparison

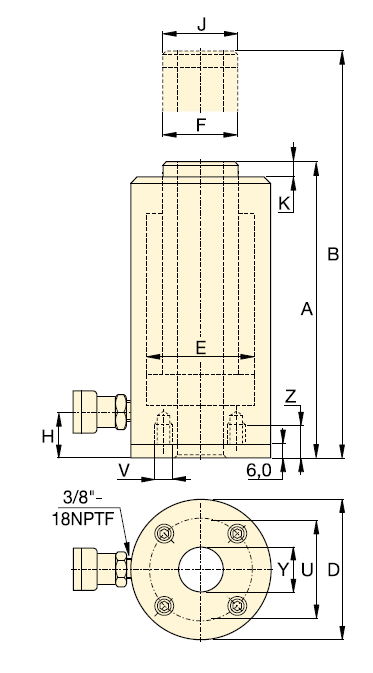

Model Number Capacity/Ton Stroke/mm Cylinder Effective Area/cm2 Oil Capacity/cm3 Collapsed Height/mm(A) Extended Height/mm(B) Outside Dia/mm(D) Cylinder Bore Dia/mm(E) Plunger Dia/mm(F) Base To Advance Port/mm(H) Saddle Dia/mm(J) Saddle Protri. From Plgr./mm(K) Center Hole Dia/mm(Y) Base Mounting Holes Bolt Circle/mm(U) Base Mounting Holes Thread(V) Base Mounting Holes Thread Depth/mm(Z) Weight/Kg
RACH-202 20 50 32.7 164 188 238 100 75 55 29 55 10 27 70 M6 12 5.2
RACH-204 20 100 32,7 327 251 351 100 75 55 29 55 10 27 70 M6 12 6.1
RACH-206 20 150 32.7 491 315 465 100 75 55 29 55 10 27 70 M6 12 7.1
RACH-208 20 200 32.7 654 378 578 100 75 55 29 55 10 27 70 M6 12 8
RACH-2010 20 250 32.7 818 442 692 100 75 55 29 55 10 27 70 M6 12 9
RACH-302 30 50 51.1 256 208 258 130 95 70 29 70 10 34 110 M6 12 8
RACH-304 30 100 51.1 511 267 367 130 95 70 29 70 10 34 110 M6 12 9.5
RACH-306 30 150 51.1 766 333 483 130 95 70 29 70 10 34 110 M6 12 11.2
RACH-308 30 200 51.1 1022 395 595 130 95 70 29 70 10 34 110 M6 12 12.9
RACH-3010 30 250 51.1 1277 458 708 130 95 70 29 70 10 34 110 M6 12 14.5
RACH-602 60 50 84.7 423 251 301 180 130 100 61 100 12 54 160 M6 12 16.2
RACH-604 60 100 84.7 847 315 415 180 130 100 61 100 12 54 160 M6 12 19.5
RACH-606 60 150 84.7 1270 380 530 180 130 100 61 100 12 54 160 M6 12 25.6
RACH-608 60 200 84.7 1694 445 645 180 130 100 61 100 12 54 160 M6 12 26
RACH-6010 60 250 84.7 2117 510 760 180 130 100 61 100 12 54 160 M6 12 29.6
RACH-1002 100 50 164.6 823 258 308 250 185 145 61 145 14 79 220 M10 12 33.8
RACH-1004 100 100 164.6 1646 325 425 250 185 145 61 145 14 79 220 M10 12 39.8
RACH-1006 100 150 164.6 2487 391 541 250 185 145 61 145 14 79 220 M10 12 46.2
RACH-1008 100 200 164.6 3291 459 659 250 185 145 61 145 14 79 220 M10 12 52.2
RACH-10010 100 250 164.6 4114 527 777 250 185 145 61 145 14 79 220 M10 12 58.8
RACH-1502 150 50 225.8 1129 280 330 275 205 150 61 145 14 79 245 M10 12 48.9
RACH-1504 150 100 225.8 2258 360 460 275 205 150 61 145 14 79 245 M10 12 55.7
RACH-1506 150 150 225.8 3387 430 580 275 205 150 61 145 14 79 245 M10 12 63
RACH-1508 150 200 225.8 4517 500 700 275 205 150 61 145 14 79 245 M10 12 70.1
RACH-15010 150 250 225.8 5646 570 820 275 205 150 61 145 14 79 245 M10 12 77.2
