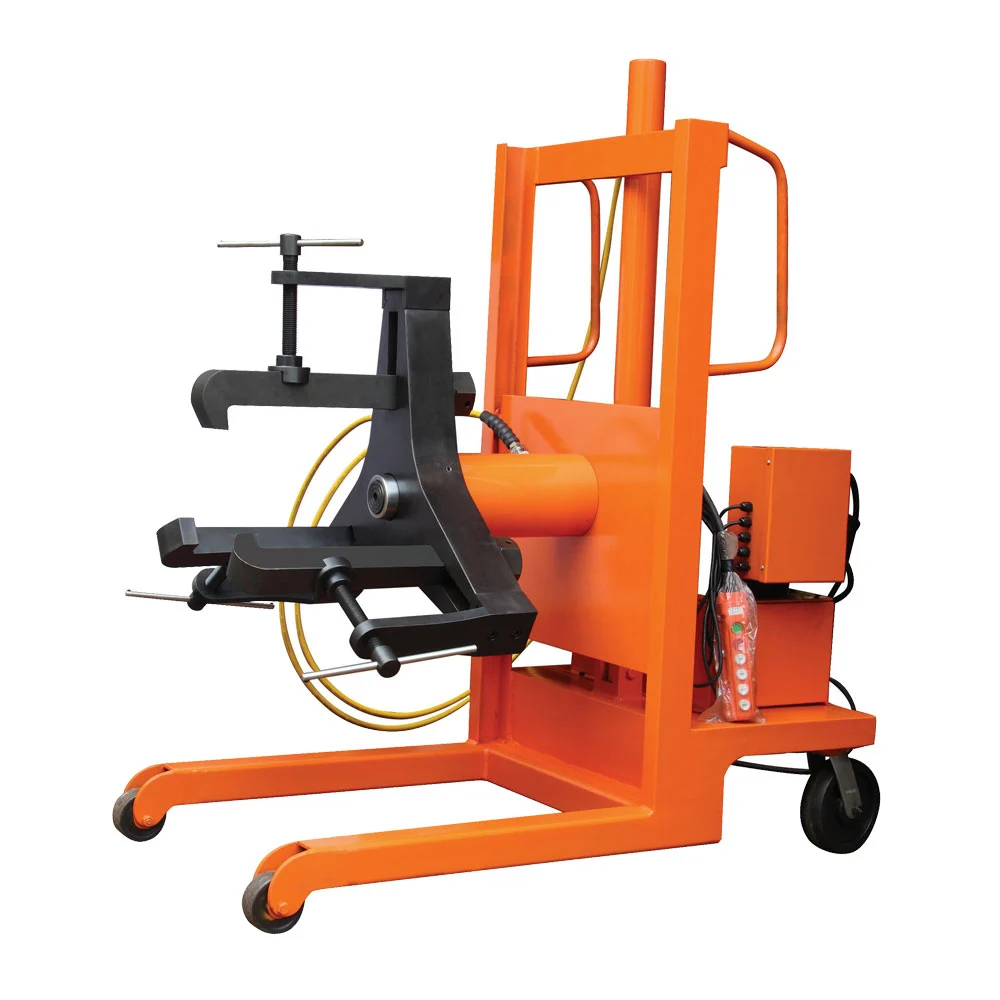

50-500 Ton Trolley Mounted Hydraulic Gear Puller

Pullertop manufactures and supplies a broad range of trolley-mounted hydraulic pullers. Our universal pullers are available in different sizes, designs, and capacities.Pullertop hydraulic pullers are made of high-strength forged steel alloys, and provide our customers with years of trouble-free operation, even in the harshest environments.

Download Catalog
Upload File

Product Description

Product Lines: Trolley Mounted Hydraulic Puller

  • Double-acting hydraulic design.
  • Use for dismounting large shafts and bearings.
  • Available in 2 and 3-jaw designs.
  • It is equipped with a hydraulic lifting and lowering system for easy operation.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model Capacity/Ton Max Reach(mm) Spread(mm) Stroke(mm) Weight(Kg)
13MP50 50 300 200-350 160 450
13MP100 100 340 230-450 160 540
13MP200 200 380 285-500 160 820
13MP300 300 450 350-550 200 953
13MP500 500 480 400-600 200 1800
