Product Description

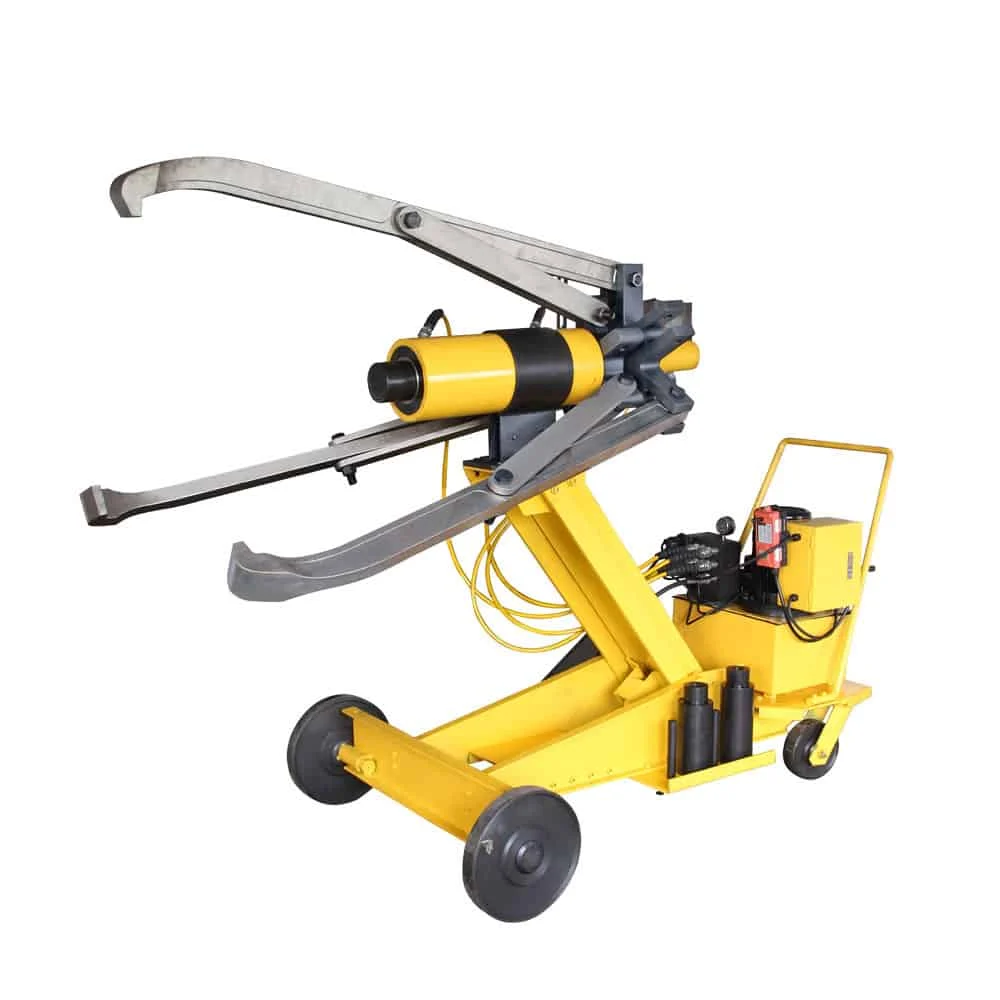

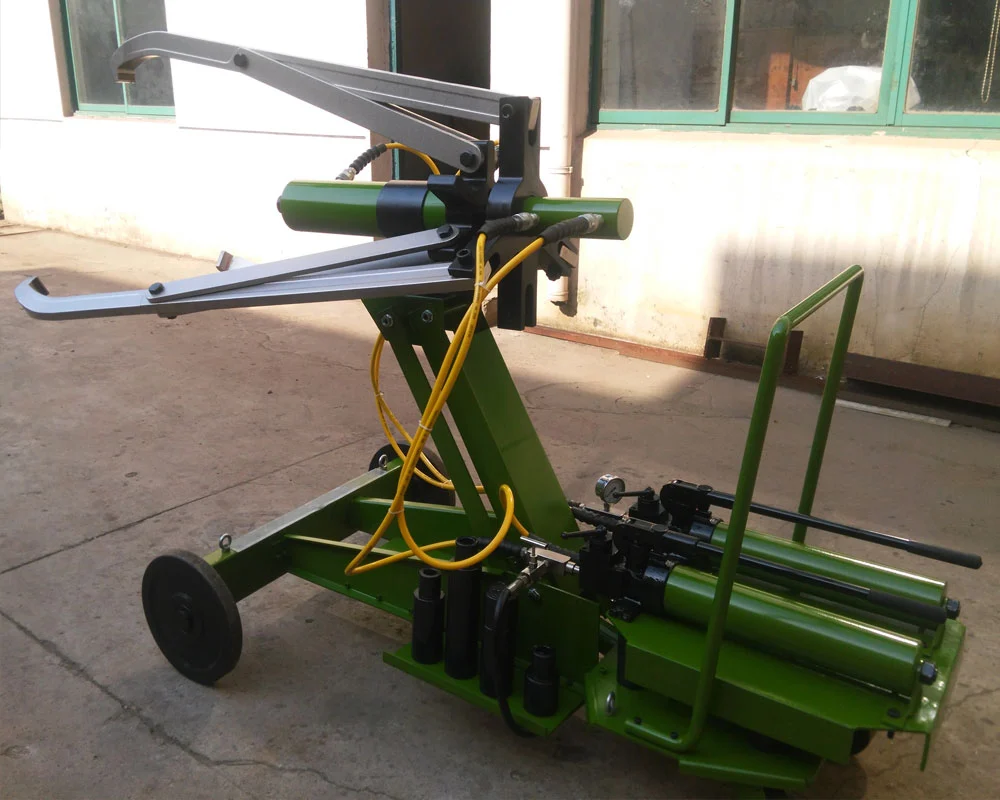

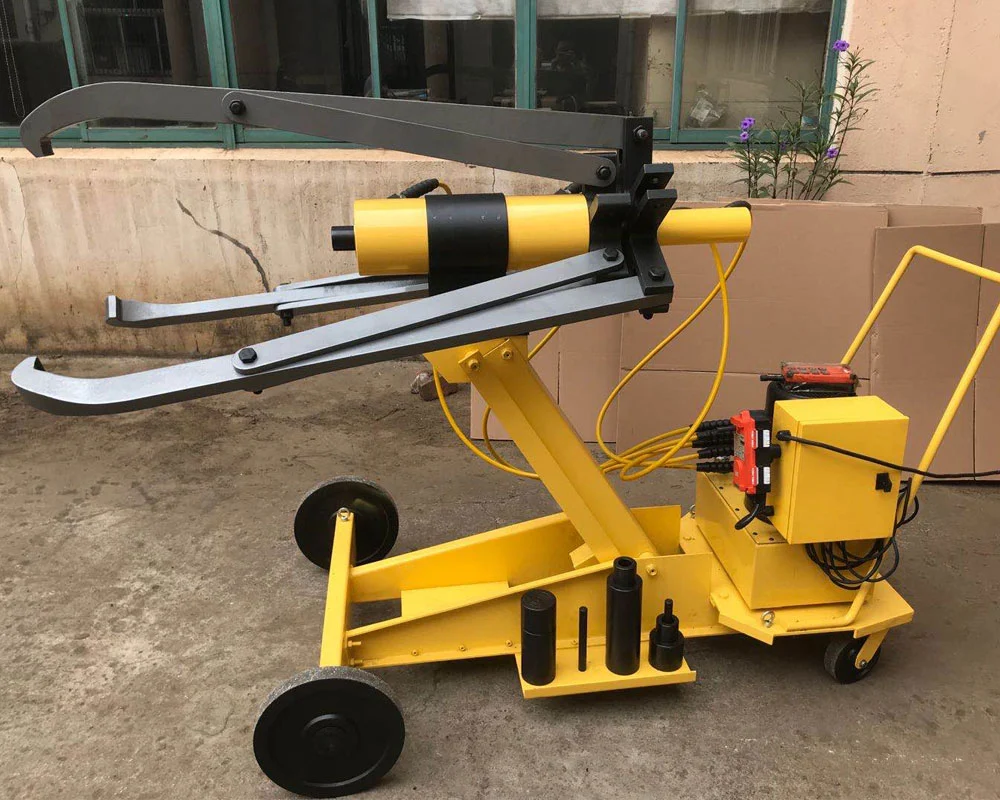

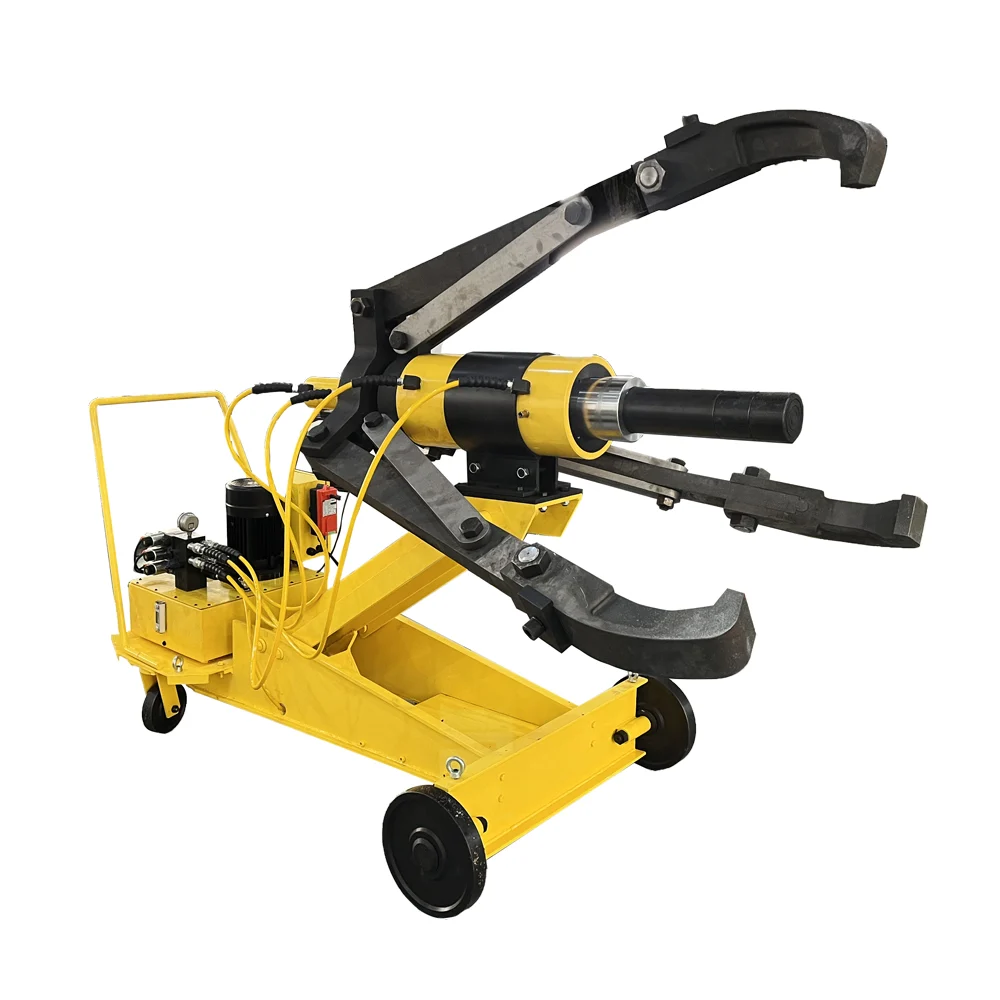

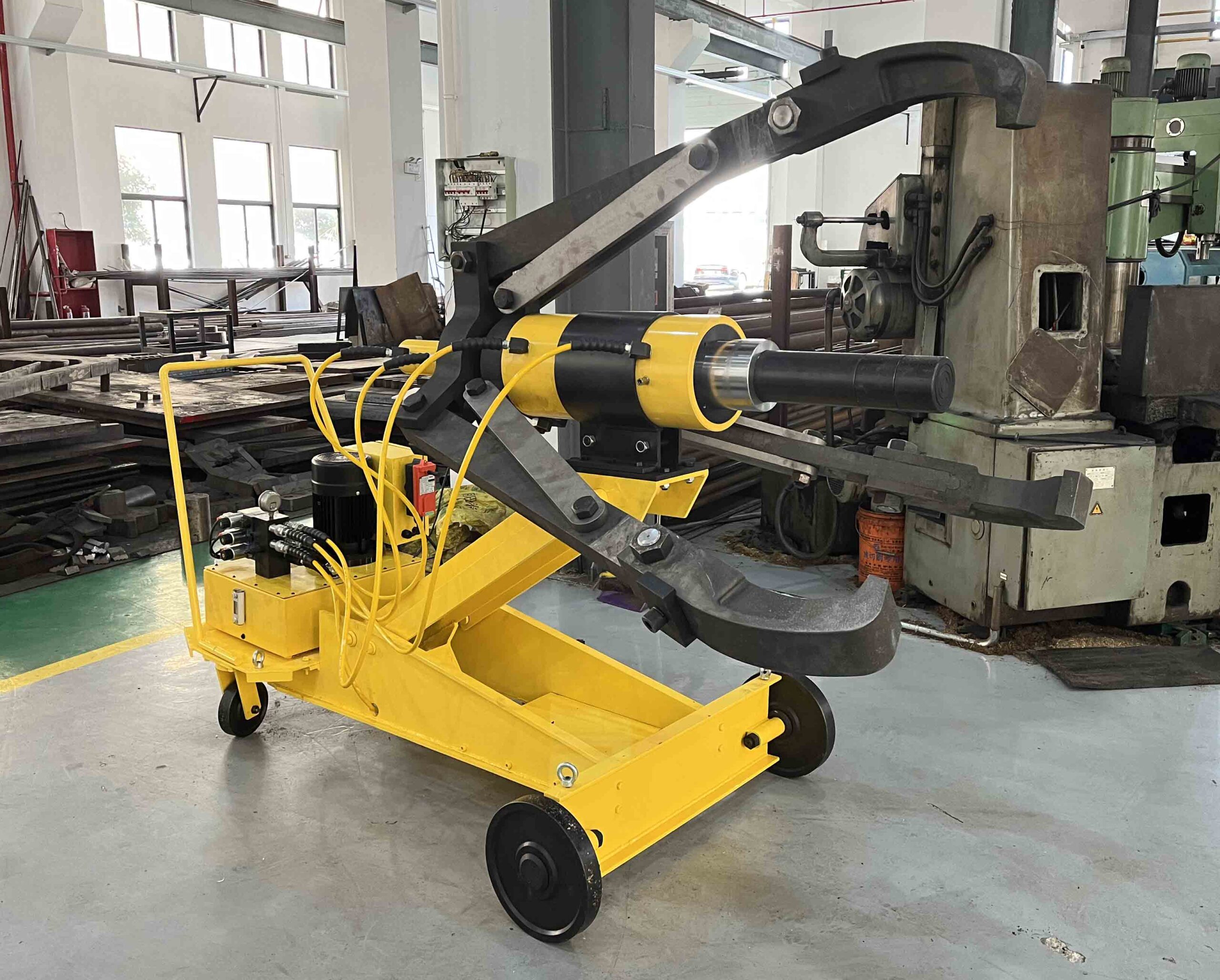

Product Lines: Trolley Mounted Hydraulic Puller
- Double-acting hydraulic design
- Use for dismounting large shafts and perforating workpieces
- Fully automatic hydraulic up and down, pull and grip
- Easy operation, high efficiency
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
| Model | Capacity(Ton) | Min. Spread(mm) | Max. Spread(mm) | Min. Reach(mm) | Max. Reach(mm) | Center Height Adjustment(mm) | Stroke(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| LA50337 | 50 | 100 | 1220 | 178 | 380 | 450-1120 | 337 | 620 |
| LA50L337 | 50 | 64 | 1150 | 559 | 650 | 450-1120 | 337 | 660 |
| LA100330 | 100 | 120 | 1400 | 425 | 580 | 500-1250 | 320 | 680 |
| LA200320 | 200 | 285 | 1500 | 520 | 680 | 720-1500 | 320 | 1040 |
| LA300320 | 300 | 300 | 1800 | 550 | 700 | 800-1600 | 320 | 1500 |
