Product Description
Product Lines: BRP-Series

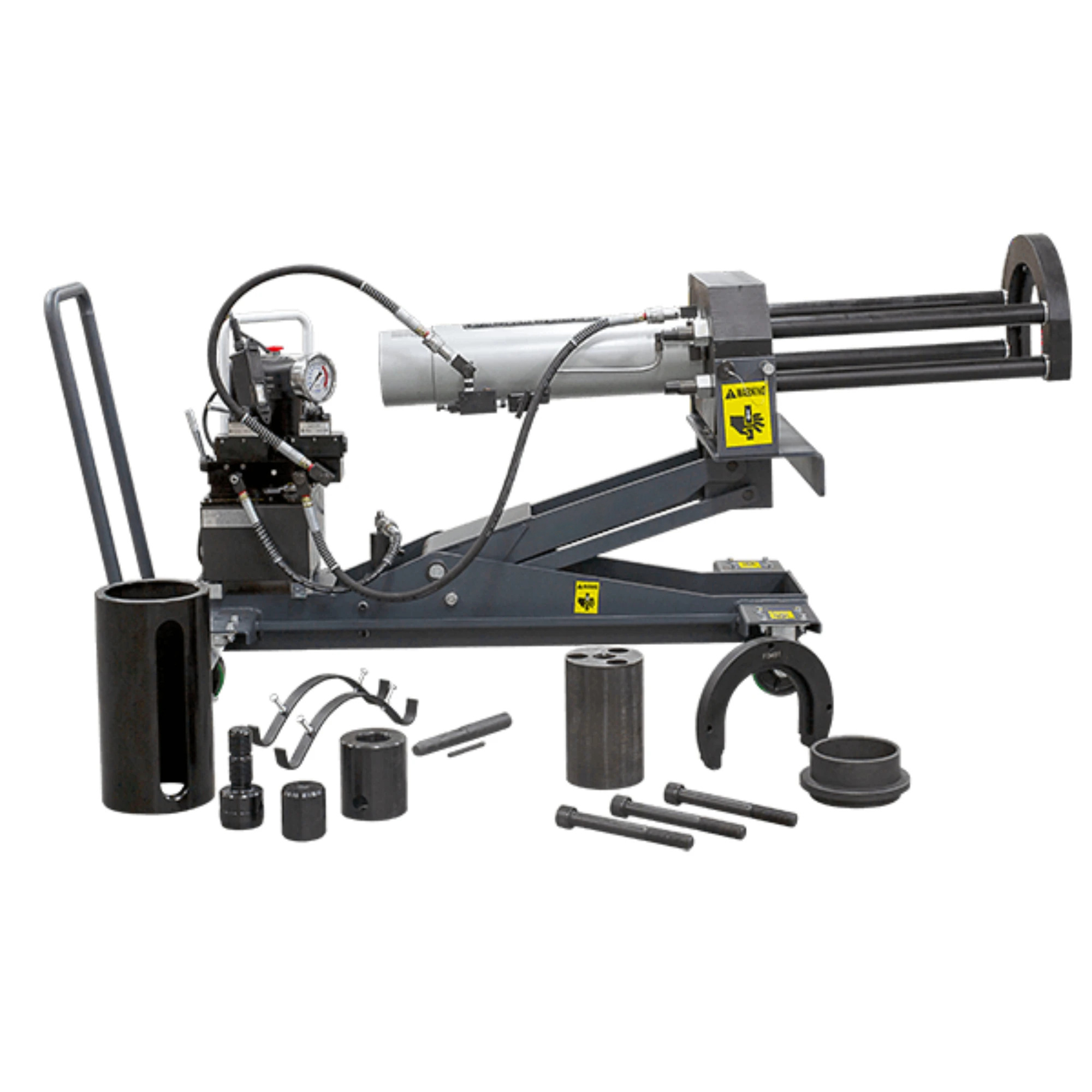

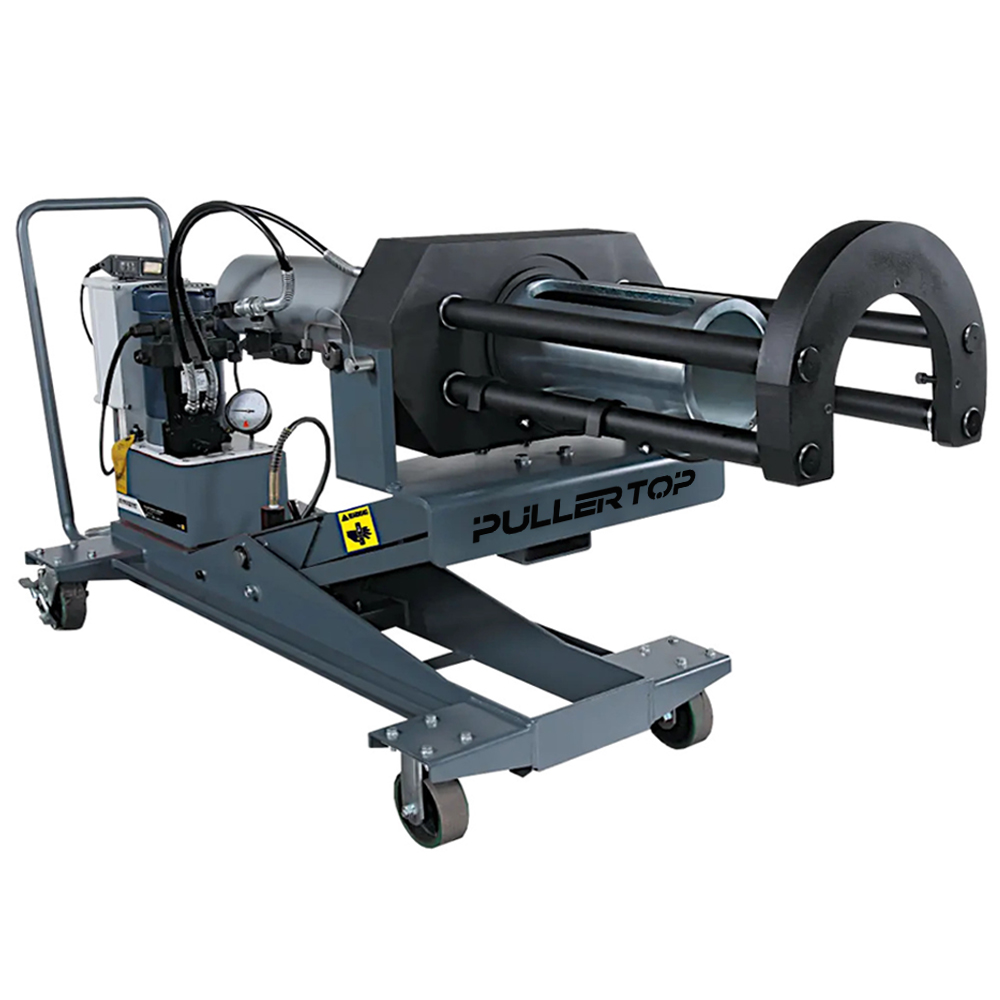

- Designed for quick removal or installation of axle journal
tapered roller bearings. - Specially designed for the major bearing manufacturers.
- Simple, efficient, easy to use and reliable operation provided
with 100 Ton pulling force and 68 Ton pushing force. - Portable design for easy, convenient positioning and saving
storage space. - Cart with swivel castors provide easy mobility.
- Basic equipment used in most rolling stock maintenance in
railway shops. - Additionally, the side-pull BRSP series is available to suit narrow working spaces.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

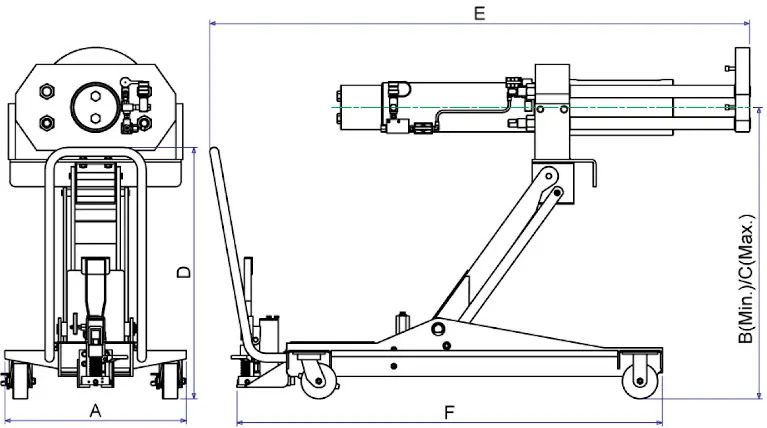

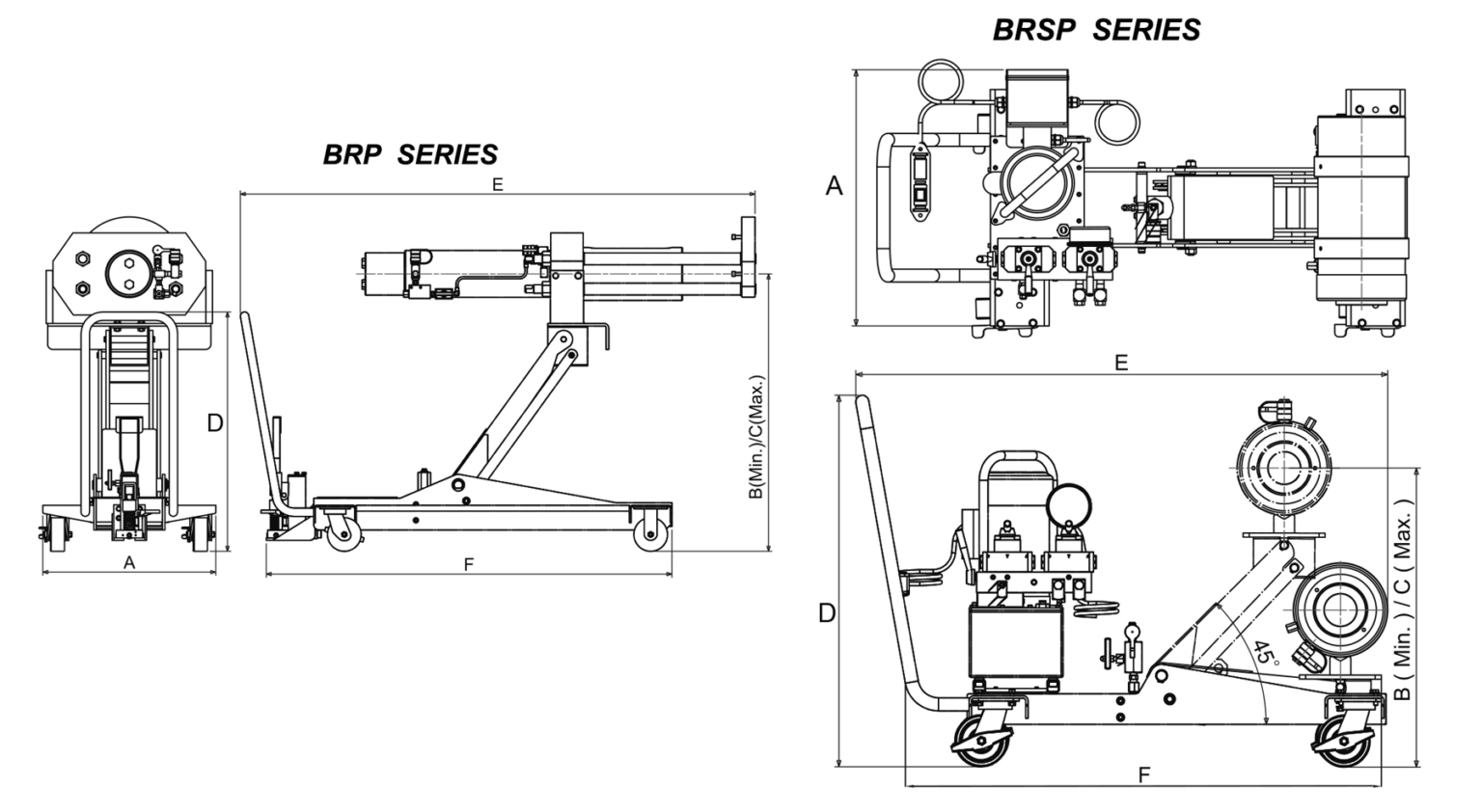

Dimension
Series Comparison
| Model No. | Pull /Push Capacity（T） | Stroke（mm） | A（mm） | B(Min)-C(Max) （mm） | D（mm） | E（mm） | Power Source | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| BRP-100E | 100/68 | 392 | 652 | 382-1050 | 900 | 1920-2210 | 1.5kw 380v 50Hz | 560 |
| BRSP-100E | 100/68 | 254 | 652 | 384-731 | 900 | 1300 | 1.5kw 380v 50Hz | 400 |
| Bearing Accessory Kit No. | Bearing Type | Size | Pulling Shoe (PS) | PS Insert Adaptor | Guide Tube (GT) Adaptor | GT & CS Assembly | Cap Screw(CS) | Installing Tube (IT) | IT Adaptor Ring |
|---|---|---|---|---|---|---|---|---|---|
| BRP #120 | TBU & SP Metric | 120 mm | – | √ | – | √ | √ | – | √ |
| BRP #130 | TBU & SP Metric | 130 mm | – | √ | – | √ | √ | – | √ |
| BRP #140 | TBU & SP Metric | 140 mm | – | √ | – | √ | √ | – | √ |
| BRP #150 | TBU & SP Metric | 150 mm | – | √ | – | √ | √ | – | √ |
| BRP B4-1/4″ x 8″ | B Class | 4-1/4″ x 8″ | – | √ | – | √ | √ | – | √ |
| BRP C5″ x 9″ | C Class | 5″ x 9″ | – | √ | – | √ | √ | – | √ |
| BRP D5-1/2″ x 10″ | D Class | 5-1/2″ x 10″ | – | √ | – | √ | √ | – | √ |
| BRP E6″ x 11″ | E Class | 6″ x 11″ | – | √ | – | √ | √ | – | √ |
| BRP EE5-1/2″ | EE Class | 5-1/2″ | – | √ | – | √ | √ | – | √ |
| BRP EE6″ | EE Class | 6″ | – | √ | – | √ | √ | – | √ |
| BRP F6-1/2″ x 12″ | F Class | 6-1/2″ x 12″ | – | √ | – | √ | √ | – | √ |
| BRP G6-1/2″ | G Class | 6-1/2″ | √ | √ | – | √ | √ | √ | √ |
| BRP G7″ x 12″ | G Class | 7″ x 12″ | √ | √ | – | √ | √ | √ | √ |
| BRP GG6-1/2″ | GG Class | 6-1/2″ | √ | √ | – | √ | √ | √ | √ |
-Item needed for kit accessory but not supplied in kit. Item is supplied with DRP-100E as a Standard Accessory.
√Supplied with Bearing Accessory Kit.
^Class G & GG Bearing Type Kits also include Pulling Shoe & Installing Tube
