Product Description
Product Lines: LGH-Series

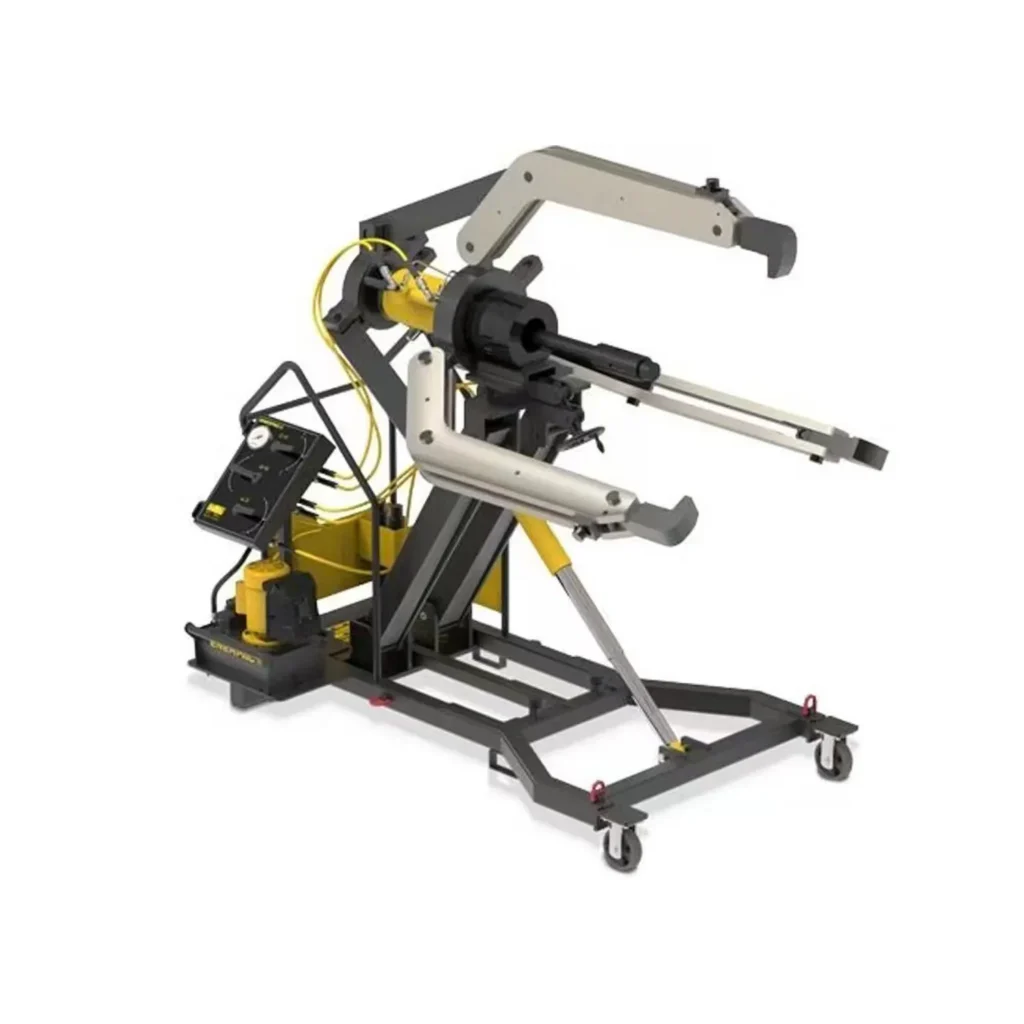

• Synchronized jaw movement allows easy alignment of all three jaws and simultaneous placement on the workpiece to be removed
• Locking jaws provide a secure grip
• Smooth-action scissor lift: Hydraulically driven lift cylinder on the cart extends the puller from centre heights between 699 – 1679 mm
• Mounts on a stable cart/trolley with a wide base. Includes pockets to provide option of using a forklift
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery

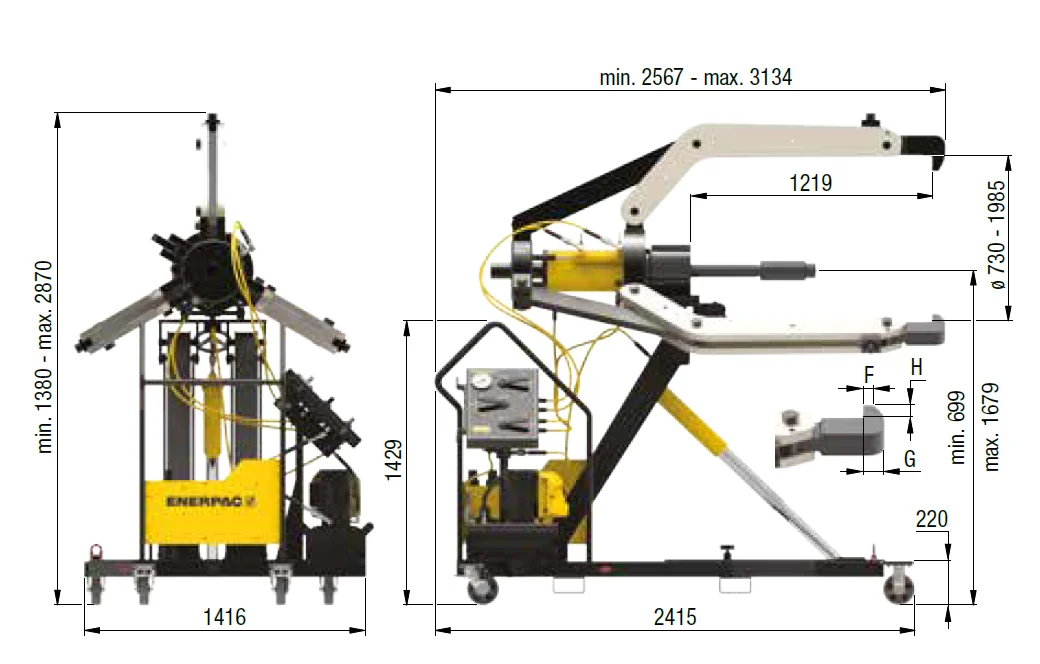

Dimension
Series Comparison
| Model No. | Capacity（T） | Stroke（mm） | Spread(mm) | Max. Reach(mm) | Regulation of Puller Center Height(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|
| LGH3100 | 95T | 257 | 730 – 1985 | 1220 | 700-1680 | 1400 |
