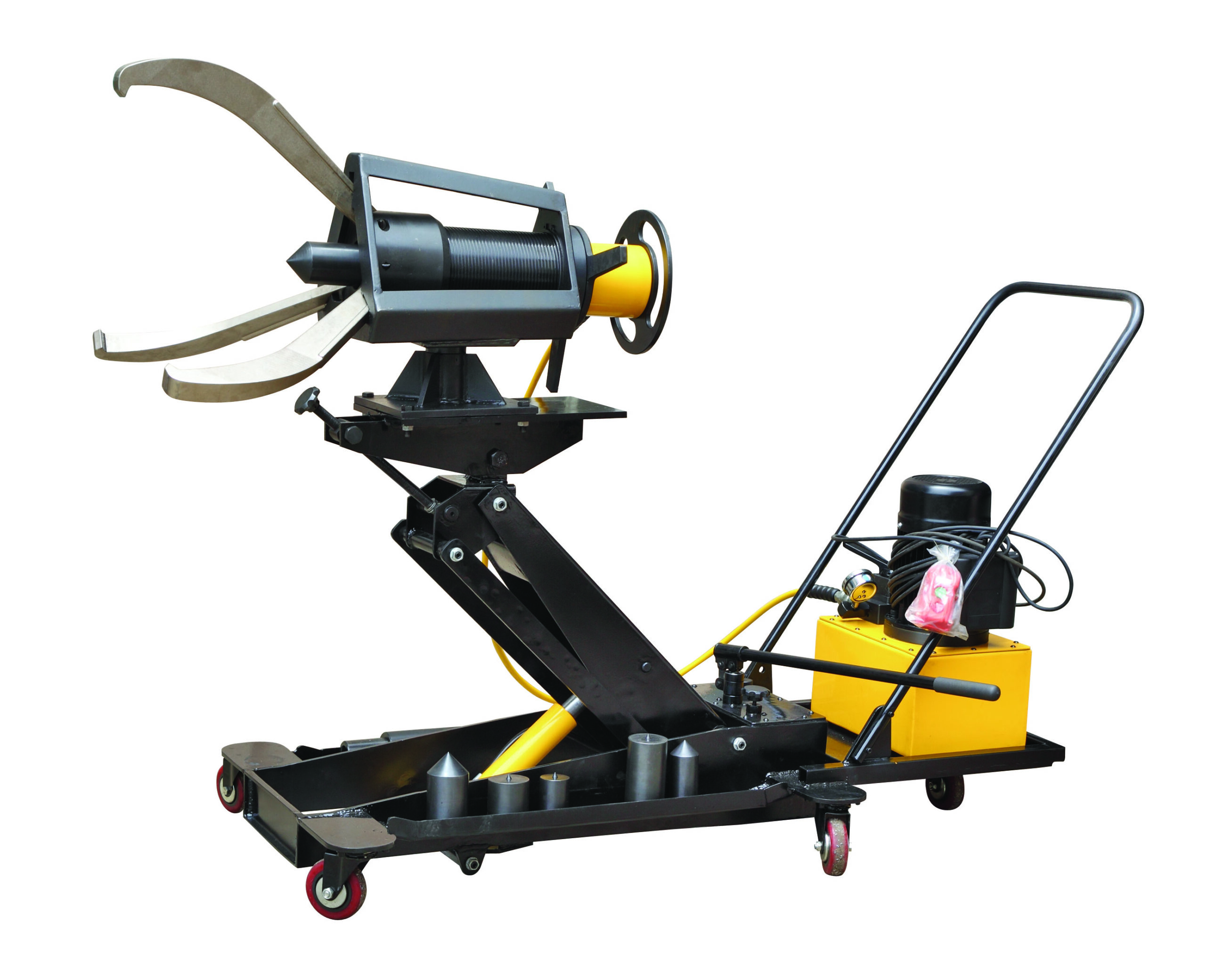

LGH3100,Movable Hydraulic Lock-Grip Puller
The LGH3100 is an ideal solution for pulling medium to large size wheels, sprockets, bearings and other similar shaft-mounted parts. The puller’s self-centering closing “Lock-Grip” system allows all jaws to move simultaneously, making it easy for the operator to mount the puller and to perform the application. LGH3100 is a 3 jaw design which can be converted into a 2 jaw puller for use when clearance is limited.
NOTE: the 2 jaw configuration has a capacity of 70 ton (622 kN).
Product Description
Product Lines: Trolley Mounted Hydraulic Puller
• Synchronous grip jaw movement for easy alignment of the three jaws while setting it on the workpiece to be removed
• Lock-on jaws offer a secure grip
• Smooth action scissor lift: hydraulically actuated lift cylinder on cart extends puller from centre height between 699 – 1679 mm
• Mounted on a stable cart/trolley with a wide base. Includes pockets to provide the option of using a forklift
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

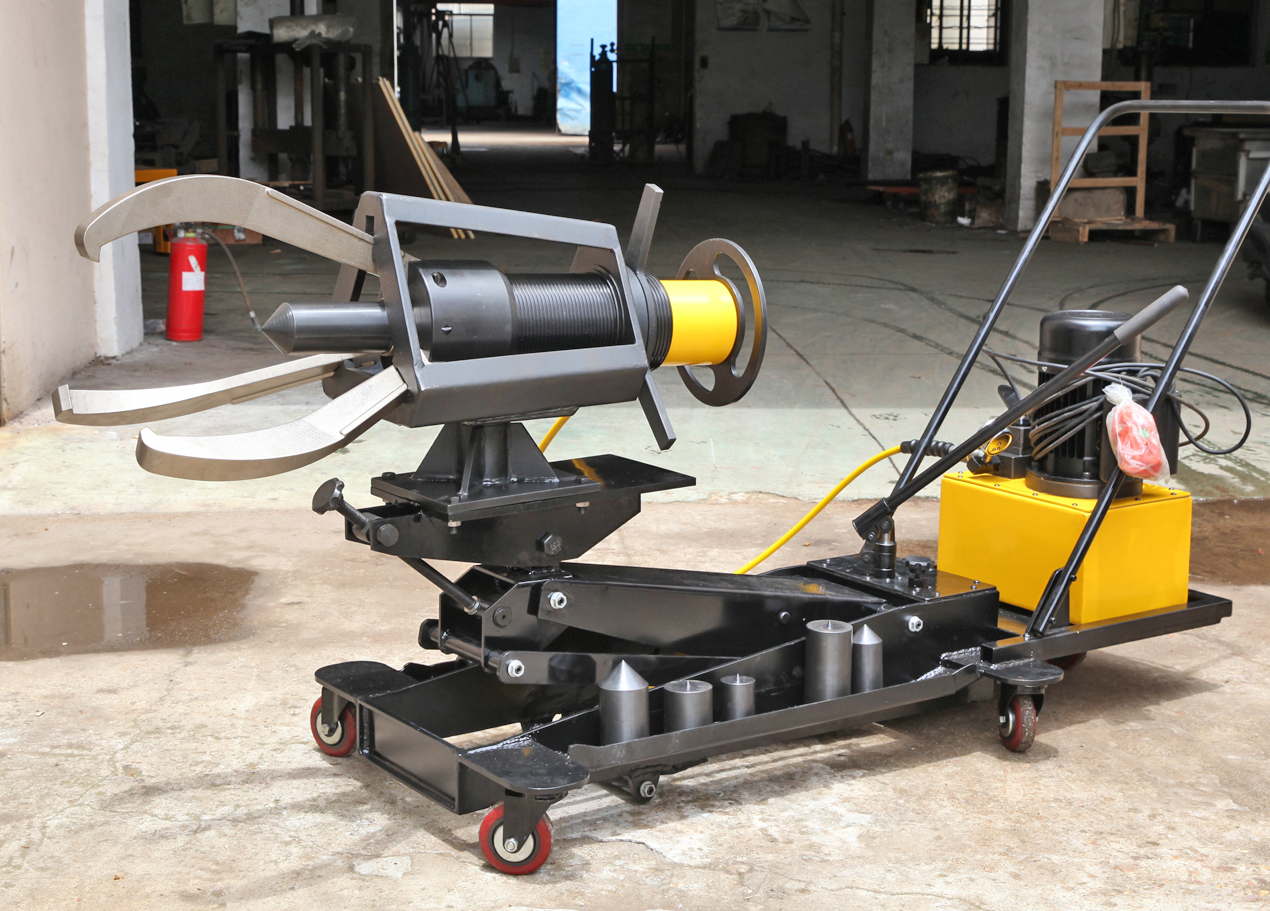

Image Gallery
Dimension
Series Comparison
Model No. | Capacity(T) | Spread(mm) | Maximum Reach(mm) | Regulation of Puller Center Height(mm) | Stroke(mm) | Weight(Kg) |
---|---|---|---|---|---|---|
LGH 3100 | 95T | 730 – 1985 | 1220 | 700-1680 | 257 | 1400 |
