AutoSPLITTER Series,Double Cutting,Double Acting Hydraulic Nut Splitter

Pullertop hydraulic nut splitters are a simple, fast, safe, and efficient tool to remove the bolt and nut. In the open-air high temperature or corrosive environment, the bolt is usually bitten by rust and damaged by smashing, It is very difficult to remove them In the past. With the help of our hydraulic bolt cutters, engineers are able to remove nuts ranging from M8 to M100 easily under different work conditions.

Upload File

Product Description

Product Lines: Hydraulic Nut Splitters

  • Double-cutting, doubleacting head cuts nut splitting time in half

  • Safe & tough

  • Fits tight spaces

  • Precision, re-sharpenable chisel cuts only the nut

  • Straight & Angle Head models also available

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

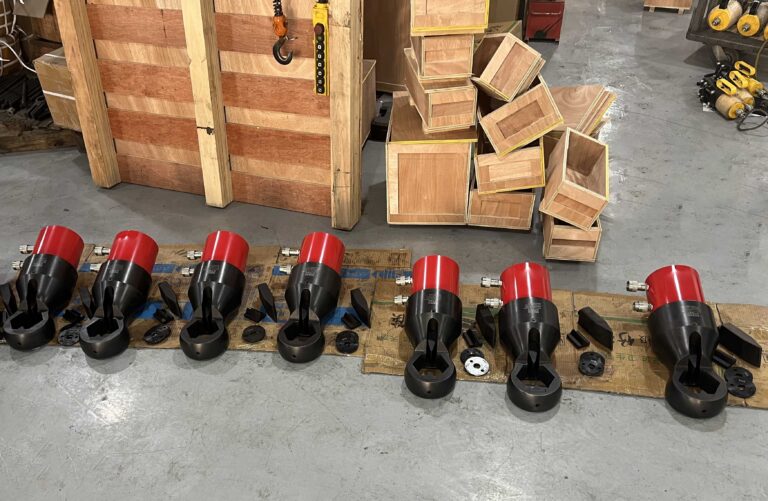

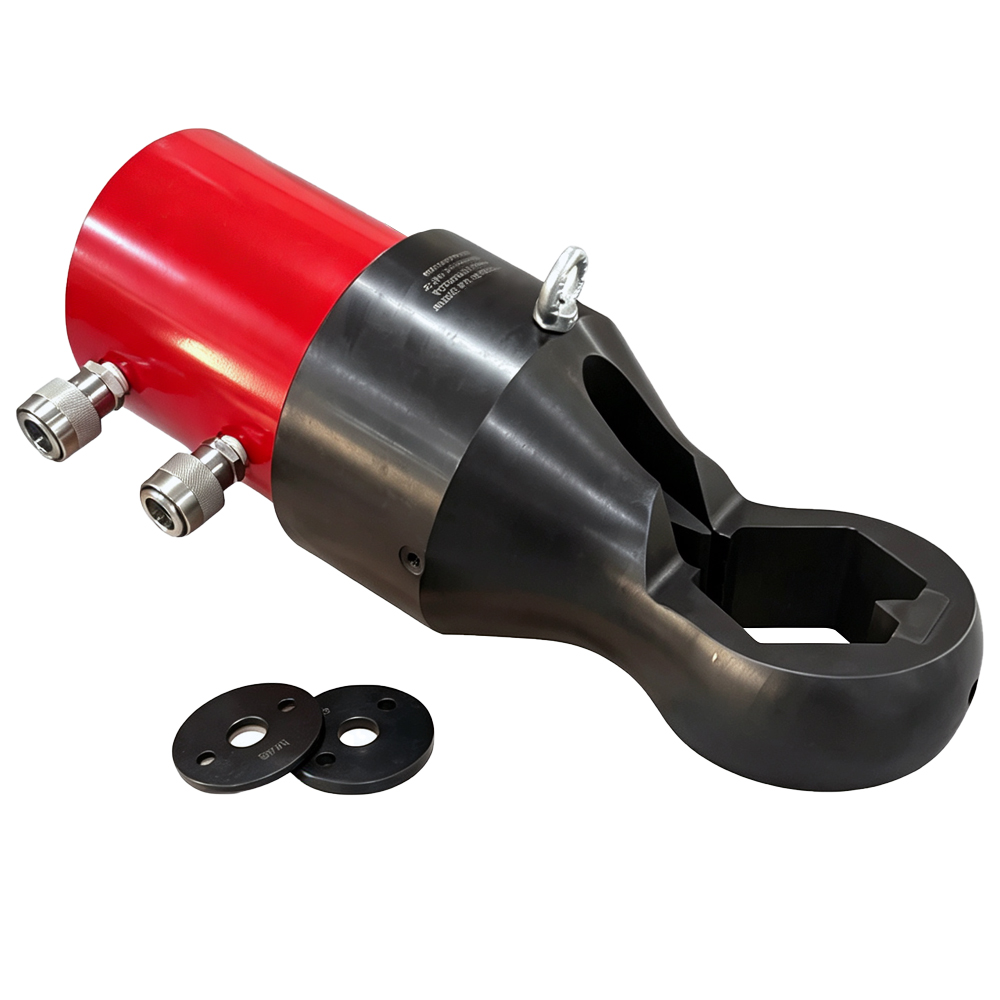

Image Gallery

Series Specifications

Hexagon Nut: 17-108mm
Bolt Range: M8-M85
Maximum Operating Pressure : 700Bar
Weight: 9-97Kg

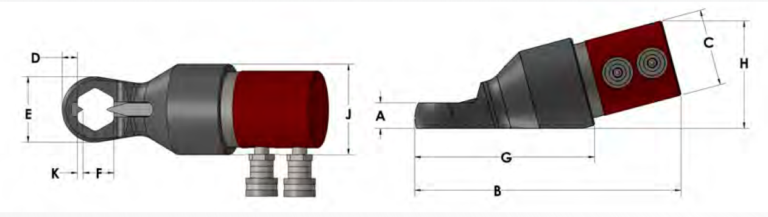

Dimension

Series Comparison

Model Bolt range inch
(metric)		 Nut Size inch
 (mm)		 A
in(mm)		 B
in (mm)		 C
in(mm)		 D
in (mm)		 E
in(mm)		 F
in(mm)		 G
in (mm)		 H
in (mm)		 J
in (mm)		 K
In (mm)		 Weight (kg)
AS105 DCDA 5/16 – 3/4
(M8-M20)		 1 1/16 – 1 1/4
 (16-36)		 1.13
(29)		 11.67
(296)		 3.38
(86)		 0.67
(17)		 2.87
(73)		 1.35
(34)		 7.90
(201)		 3.38
(86)		 3.97
(101)		 0.25
(6)		 9
AS200 DCDA 7/8 – 1 1/8
(M22-M30)		 1 7/16 – 1 11/16
(36-41)		 1.38
(35)		 12.39
(315)		 3.38
(86)		 0.94
(24)		 3.62
(92)		 2.00
(51)		 8.60
(218)		 4.72
(120)		 3.97
(101)		 0.25
(6)		 10
AS204 DCDA 1 1/4 – 1 3/8
 (M33-M36)		 1 13/16 – 2 3/16
(46-60)		 1.75
(45)		 16.4
(417)		 5.00
(127)		 1.14
(29)		 4.48
(114)		 2.32
(59)		 12.34
(313)		 6.68
(170)		 5.87
(149)		 0.37
(9)		 28
AS210 DCDA 1 3/8 – 1 1/2
(M36-M39)		 2 3/16 – 2 3/8
 (55-65)		 2.00
(51)		 16.71
(424)		 5.00
(127)		 0.97
(25)		 4.75
(121)		 2.42
(61)		 12.61
(320)		 6.75
(171)		 5.97
(152)		 0.42
(11)		 28
AS308 DCDA 1 3/4 – 2
 (M45-M52)		 2 5/8 – 3 1/8
(65-90)		 2.50
(64)		 19.88
(505)		 6.25
(159)		 1.51
(38)		 6.28
(160)		 3.14
(80)		 14.26
(362)		 8.32
(211)		 7.25
(184)		 0.63
(16)		 43
AS314 DCDA 2 – 2 1/4
 (M52-M56)		 3 – 3 5/8
(80-90)		 2.75
(70)		 20.69
(526)		 6.25
(159)		 1.75
(44)		 6.75
(171)		 3.71
(94)		 14.97
(380)		 8.32
(211)		 7.38
(187)		 0.71
(18)		 45
AS404 DCDA 2 3/4 – 3 1/4
(M72-M85)		 3 3/4 – 4 1/4
(95-110)		 3.73
(95)		 21.44
(545)		 8.50
(216)		 2.09
(53)		 7.75
(197)		 4.30
(109)		 15.74
(400)		 14.36
(365)		 9.44
(240)		 0.54
(14)		 94
