Product Description
Product Lines: Hydraulic Nut Splitters
- Cuts through the hardest of nuts – quickly & safely
- Precision, re-sharpenable chisel cuts only the nut
- PRECISE – You can easily calibrate the cutting chisel so only

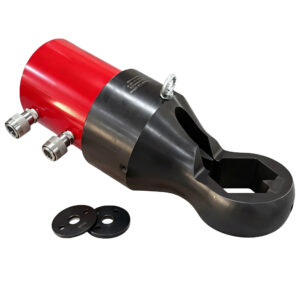

the nut is cut, with no damage to the bolt or stud threads. - Double Cutting & Angle Head &Double Acting models also available
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

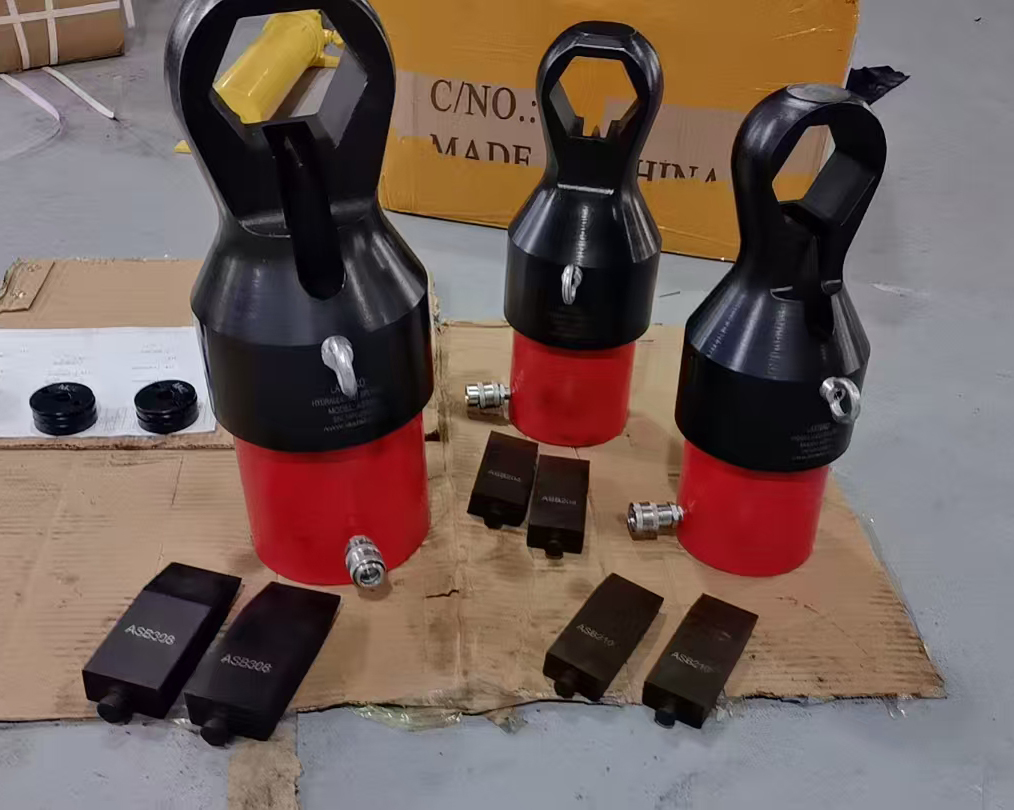

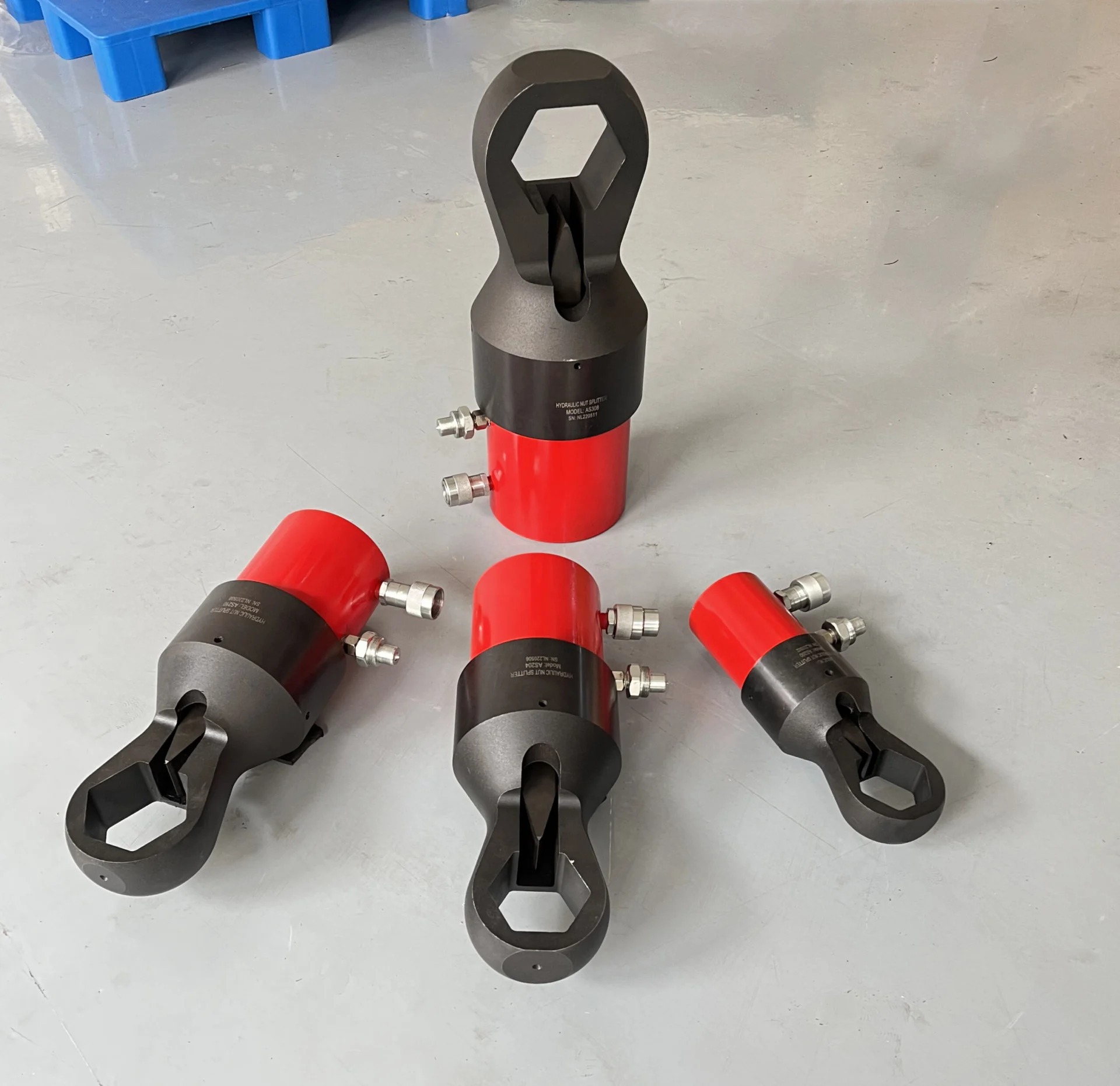

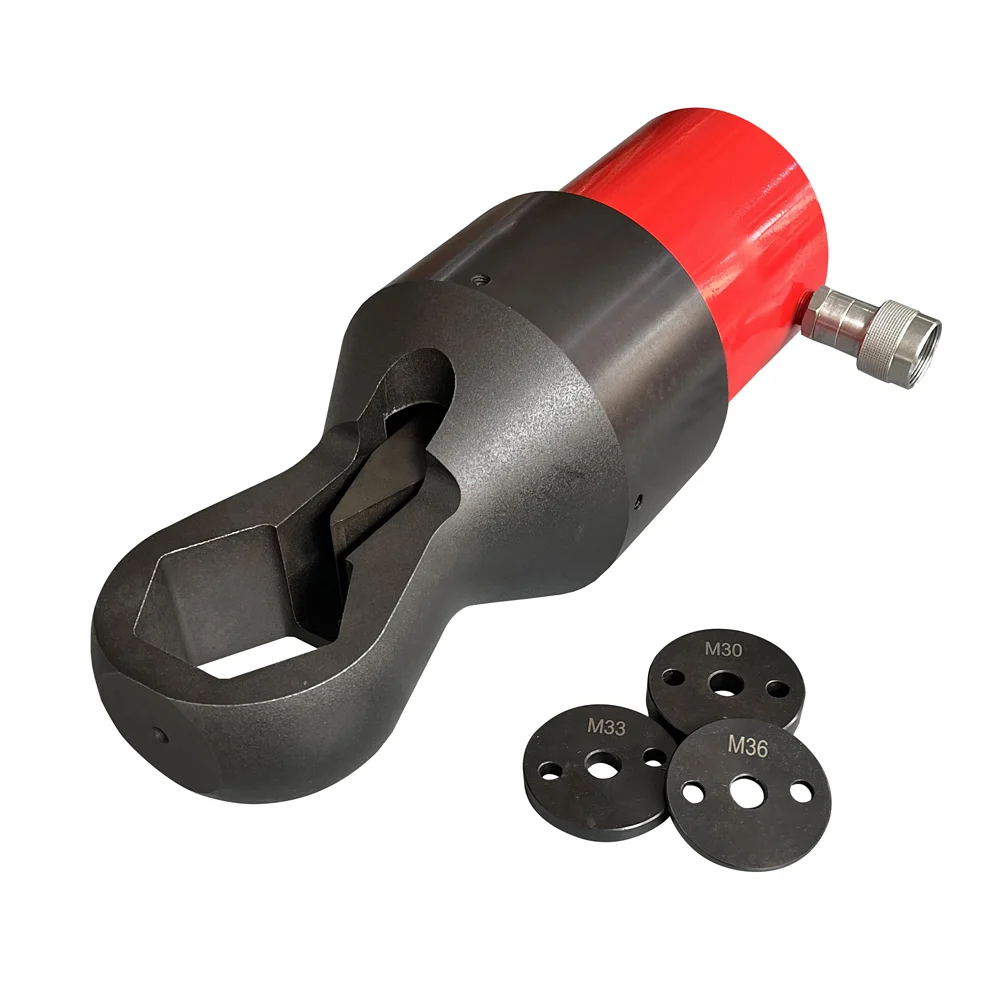

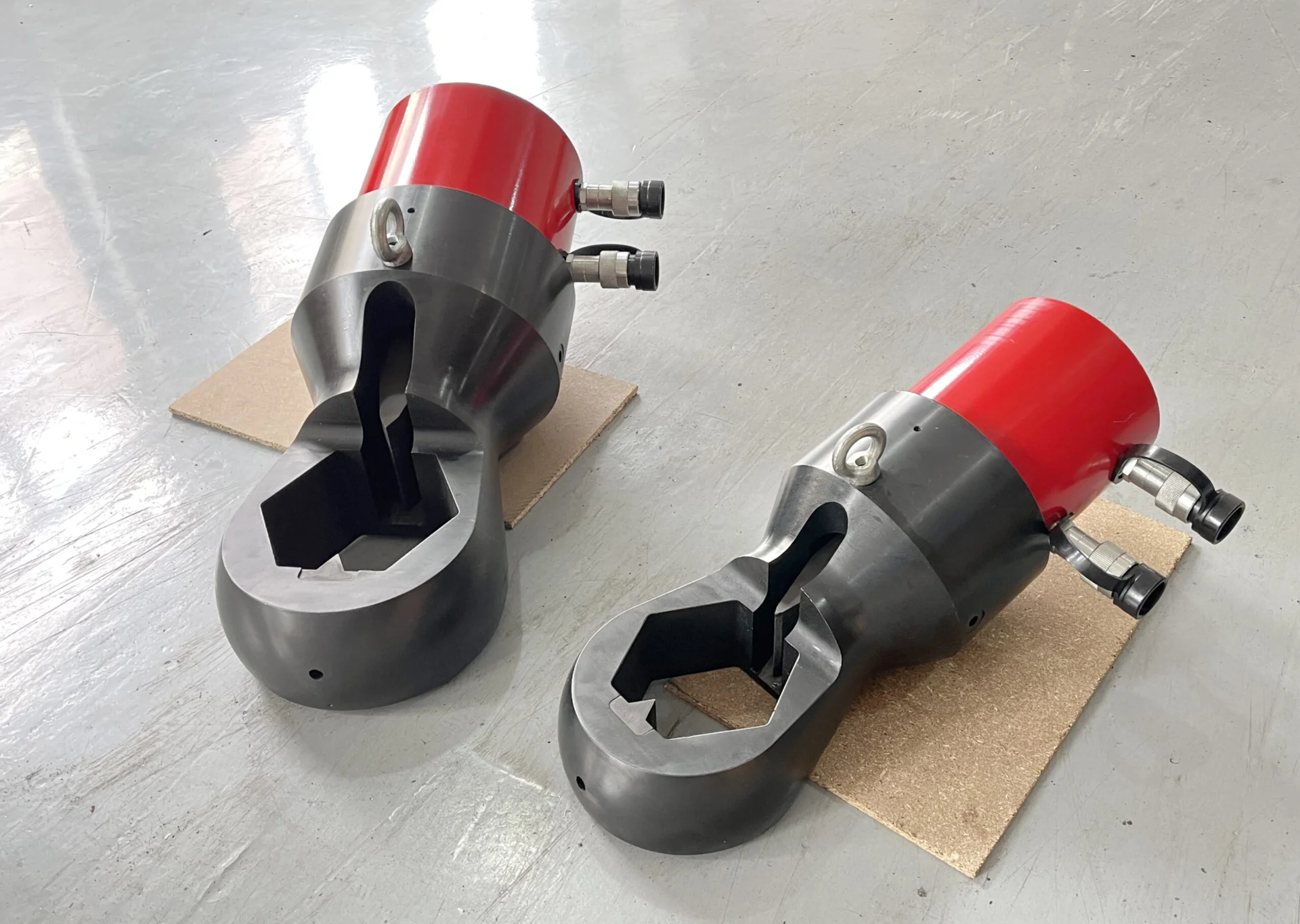

Image Gallery
Series Specifications
| Hexagon Nut: | 16-155mm |
| Bolt Range: | M8-M100 |
| Maximum Operating Pressure : | 700Bar |
| Weight: | 9-176Kg |
Dimension
Series Comparison
| Model | Bolt range inch (metric) | Nut Size inch (mm) | A in(mm) | B in (mm) | C in(mm) | D in (mm) | E in(mm) | F in(mm) | G in (mm) | H in (mm) | J in (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS105 STR | 5/16 – 7/8 (M8-M22) | 1 1/16 – 1 7/16 (16-36) | 1.50 (39) | 11.5 (292) | 3.40 (86) | 0.42 (11) | 2.87 (73) | 3.39 (86) | 7.48 (190) | 3.97 (100) | 1.08 (27) | 9 |
| AS200 STR | 7/8 – 1-1/4 (M22-M33) | 1 7/16 – 2 (36-55) | 1.50 (39) | 12 (305) | 3.40 (86) | 0.50 (13) | 3.63 (92) | 3.88 (99) | 8.00 (203) | 3.97 (100) | 1.63 (41) | 10 |
| AS204 STR | 1 1/4 – 1 1/2 (M30-M39) | 1 3/16 – 2 3/8 (50-65) | 2.25 (58) | 15.8 (401) | 5.00 (127) | 0.69 (18) | 4.42 (112) | 5.05 (128) | 11.47 (292) | 5.87 (149) | 1.74 (44) | 28 |
| AS210 STR | 1 3/8 – 1 3/4 (M36-M45) | 2 7/16 – 2 3/4 (60-75) | 2.25 (58) | 15.7 (399) | 5.00 (127) | 0.67 (17) | 4.50 (114) | 5.44 (138) | 11.38 (289) | 5.97 (149) | 2.06 (52) | 28 |
| AS308 STR | 1 3/4 – 2 1/4 (M45-M56) | 2 3/4 – 3 1/2 (75-90) | 2.93 (74) | 19.1 (485) | 6.25 (159) | 0.88 (22) | 6.28 (160) | 6.00 (152) | 13.12 (333) | 7.25 (184) | 2.63 (67) | 43 |
| AS314 STR | 2 – 2 1/2 (M52-M64) | 3 1/8 – 3 7/8 (85-100) | 3.13 (80) | 19.3 (490) | 6.25 (159) | 0.88 (22) | 6.25 (159) | 6.19 (157) | 13.31 (338) | 7.38 (187) | 2.81 (71) | 45 |
| AS404 STR | 2 1/2 – 2 3/4 (M64-M72) | 3 3/4 – 4 1/4 (95-110) | 3.75 (95) | 19.4 (493) | 8.50 (216) | 1.13 (29) | 7.50 (191) | 6.73 (171) | 13.66 (347) | 9.44 (240) | 3.25 (83) | 93 |
| AS500 STR | 3 – 3 1/4 (M76-M85) | 4 7/8 – 5 (115-135) | 4.13 (105) | 19.6 (498) | 8.50 (216) | 1.13 (29) | 9.00 (229) | 7.06 (179) | 19.92 (506) | 9.94 (240) | 3.59 (91) | 95 |
| AS506 STR | 3 1/4 – 3 1/2 (M85-M90) | 4 7/8 – 5 3/8 (125-135) | 4.13 (105) | 19.9 (505) | 8.50 (216) | 1.13 (29) | 9.31 (236) | 7.29 (185) | 14.23 (361) | 9.94 (240) | 3.81 (97) | 98 |
| AS608 STR | 3 3/4 – 4 (M95-M100) | 5 3/4 – 6 1/8 (140-155) | 5.00 (127) | 22.8 (579) | 10.5 (267) | 1.41 (36) | 11.72 (298) | 9.55 (243) | 16.97 (431) | 12.5 (318) | 4.77 (121) | 176 |
