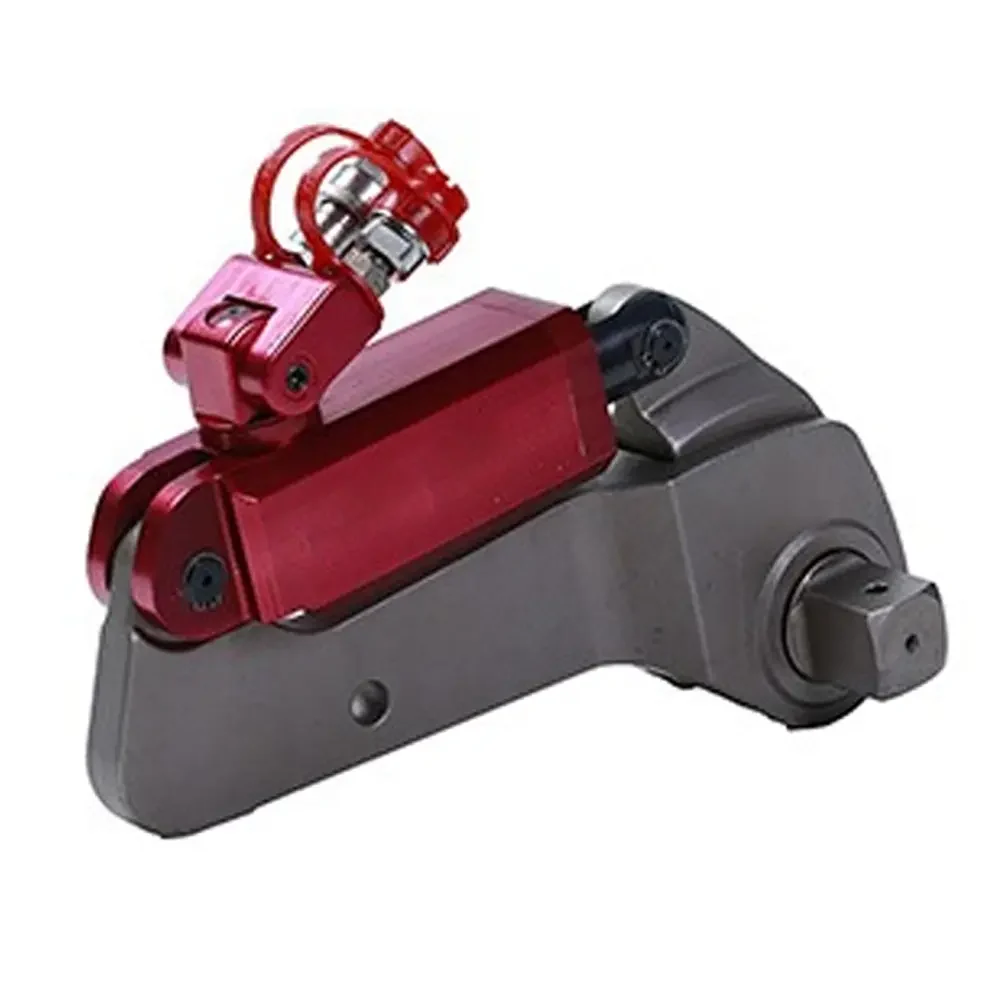

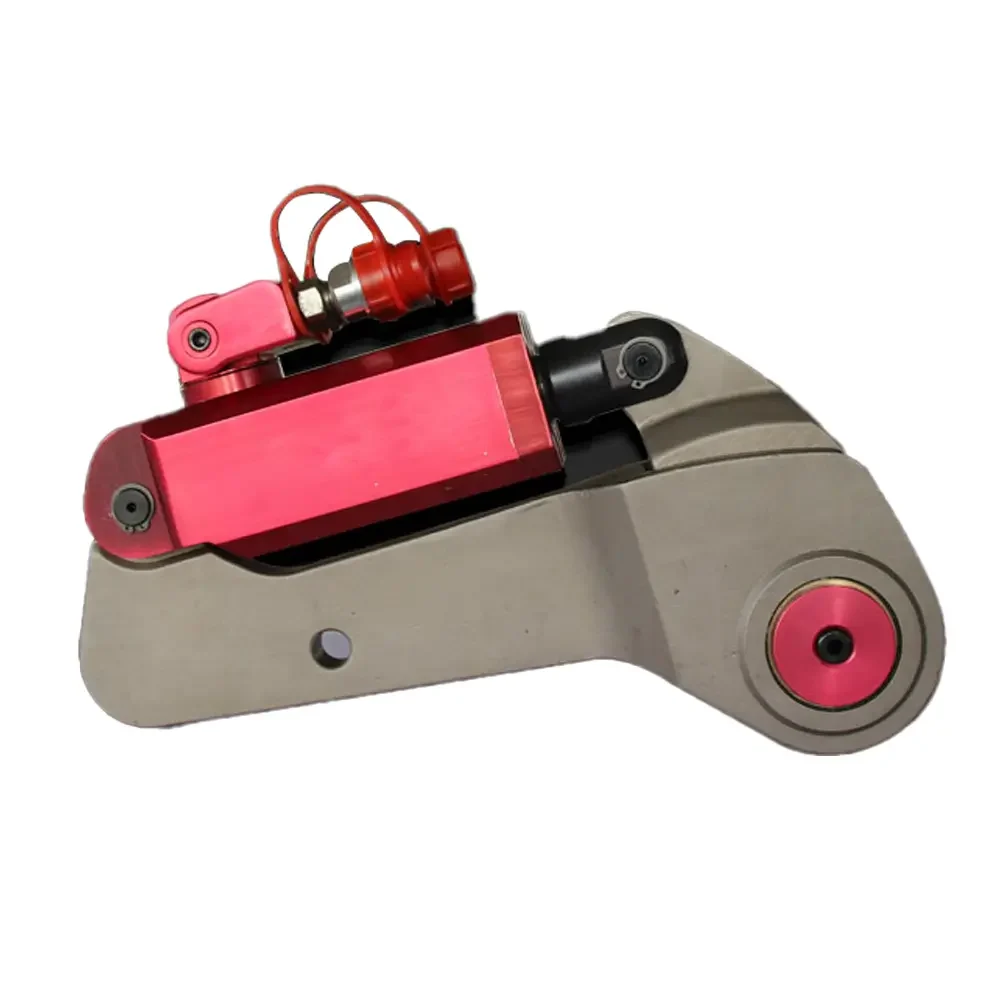

Big Power Hydraulic Torque Wrench
Pullertop big power hydraulic torque wrenches are made of high-strength Aluminum-Titan alloy, strong and durable. Our high torque hydraulic wrenches come with a max torque up to 180000 Nm.
Product Description

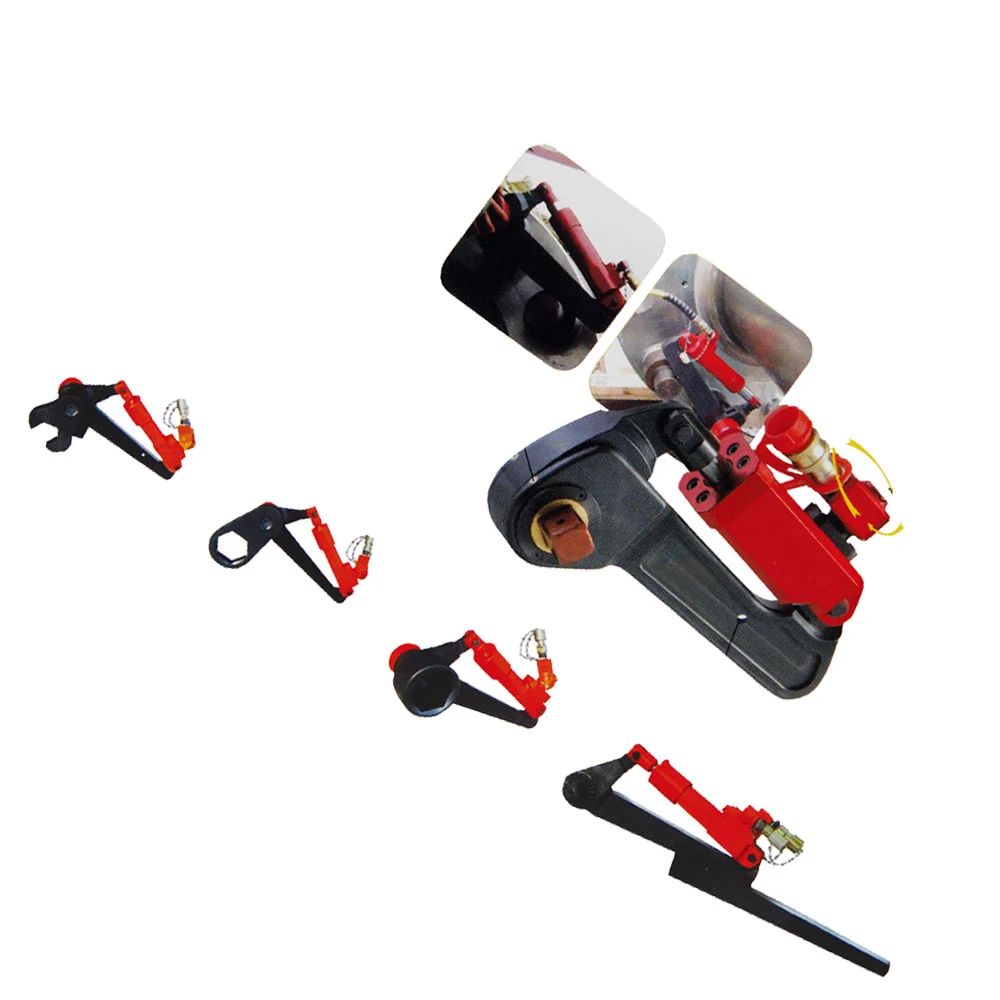

Product Lines: Hydraulic Torque Wrench
- 700bar maximum working pressure,repeat accuracy ±3%.
- 360° multi-positional swivel quick release couplings.
- Aluminum-titanium alloy body,high resistance and lightweight.
- Super big torque design allow 180000Nm torque.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

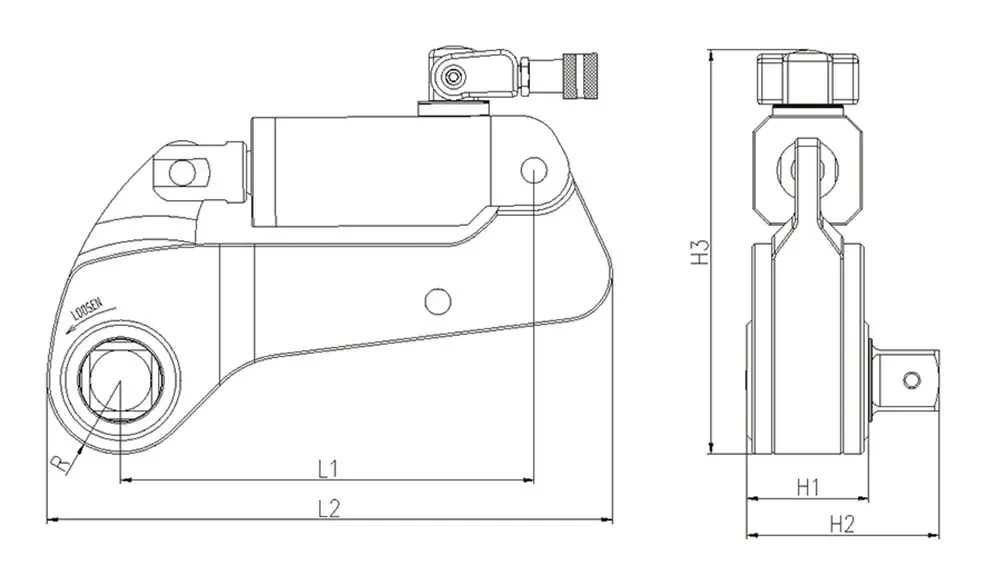

Dimesnion
Series Comparison
| Model | Max. Torque Range (Nm) | Min. Torque Range (Nm) | Accuracy | L1 (mm) | L2 (mm) | H1(mm) | H2(mm) | H3(mm) | R(mm) | Square Drive Metric | Square Drive Inch | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 805 | 4992 | 357 | ±5% | 211 | 289 | 204 | 91 | 50 | 35 | 25X25 | 1” | 7 |
| 810 | 11775 | 841 | ±5% | 256 | 355 | 251 | 125 | 69 | 45 | 38X38 | 1 1/2” | 14 |
| 820 | 19413 | 1387 | ±5% | 274 | 389 | 285 | 141 | 78 | 52 | 64X64 | 2 1/2” | 19 |
| 840 | 38100 | 2721 | ±4% | 329 | 473 | 332 | 174 | 96 | 70 | 64X64 | 2 1/2” | 37 |
| 860 | 57488 | 4106 | ±3% | 370 | 542 | 382 | 179 | 101 | 80 | 64X64 | 2 1/2” | 53 |
| 880 | 80224 | 5730 | ±3% | 396 | 583 | 413 | 216 | 118 | 88 | 76X76 | 3” | 55 |
| 8100 | 103670 | 7405 | ±3% | 430 | 624 | 430 | 227 | 124 | 94 | 89X89 | 3 1/2” | 91 |
| 8120 | 120323 | 8595 | ±4% | 447 | 655 | 453 | 240 | 132 | 102 | 89X89 | 3 1/2” | 122 |
| 8180 | 180677 | 12906 | ±3% | 505 | 758 | 513 | 270 | 150 | 124 | 102X102 | 4” | 175 |
