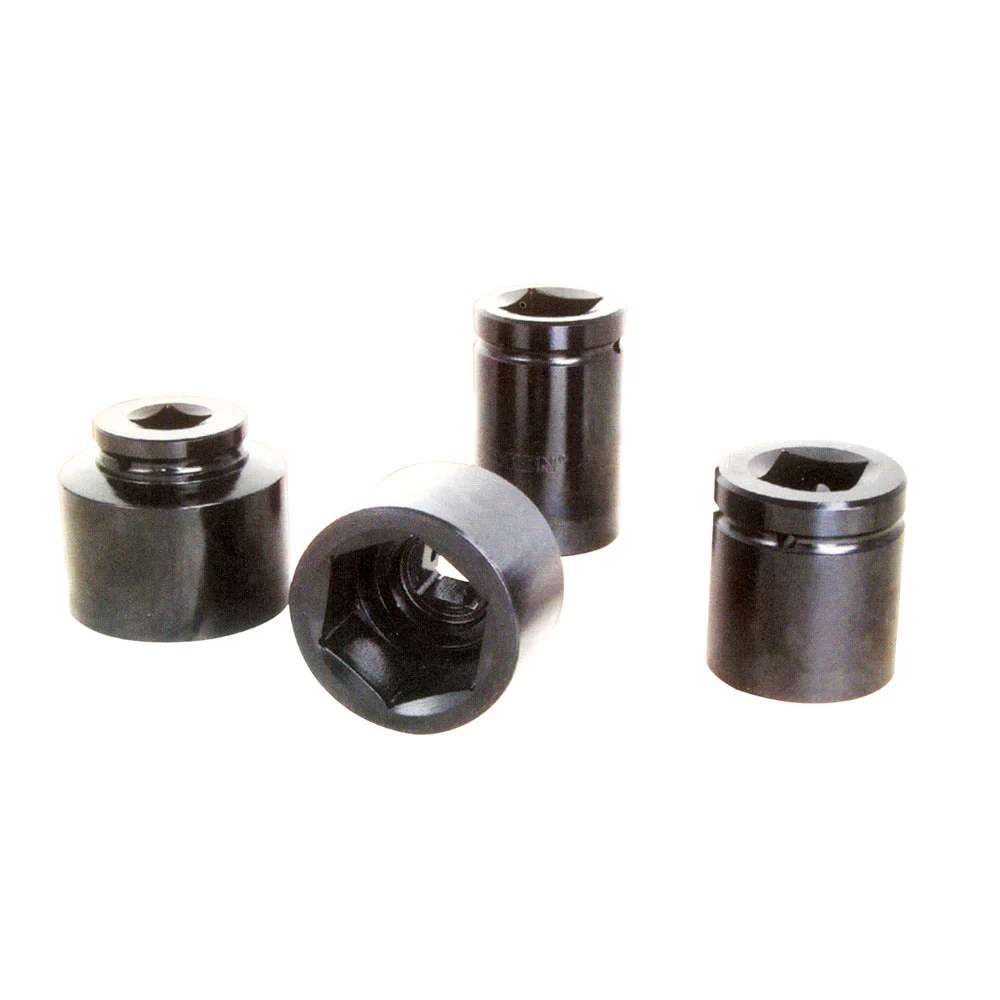

Impact Socket For Square Drive Hydraulic Torque Wrench

Pullertop impact socket used advanced molybdenum steel materials,features a life-long warranty.Manufactured to German specifications(DINstandand 3121&3129).

Upload File

Product Description

Product Lines: Hydraulic Torque Wrench

  • Advanced molybdenum steel materials were adopted for manufacturing. Standard heat treatment process, life-long warranty.
  • Manufactured to German specifications(DINstandand 3121&3129).

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

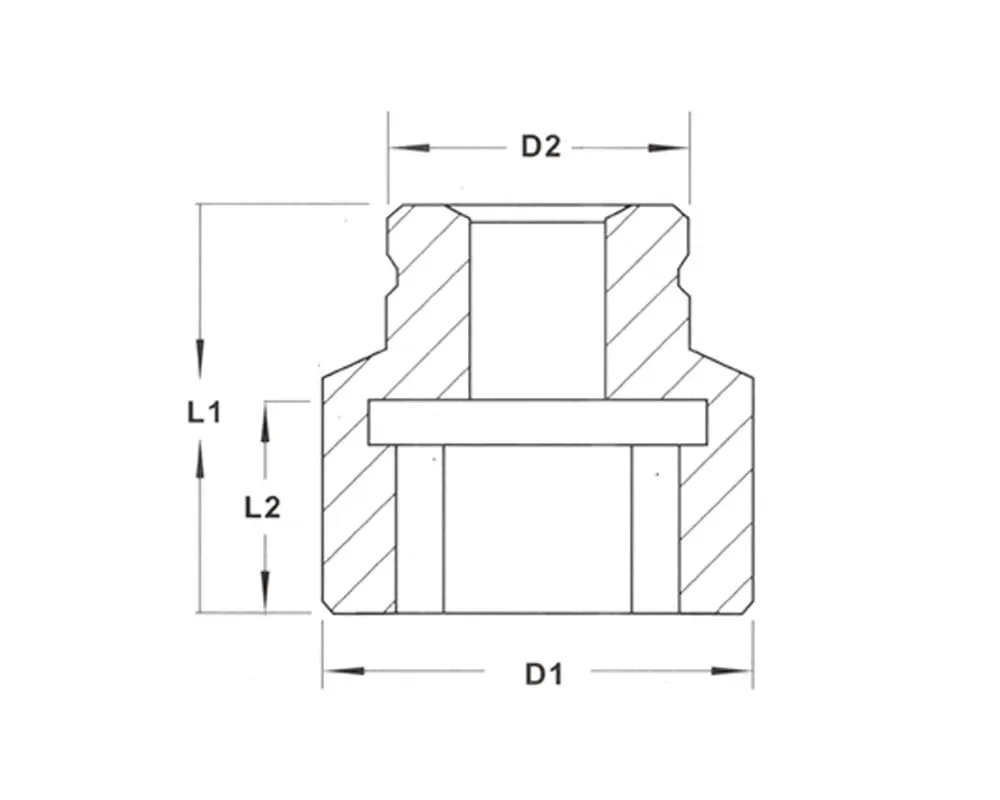

Dimesnion

Series Comparison

Model Bolt Size Nut Size Square Drive Size L1 (mm) L2 (mm) D1 (mm) D2  (mm)
020024 M16 24 3/4” 54 32 40 40
020027 M18 27 3/4” 54 32 42 42
020030 M20 30 3/4” 54 33 46 44
020034 M22 34 3/4” 54 32 48 44
020036 M24 36 3/4” 57 32 53 44
020041 M27 41 3/4” 58 33 60 44
020046 M30 46 3/4” 63 38 66 44
020050 M33 50 3/4” 65 40 71 44
020055 M36 55 3/4” 70 45 77 54
050030 M20 30 1” 59 32 54 54
050034 M22 34 1” 59 32 58 58
050036 M24 36 1” 62 32 59 59
050041 M27 41 1” 65 38 67 54
050046 M30 46 1” 65 38 74 54
050050 M33 50 1” 70 43 79 60
050055 M36 55 1” 80 52 84 60
050060 M39 60 1” 85 57 89 60
050065 M42 65 1” 85 58 98 70
050070 M45 70 1” 90 62 104 70
050075 M48 75 1” 95 65 108 70
0801036 M24 36 1 1/2” 85 44 74 74
0801041 M27 41 1 1/2” 85 44 74 74
0801046 M30 46 1 1/2” 85 44 74 74
0801050 M33 50 1 1/2” 90 45 79 79
0801055 M36 55 1 1/2” 90 45 84 84
0801060 M39 60 1 1/2” 100 45 94 94
0801065 M42 65 1 1/2” 100 45 98 80
0801070 M45 70 1 1/2” 105 50 104 80
0801075 M48 75 1 1/2” 110 50 118 85
0801080 M52 80 1 1/2” 115 55 118 90
0801085 M56 85 1 1/2” 125 60 128 90
0801090 M60 90 1 1/2” 125 60 139 90
0801095 M64 95 1 1/2” 130 65 139 90
0801100 M68 100 1 1/2” 135 70 144 90
0801105 M72 105 1 1/2” 135 70 149 90
0801110 M76 110 1 1/2” 135 70 158 90
0801115 M80 115 1 1/2” 135 70 159 90
0801120 M85 120 1 1/2” 135 70 168 95
0801130 M90 130 1 1/2” 155 93 189 95
2501055 M36 55 2 1/2” 100 57 86 114
2501060 M39 60 2 1/2” 100 52 119 119
2501065 M42 65 2 1/2” 100 52 119 119
2501070 M45 70 2 1/2” 120 67 128 128
2501075 M48 75 2 1/2” 120 67 128 128
2501080 M52 80 2 1/2” 130 71 128 128
2501085 M56 85 2 1/2” 130 71 129 129
2501090 M60 90 2 1/2” 140 73 139 139
2501095 M64 95 2 1/2” 140 73 139 139
2501100 M68 100 2 1/2” 140 81 148 130
2501105 M72 105 2 1/2” 150 89 149 130
2501110 M76 110 2 1/2” 150 90 158 130
2501115 M80 115 2 1/2” 150 98 168 130
2501120 M85 120 2 1/2” 150 98 178 130
2501130 M90 130 2 1/2” 170 98 188 130
2501135 M95 135 2 1/2” 170 114 198 130
2501145 M100 145 2 1/2” 170 122 210 152
2501150 M105 150 2 1/2” 190 140 216 152
2501155 M110 155 2 1/2” 190 140 229 152
2501165 M115 165 2 1/2” 190 140 241 152
